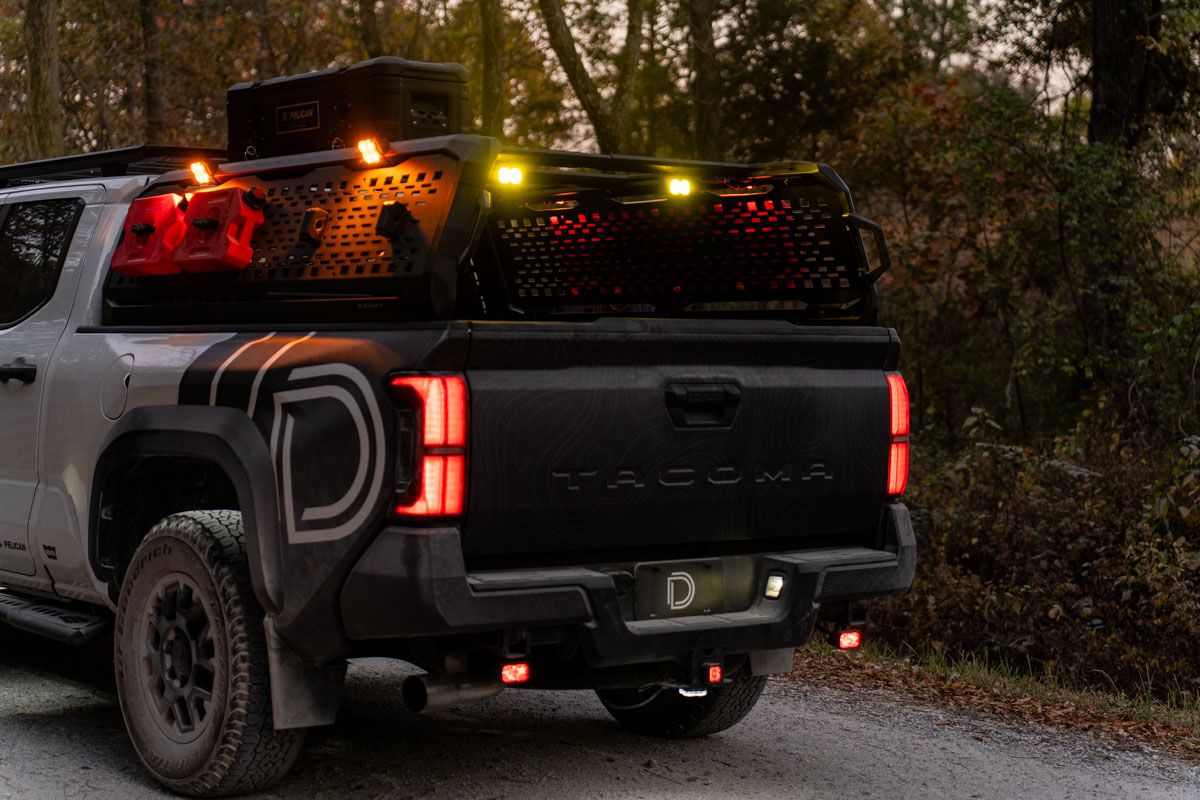

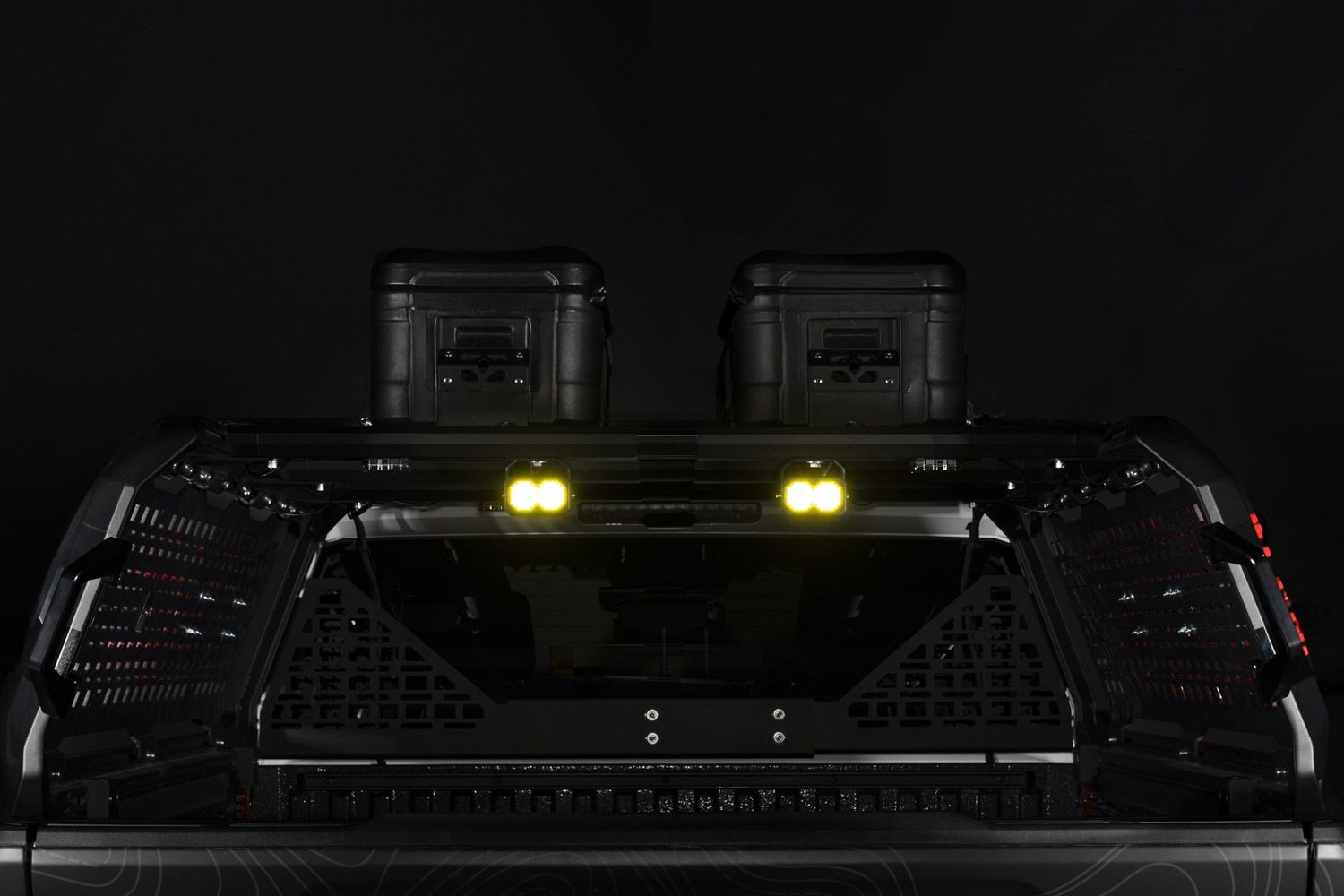

Stay visible on the trail even in dust, fog, or low light, with the Stage Series LED Chase Light Kit for the Kuat IBEX Bed Rack. This bolt-on solution allows you to mount two of our all-new C2 2.0 LED Pods to the rear crossbar of the IBEX rack, providing a powerful rear-facing chase light with significant output. With a high-power yellow main beam and low-power red running light, this chase light kit ensures you’re seen when it matters most.

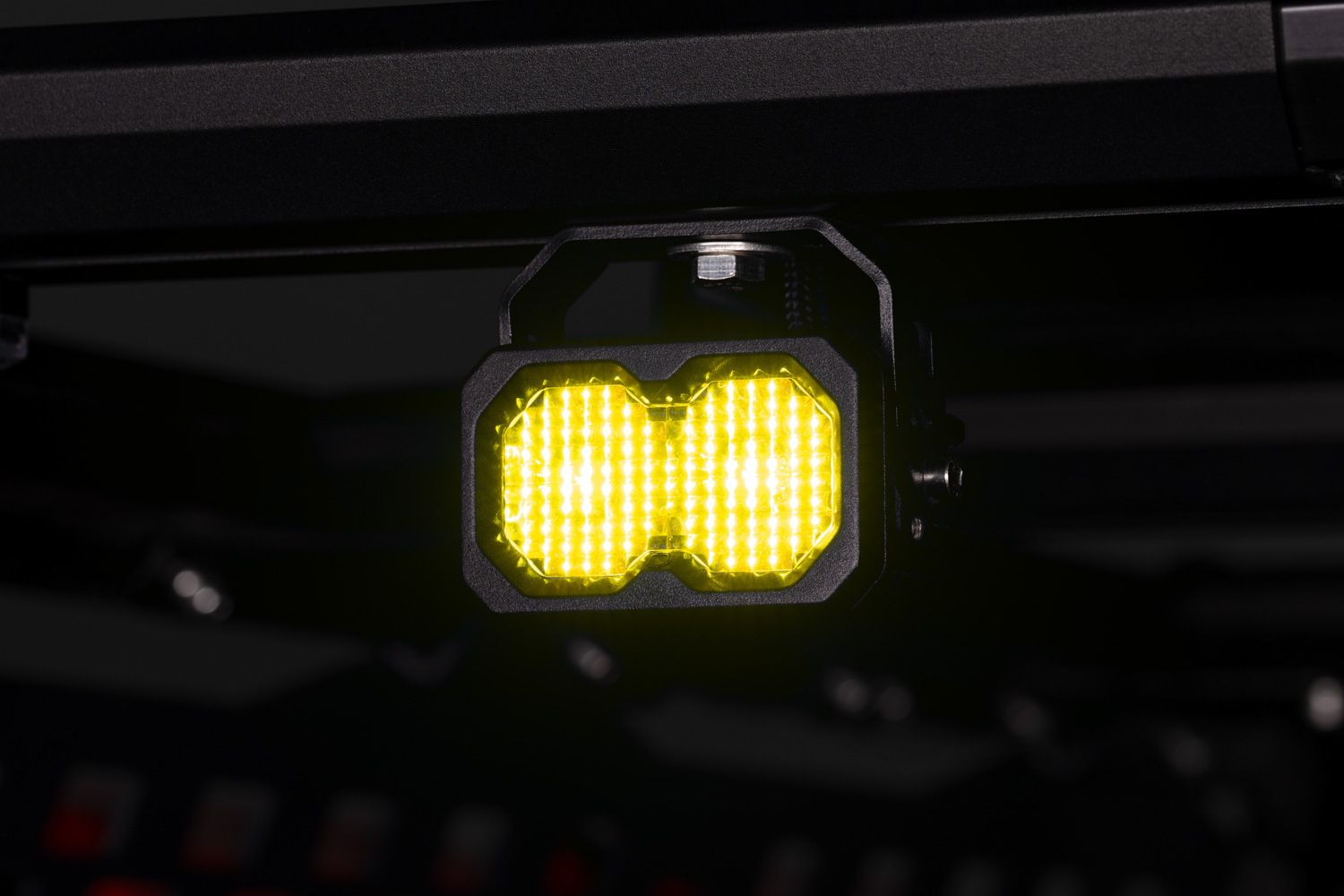

Next-Gen Performance. Built for maximum visibility, the C2 2.0 LED pod represents the next step in compact LED lighting, delivering big performance in a small package. Whether you're out on a dusty trail or stopped at a campsite, these LED Pods cut through haze with a powerful yellow flood beam pattern, ensuring your vehicle stands out to anyone behind you.
Red Running Light. The LED pods included in this kit feature a distinctive red backlight, which can be used as a running light while driving or additional scene lighting when stopped on the trail. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.
Flood pattern was designed to provide uniform, even illumination with a full 70x45 degree spread on the C2 2.0 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.

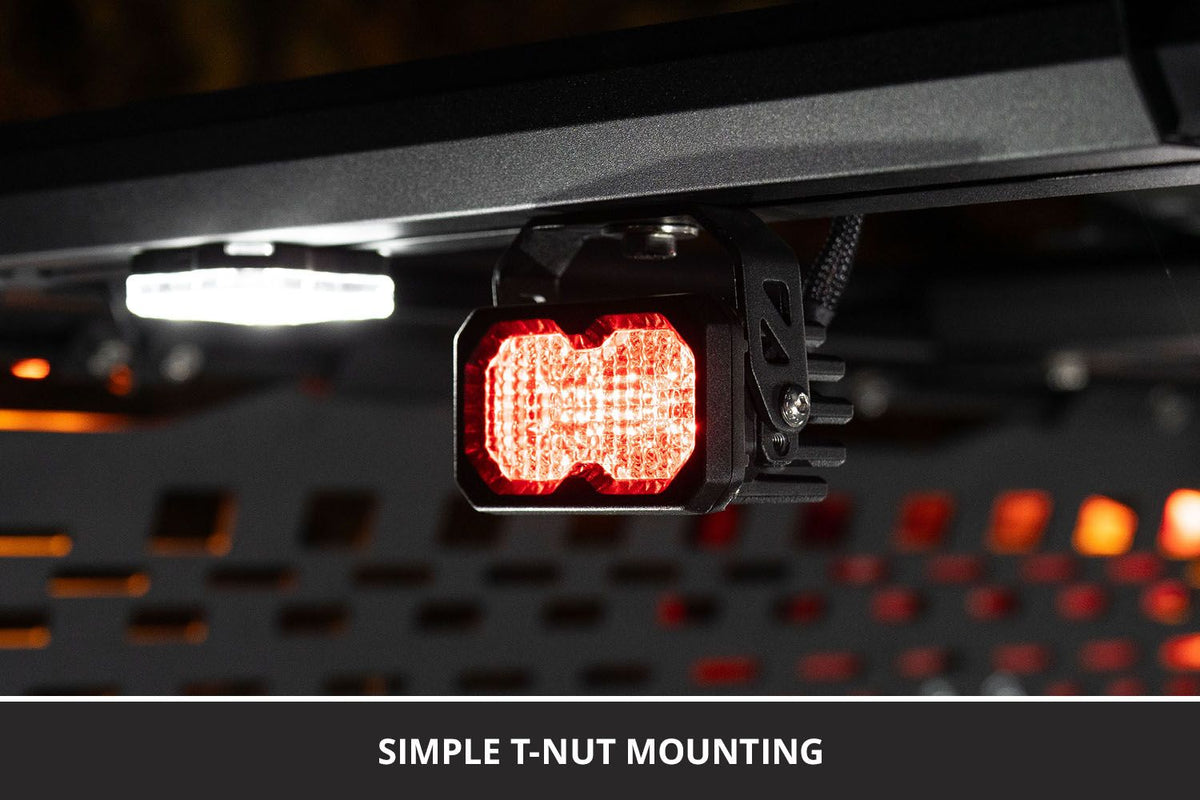

Bolt-On Installation. This kit was purpose-built to integrate seamlessly with the Kuat IBEX bed rack, using the rear crossbar for a clean, factory-style fit. Every detail, from bracket alignment to wiring accommodations, was designed to complement the rack’s design without the need for modification. The C2 2.0 LED chase light kit provides a uniform appearance that looks right at home on any IBEX-equipped vehicle.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
