Dinan - Stage 1 Suspension System - 1996-1999 BMW M3 - D190-3211K

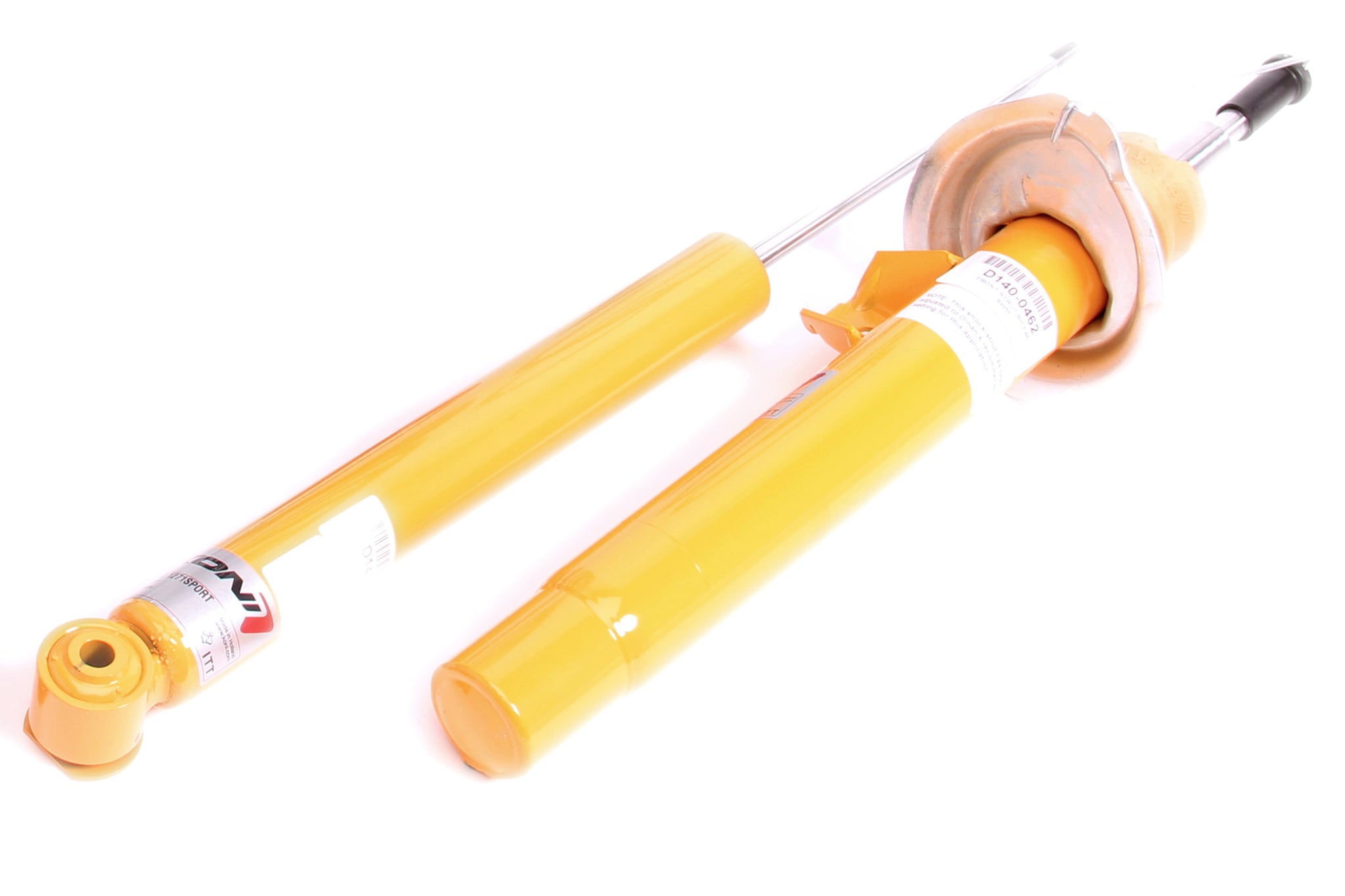

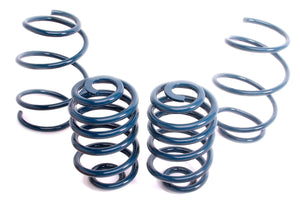

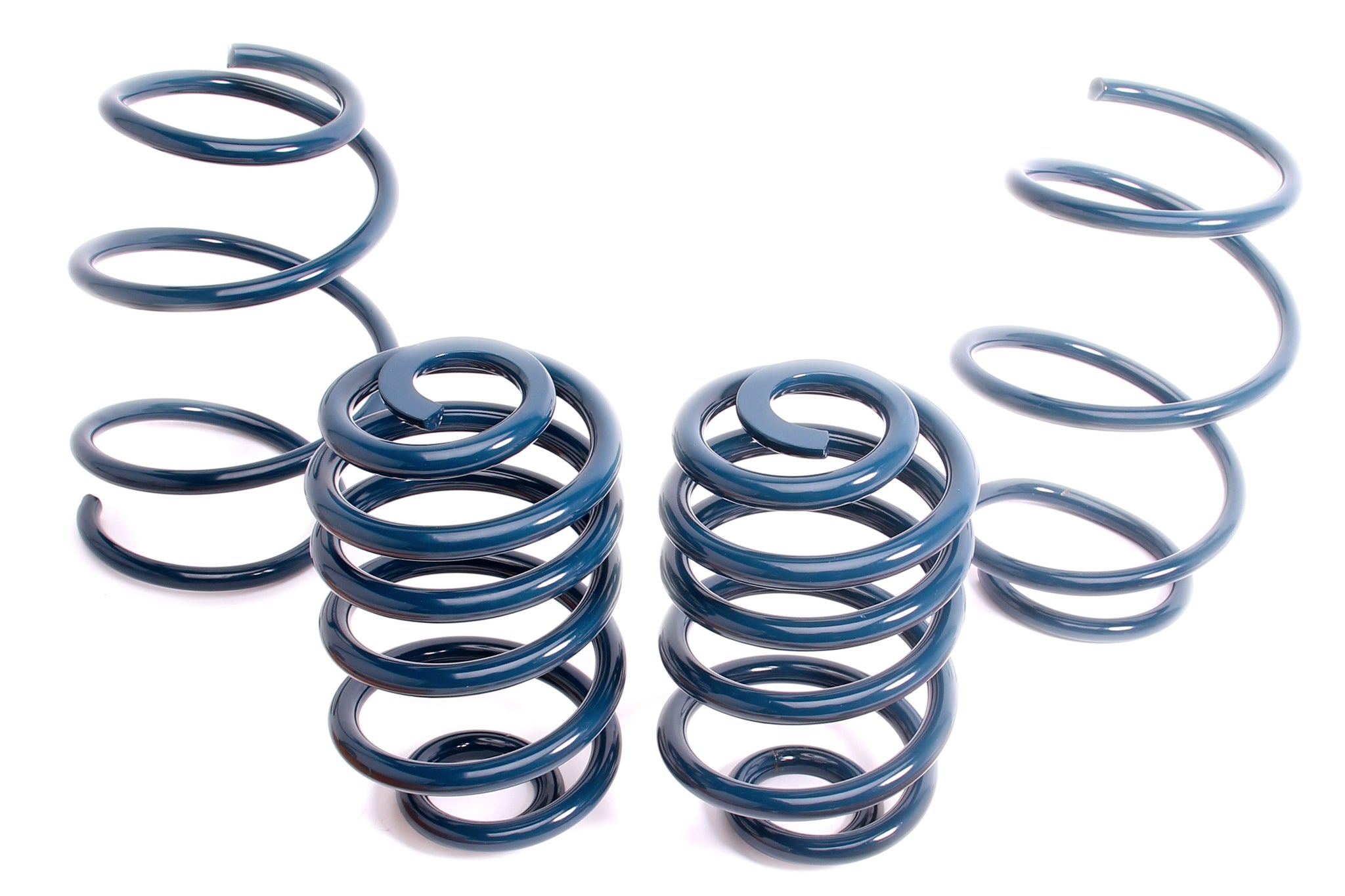

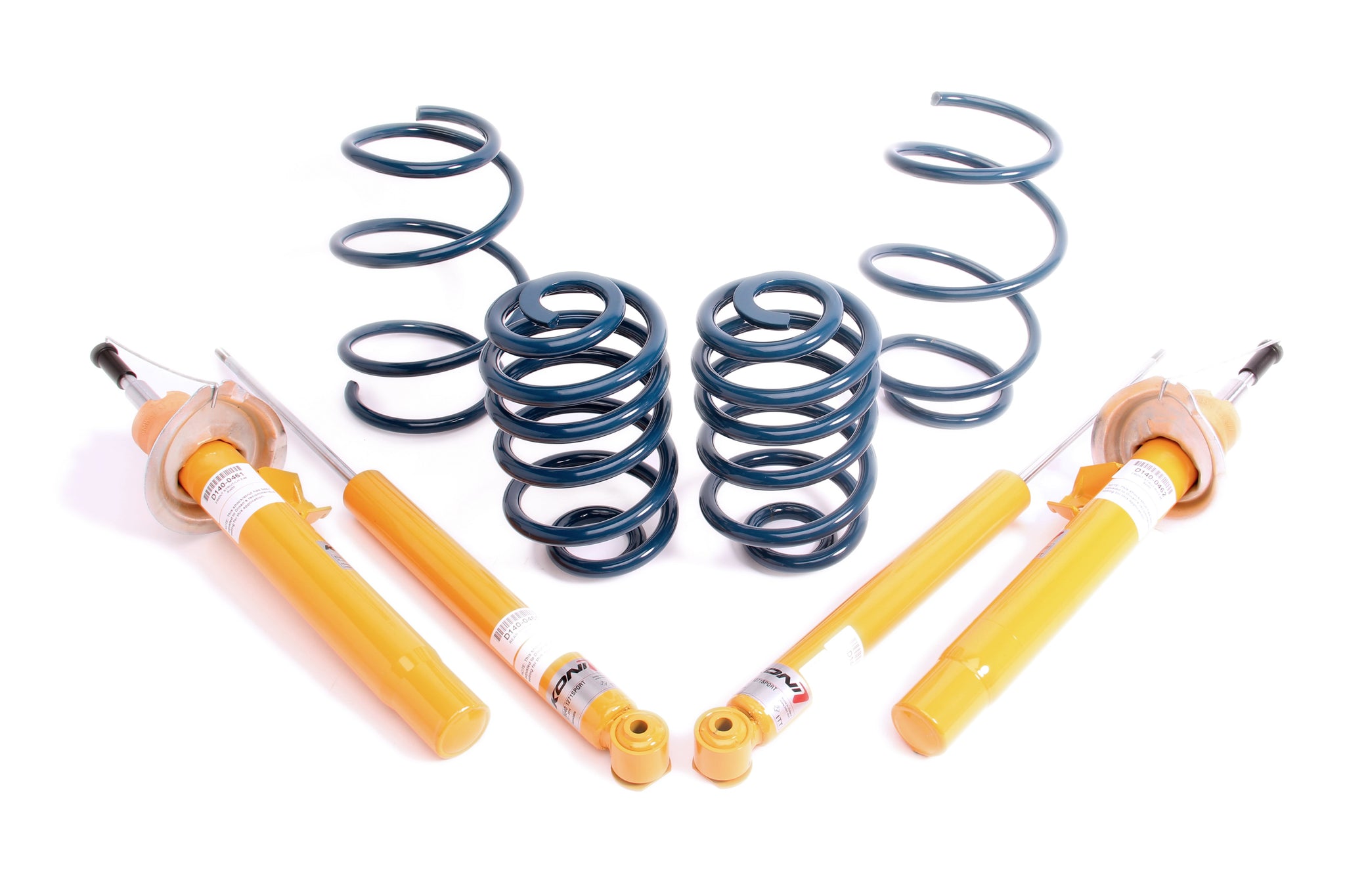

The Stage 1 Suspension System has been designed to address the foundation for performance handling. The system consists of a set of performance-tuned springs and carefully matched Koni adjustable front strut assemblies and rear shocks. The system provides superior handling through increased grip and reduction of body roll while maintaining a nicely dampened ride. The modestly lower ride height gives the car a tastefully enhanced performance look as well as improving suspension geometry. The Koni struts feature externally adjustable rebound dampening via a knob located at the top of the strut. The shocks are also rebound adjustable requiring removal for adjustment.

Features

• Complete base suspension kit inclusive of springs, struts and shocks.
• Improved handling and grip.
• Reduction of body roll.
• Maintains comfortable ride quality.

Specifications

Note: Not compatible with the convertible.

5 This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Installation Instructions:

• Installation Instructions (PDF)
