Dinan - High Performance Adjustable Coil-Over Suspension - 2012-2016 BMW M5 - D190-1011

For the driver that demands the best out of their vehicle. The Dinan Adjustable Coil-Over Suspension was bred in the race lab but refined on the street for maximum versatility. No matter the environment the traction that is bestowed upon the vehicle from the improved suspension will inspire new found confidence when running at higher speeds. Combined with a substantial reduction in body roll as well as reducing dive under braking and squat under acceleration, Dinan will guarantee you superior handling, performance, and comfort.

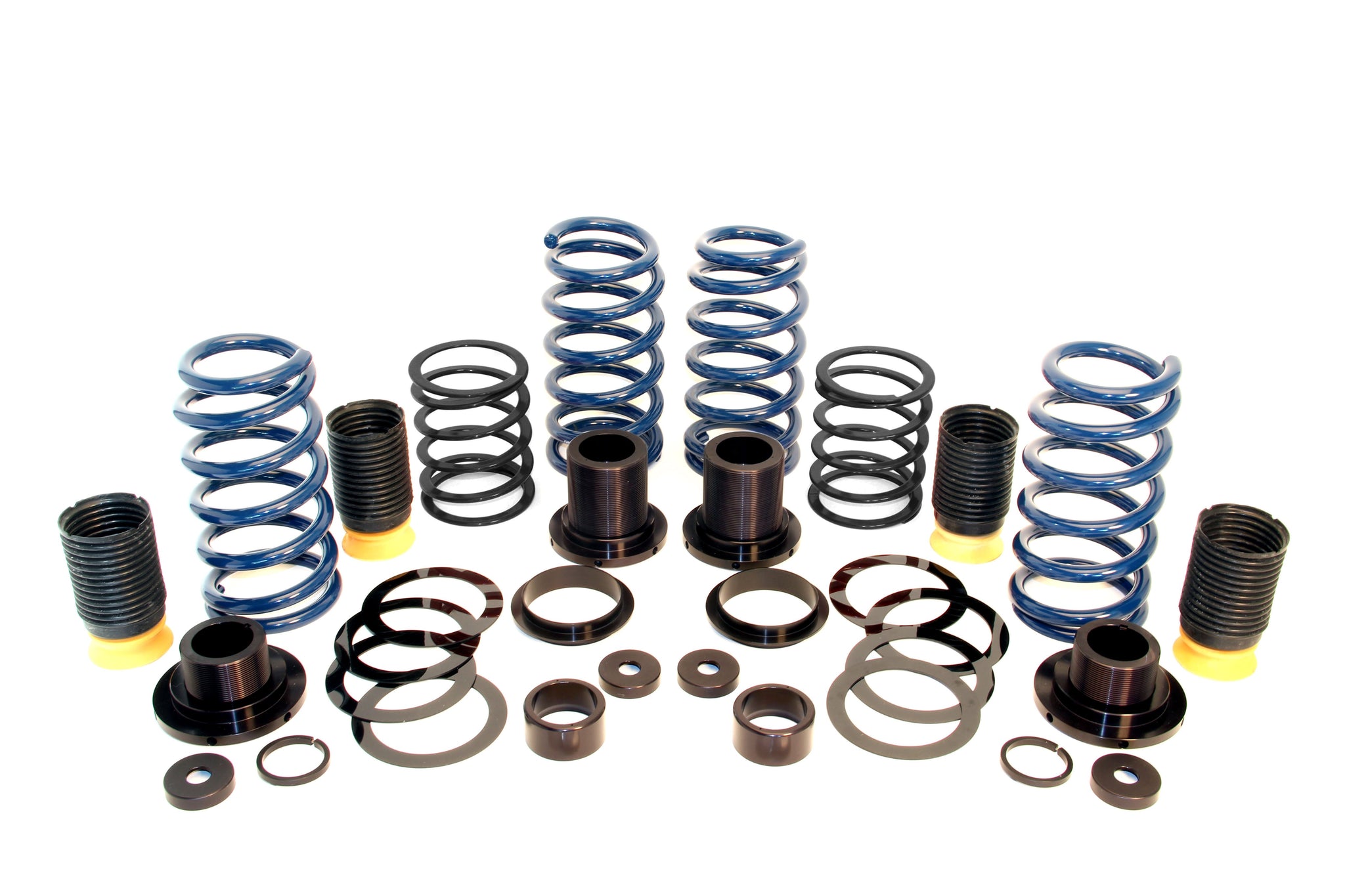

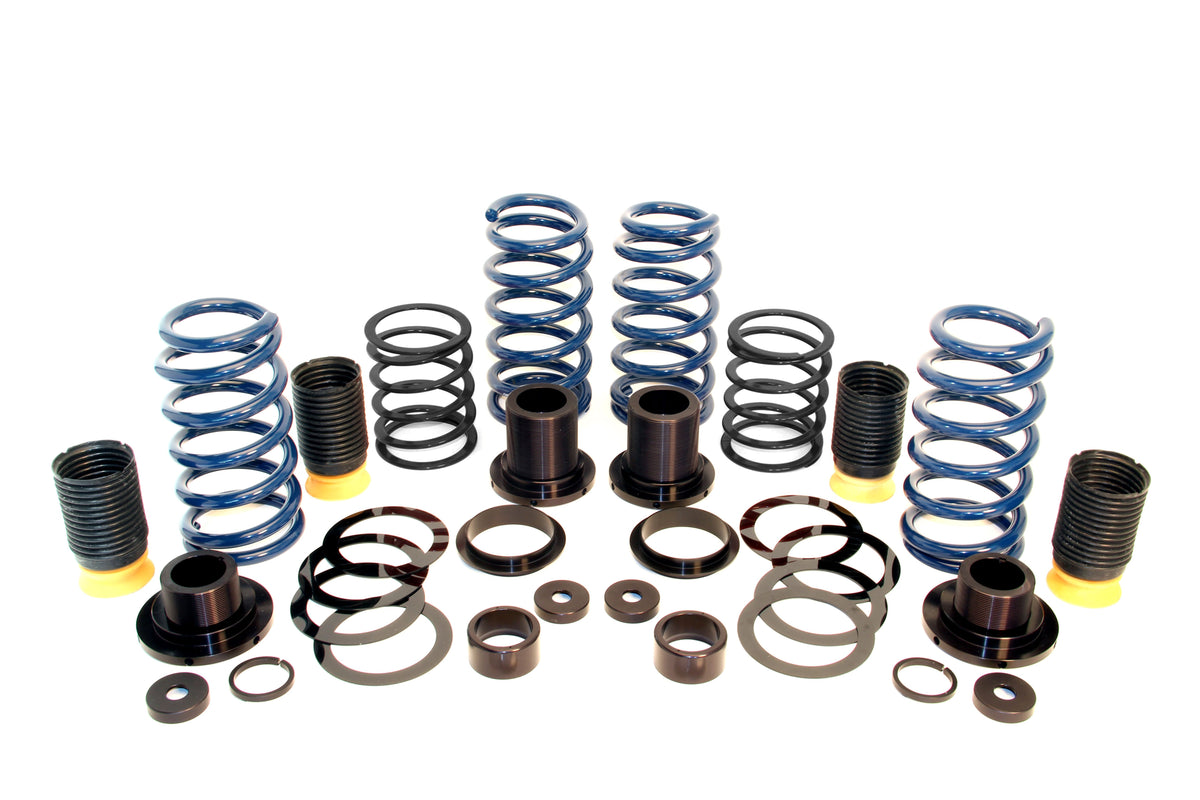

Dinan's design keeps the factory Electronic Damper Control shocks in place and implements threaded collars to allow the user to change the ride height. The end result is a sleek lowered stance that provides improved handling to go along with its stunning visual appearance. The springs combined with progressive bump stops and other components increase travel that allows the car to be lowered up to a 1.25" (1.125" on the M6). Suspension packers are included to fine-tune handling and comfort by changing the clearance of the progressive bump-stops something no respectable racecar is without. Components are machined from 6061-T6 aluminum and black anodized for appearance and corrosion protection.

Due to the extensive lowering possible and the increased suspension travel, the installer must carefully evaluate tire clearance under all situations. Safety will be compromised if all precautions are not taken. Dinan is not responsible for any property damage or injury.

Features

• Threaded collars allow easy and precise front & rear vehicle height adjustments.
• Up to 1-1/4" of lowering is possible depending on tire clearance although 3/4" drop is recommended to maintain ride quality. (M5)
• Up to 1-1/8" of lowering is possible depending on tire clearance although 5/8" drop is recommended to maintain ride quality. (M6)
• Spring rates are 15% stiffer for both front and rear.
• Substantial reduction in body roll.
• Included suspension packers allow adjustment of bump-stop clearance to fine-tune handling and comfort.
• Dinan-spec progressive bump stops improve ride quality at lowered ride heights.
• Components are machined from 6061-T6 aluminum and black anodized for a sporty
• Compatible with BMW EDC shocks.

Specifications

5 This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations.

Installation Instructions:

• Installation Instructions (PDF)

Fits:

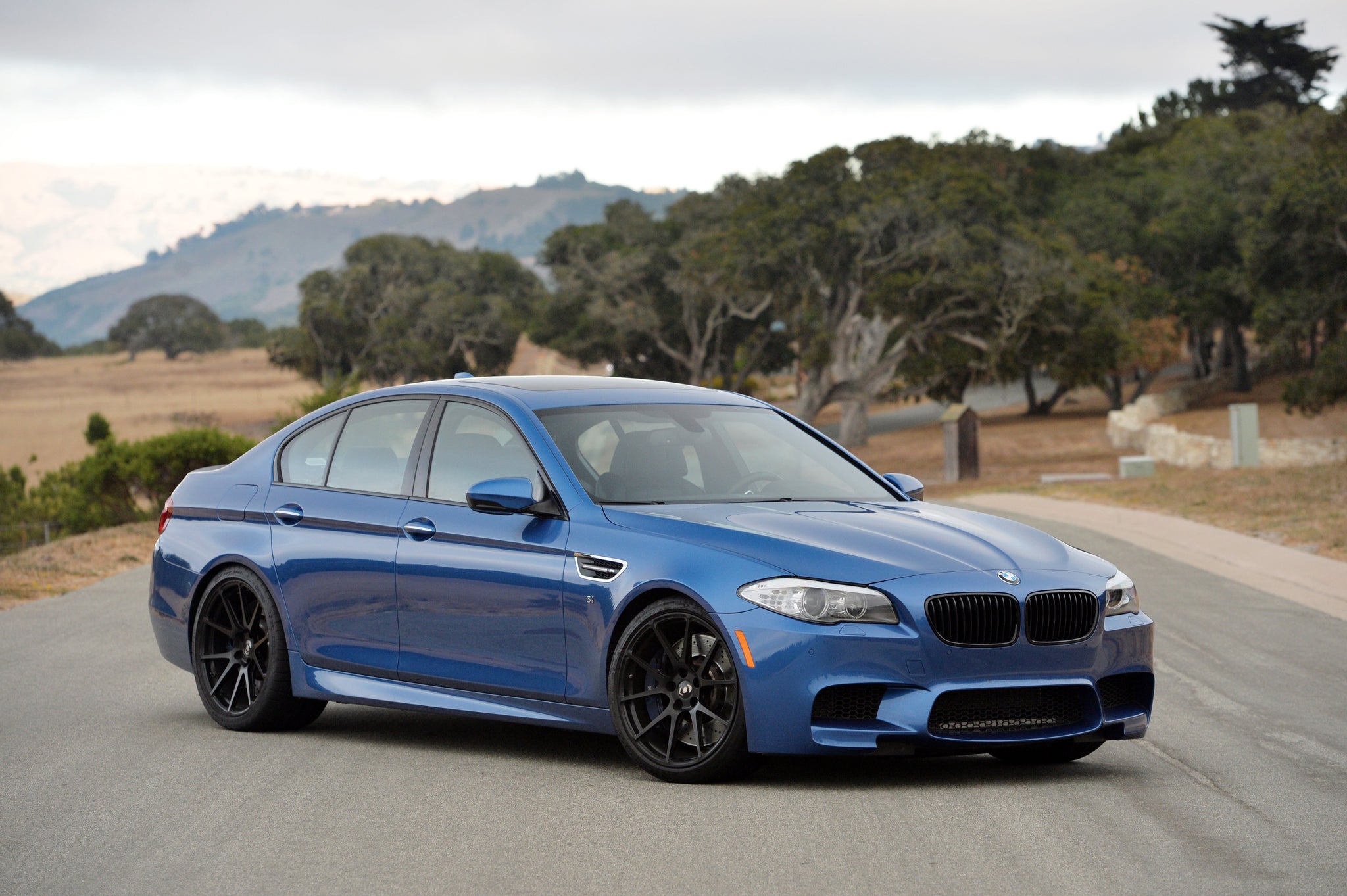

Dinan High Performance Adjustable Coil-Over Suspension - 2012-2016 BMW M5

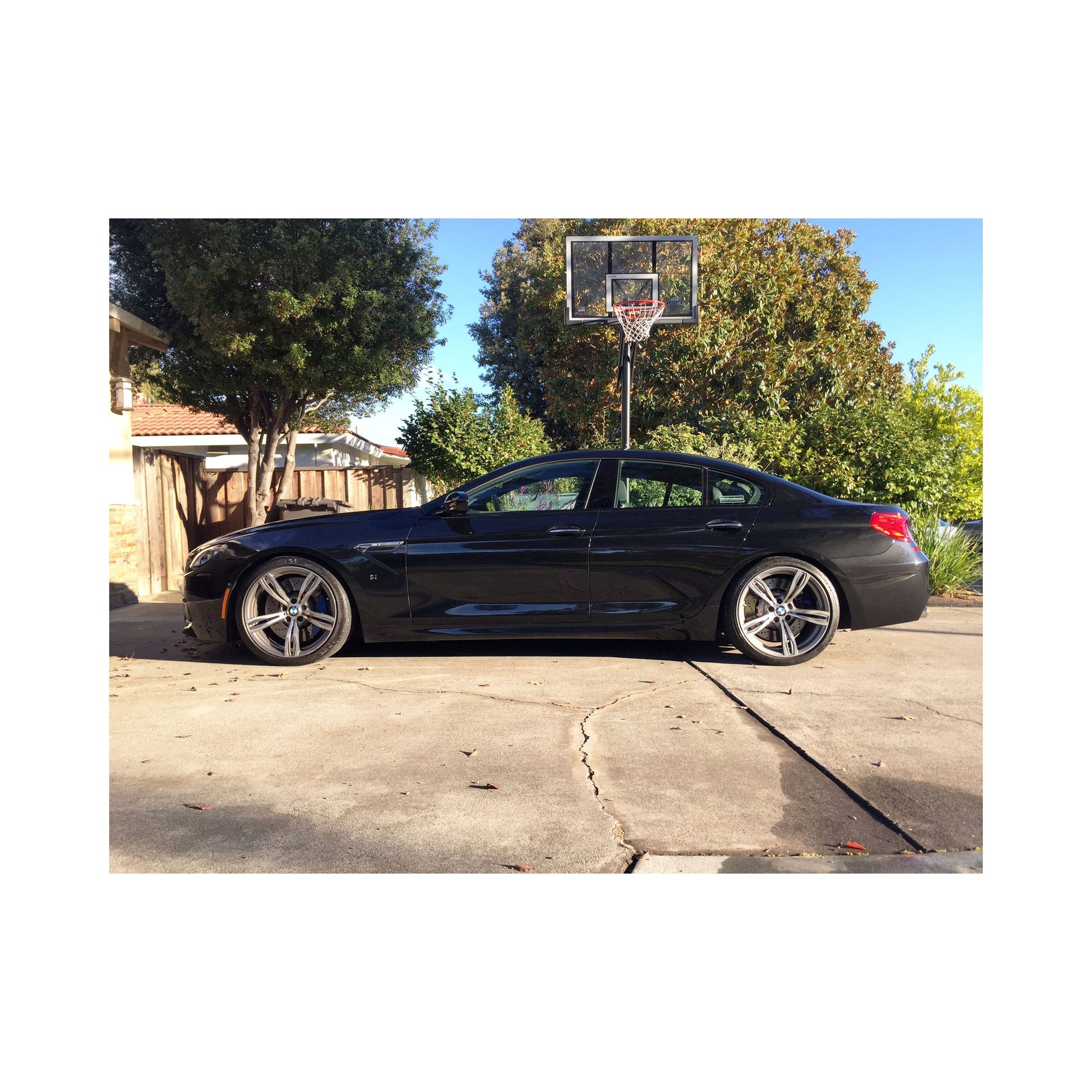

Dinan High Performance Adjustable Coil-Over Suspension - 2014-2019 BMW M6 GC
