Dinan's High Flow Air Mass Meter and Intake Assemblies reduce the intake restriction presented by the stock configuration for a better breathing engine. Increasing the flow of cool, oxygen-rich air increases power output by 21 horsepower, as well as providing improved throttle response. The Dinan High Flow Air Mass Meters are also included, providing a full 22% increase in airflow.

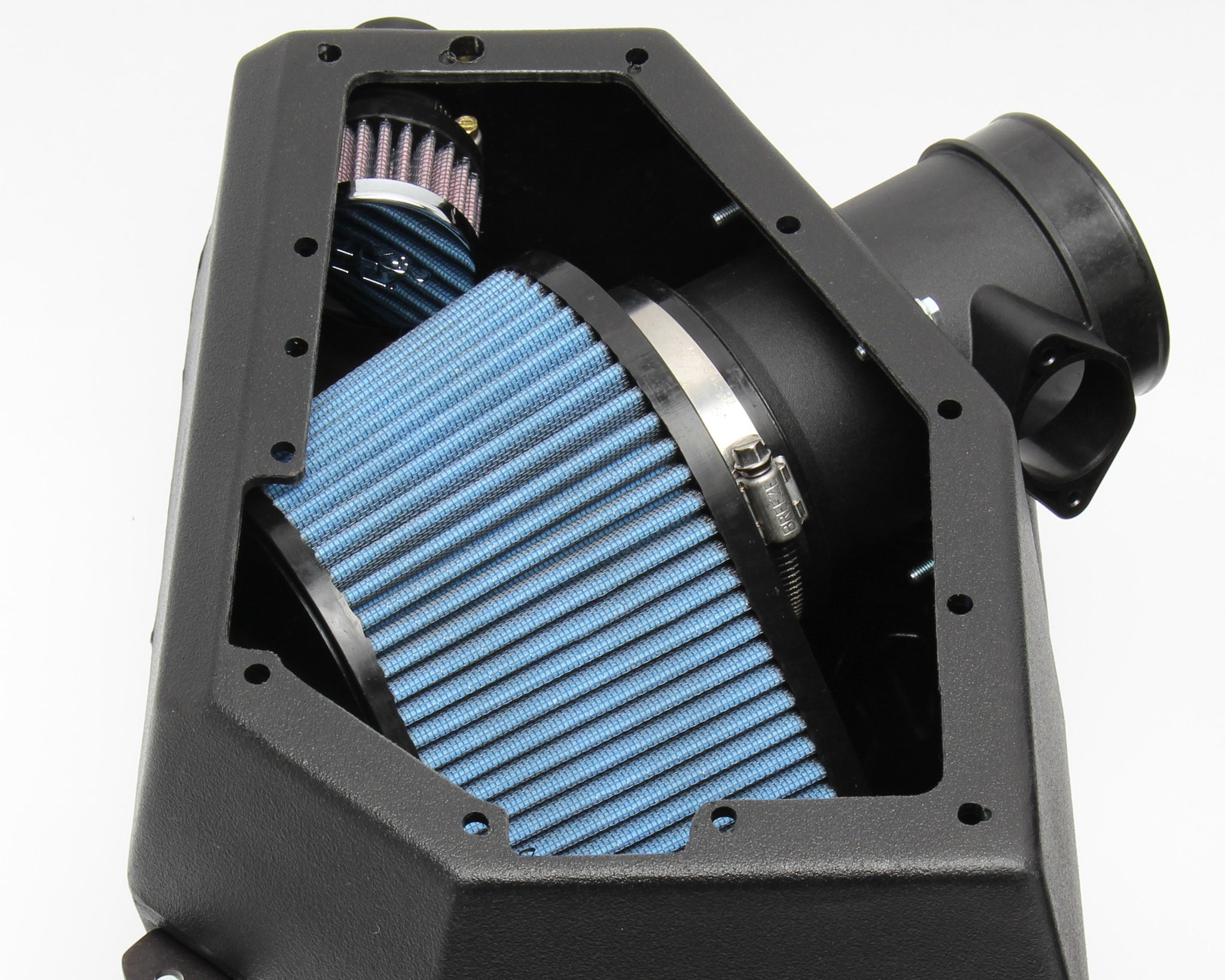

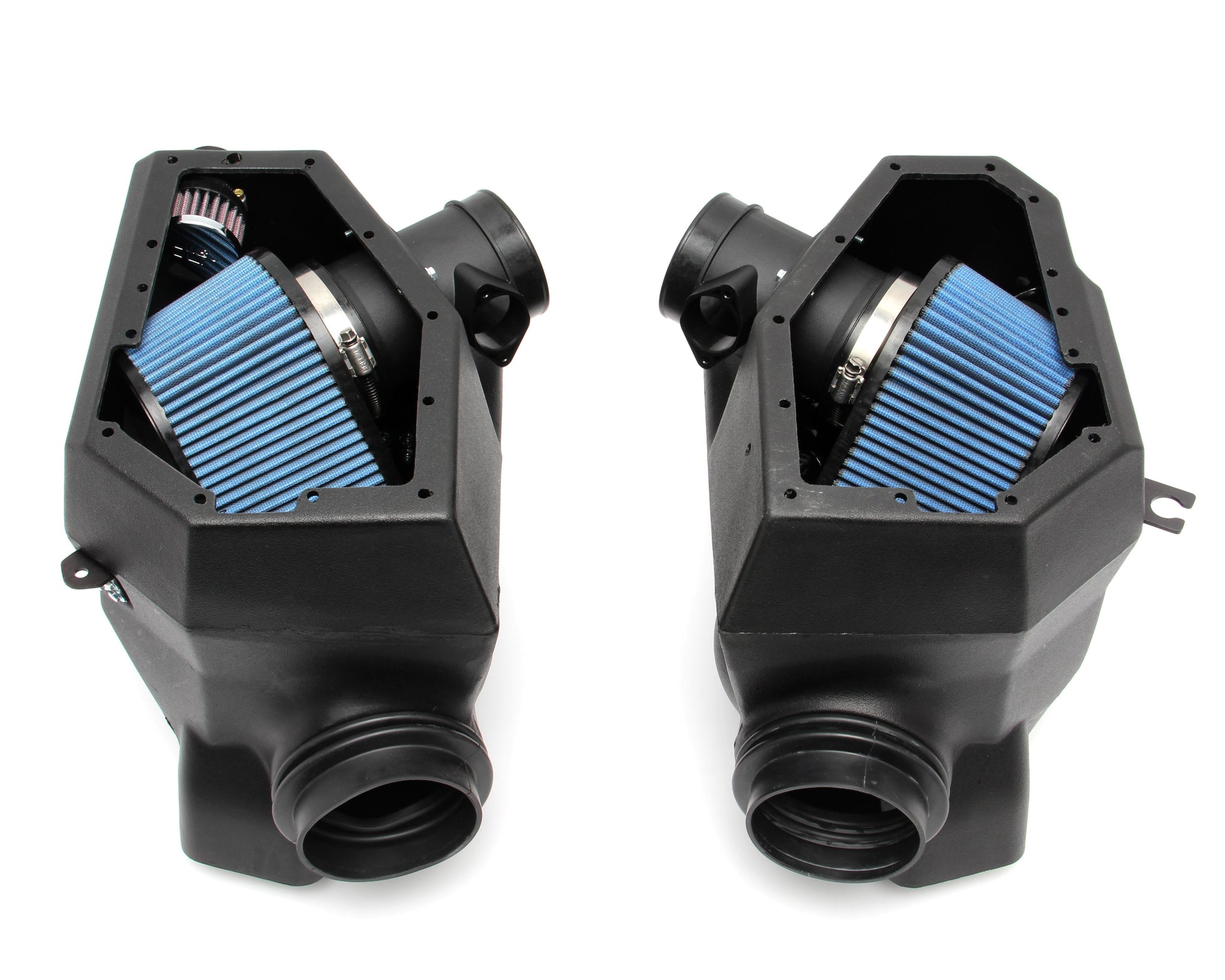

The stock air filter housings are replaced with Dinan's larger volume units that have been designed to accommodate oval-shaped filters, providing greater surface area for superior flow. The intake enclosures also include the activated carbon absorption material, providing the same function as the stock configuration without the significant restriction to airflow. The Dinan air boxes are completely sealed enclosures, virtually eliminating the pressure drop measured with the stock units. The sealed enclosures also insulate against power-robbing heated air under the hood for maximum power output.

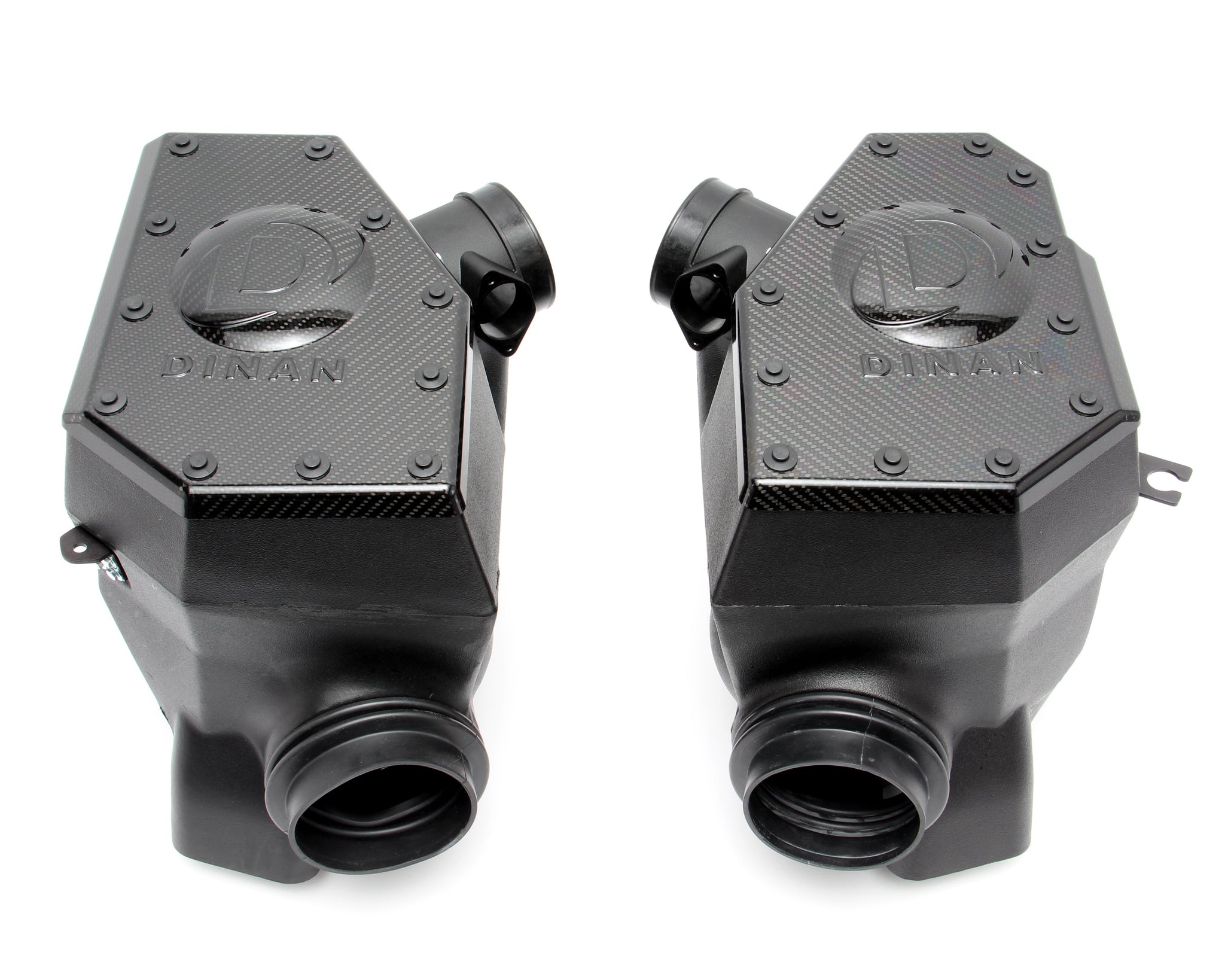

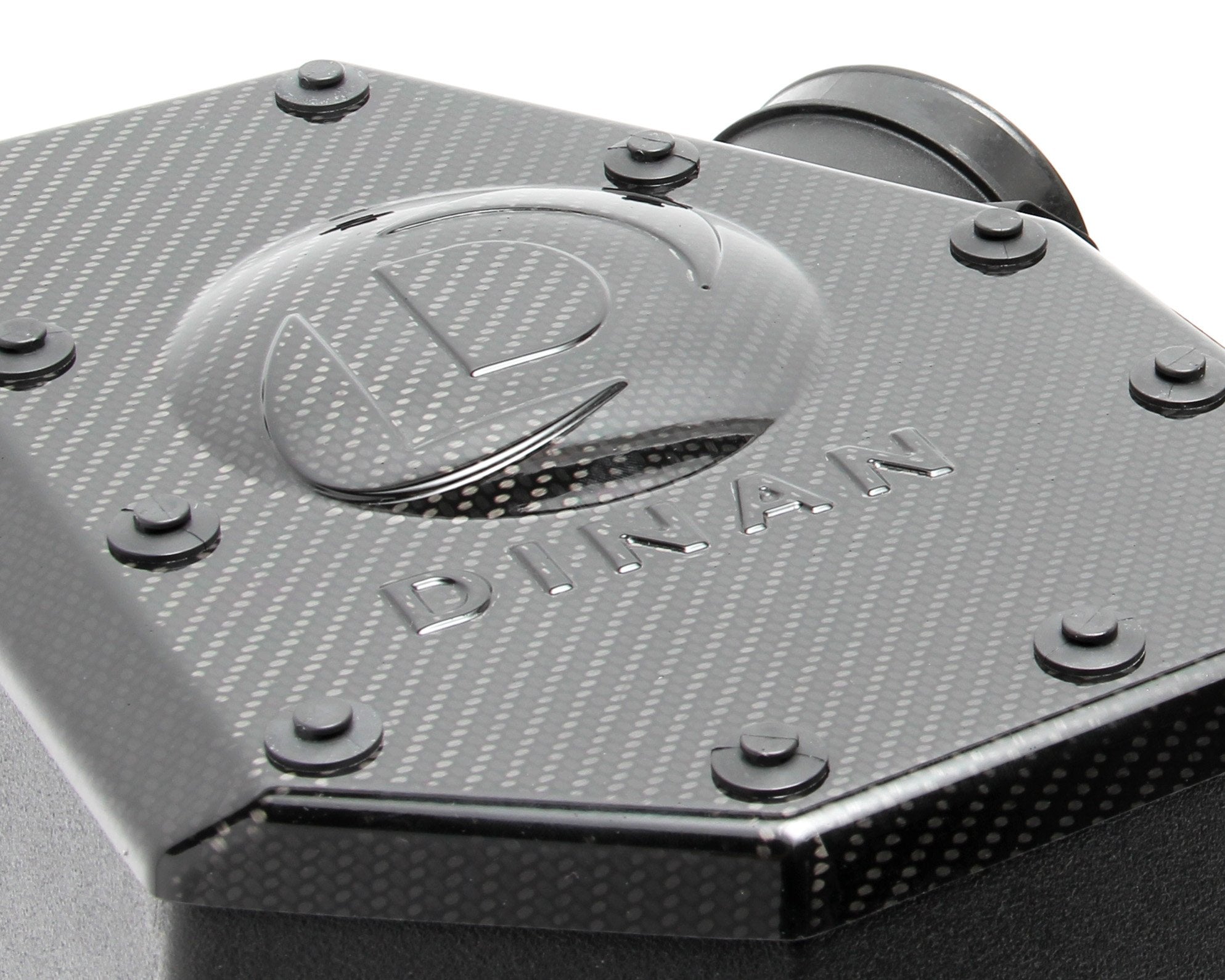

The carbon fiber airbox lids are both functional and handsome additions to the engine compartment. The weave perfectly matches the Dinan front strut tower brace for a very tasteful high-performance look.
Features
- More Power: + 21 HP @ 7500 RPM, + 14 LB-FT @ 7500 RPM (coupled w/ engine software)
- Increased engine output across the power band
- Improved throttle response
- Carbon Fiber construction
- Sealed system for maximum insulation from power robbing heat
- Enlarged filter elements for optimum flow
Specifications
| Category |
Air and Fuel Delivery |
| Dinan Point Value |
3 |
| Emission Code |
7 |
| Height |
16 |
| Labor Time (Hours) |
4 |
| Length |
22 |
| Max HP Gain |
21 @ 7500 RPM |
| Max Torque (lb-ft) Gain |
14 @ 7500 RPM |
| Part Type |
Air Intake Kit |
| Product Type |
Cold Air Intake |
| Sub Category |
Service Kits |
| Weight |
17.2 |
| Width |
18 |
| UPC |
813725022208 |
| Part Number |
D763-0044 |
Note: Stage 3 Engine Software recommended for optimum performance and drivability.
This part is legal under the provisions of EPA's Tampering Policy dated November 23rd, 2020. The company has reasonable basis (test results) to verify that this product allows the vehicle to operate within legal emissions standards and is therefore legal to be sold for on-street use in all states that accept the legal provisions of the Clean Air Act and the EPA Tampering Policy. This product is NOT LEGAL FOR SALE OR USE IN THE STATE OF CALIFORNIA. Testing with the California Air Resources Board, in order to achieve 50-state compliance, is pending with CARB. Once testing is complete with California, and an E.O. number is issued, this product will be updated to 50-state legal status.
Installation Instructions:
