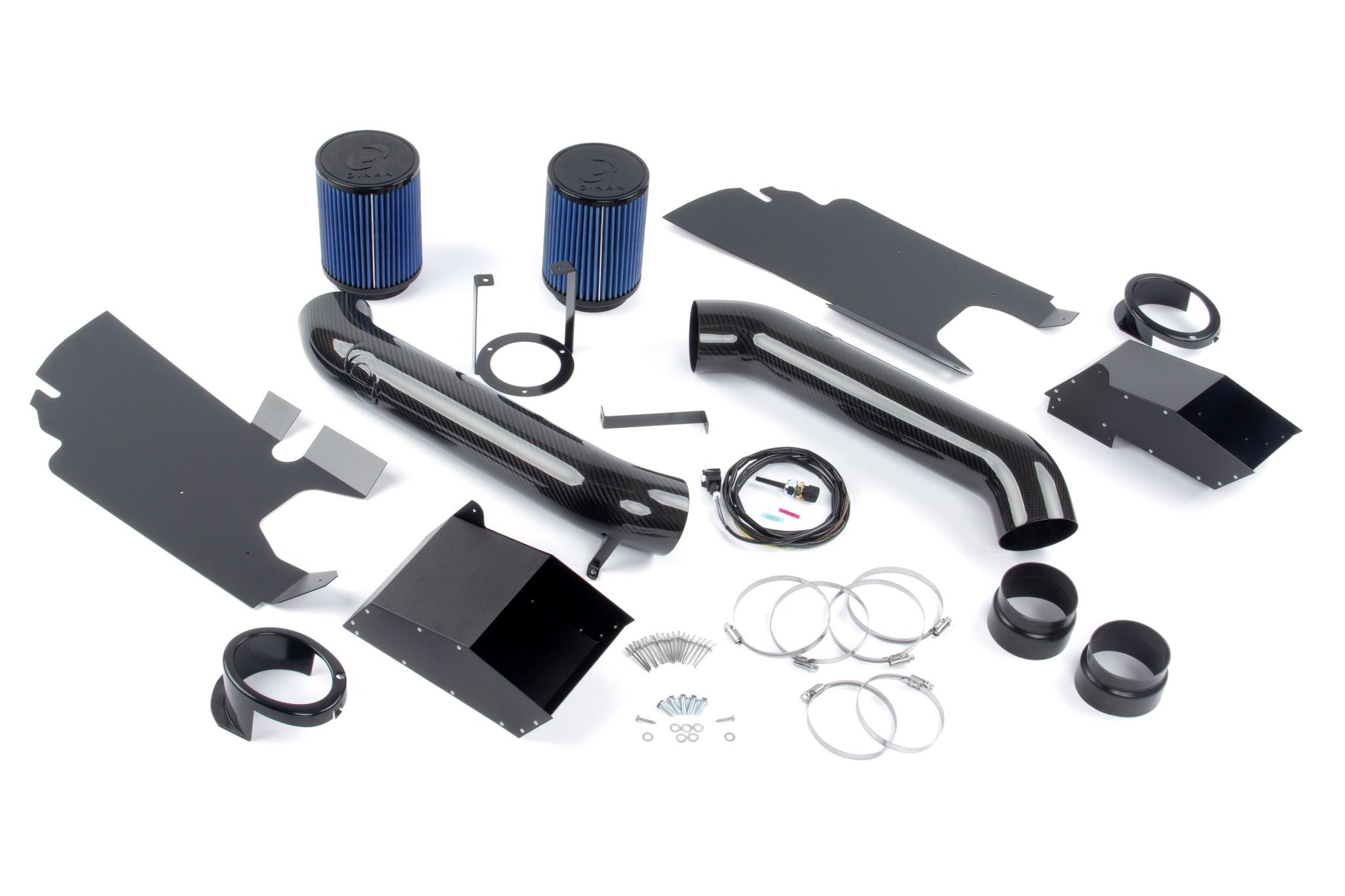

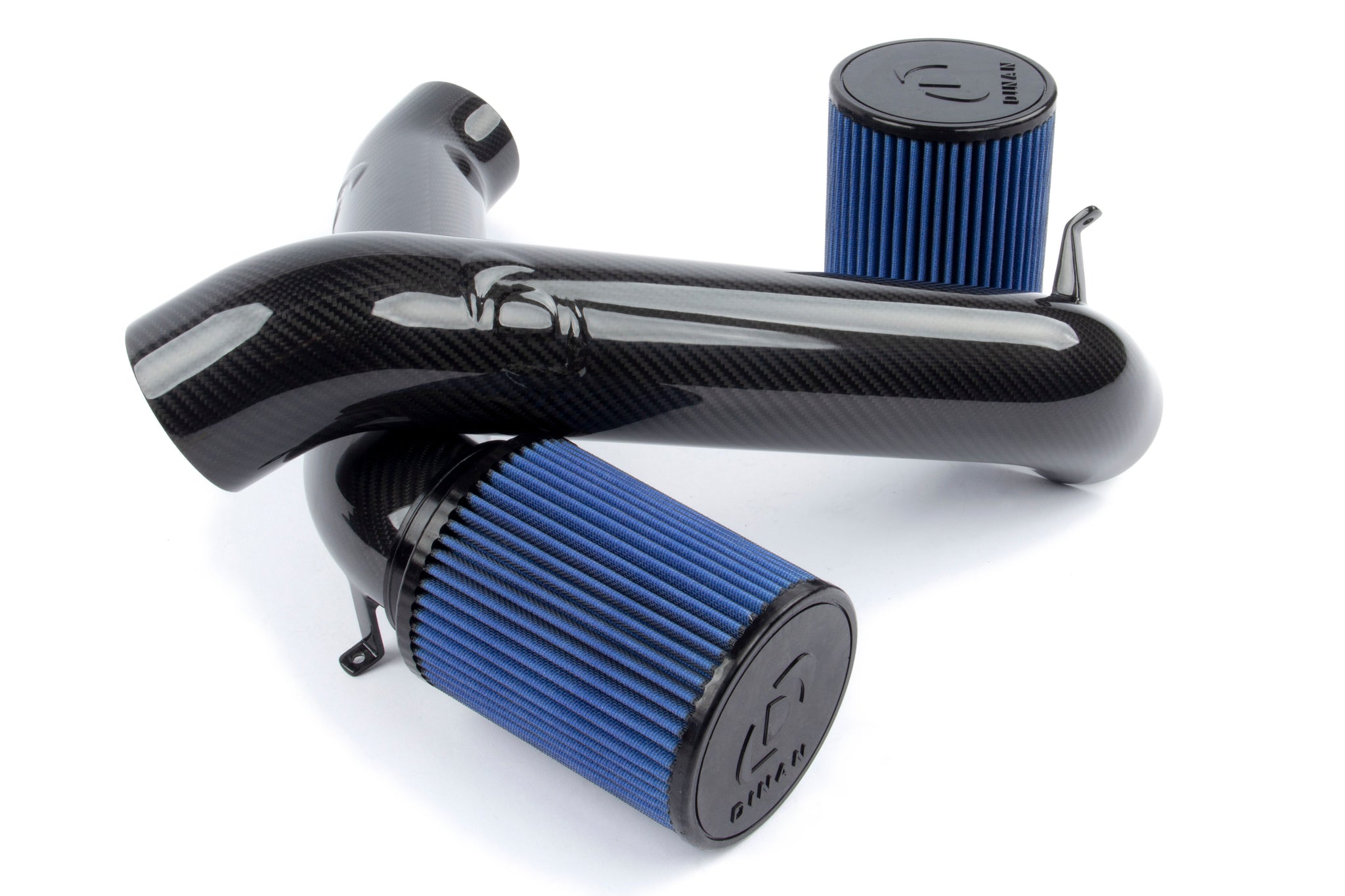

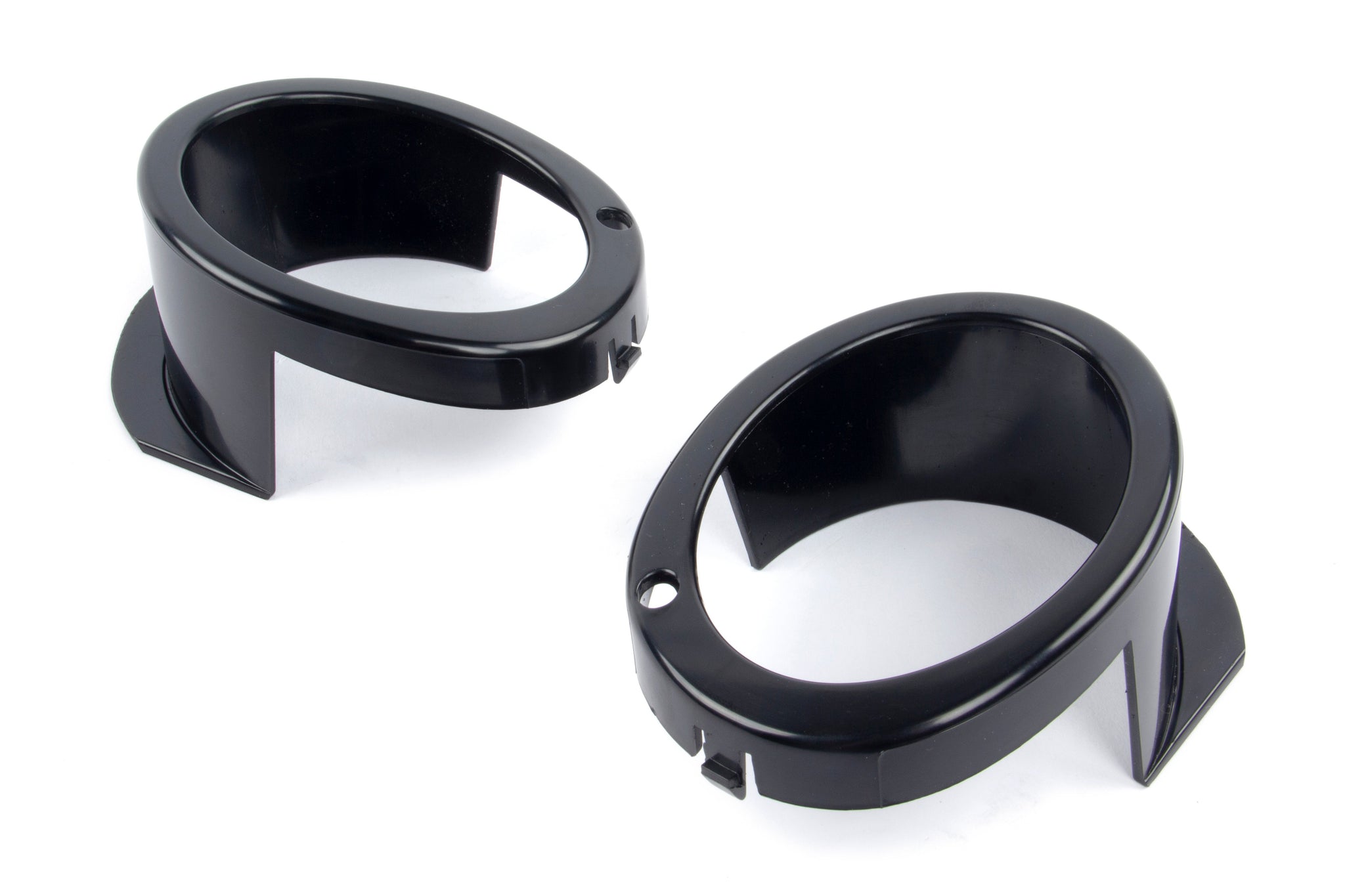

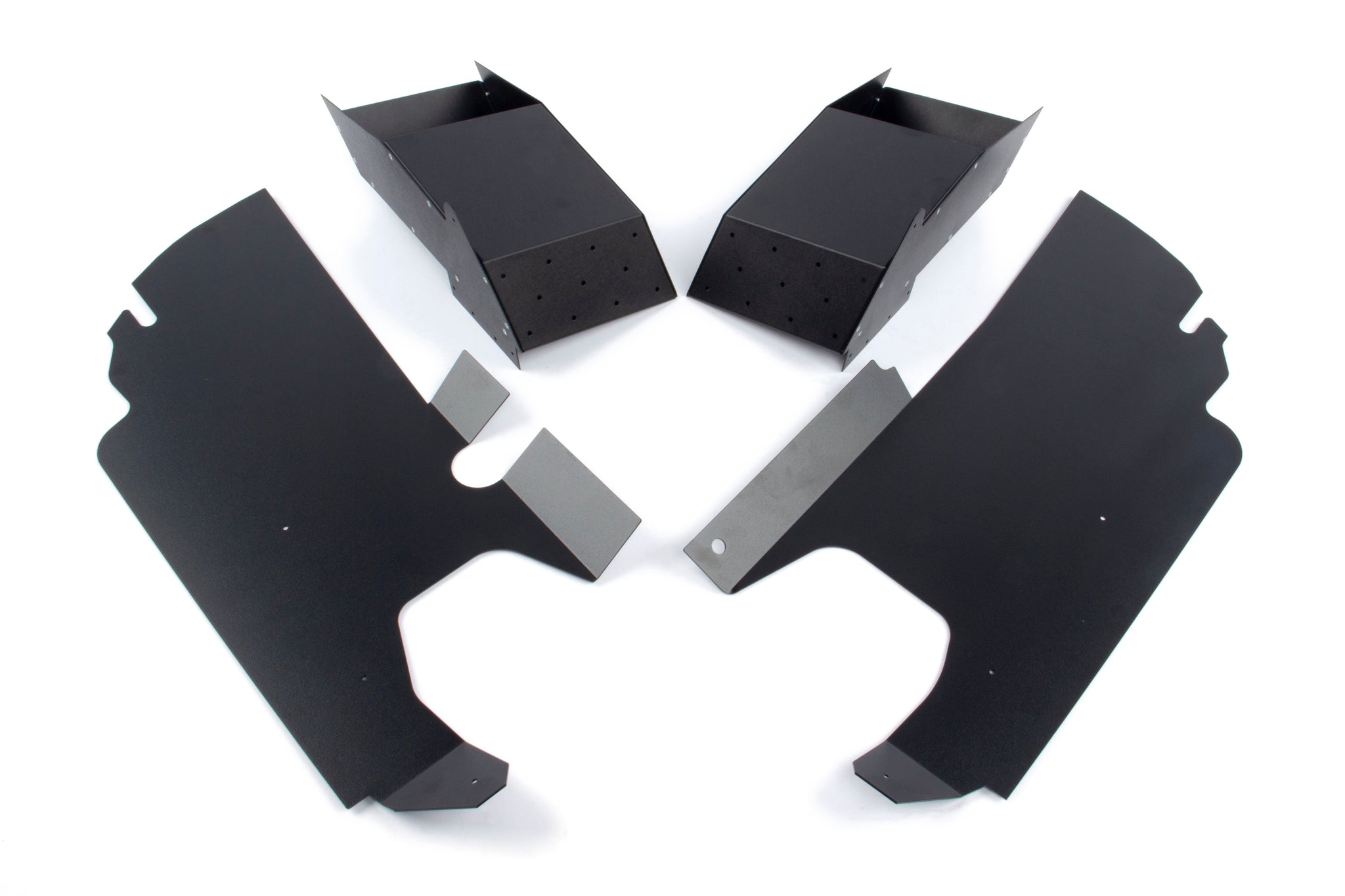

The design goal for the M5 High Flow Cold Air Intake System was very specific: ensure that the powerful M5 engine is breathing plenty of cool oxygen-rich air for maximum performance under varying driving conditions. The system replaces the factory air-boxes with proprietary twin high flow air filters feeding large diameter intake plumbing, carefully designed to minimize air turbulence for maximum intake airflow. The filters are relocated outside of the engine compartment behind the front bumper and below the headlights insulating the intake from under-hood heat. Additional heat shields are incorporated in order to block the flow of power-robbing hot air passing over the radiator. The system also includes modified fog light trim rings for a ram air effect at speed.

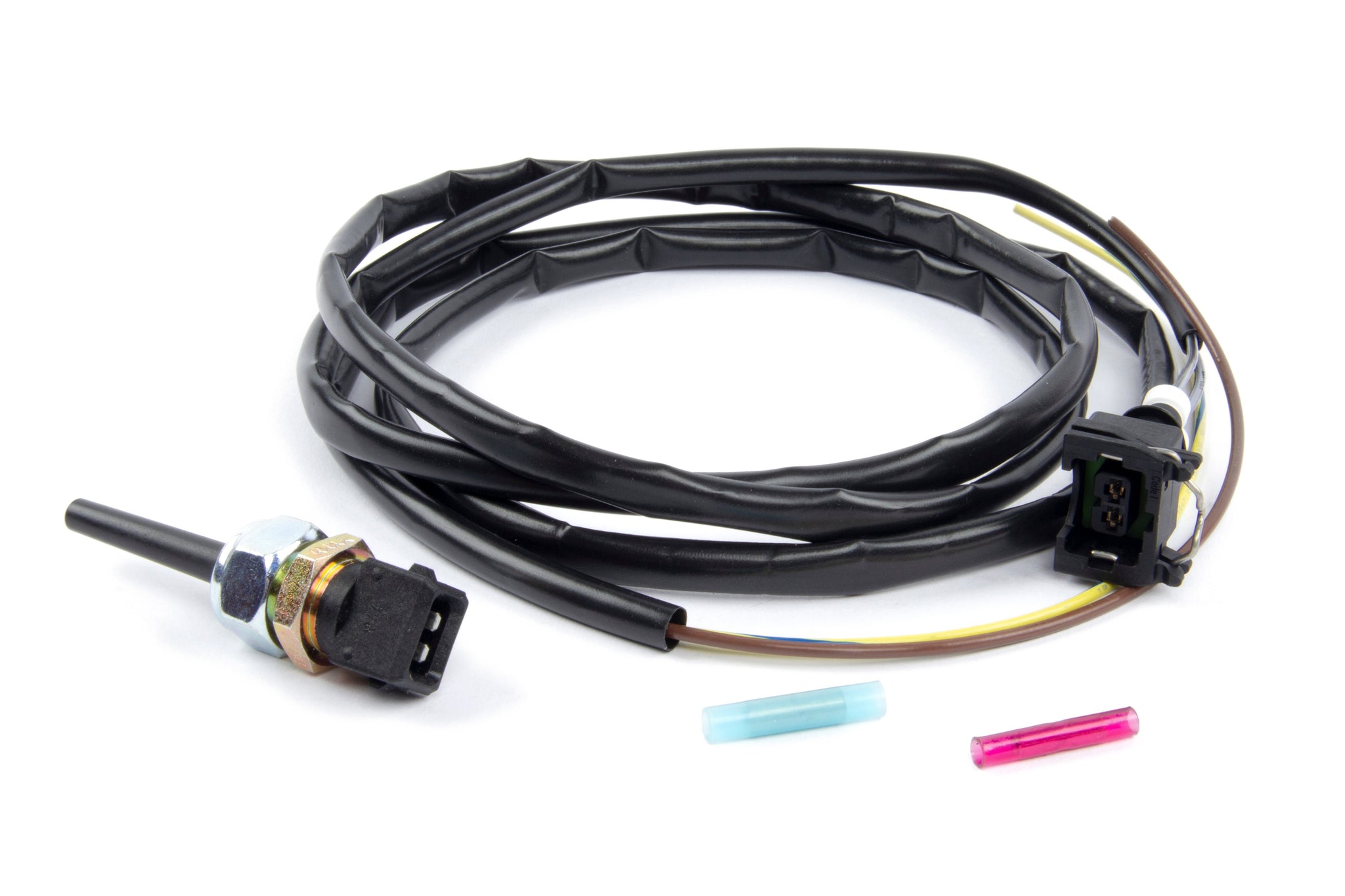

Ongoing development of the intake system revealed an interesting and significant discovery. Based upon exhaustive testing, it was determined that the stock location of the air temperature sensor within the Air Mass Meter was providing the engine management system with an artificially high reading, resulting in reduced power output. The culprit was determined to be ''heat soaking'' of the Air Mass Meter when an adequate flow of air was not passing over it, such as in daily stop and go traffic, producing a reading substantially higher than the actual temperature of the air entering the intake system. BMW's sophisticated engine management system would then automatically back off timing as a result, reducing available power until such time as the airflow cools the Air Mass Meter down. Therefore, the Dinan intake system includes an air temperature sensor relocation kit as part of the system, providing the engine management system with a more accurate reading and consistent performance.

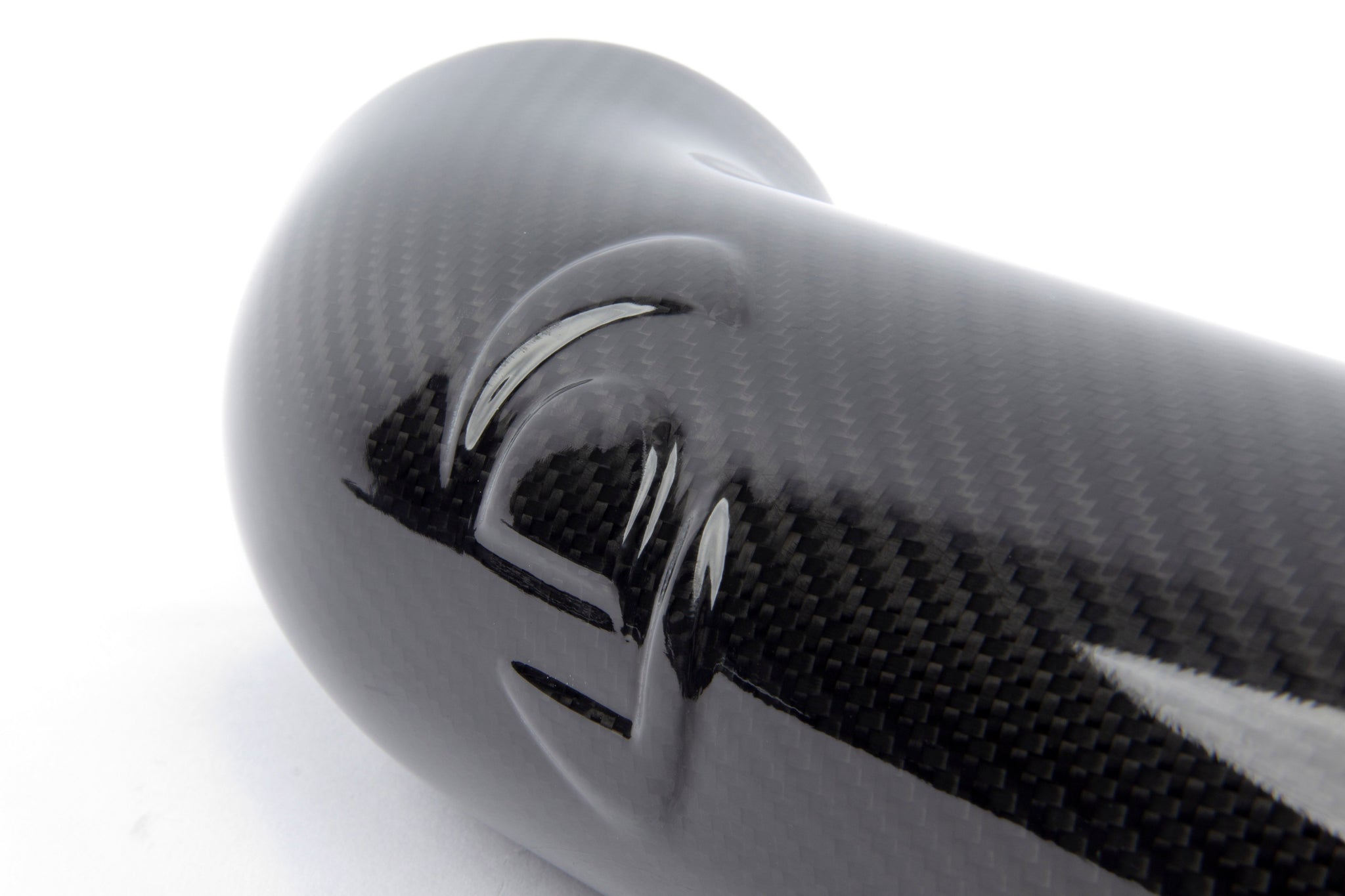

The newest iteration of the system goes back to its carbon fiber roots for a more showroom worthy appearance complete with an embossed Dinan logos instead of the inset Mylar decals that was prone to marring after decades of use.
Features
- More Power: + 5 HP @ 7000 RPM, + 4 LB-FT @ 7000 RPM (coupled w/ engine software).
- Improved throttle response.

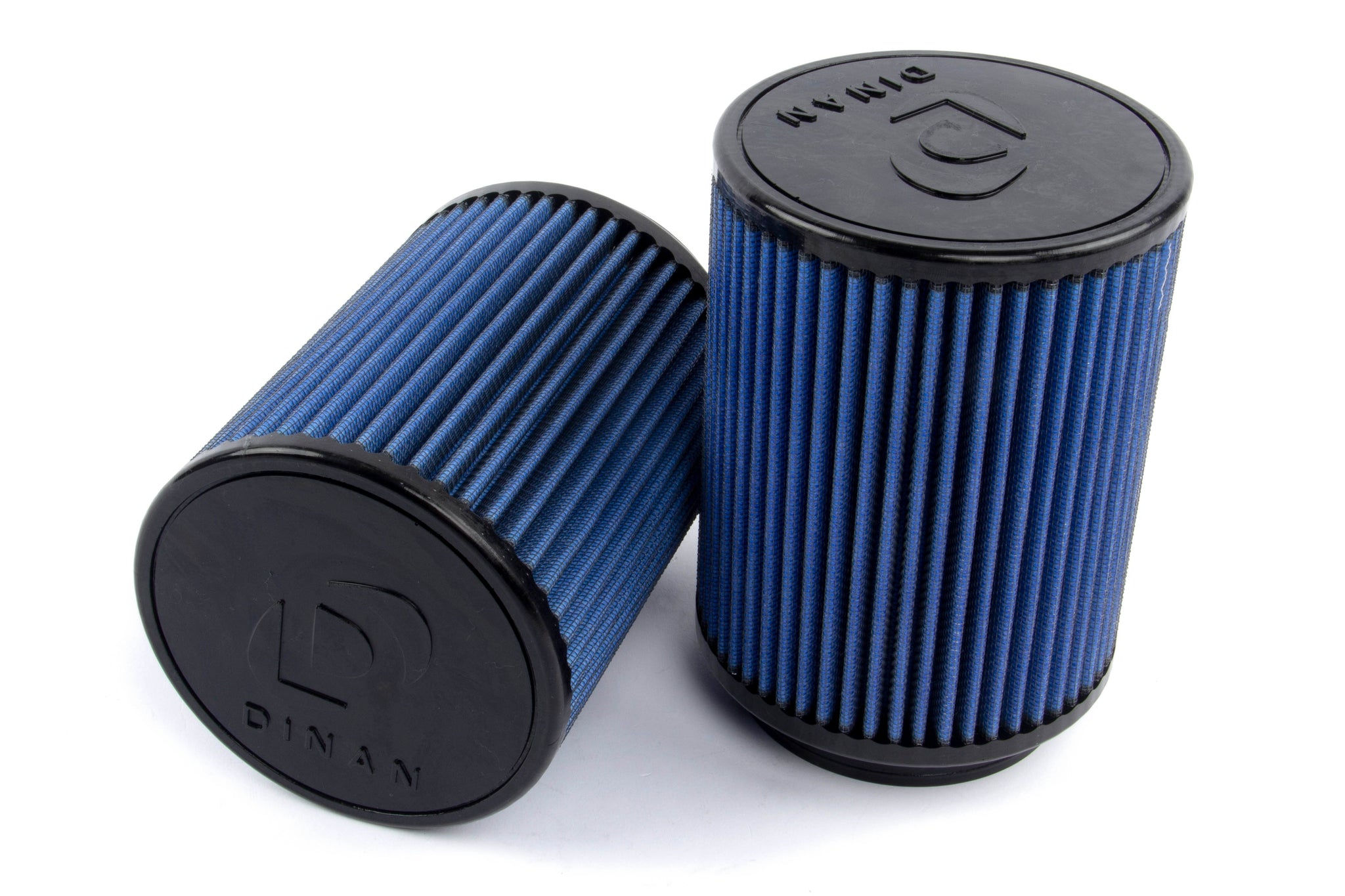

- Uses larger cylindrical performance filters for increased flow.
- Filters re-located to maximize exposure to cooler outside air.
- Larger diameter plumbing to minimize turbulization and maximize flow.
- AMM relocation kit included for clean factory like install.

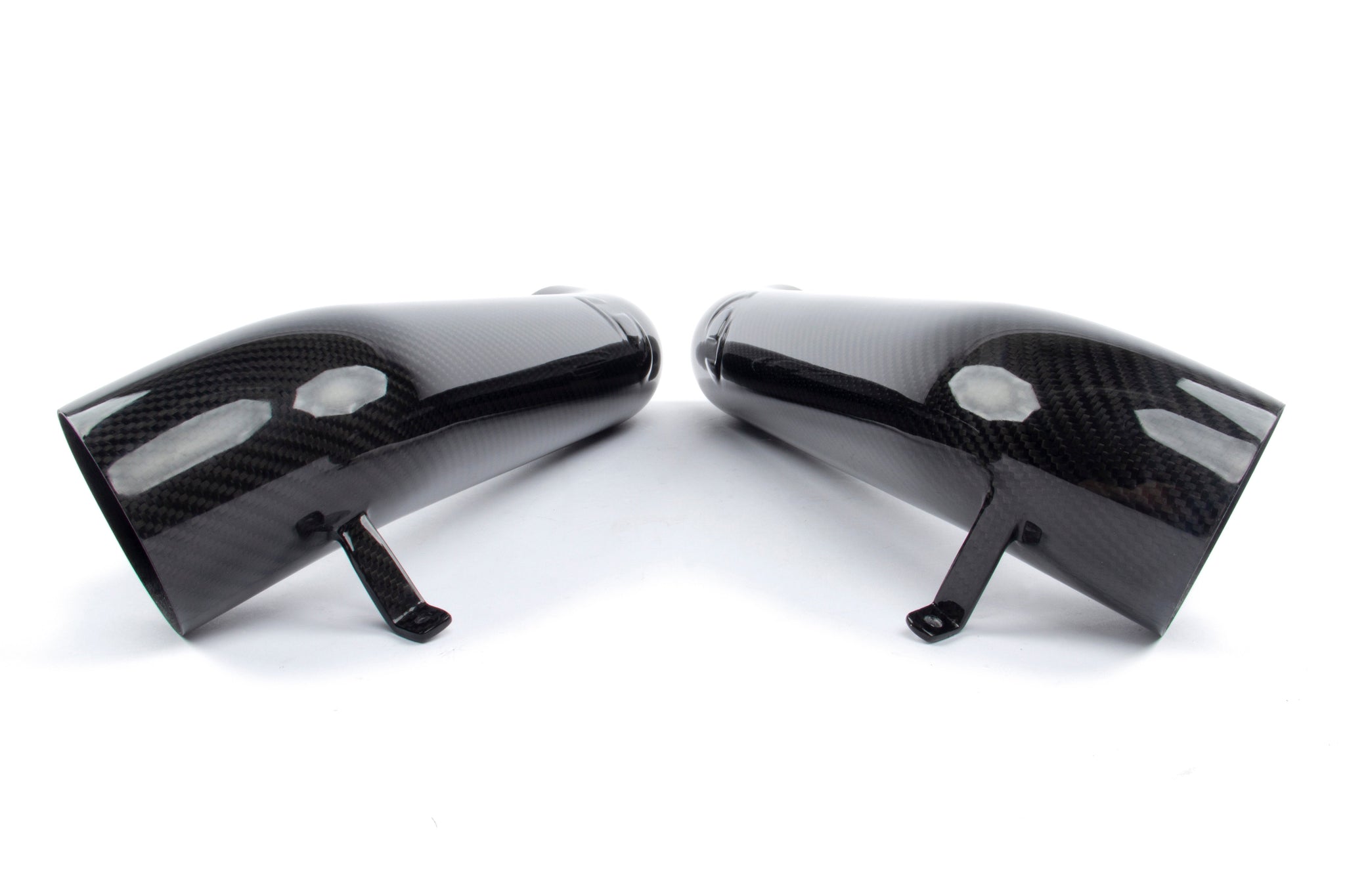

- Re-designed carbon fiber tube with updated logo for long lasting durability.
- 50 State Emissions Legal: CARB EO D-176-21.
Specifications
| Category |
Air and Fuel Delivery |
| Dinan Point Value |
3 |
| Emission Code |
1 |
| Height |
10 |
| Labor Time (Hours) |
7 |
| Length |
24 |
| Max HP Gain |
5 @ 7000 RPM |
| Max Torque (lb-ft) Gain |
4 @ 7000 RPM |
| Part Type |
Air Intake Kit |
| Product Type |
Cold Air Intake |
| Sub Category |
Service Kits |
| Weight |
14.0 |
| Width |
18 |
| UPC |
813725028798 |
| Part Number |
D760-0390D |
Note: Stage 2 Engine Software recommended for optimum performance and drivability.
This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
