Damond Motorsports - Toyota GR Corolla Rear Motor Mount - Chassis Side

Crafted from billet aluminum, this mount is machined to precision for an OEM like fit and finish, and equipped with top-of-the-line Energy Suspension polyurethane bushings. The bushings are arranged to only experience compressive loads.No twisting, no bending, and no edge loading ensure that the bushings will have a long and productive life. Doing so we omit the original bushing location on the chassis side, vs other aftermarket mounts which retain this bushing location. This in turn offers the least amount of draintrain movement, for a little more added NVH.

This chassis side mount is designed to work with the OEM transmission side mount piece, but we do also offer our own transmission side piece, as well as a full rear mount set which includes both pieces.

The Damond Motorsports RMM Full Set specs:

• Chassis mount is included
• Both of our "street" and "race" stiffness bushings are included, with the street ones pre-installed. Street are 70A and the Race are 90A

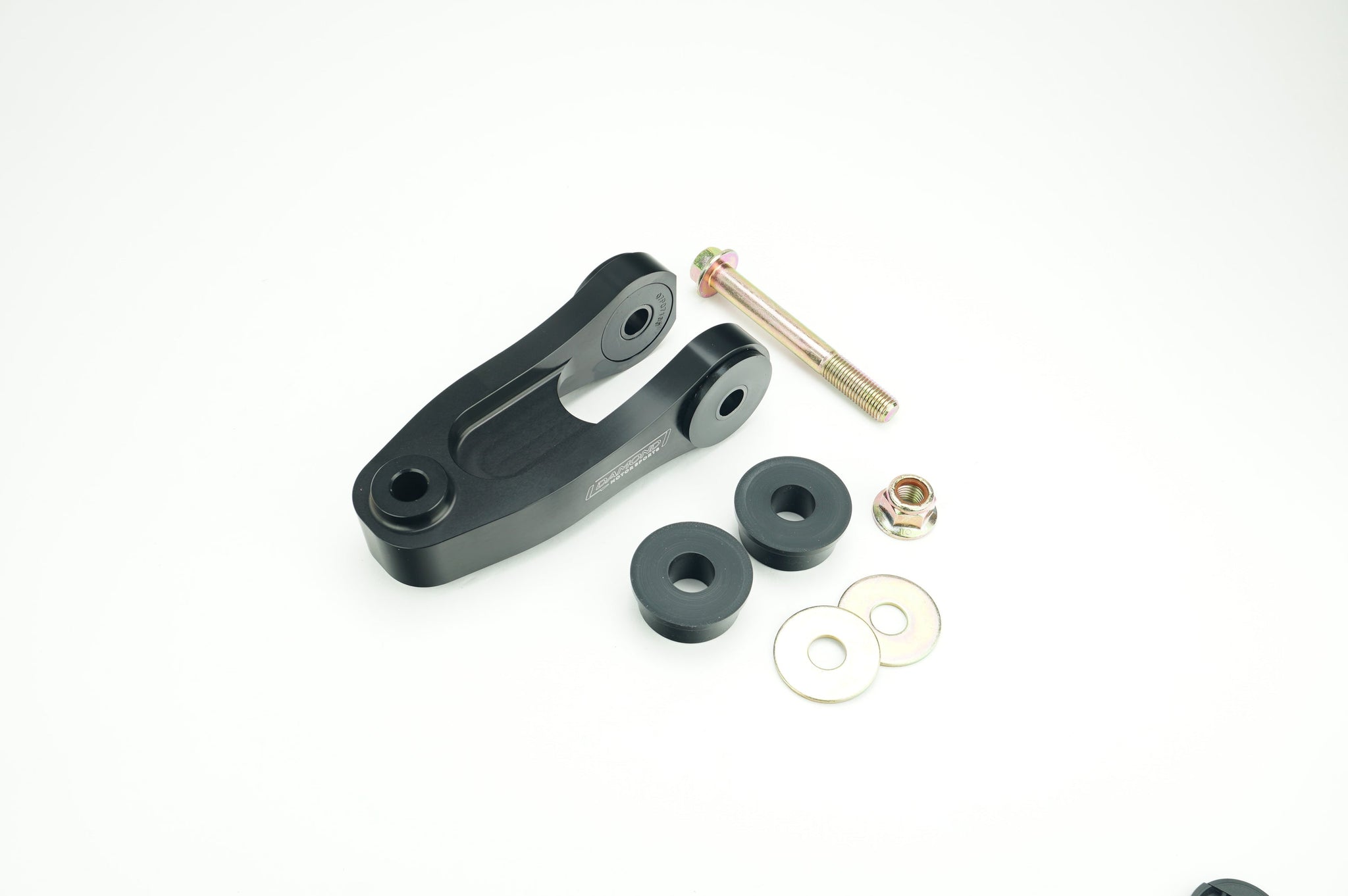

• Bushing available in either red or black
• Machined aluminum; anodized black
• All high grade fasteners and lock nuts


Note: With this mount there will be added NVH over stock, as well as a slight break-in period for NVH to settle.

Install guide
