CSF 16-21 BMW M5 (F90) / 17-21 BMW M8 (F91/F92/F93) Twin Charge-Air-Cooler Set - Crinkle Black - 8178

CSF was the first to release the High-Performance Charge Coolers for the BMW F90 M5/F92 M8 – developed alongside long-time R&D partners.

CSF is the world leader in BMW air-to-water charge-air cooling technology. From its experience starting with its industry-leading one-piece S55 Charge Cooler, to then developing the world's first Charge-Air Cooling System for the F1X M5/M6, CSF applied several different features exclusive to its manufacturing technologies to create its newest and most innovative Charge-Air Cooling System for the F9X M5 and M8.

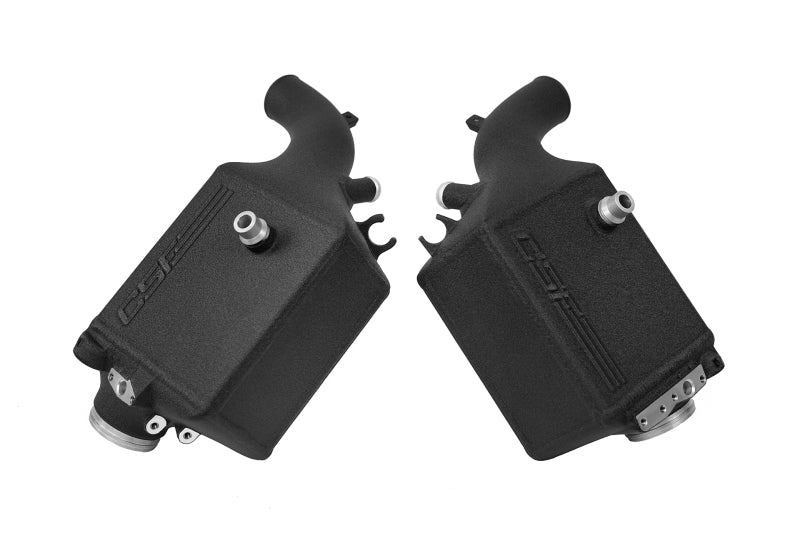

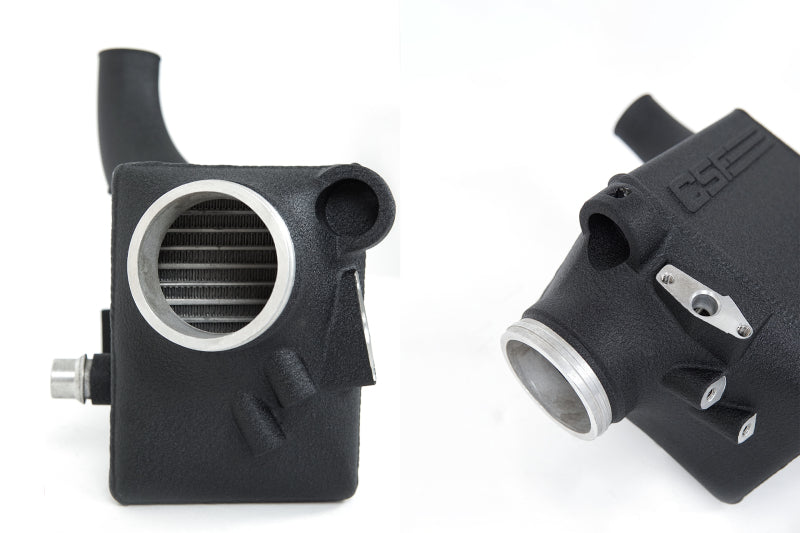

The Charge-Air-Coolers come in an OEM+ Crinkle Black Finish. In addition, custom finishes are available at an additional cost for those looking for a more unique engine bay look.

Design & Engineering

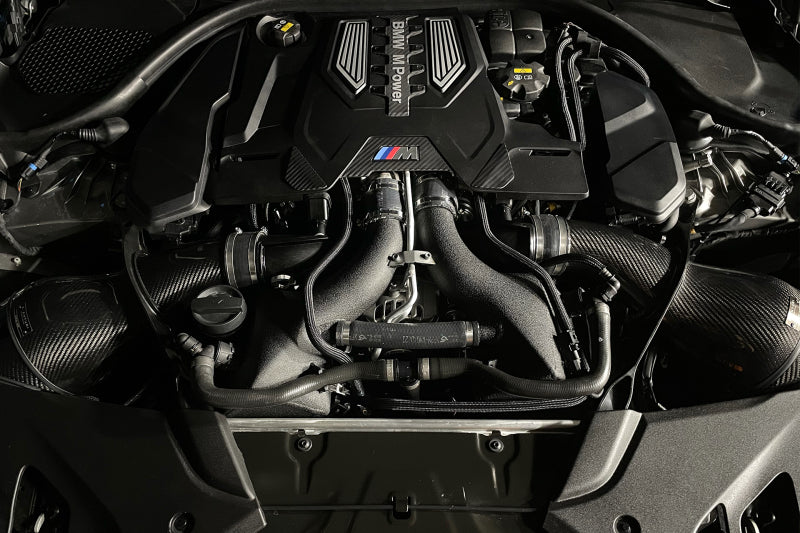

This new design truly tested the engineering and manufacturing capabilities of CSF, with over one year of development and several prototype revisions to achieve absolutely perfect fitment into an engine bay with only a few millimeters to spare – a true plug-and-play system requiring no modifications to install.

OEM vs CSF

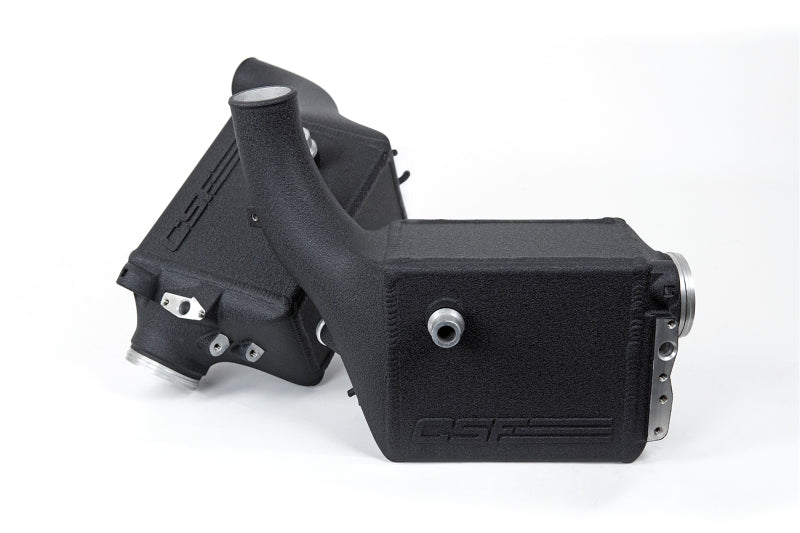

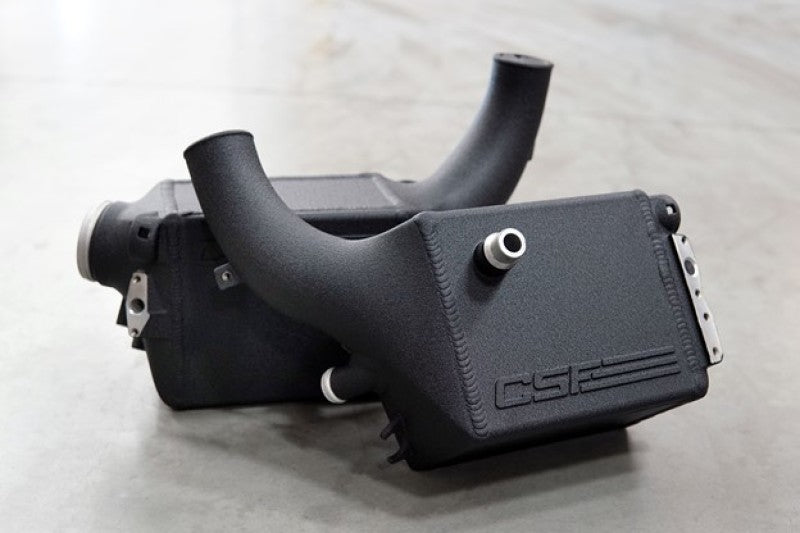

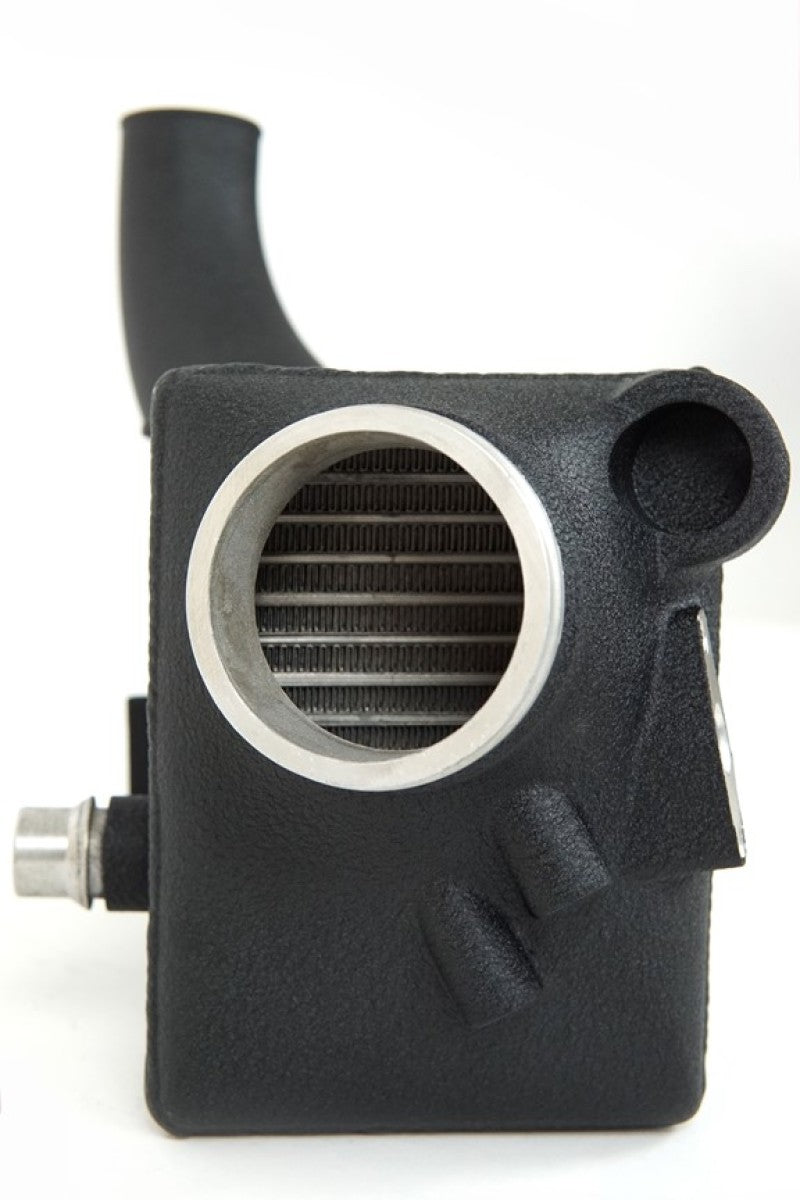

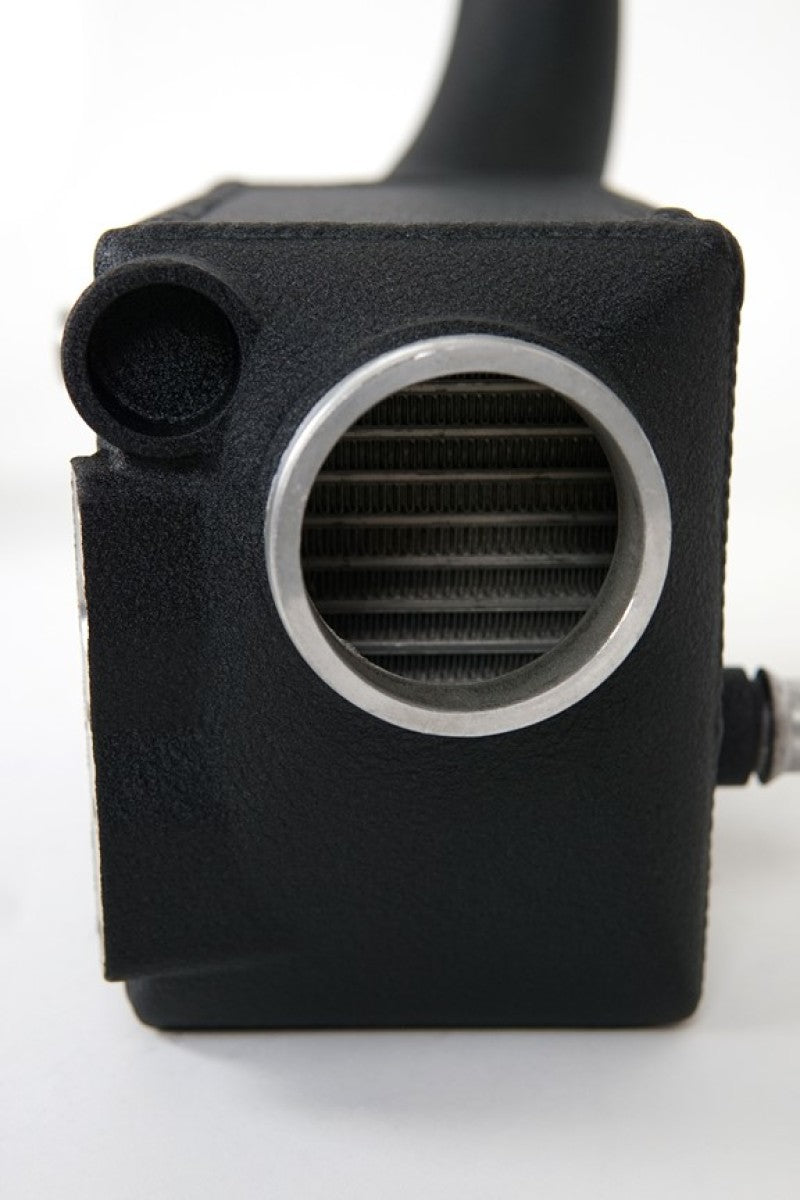

The weak OEM crimped-on plastic end tanks have been replaced with CSF's larger, CFD analyzed, 100% TIG-welded cast end tanks. The top side of CSF's Charge-Air Cooling System now features air inlet tanks with seamless integrated charge pipes versus the OEM plastic charge pipes that are glued to the intercoolers.

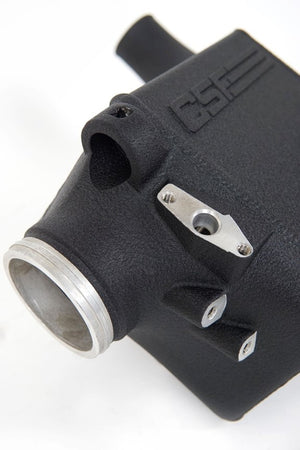

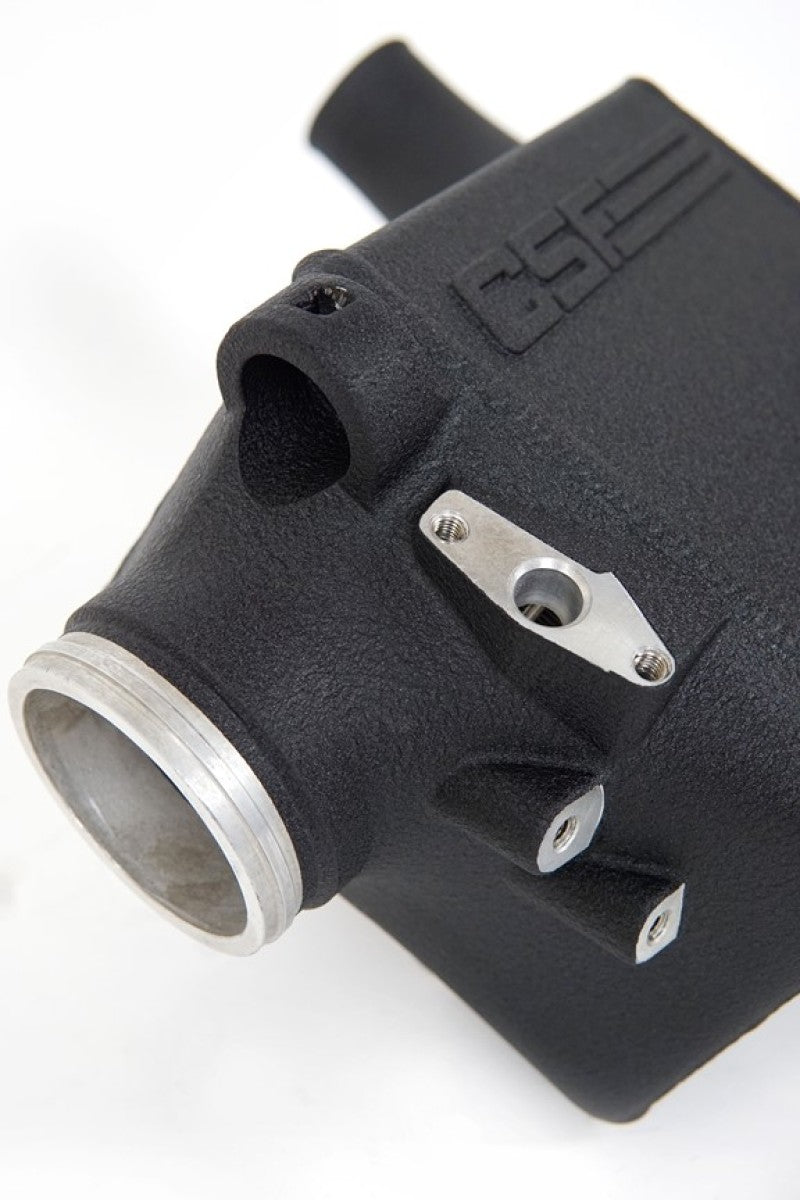

Like the previous F1X model, CSF has again integrated dual 1/8 NPT ports into the outlet side air tanks for quick and easy installation of aftermarket methanol injection systems. The side-specific positioning of these ports have been designed and strategically placed directly into the post-intercooled charge-air stream for maximum performance.

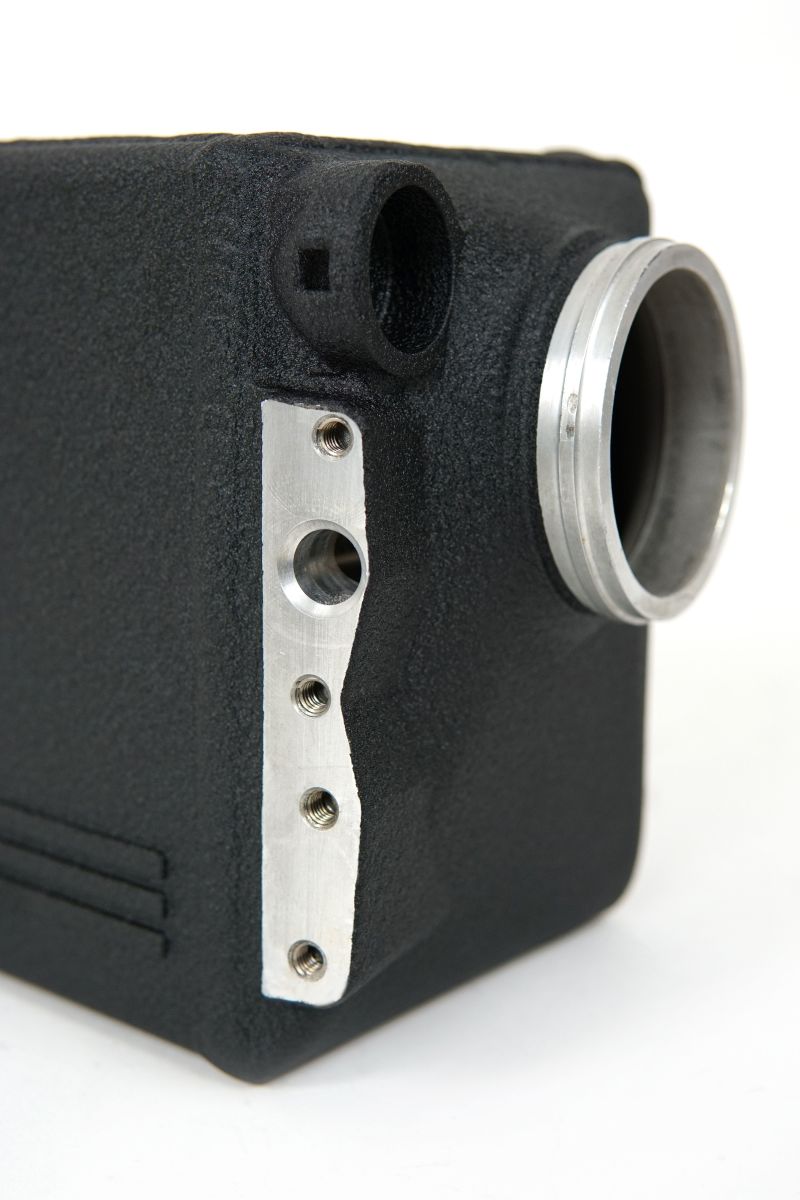

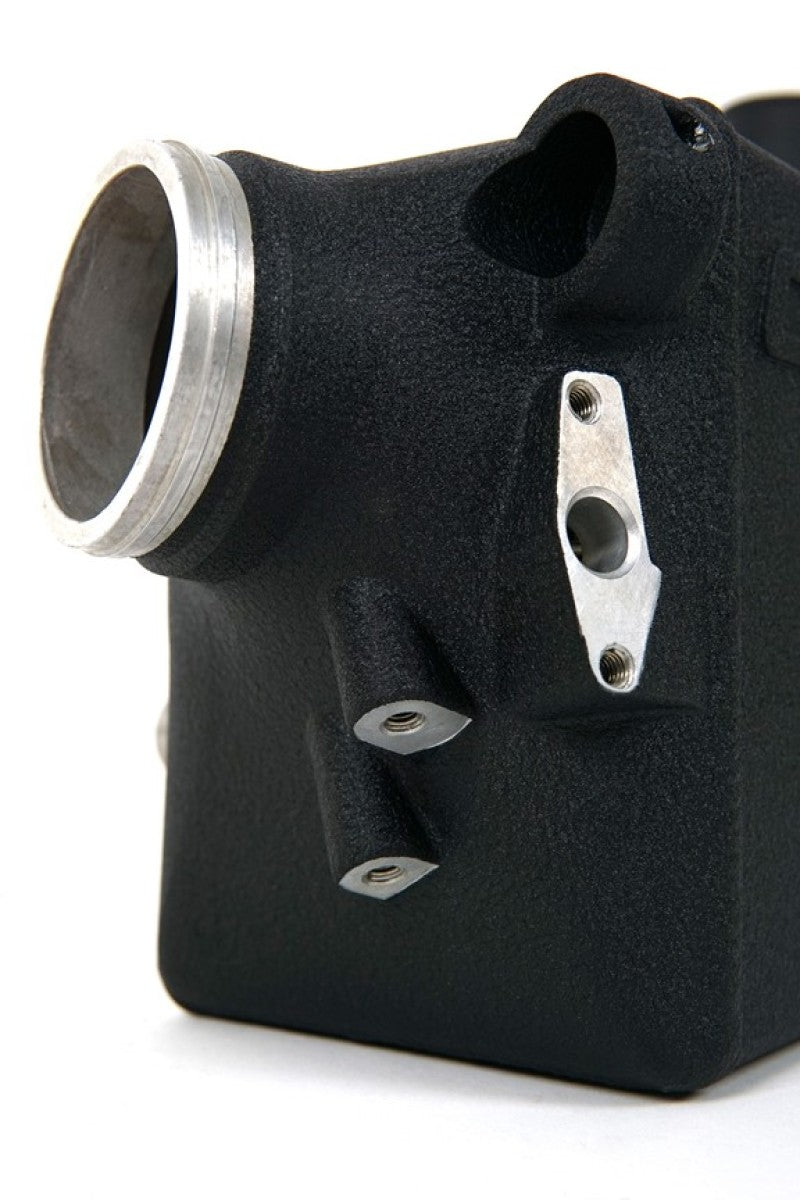

Integrated dual 1/8 NPT ports are located on both outlet side air tanks for quick and easy installation of aftermarket methanol/nitrous injection systems. The positioning of these ports have been carefully designed to place the injection system directly into the post-intercooled charge-air stream for maximum performance.

Real World Testing

These coolers are currently installed on the top 5 world's fastest S63 powered M cars. This includes Mr. Vanos 1200+ HP F90 M5.

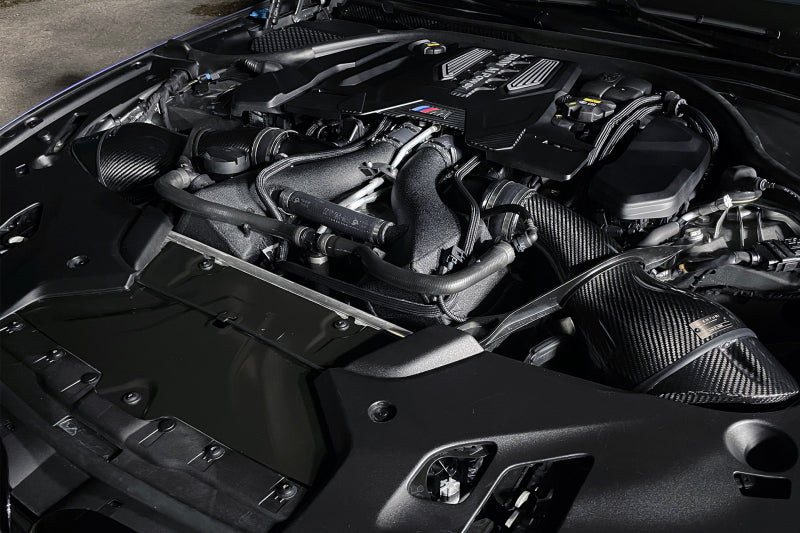

Before the public release of these coolers, CSF worked with a BMW shop to install, verify perfect fitment, and conduct performance testing on two of the world's fastest and most powerful F90 M5 Sedans.

60-130MPH Testing – Before & After CSF Charge Coolers

Stage 3 F90 M5 – ~900+ WHP/~1,000+ HP @ the crank

• Built Engine
• 3076 Turbos
• Methanol
• Downpipes
• CSF Race Charge-Air Coolers w/ Built-in Meth Injection System
• Eventuri Intakes
• Stock Tires, Wheels, Exhaust, and Full Weight
• Tuned In-House by Utku Noa

Thermal Dispersion Black

CSF's most popular custom finish, Thermal Black Heat Dispersion Cerakote is now available as a custom finish option.

Thermal Dispersant/Dispersion Coatings are submicron coatings with extremely high thermal conductivity. Due to their density and chemical composition they offer highly efficient heat transfer. In the case of a coated heat exchanger like an intercooler, the higher thermal conductivity of the coating helps draw heat to the surface of the part.

These coatings are limited to Black or Grey colors but offer the best performance. For more details on Thermal Dispersion Coatings, visit our article explaining the how they work and the performance benefits.
