SKU: SKU: CCA505-16

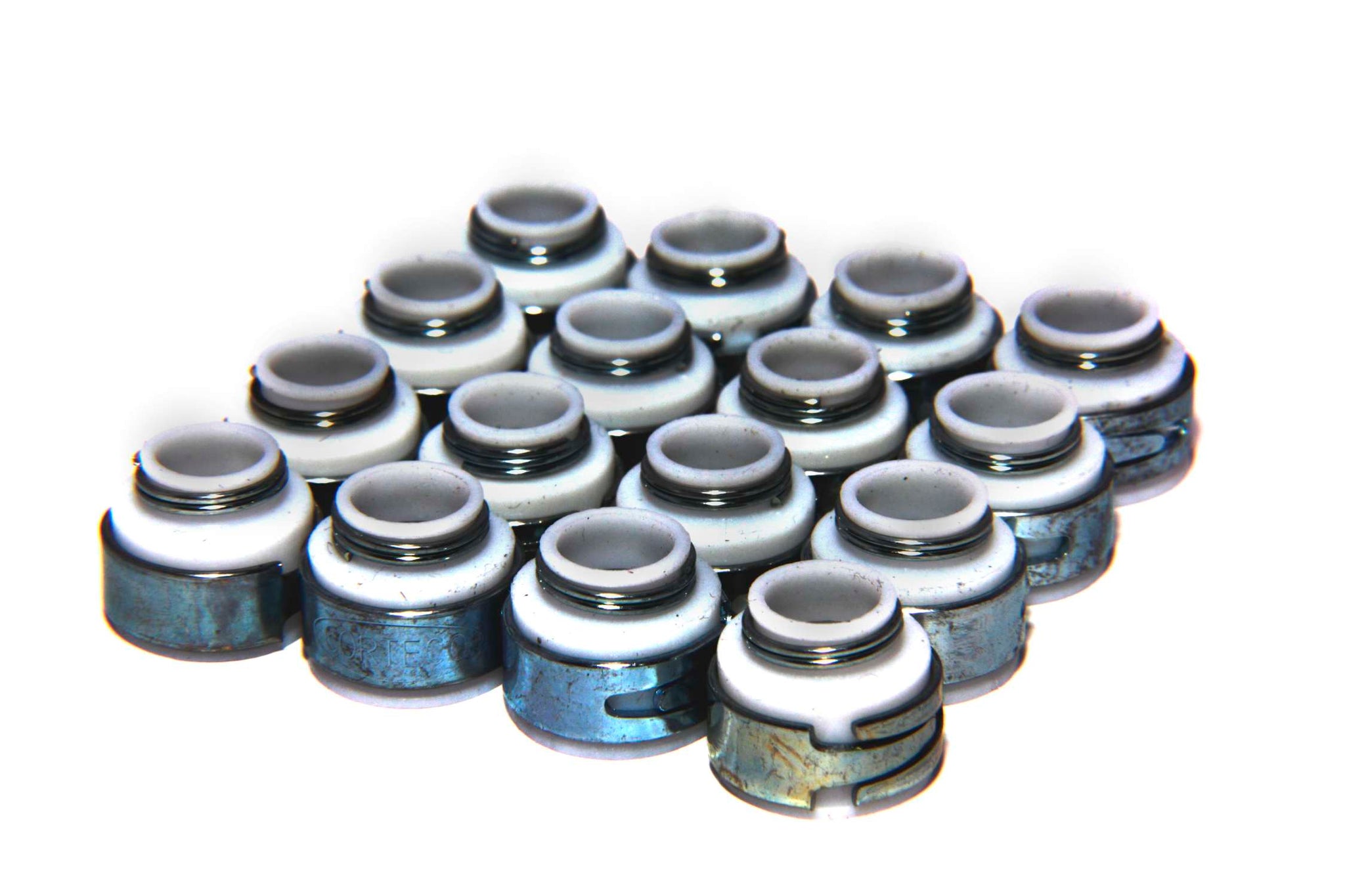

Set of 16 PTFE Valve Seals for .530" Guide Size, 3/8" Valve Stem
Application: Engines w/ 0.530" OD Valve Guides and 3/8" Valve Stems
COMP's Positive Stop PTFE valve seals offer more clearance for dual springs with better sealing than o-ring or umbrella seals. These 505 seals have a .630" outer diameter and fit applications with 3/8" valves and .530" OD valve guides.
Fits: 3/8" Valve Stems - .530" Guides (.630" Seal Diameter). Valves Seals keep unwanted oil from entering the combustion chamber through clearance in the valve guides. Smaller diameter than COMP Umbrella Seals to allow use with double springs.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than-stock diameter spring is used, and in the case of a double spring, the positive stop PTFE seal is used. Smaller diameter Viton seals are also available for triple spring applications. Both the o-ring and the umbrella seals require no machining, but when using the PTFE seal it is necessary to disassemble the heads and machine the top of the guide with a special cutter.
