COMP Cams Tool Ford 3 Valve Cam Gear - 5446

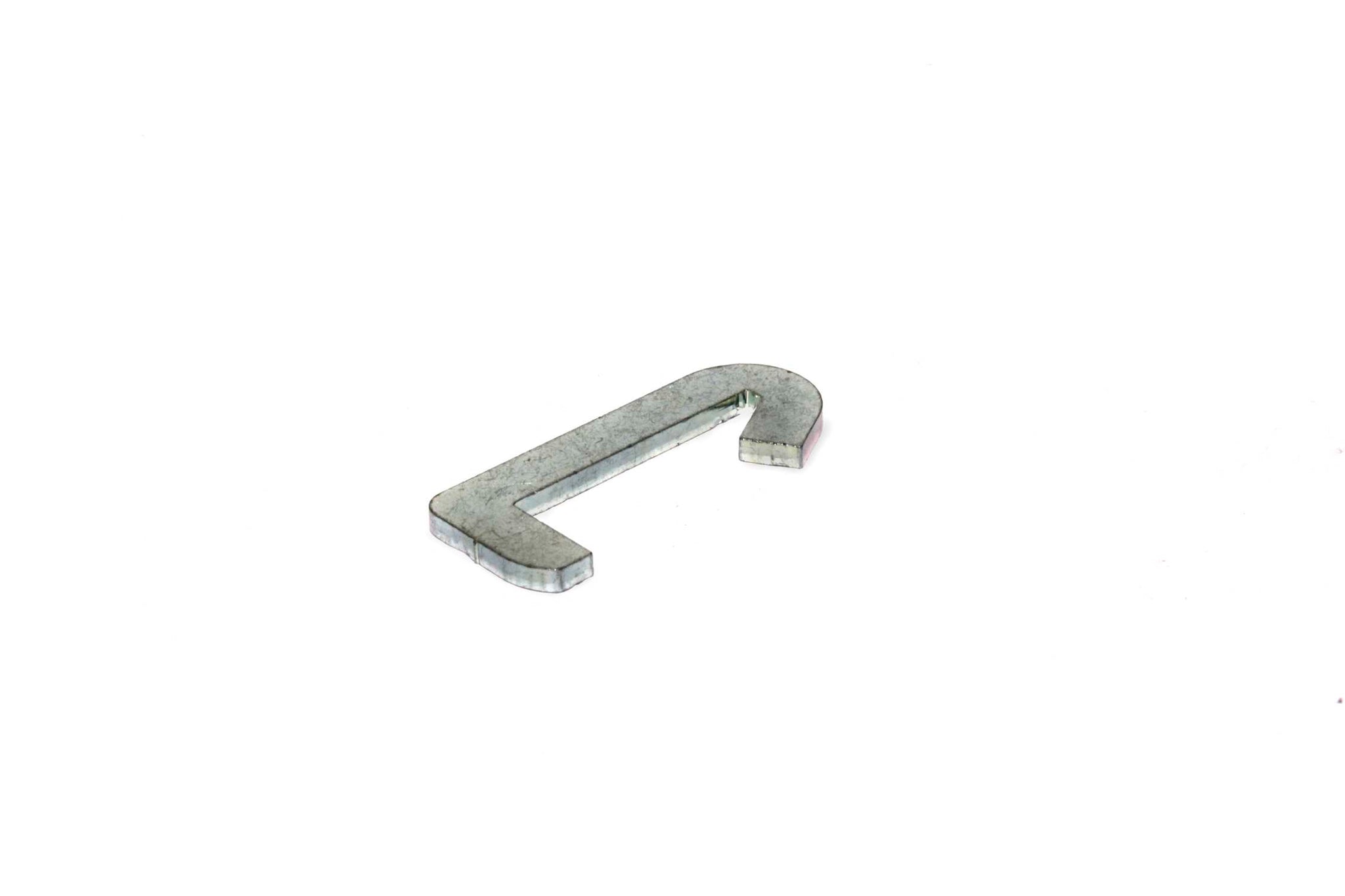

Cam Phaser Limiter Tool for '05+ Ford 4.6/5.4L Modular 3 Valve

This tool allows for you to lock the variable valve timing spring in place when installing our phaser limiters. This tool is used to lock the phaser spring after our 5447 spring compressor tool has compressed it.

Cam phasers are specially designed, computer-controlled Cam Gears that automatically optimize Camshaft timing based on the current engine rpm. Currently they are used in all 2005 and newer Ford Modular 3 Valve and all 2007 and newer GM L92 engines. Engine oil is pressure fed to the Cam phasers through a Series of passageways in the cylinder heads and Camshafts. The engine computers control solenoids that adjust this oil flow into and out of the phaser's control chambers, giving the ability to retard the cams up to 60 crank degrees. While this Technology provides tremendous efficiency benefits, such as fuel efficiency and the ability to always be in the best position for maximum power, regardless of engine rpm, it does present some limitations when it comes to performance Camshafts. With such a wide range of valve timing movement, there is very little piston to valve clearance, which limits you to small Cam profiles with little overlap. The COMP Cams Cam Phaser Limiter Kits for Ford Modular 3V engines and GM Gen IV VVT (Variable Valve Timing) engines restrict the range of Cam timing movement to only 20 degrees, thus providing the necessary valve clearance for Serious performance cams with tighter lobe separations - all while still utilizing the benefits of VVT Technology. Combining this performance modification with more aggressive Cam profiles has resulted in some of the largest upper-rpm gains we've ever seem from such a simple valve train adjustment without sacrificing any bottom end or mid-range performance.

Cam phasers are specially designed, computer-controlled cam gears that automatically optimize camshaft
