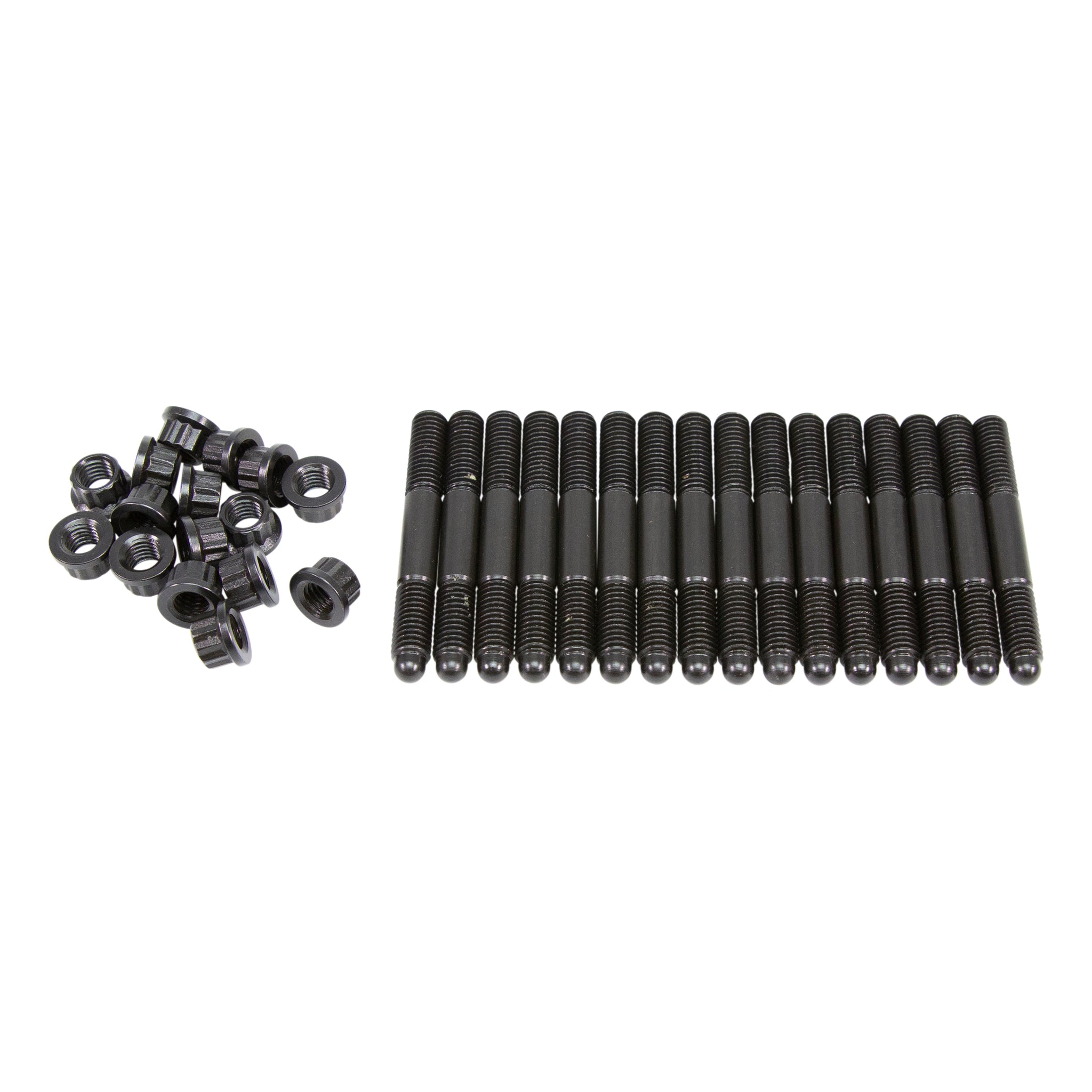

Comp Cams Ls Rocker Stud Kit (Studs And Nuts), M8 X 1.25 Stud, M8 X 1.25 Base Thread, 65Mm - 4582-KIT

M8x1.25 threads on both sides. 65mm Overall Stud Length. 12 Point flange nuts

No modifications to stock rocker arms needed. Check fitment on aftermarket systems before use. Torque specs follow the factory settings. Check the service manual for the proper specification and process.

This rocker stud and nut assembly allows for improved clamping load, adding up to a more rigid, stable and high revving valve train assembly. Additionally, it saves the threads in aluminum cylinder heads, especially in race applications that see constant disassembly. The stud kit also aids during installation of shaft mount rocker systems by accurately guiding the rocker arm assembly into position. The 12 point flange nuts provide ample clearance to rocker arms for maximum lift potential while a rounded nose on top of the stud prevents cross threading of the nut during assembly. Manufactured from grade 12.9 hardware, these high-strength studs also help to prevent thread fatigue and pulling of threads in aluminum heads.
