LS6+ Beehive Valve Spring Kit w/ Tool Steel Retainers, 0.580" Max Lift

Application: Gm LS engines including truck engines, excluding LS7.

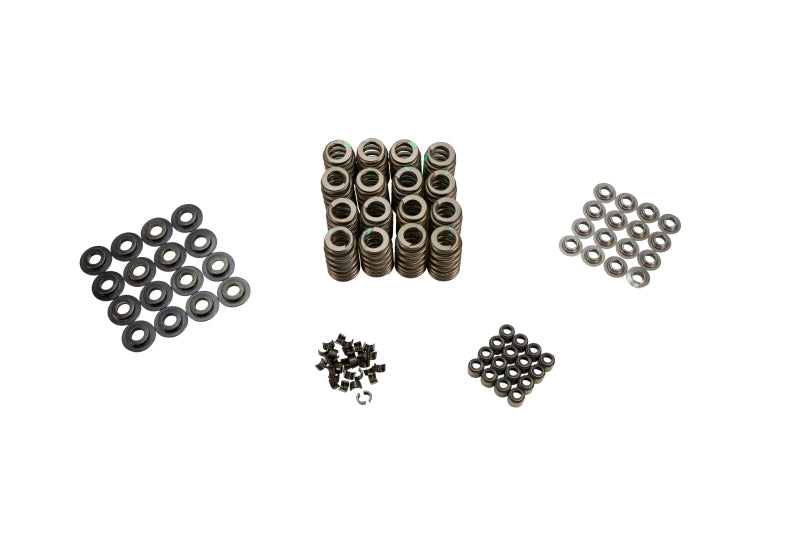

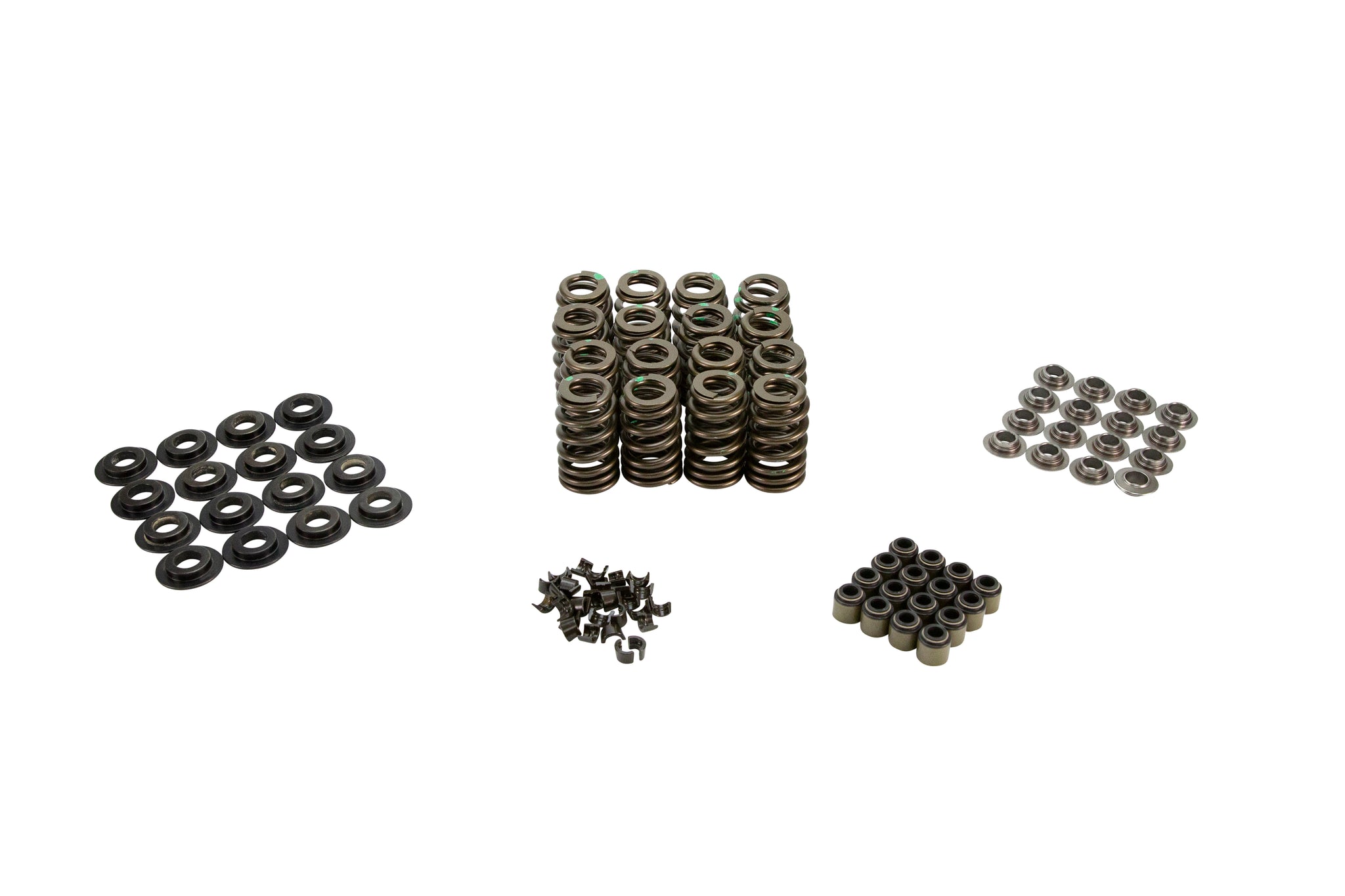

Including our LS6+ Beehive Valve Springs, hardened spring seats, viton valve seals and machined steel locks and tool steel retainers, this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift.

The COMP Cams 0.575" Lift Beehive LS6+ Valve Spring Kit Features: <ul> <li>4% higher load and .030" higher lift capacity than Blue GM LS6 Springs</li> <li>Includes springs, Tool Steel retainers, valve locks, Seals, and spring seats</li> </ul>

  • Locator Inner Diameter: 0.510 in.
  • Locator Outer Diameter: 1.300 in.
  • Seat Height: 1.800 in.
  • Compatible Shims: 4753
  • Seat Pressure: 92 lb
  • Valve Seal Type: Steel Jacketed Viton
  • Includes Locks: Yes
  • Includes Retainers: Yes
  • Includes Spring Seats: Yes
  • Includes Valve Seals: Yes
  • Locator Thickness: 0.0600 in.
  • Valve Seal Outer Diameter: 0.600 in.
  • Spring Top Inside Diameter: 0.655 in.
  • Spring Bottom Inside Diameter: 0.860 in.
  • Spring Top Outside Diameter: 1.077 in.
  • Spring Bottom Outside Diameter: 1.282 in.
  • Coil Bind Height: 1.181 in.
  • Engine Fitment: GM LS Cathedral and Rectangle Port Applications
