COMP Cams Part # CCA11-456-8

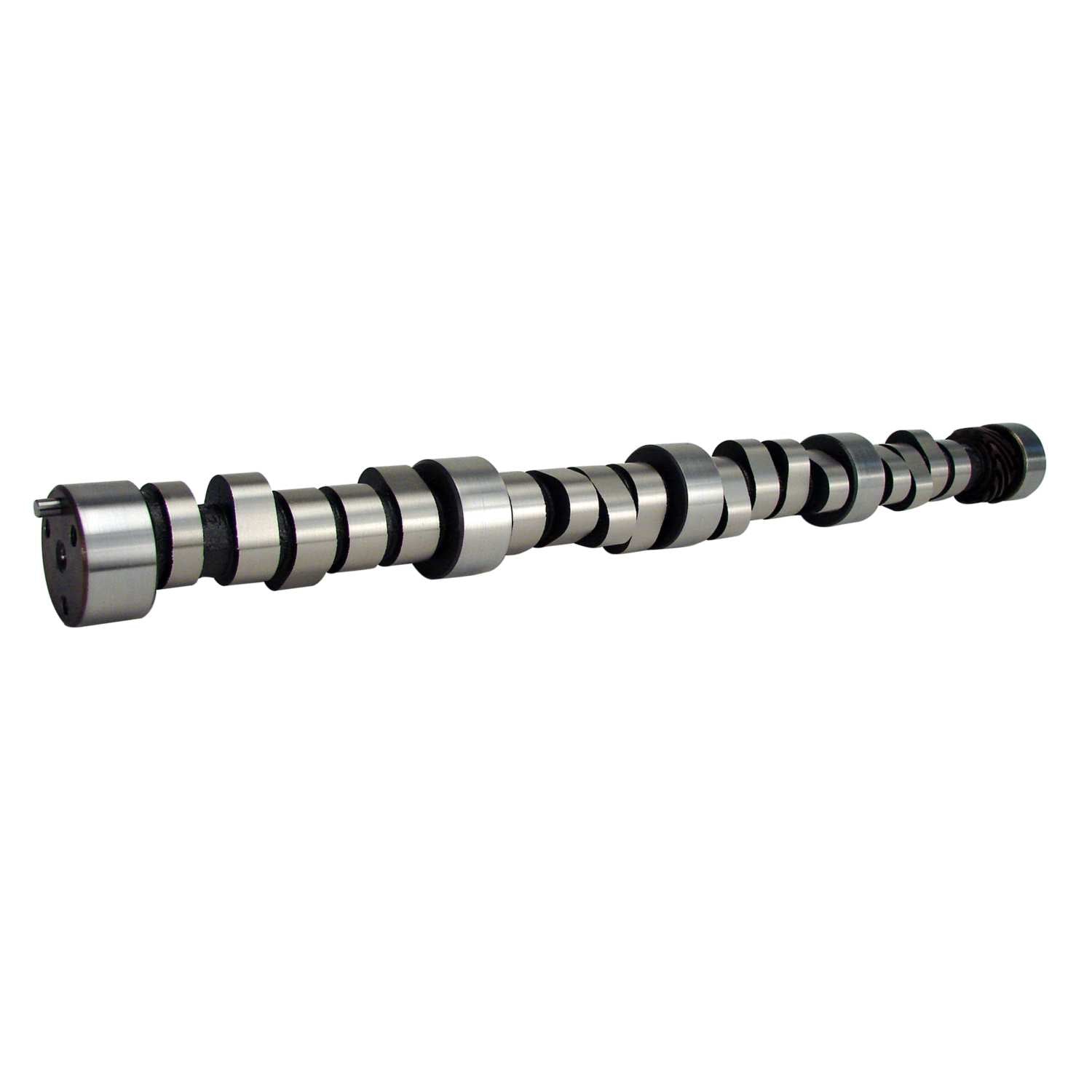

COMP Cams Camshaft CB XM 296HR-12 - 11-456-8

Earn 1,784 Dino Dollars, double for Black NovemberHow it works

Before you order

Customers also viewed

4.8 on Google964 store reviews
Canadian since 2005Mississauga, Ontario

Xtreme Marine 242/248 Hydraulic Roller Cam for Chevrolet Big Block 396-454

Application: Chevrolet GEN IV 396-454 Big Block Engines Originally Equipped with Flat Tappet Camshafts

Good for jet boat with A or B impeller in bracket racing or performance use.

BBC - 1965-66 396 c.i.d. models have an oiling groove in the rear journal. The listed part numbered cams will not fit these models, so if you require a Camshaft with the oiling groove, please call us at 1-800-999-0853 or <a href="https://www.raptorracing.ca/Tech-support">contact us</a>, and we will assist you with placing an order. WARNING: Camshaft Optimized for use with a Melanized or Nitrided distributor Gear. Not compatible with cast or Steel Gears without similar surface treatments. Failure to utilize the proper distributor Gear will void all warranties and/or return policies.

  • Extremely wide powerband helps get boats on plane while making maximum horsepower.
  • Power enhancement helps maintain top-end speed for longer distances.
  • Intended for applications where low idle speeds are required.

  • Exhaust Valve Lift: 0.566 in.
  • Intake Valve Lift: 0.566 in.
  • Lobe Separation: 112°
  • Basic Operating RPM Range: 2,800-6,200 RPM
  • Advertised Intake Duration: 296°
  • Camshaft Gear Attachment: 3-Bolt
  • Advertised Exhaust Duration: 302°
  • Camshaft Material: Austempered Ductile Iron
  • Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
  • Grind Number: XM296HR
  • Valve Springs Required: Yes
