Carli 05-16 Ford F250/350 SD Unchained 3.0 Bypass Shock Set W/4.5in Lift - CS-FUC30SPKG-45-05

If you're looking for unmatched off-road capability, your search is over. Built to Carli specs by King, these high-tech, multi-tube bypass shocks feature proprietary pistons, shafts, and valving to conquer the most challenging terrain.

Features and Benefits:

• If you're looking for unmatched off-road capability, your search is over. Built to our specs by King Off-Road Racing Shocks, these multi-tube bypass shocks feature Carli-specific pistons, shafts, and valving to deliver confident performance over the most challenging off-road terrain. Bypass shocks utilize external tubes to create a shock with multiple compression zones. Typically, there will be a tube bordering the compression zone at ride height that will allow fluid to freely move around the piston giving a supple ride. Once uneven ground is encountered, the piston will move upward closing off the port, thereby forcing all fluid through the valving which substantially increases the shock's resistance in this secondary zone. The tubes (one for compression, one for rebound) are fitted with one-way check valves and feature damping adjustment for fine tuning. Bypass style shocks are ideal for rigs that run at high speeds over rough terrain where they must endure repeated long travel, fast piston speed, high intensity suspension events.

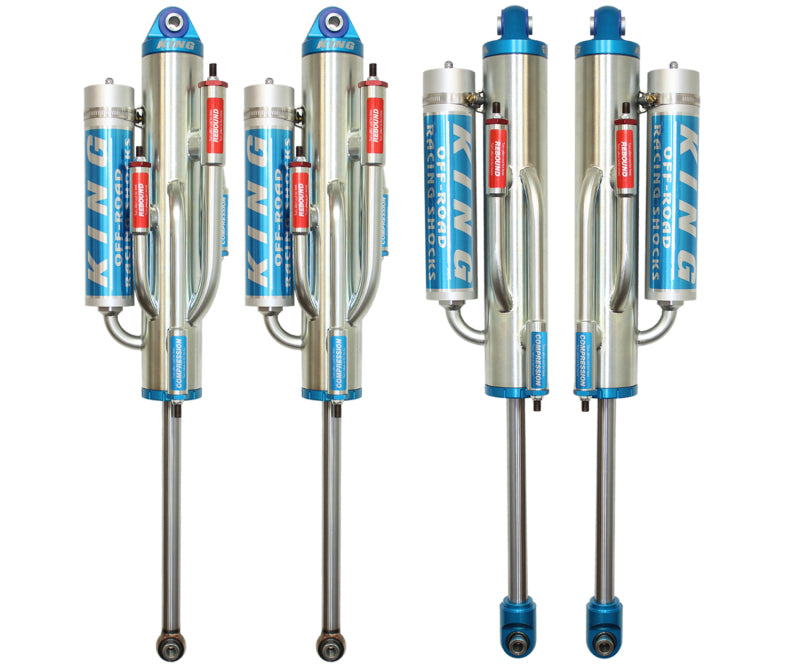

• King 3.0 2-Tube Bypass front shocks
• King 3.0 4-Tube Bypass rear shocks.
• Features 17-4 Stainless shock shafts.
• Unchained Shock Package requires Carli Fabricated Coil Buckets for installation (CS-Ffcb-05 or CS-Ffcb-08).

Details:

• Drive: 4WD
• Lift Height: 4.5 inch
• Warranty: Limited Lifetime Warranty

Fitment:

2005-2016 Ford F-250 Super Duty (Drive: 4WD)

• 2005-2016 Ford F-350 Super Duty (Drive: 4WD)

Specifications

• Country of Origin: US
• Package Dimensions (L x W x H): 37 x 13 x 12 in
• Package Weight: 85 lb
