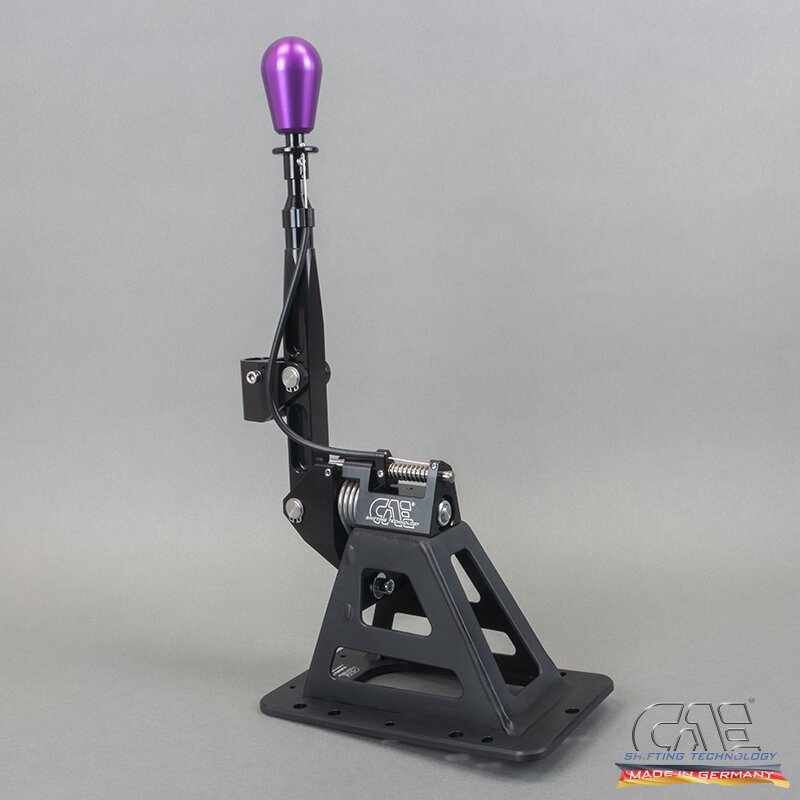

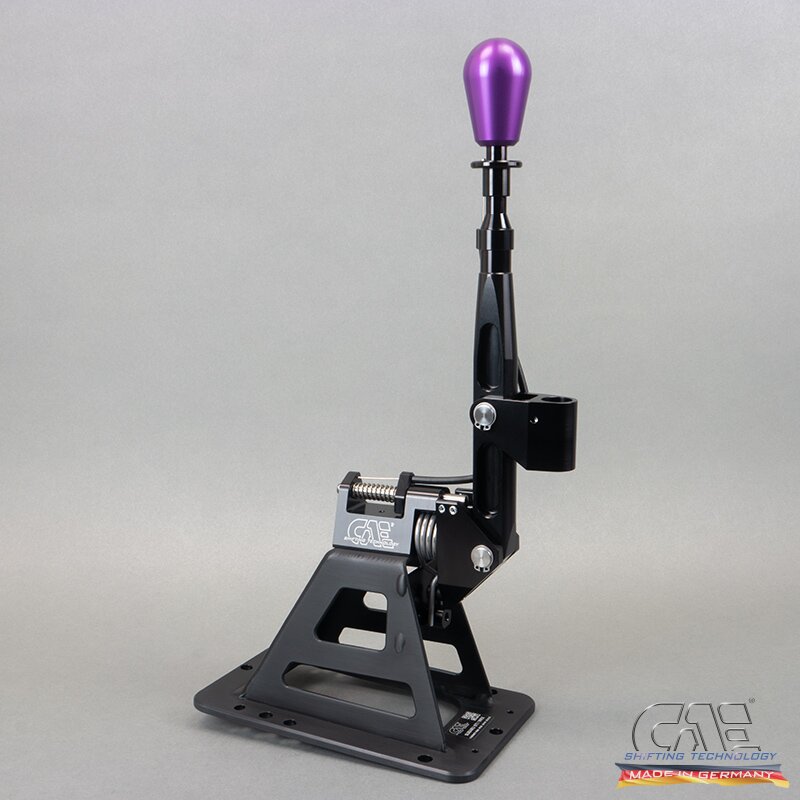

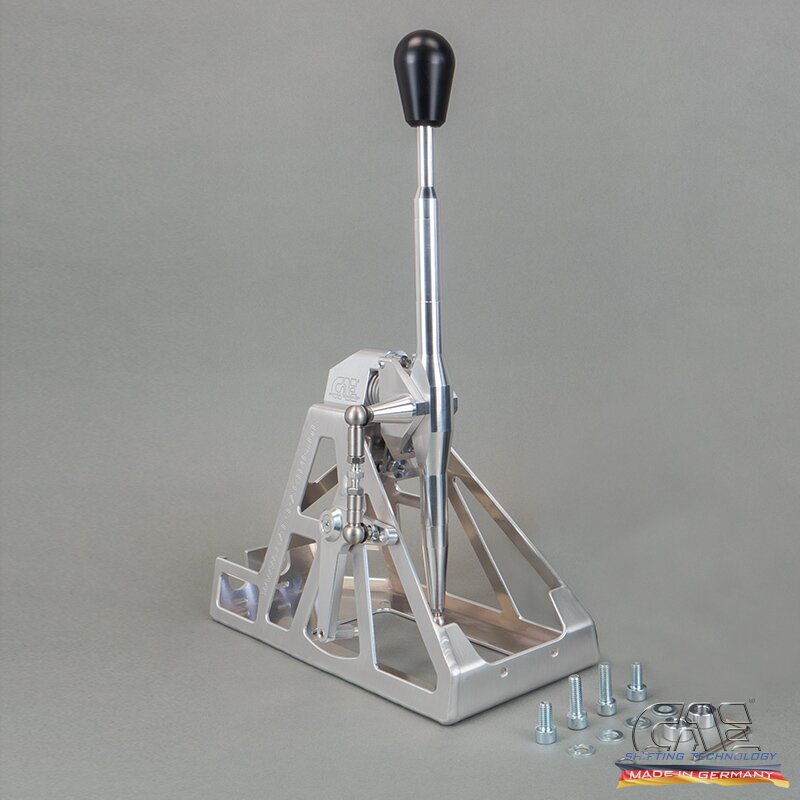

CAE Ultra Shifter Subaru WRX / STI -2000-2007 RACE

SKU: SKU: 10087 RS-Aluminum-POMBlack

CAE Ultra Shifter - optimized for motorsport, with the following features:

  • Race version with 1-piece housing and reinforced shift rod.
    Not intended for use with a center console!!
  • verwendbar for vehicles 6--speed gearbox. STI BJ 2000-2007

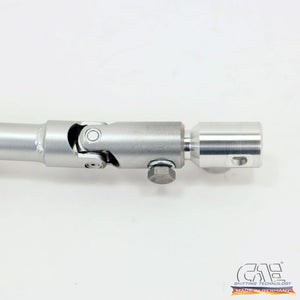

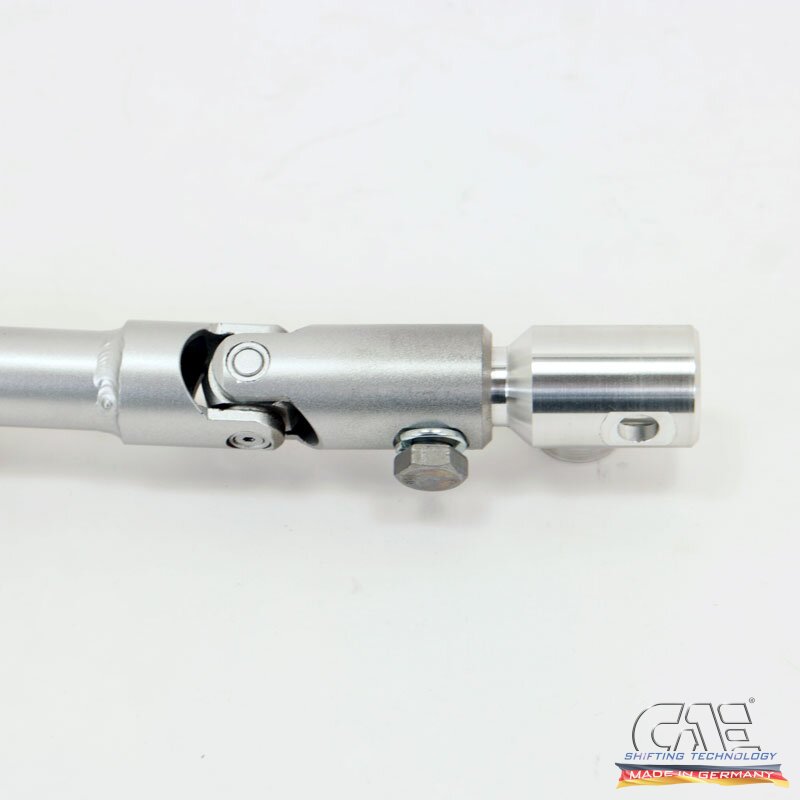

    Funktioniert with unserem Adapter 10087ADP5G also with 5-speed gearboxn, the reverse gear lock at the Shifter bleibt dann ohne Funktion
  • Short and ultra-precise shift throws H-pattern.
  • The clutch system remains stock.
  • Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
  • Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.
  • Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
  • Smooth gear changes under load and during cornering.

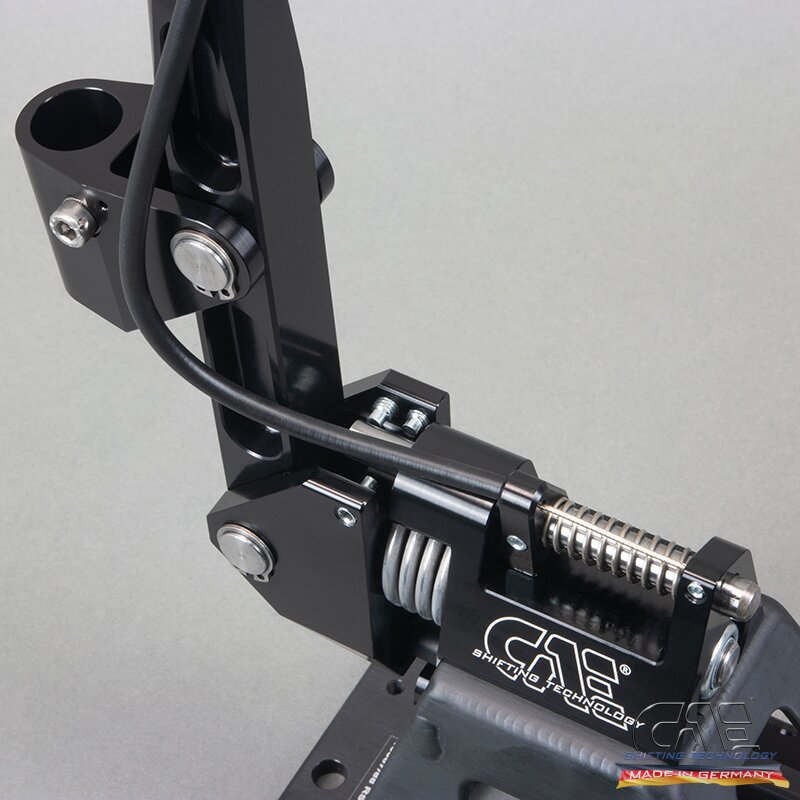

  • Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
  • Left/right stops and reverse stop are independently adjustable.
  • The shifter is supplied as a complete kit for adaptation to the original shift rod, including all small parts, fasteners, and a detailed installation manual.
  • Die center console can not assembled be or muss enstprechend ausgeschnitten be

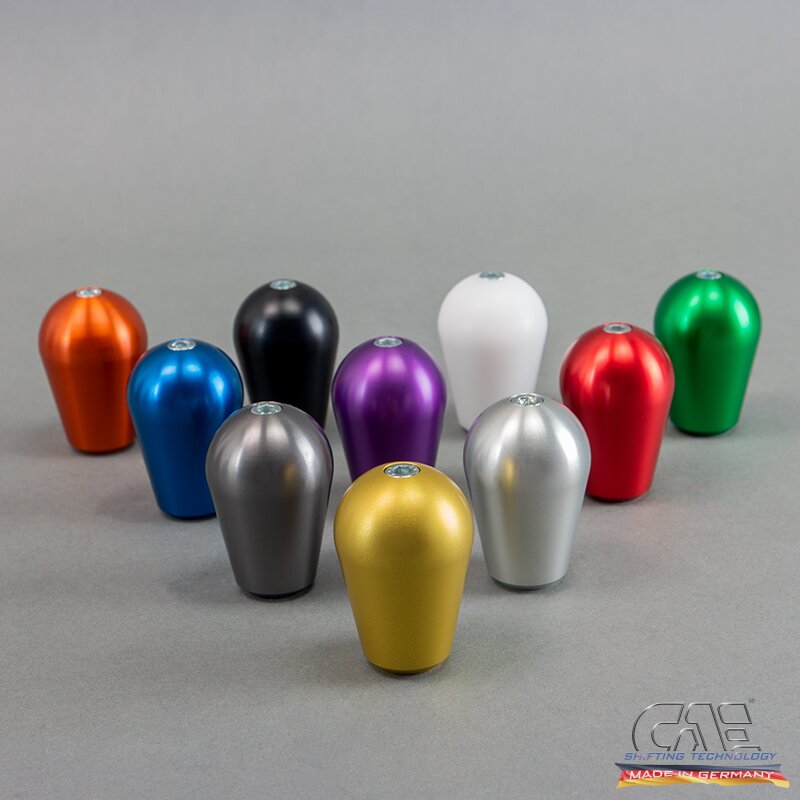

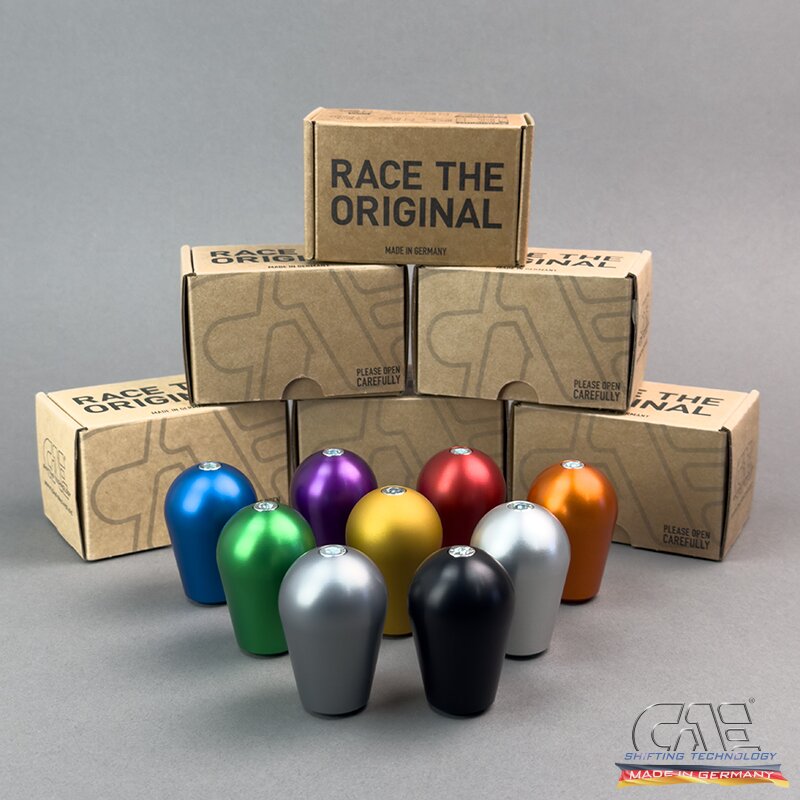

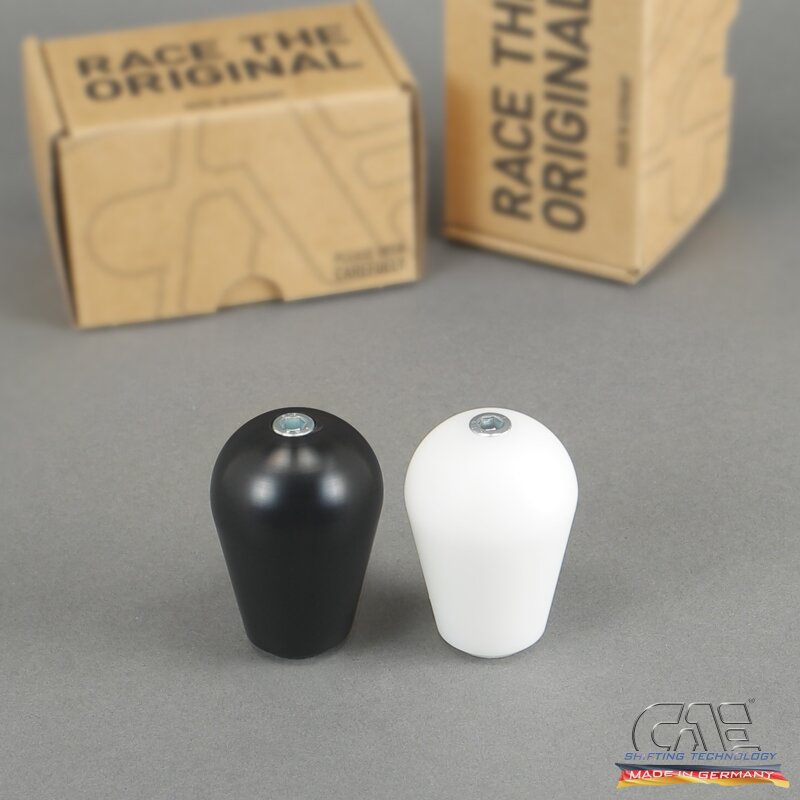

  • Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

Overall height: approx. 435 mm
Overall length: approx. 240 mm
Base plate dimensions: approx. 200 x 100 mm
shift throw: approx. 65 mm
selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 2,35 kg
Gear lever offset (rearward / upward): depending on vehicle type approx. 20 / 80 mm

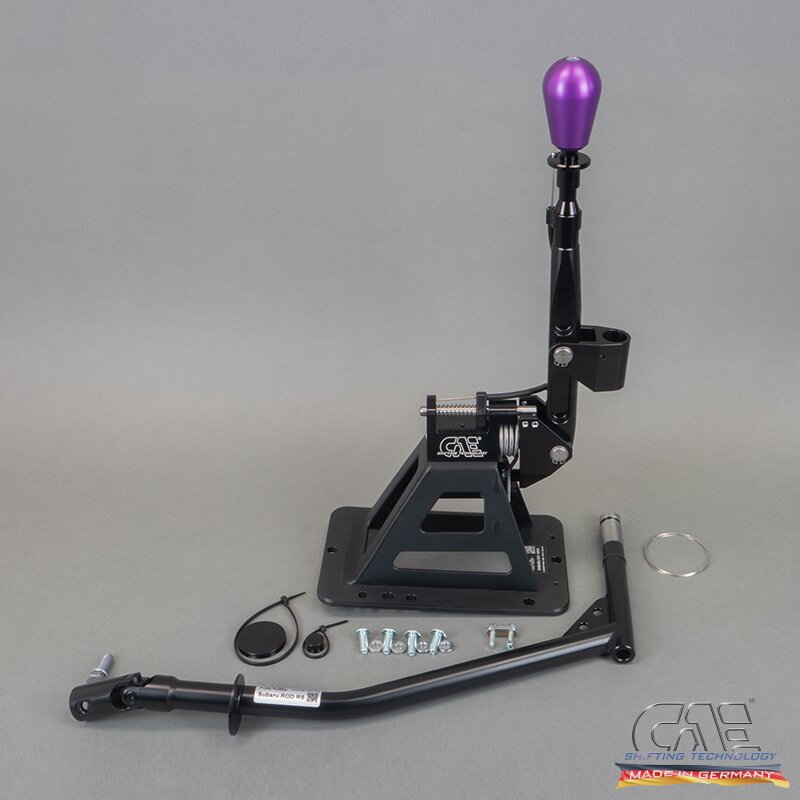

Scope of delivery:

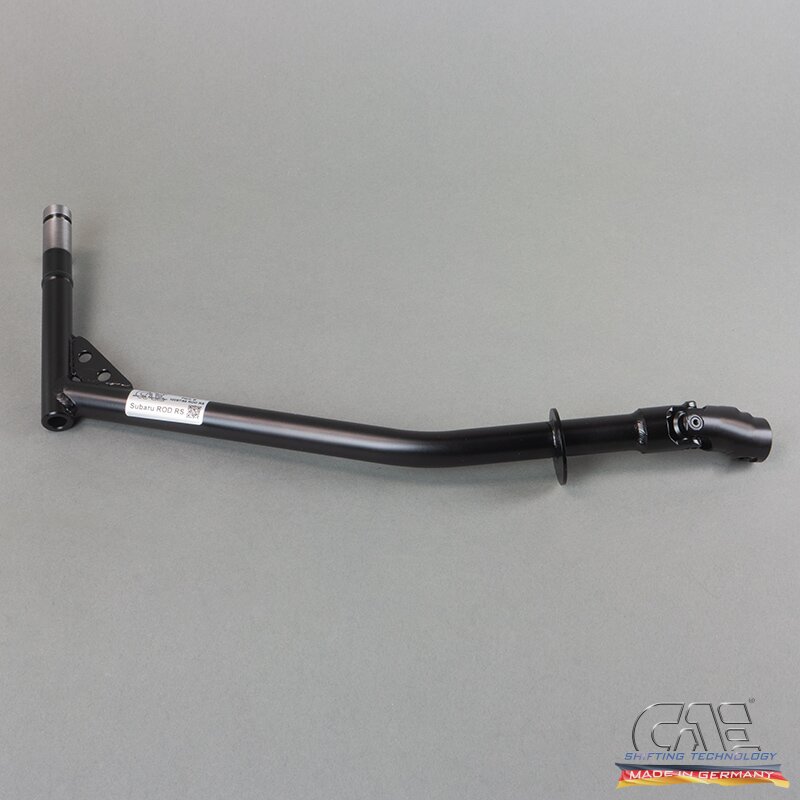

Shifter fully assembled, special CAE shift rod, all small parts and fasteners.

installation manual here to the Downlaoad or under the PDF tab

For your personal certificate, please contact us.
