CAE Shifter VW Corrado 02M; 02Q & 02J

CAE Ultra Shifter - optimized for motorsport, with the following features:

• CAE Ultra Shifter for VW CORRADO with 02M; 02Q & 02J (only neue Ausführung) 5- or 6-speed cable-shift gearbox, gearbox type MQ200, MQ250, MQ350
• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.
• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

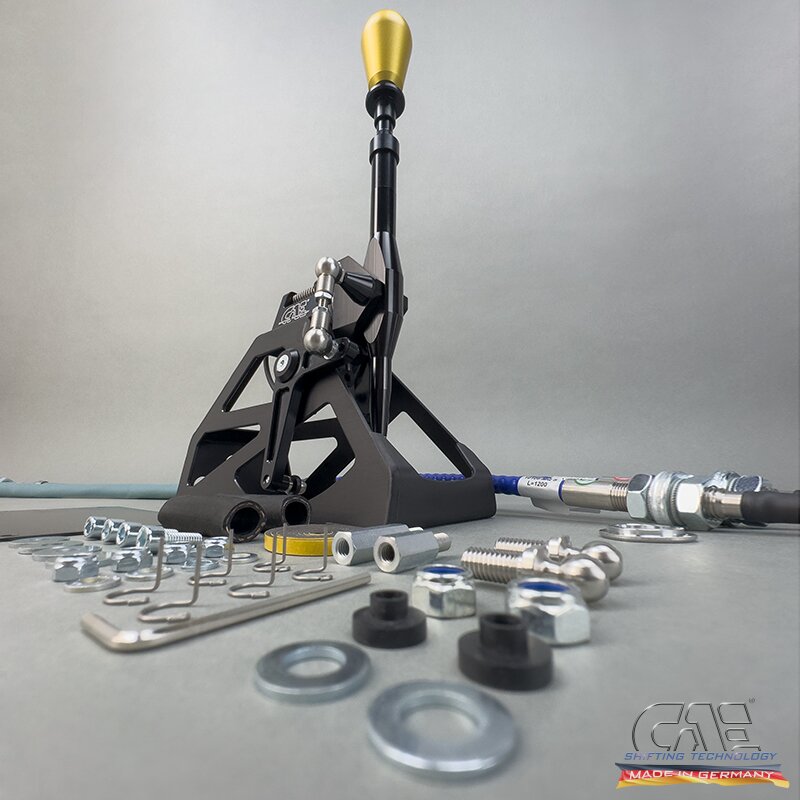

• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.
• Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

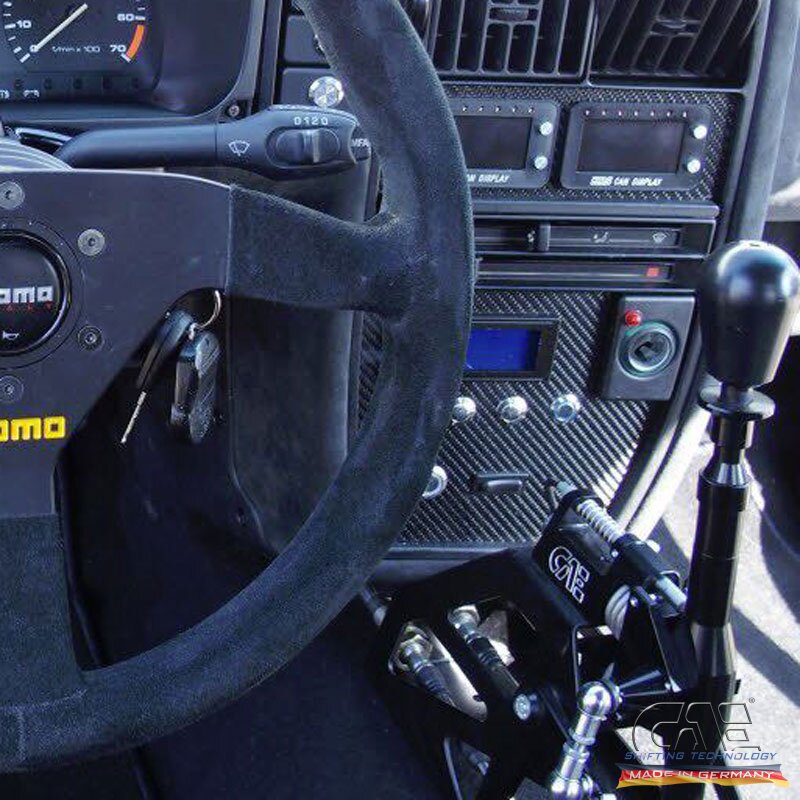

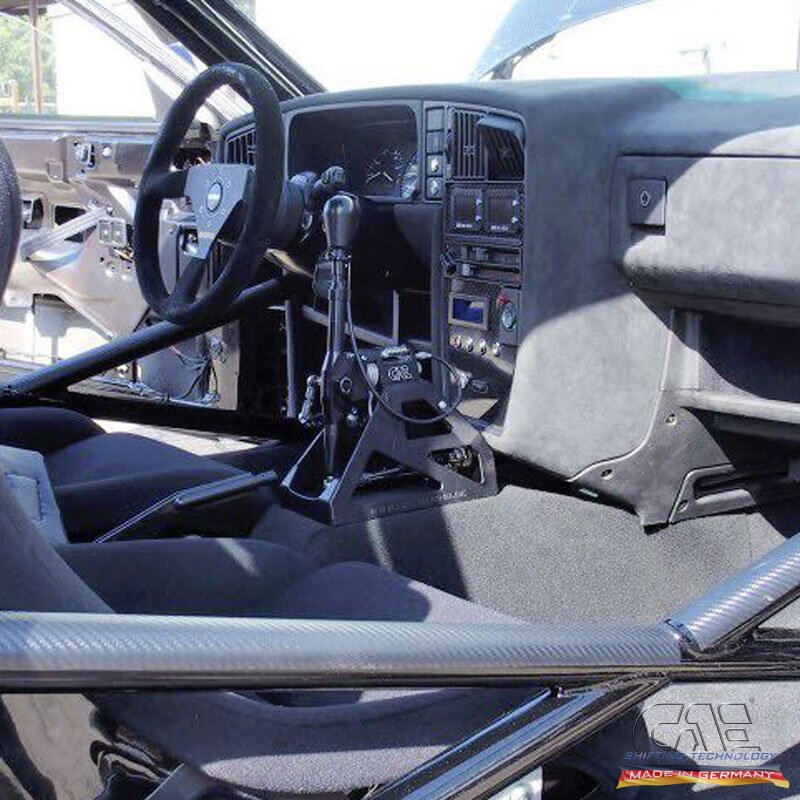

• The shifter is mounted on the center tunnel and designed for vehicles without interior trim / without a center console.

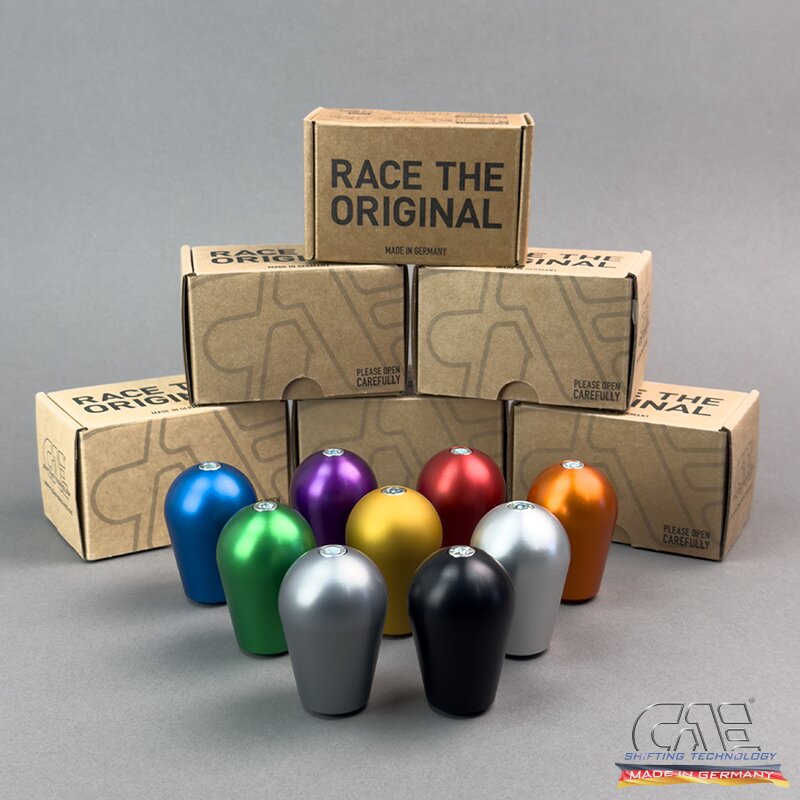

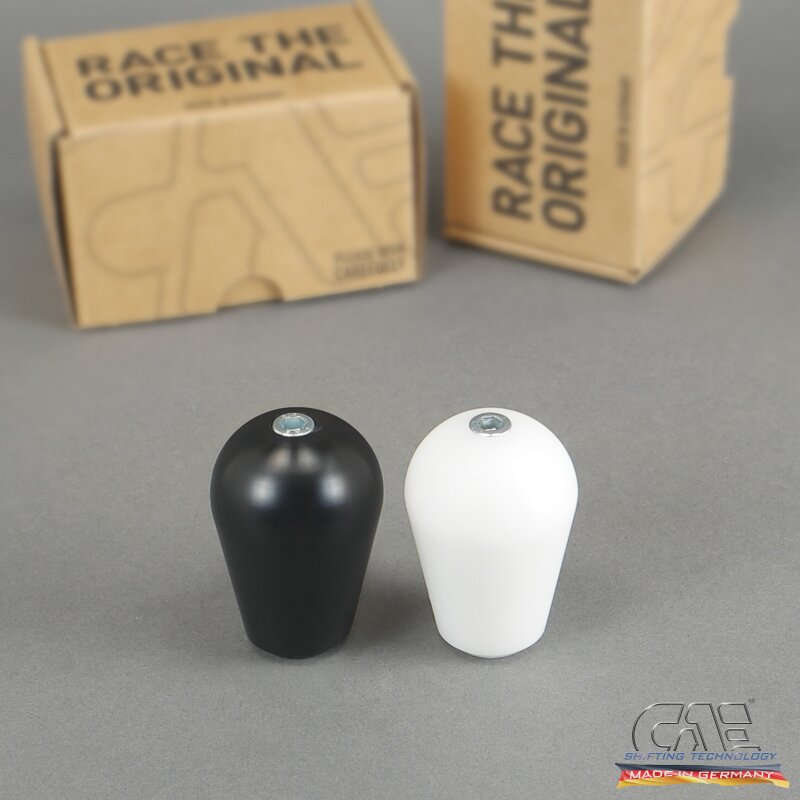

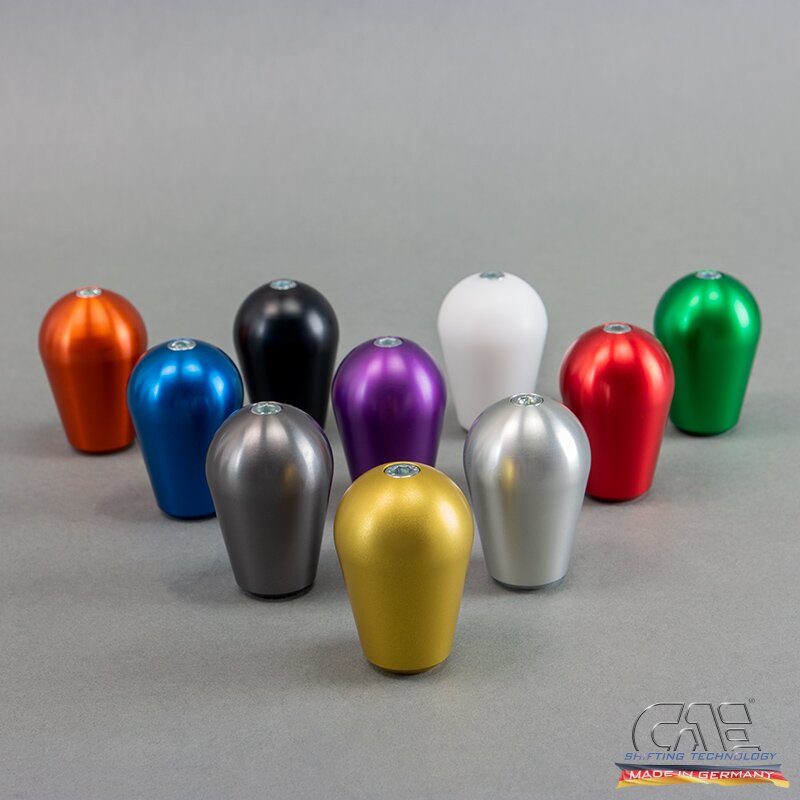

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

  Overall height:	approx. 320 mm
  Overall length:	approx. 220 mm
  Base plate dimensions:	approx. 230 x 115 mm
  shift throw:	approx. 65 mm
  selector travel (transverse direction):	approx. 65 mm
  Weight (complete):	approx. 3,3 kg
  Gear lever offset (rearward / upward):	approx. 60 / 90 mm

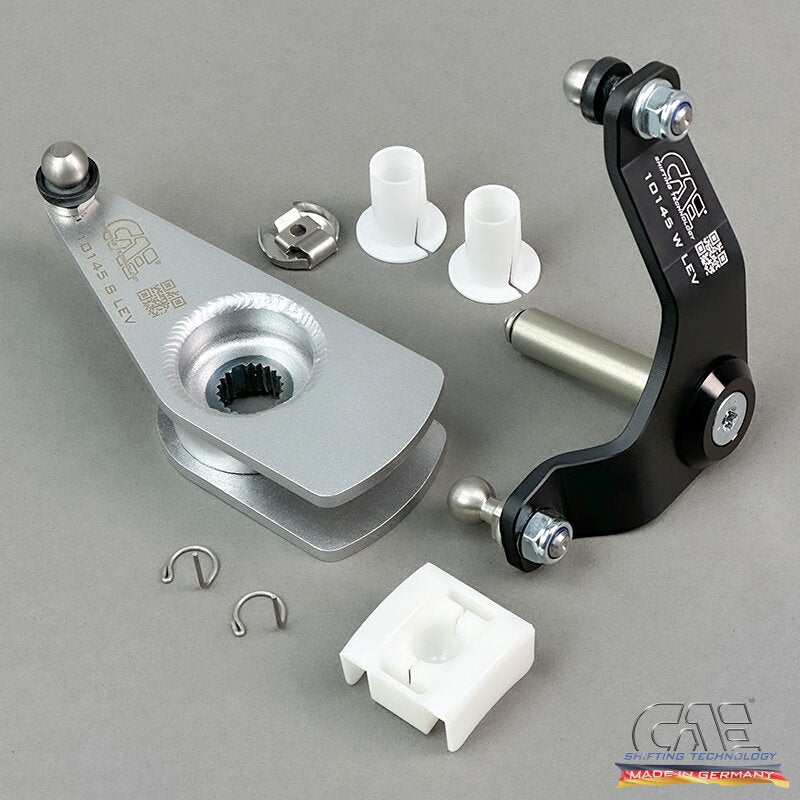

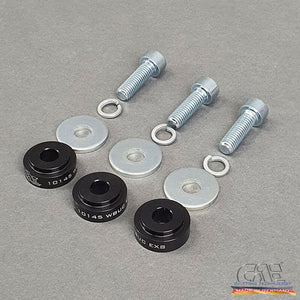

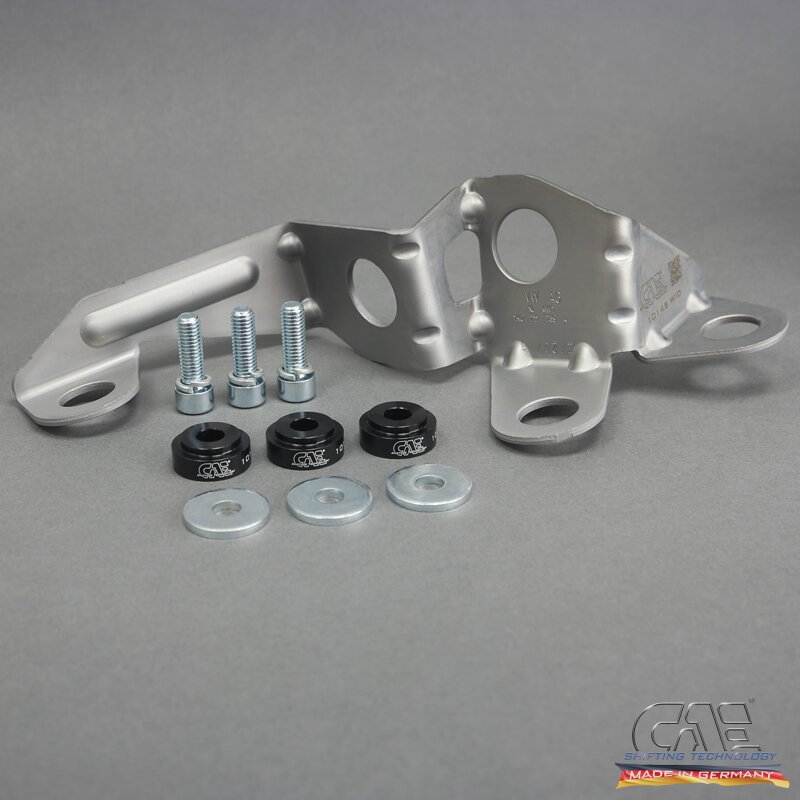

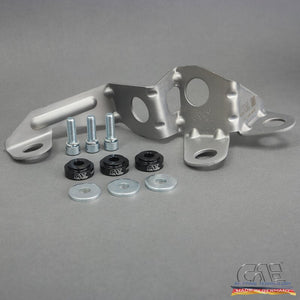

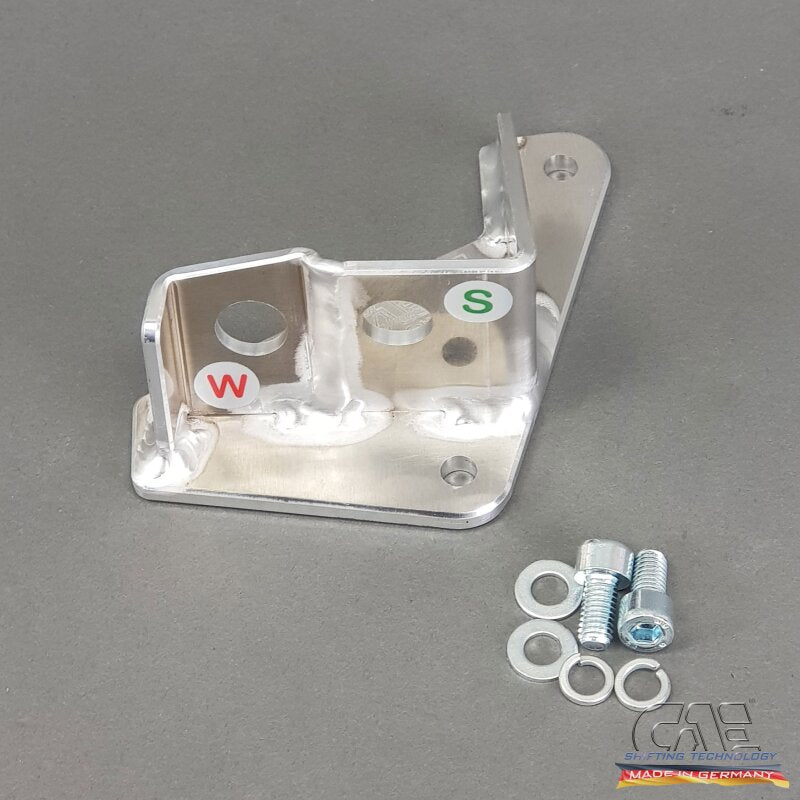

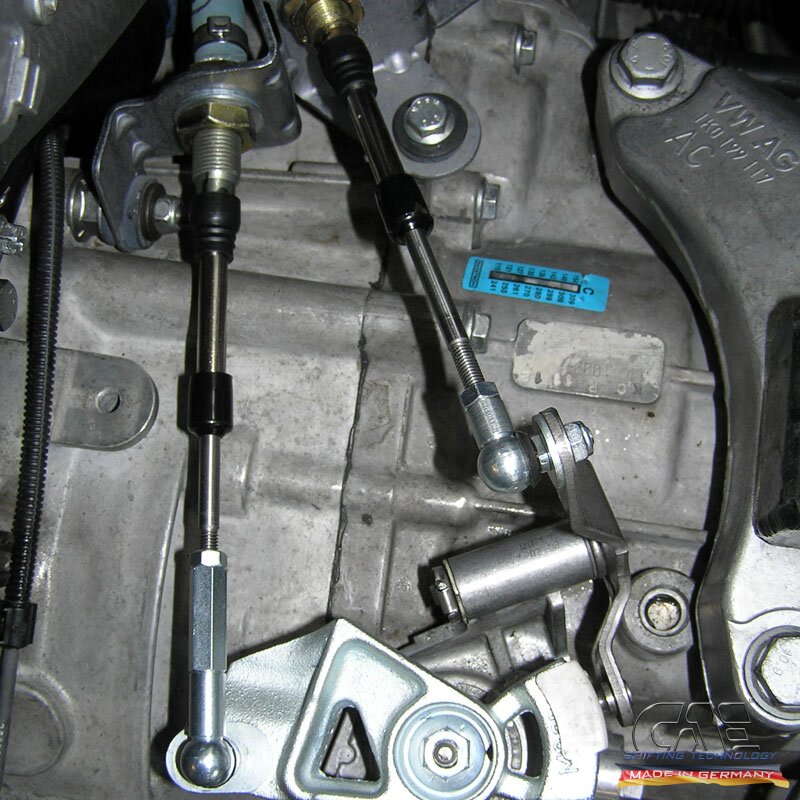

  After conversion, the shift cables run over the tunnel. Two holes (18 mm diameter) in the tunnel are required for routing. The original gearbox levers must be modified. Modified gearbox levers (10145KIT) and the matching cable bracket (10145WID) are available under "Accessories" (see below).

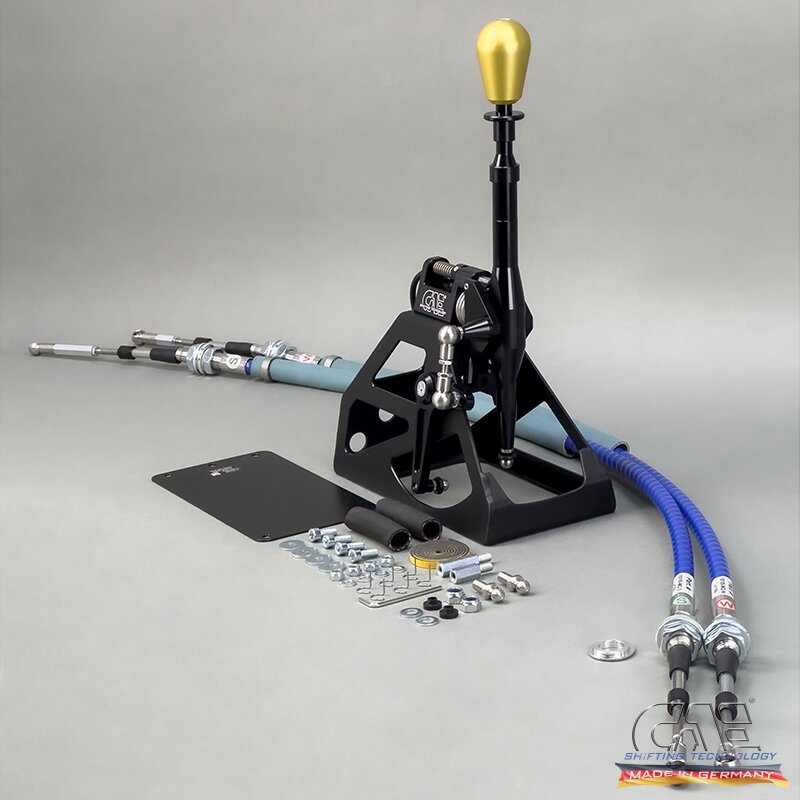

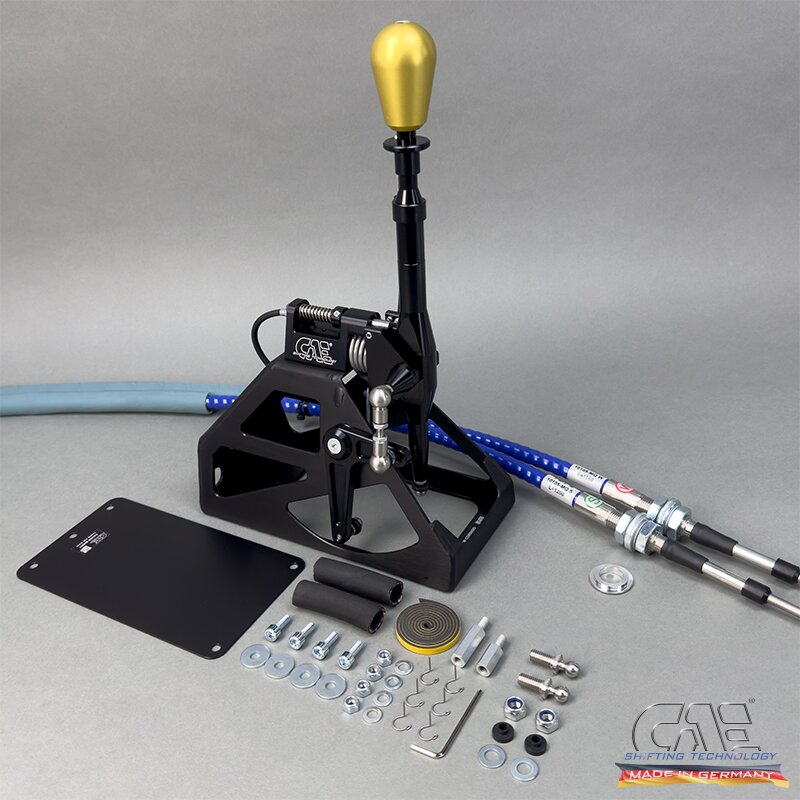

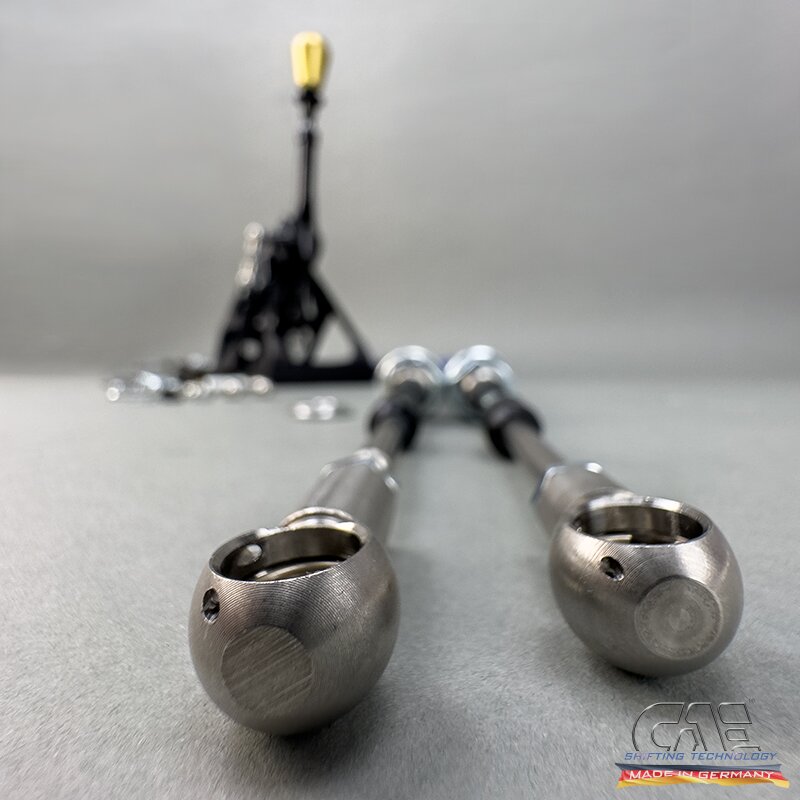

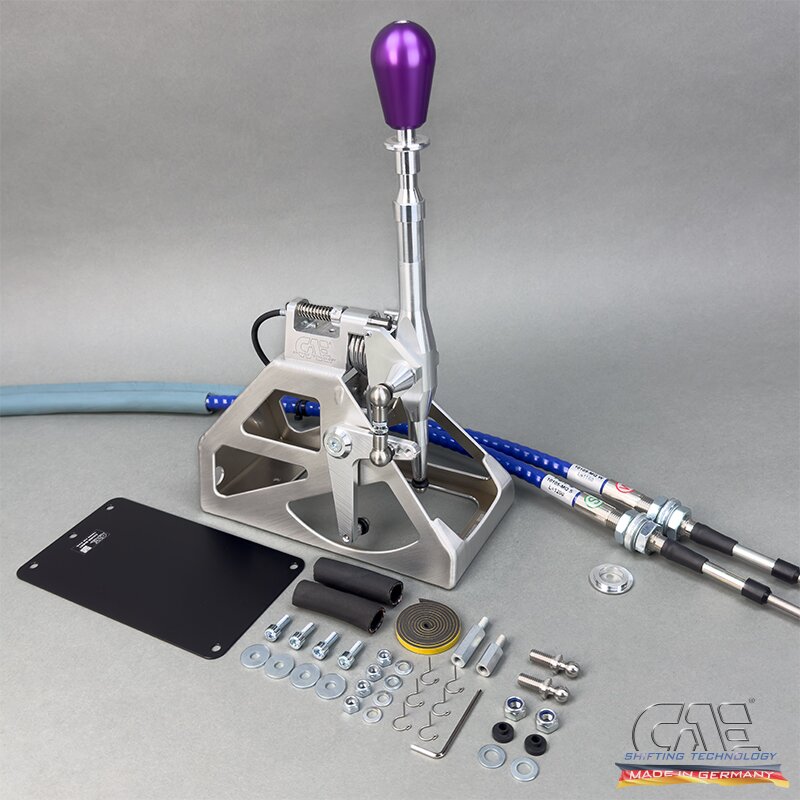

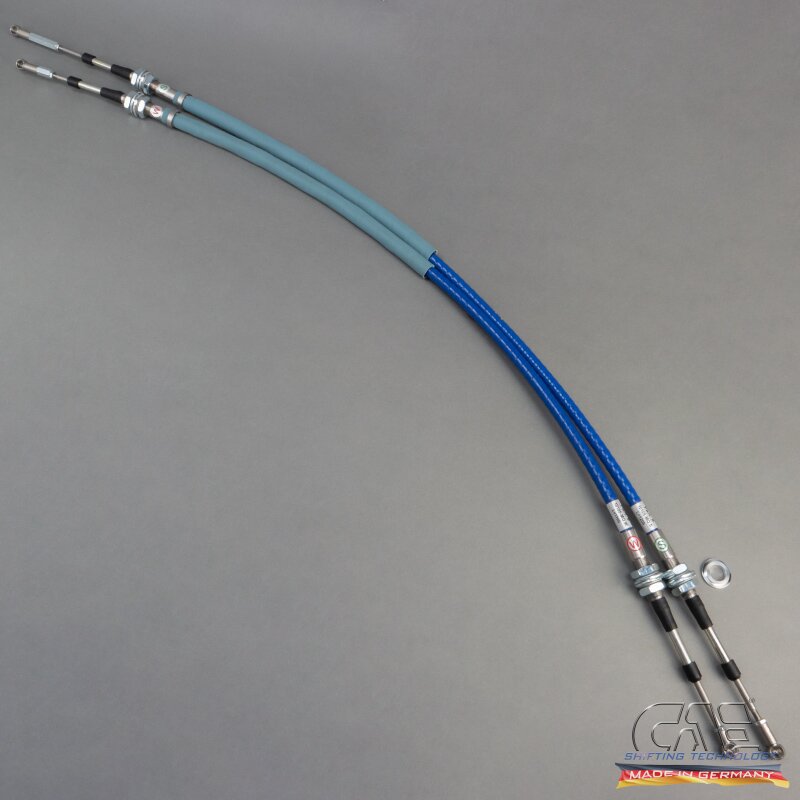

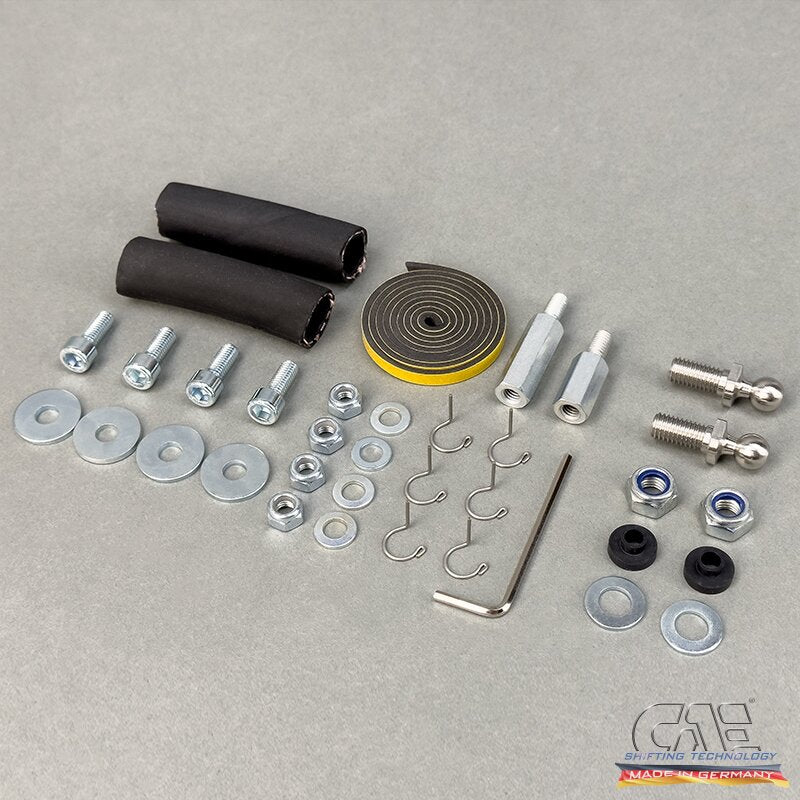

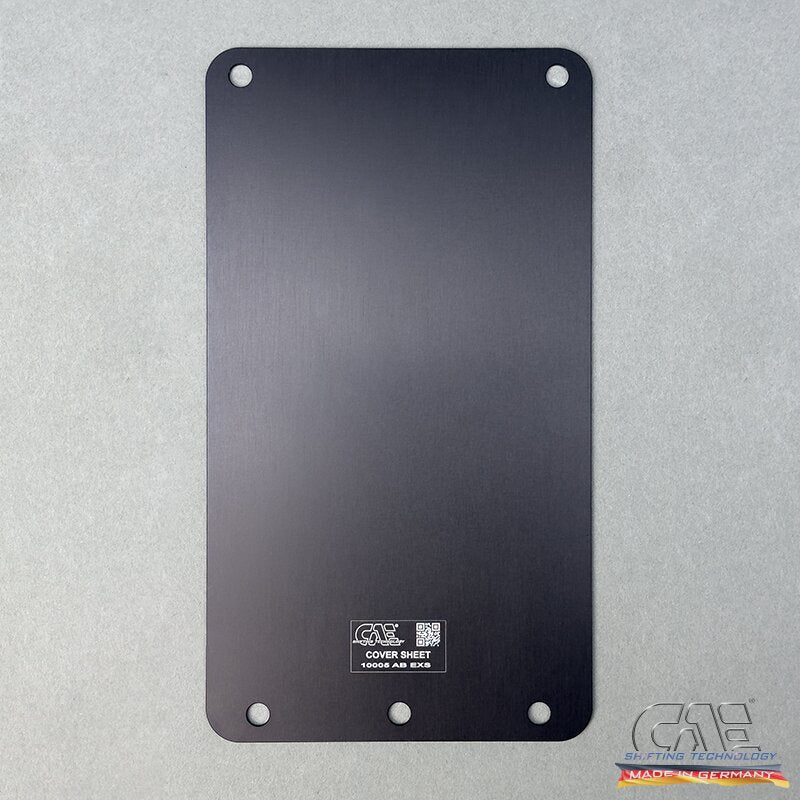

  Scope of delivery: Shifter fully assembled, cover plate for tunnel opening, CAE HD shift cables, all screws and small parts.

  The installation manual is available for download under the "PDF" tab on this page.
