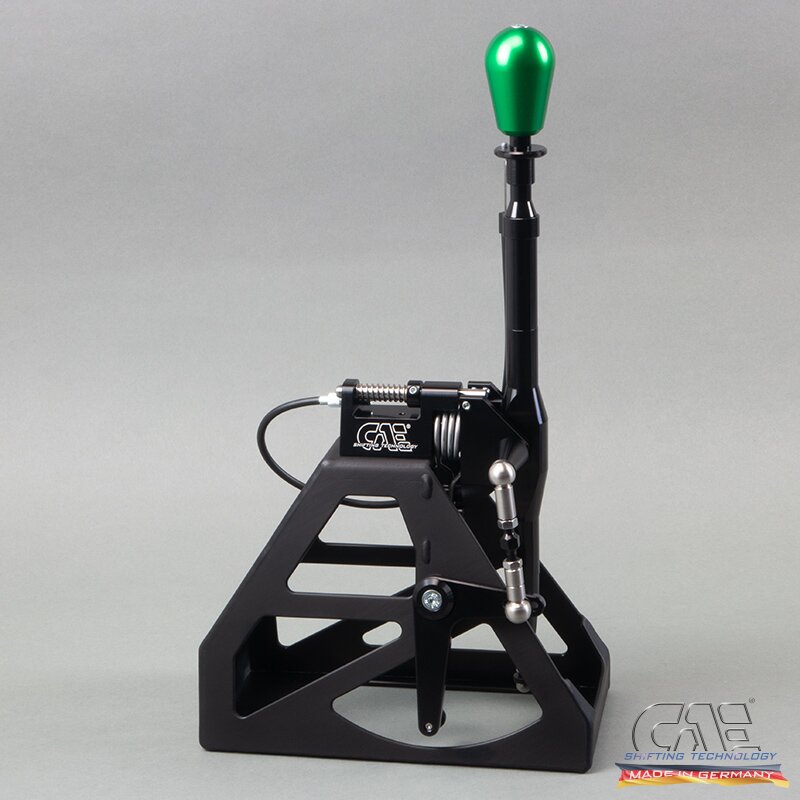

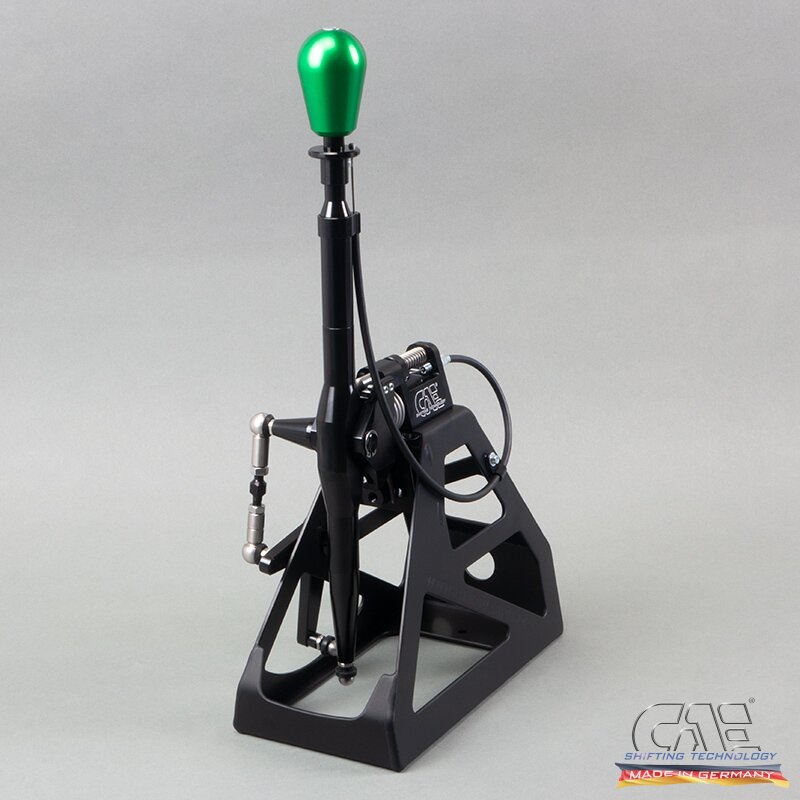

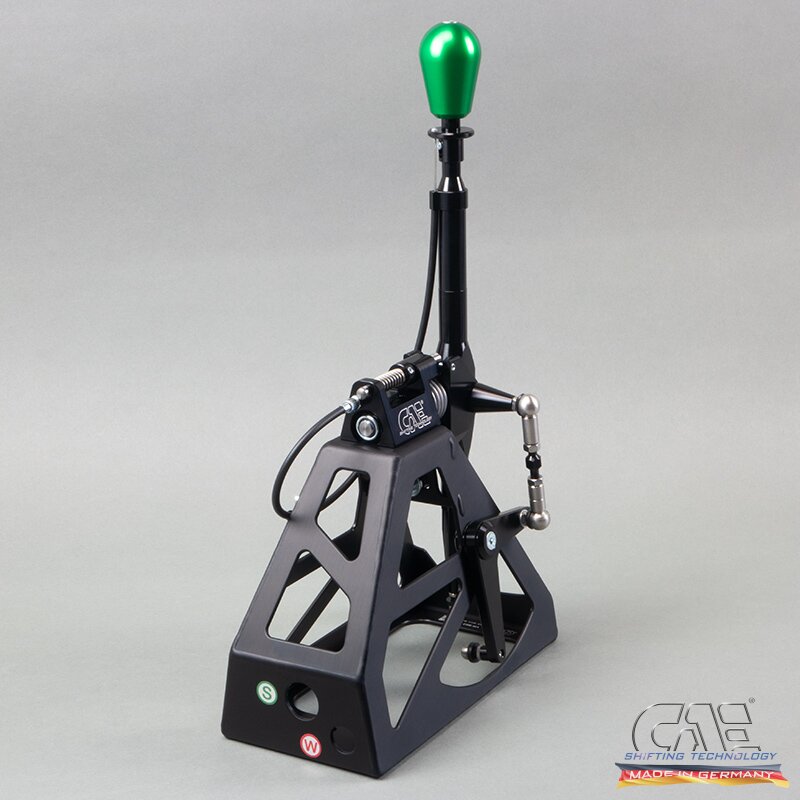

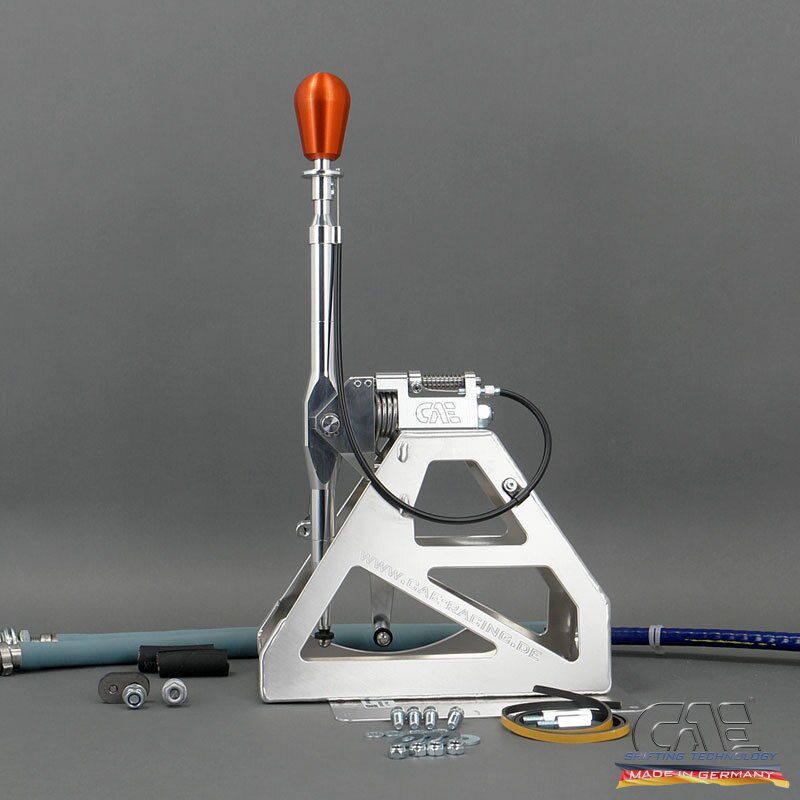

CAE Ultra Shifter VW Golf 2 / 020

CAE Ultra Shifter - optimized for motorsport, with the following features:

• CAE Ultra Shifter for Golf 2 with original VW 020 rod-shift gearbox and standard Golf 2 engine mount. For VW Motorsport engine mounts, please enquire before purchasing. Kompletter Umrüstkit on Schaltseiltechnik
• Short and ultra-precise shift throws H-pattern and for 5- and 6-speed 020 gearbox compatible.
• The clutch system remains stock.

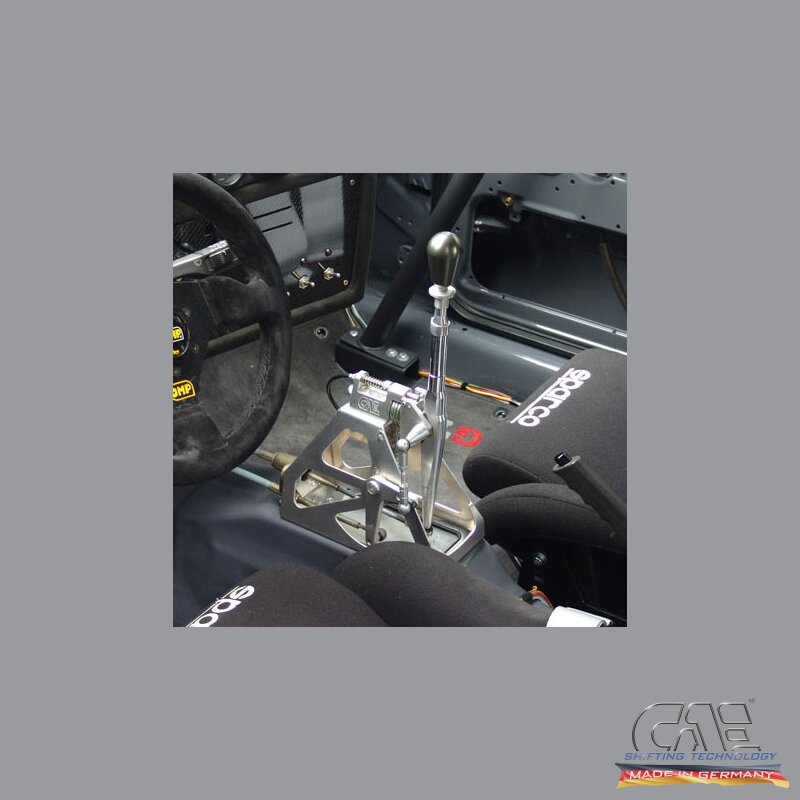

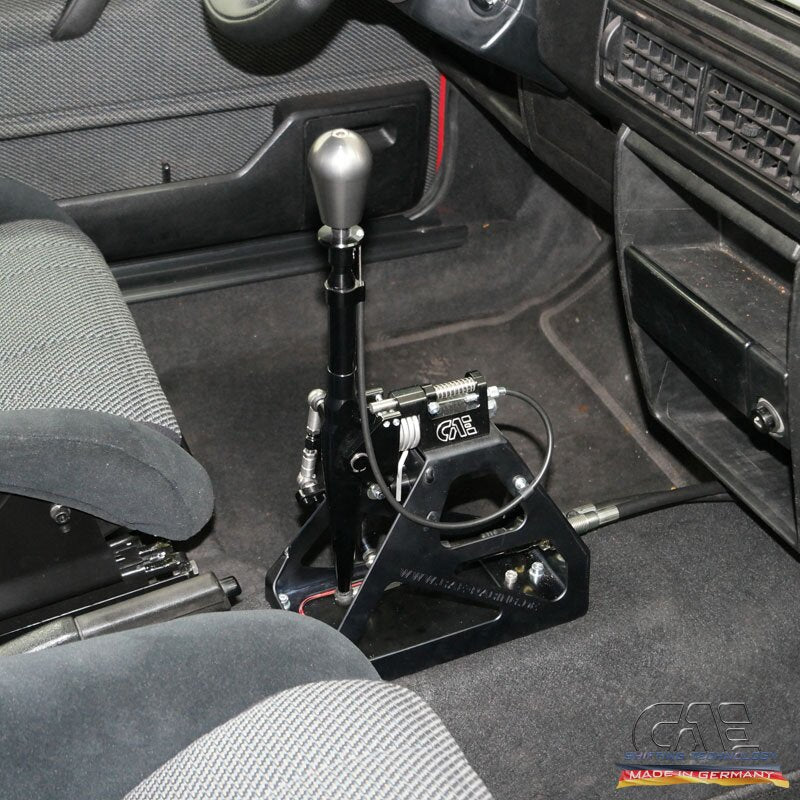

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

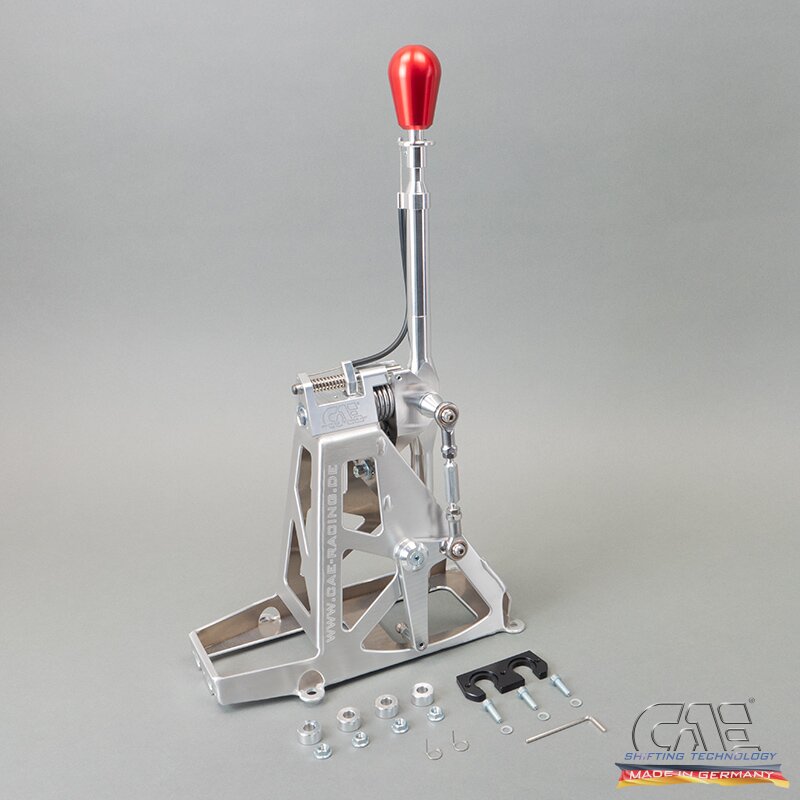

• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.
• Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

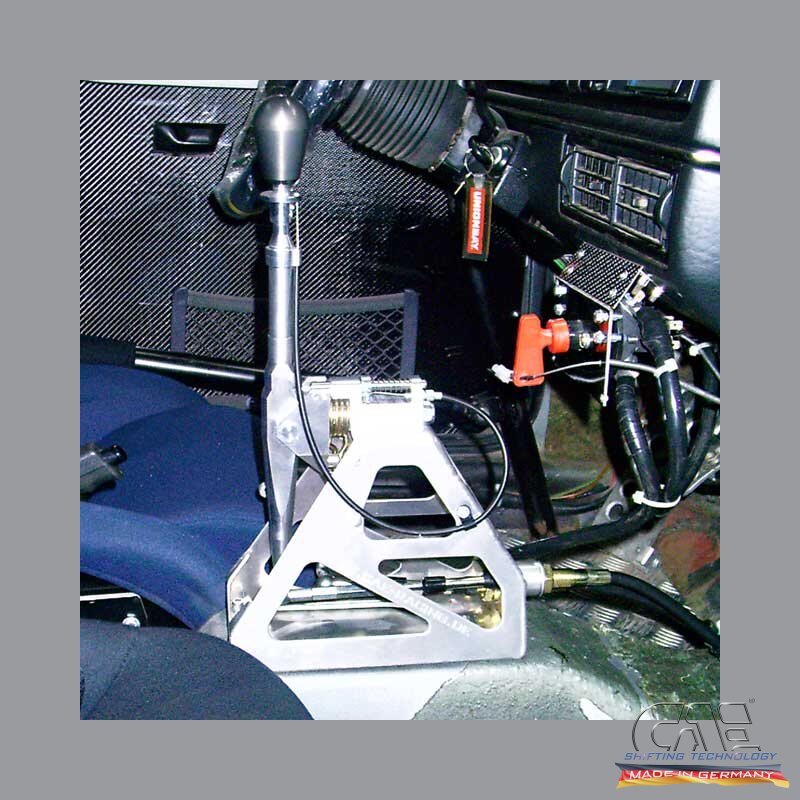

• The shifter is designed for vehicles without interior trim / without a center console.

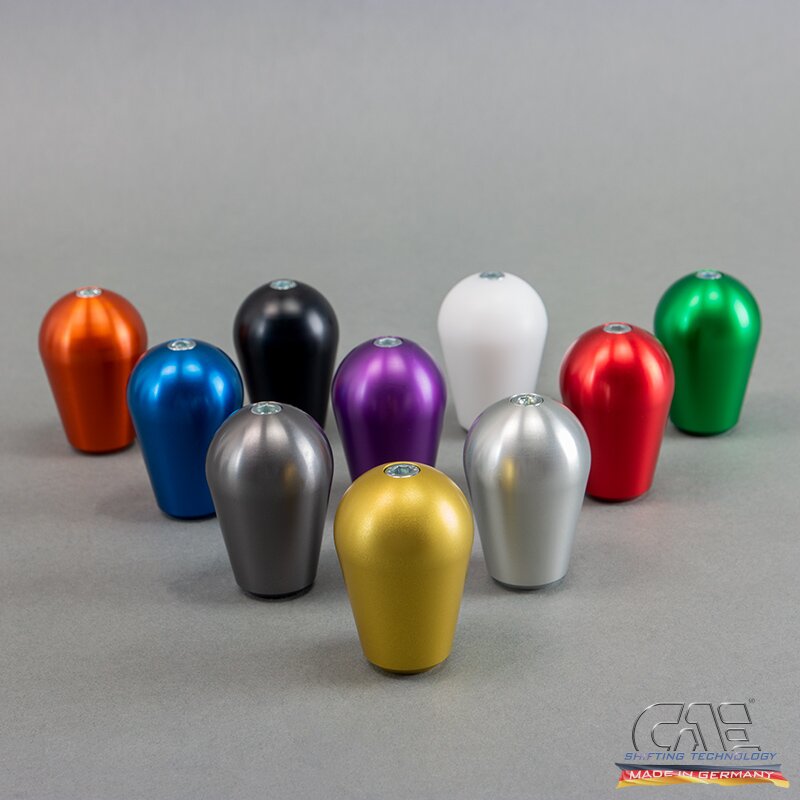

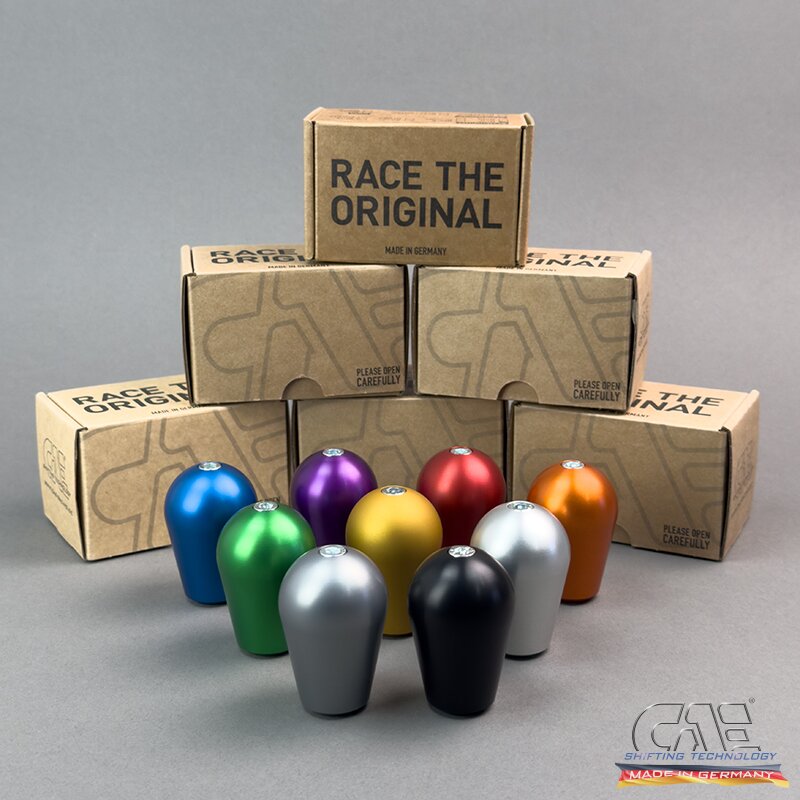

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch



  Overall height:	approx. 420 mm
  Overall length:	approx. 220 mm
  Base plate dimensions:	approx. 230 x 115 mm
  shift throw:	approx. 65 mm
  selector travel (transverse direction):	approx. 65 mm
  Weight (complete):	approx. 2,35 kg
  Gear lever offset (rearward / upward):	approx. 60 / 130 mm

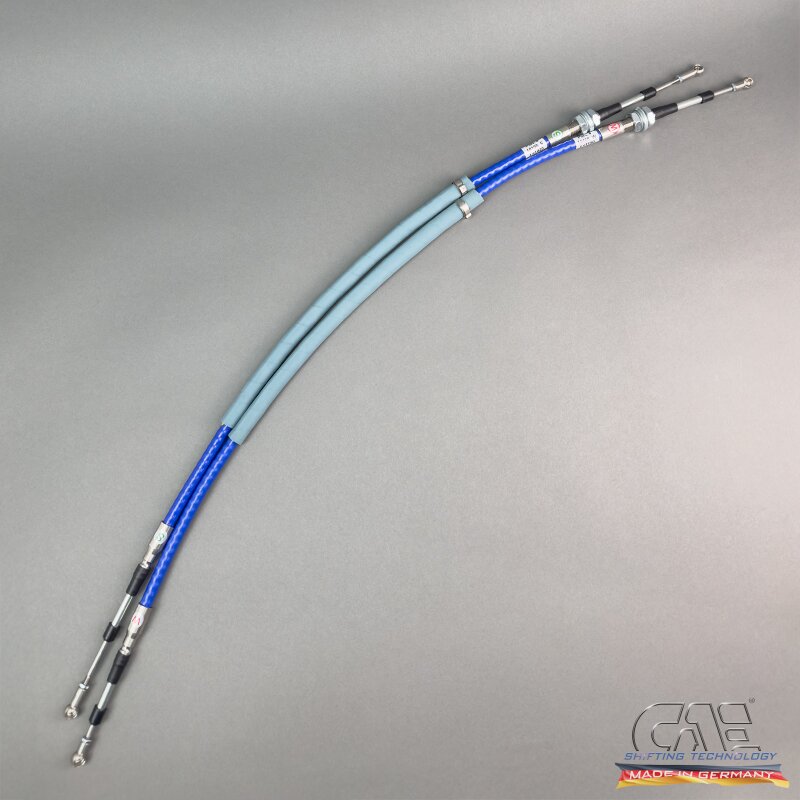

  After conversion, the shift cables run over the tunnel. One hole in the firewall is required for routing. The shifter is supplied as a complete kit including CAE HD shift cables.
  !!! Die Klemmbefestigung for the Schaltseil muss on the Alu Motorträger aufgeschweißt be !!!

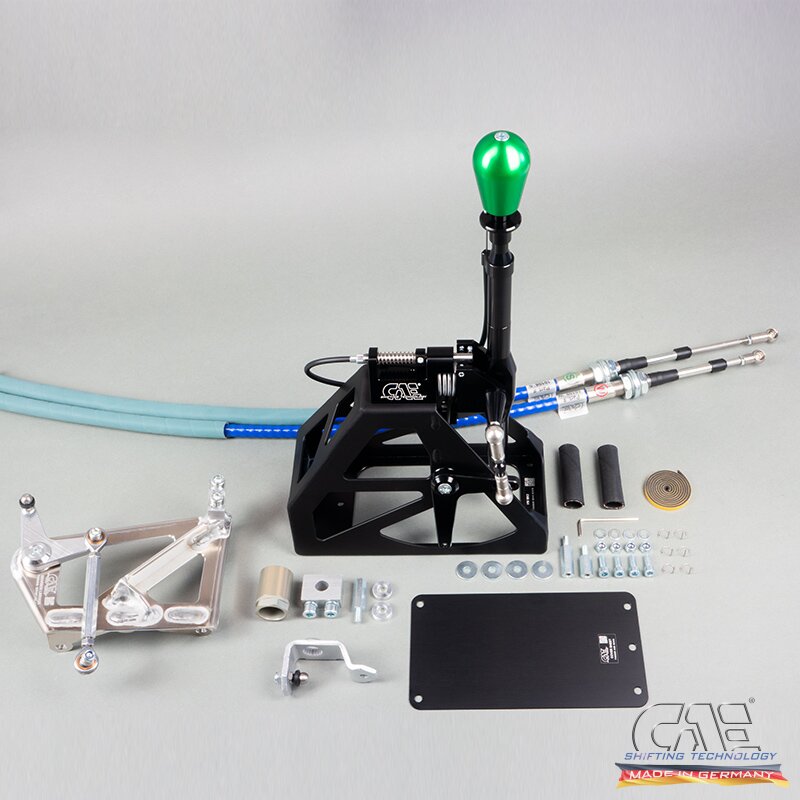

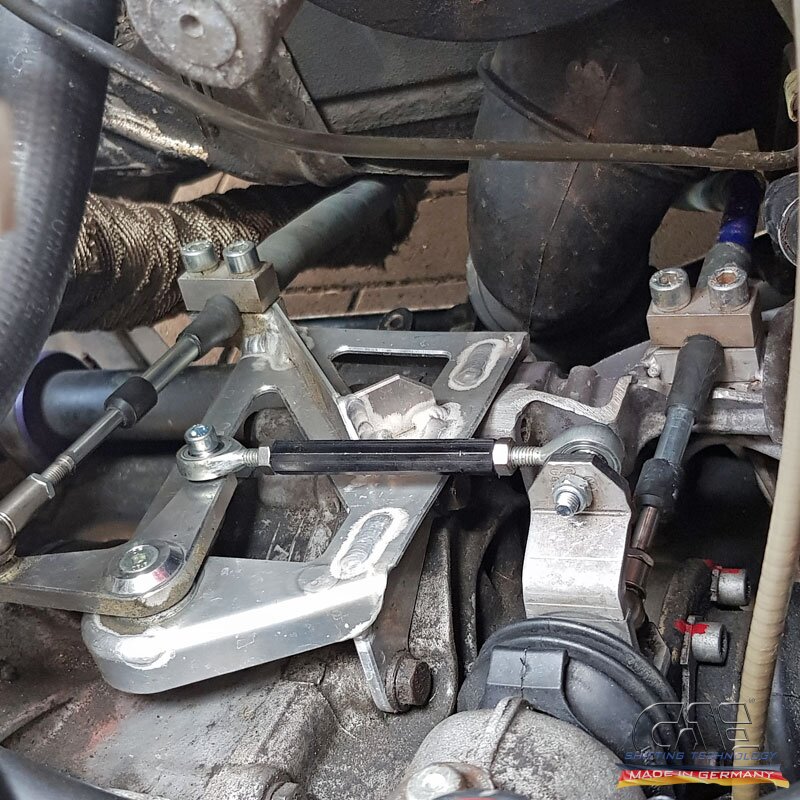

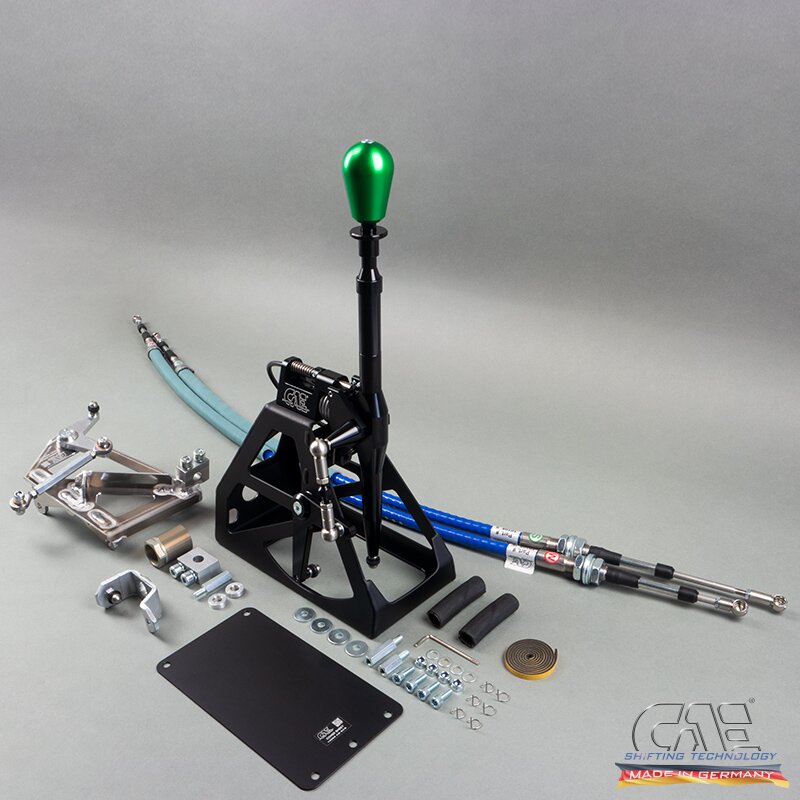

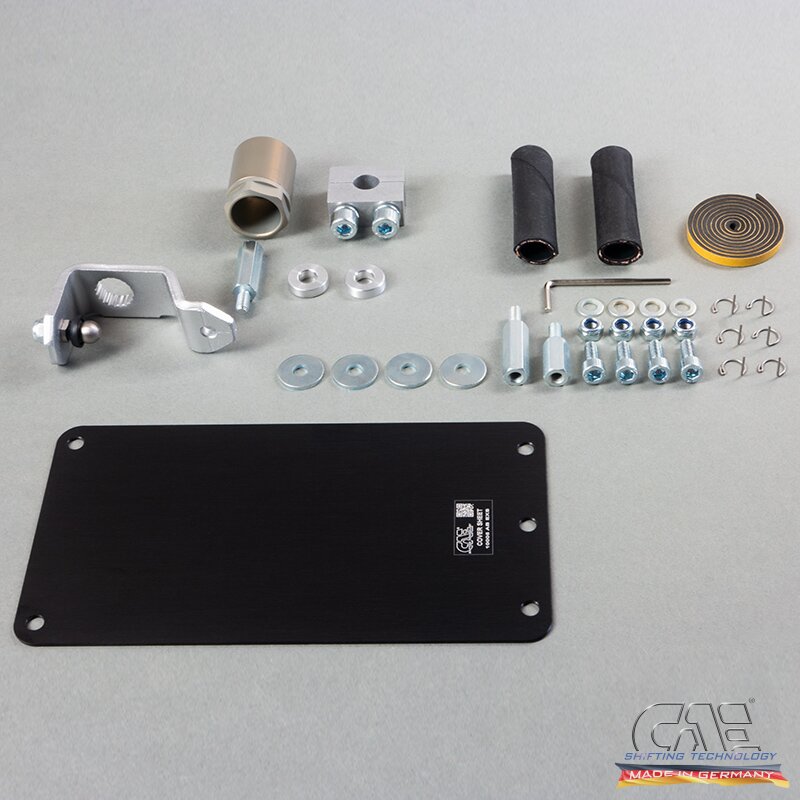

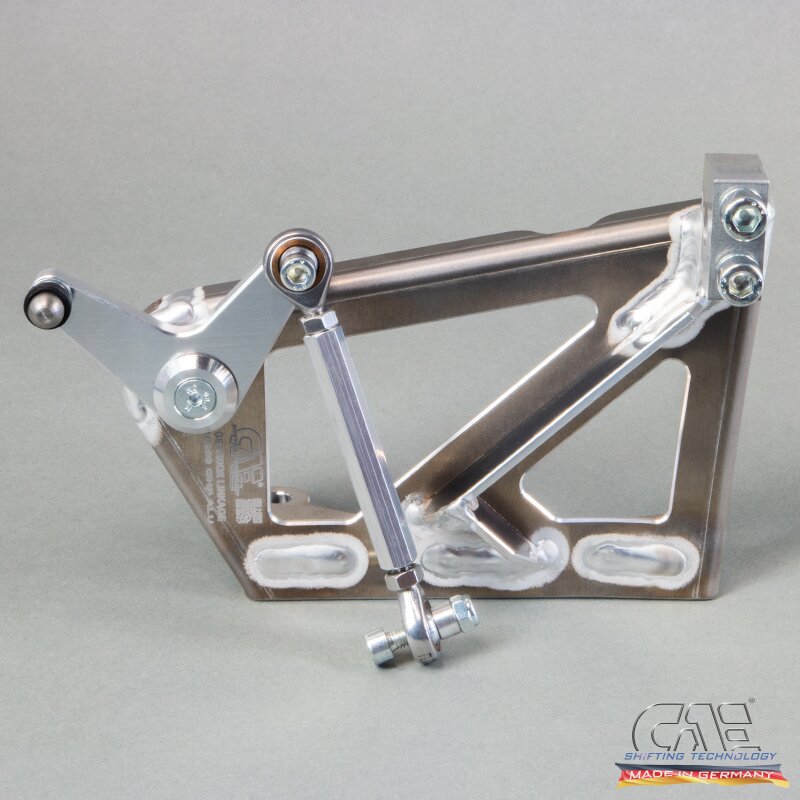

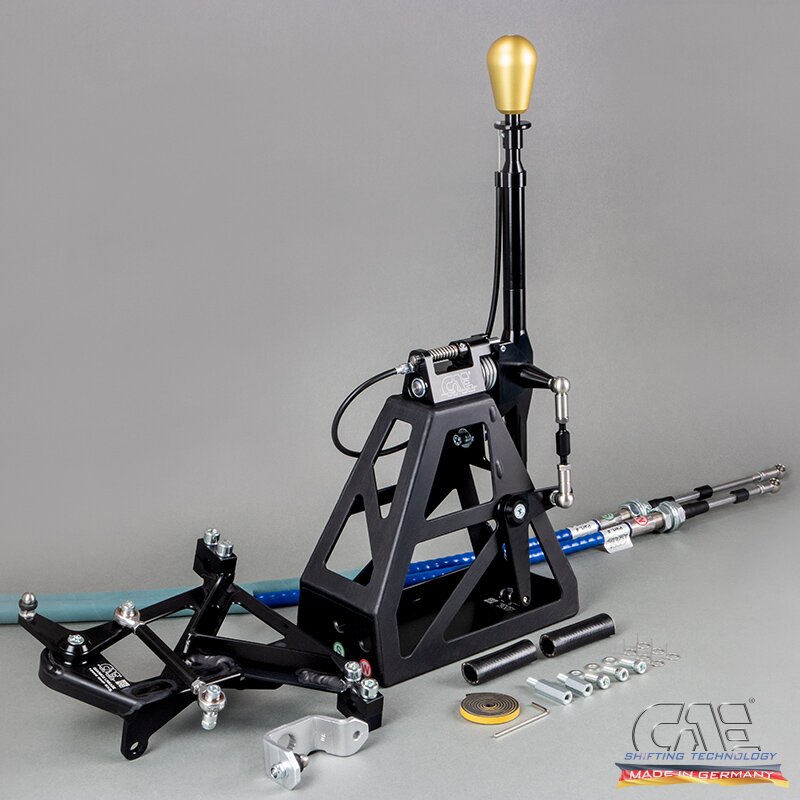

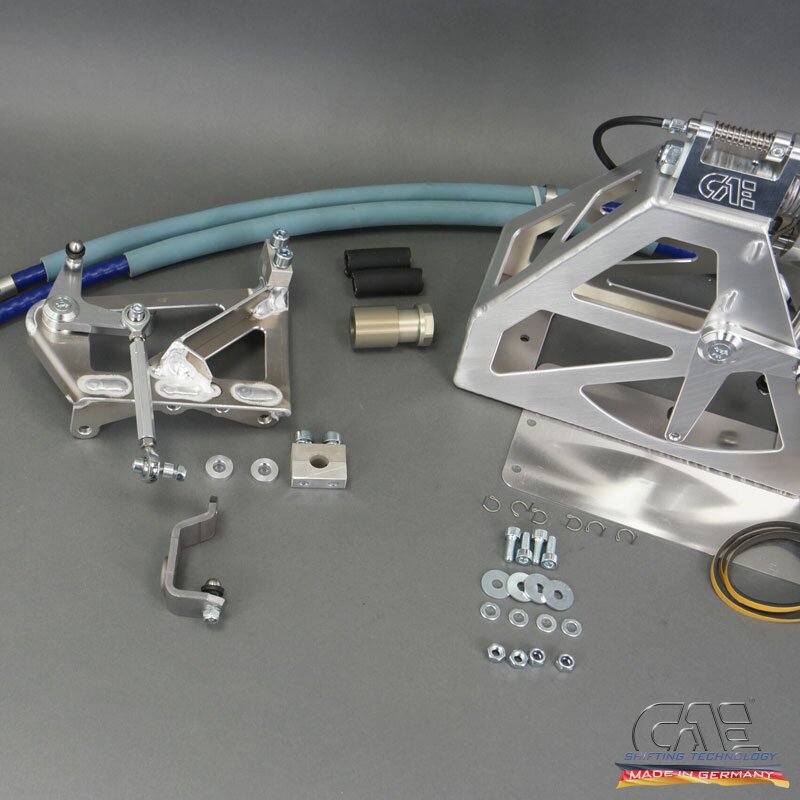

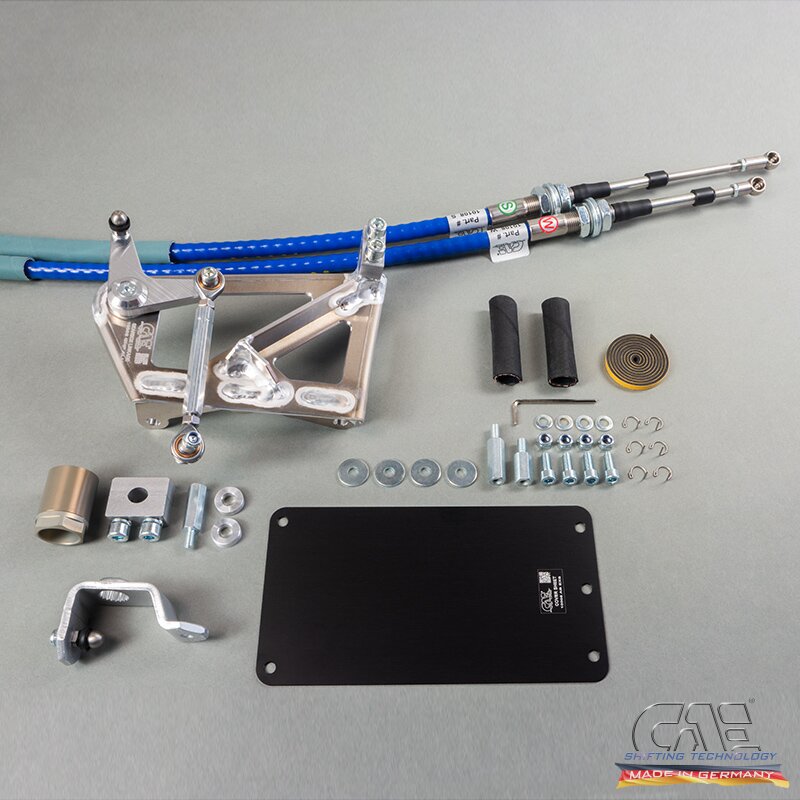

  Scope of delivery: Shifter fully assembled, cover plate for tunnel opening, CAE HD shift cables, complete gearbox linkage,
  clamp to the Aufschweißen for the Alu-Motorbock, gearboxingangshebel, all small parts and fasteners.
