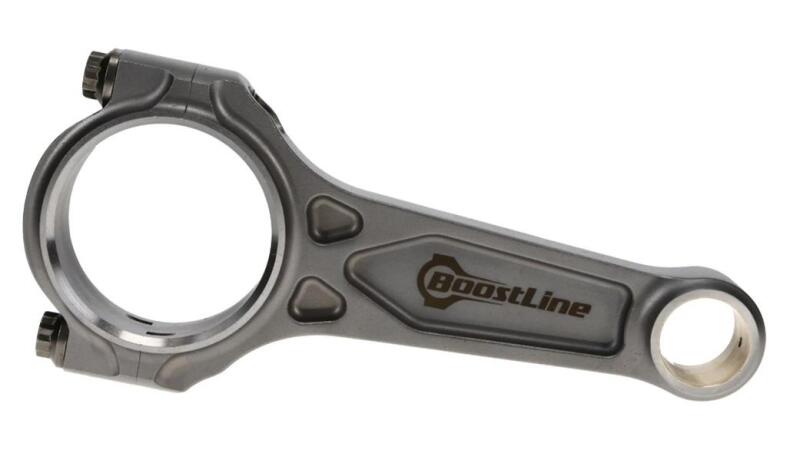

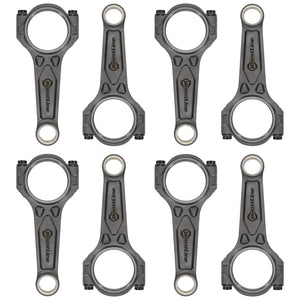

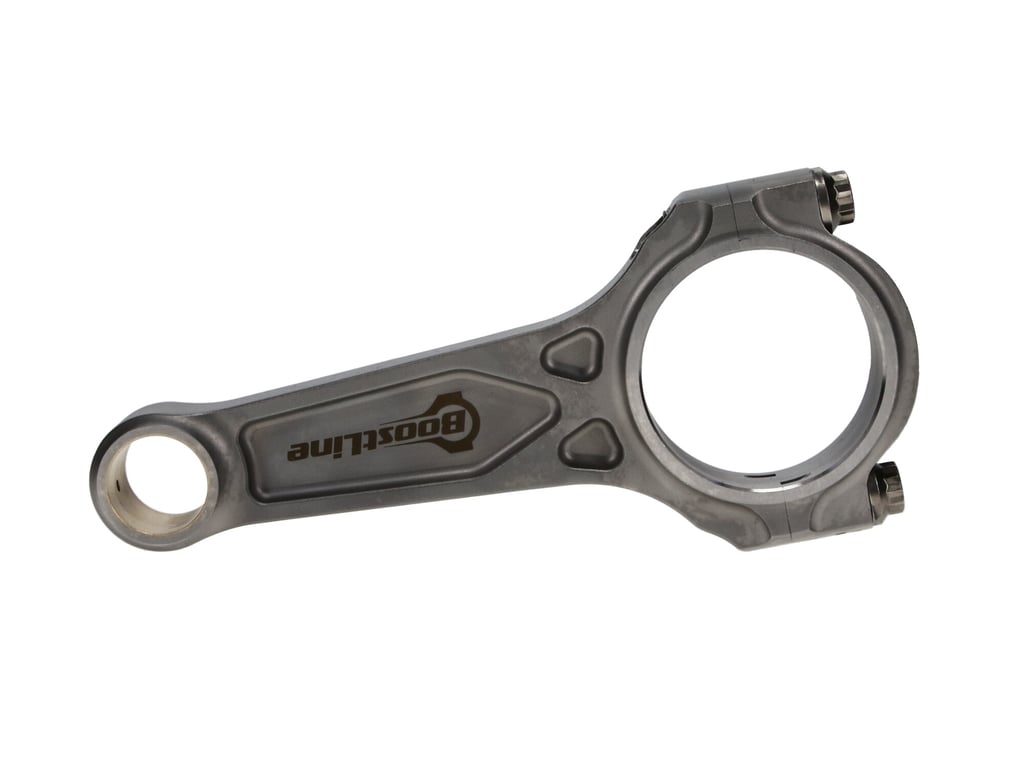

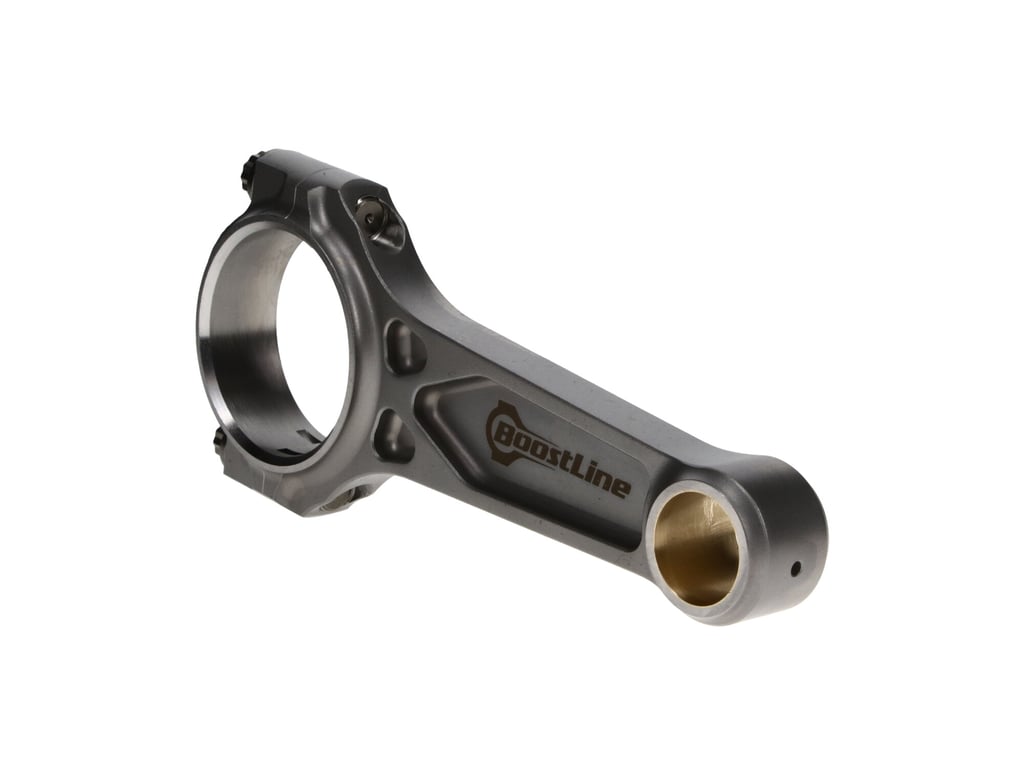

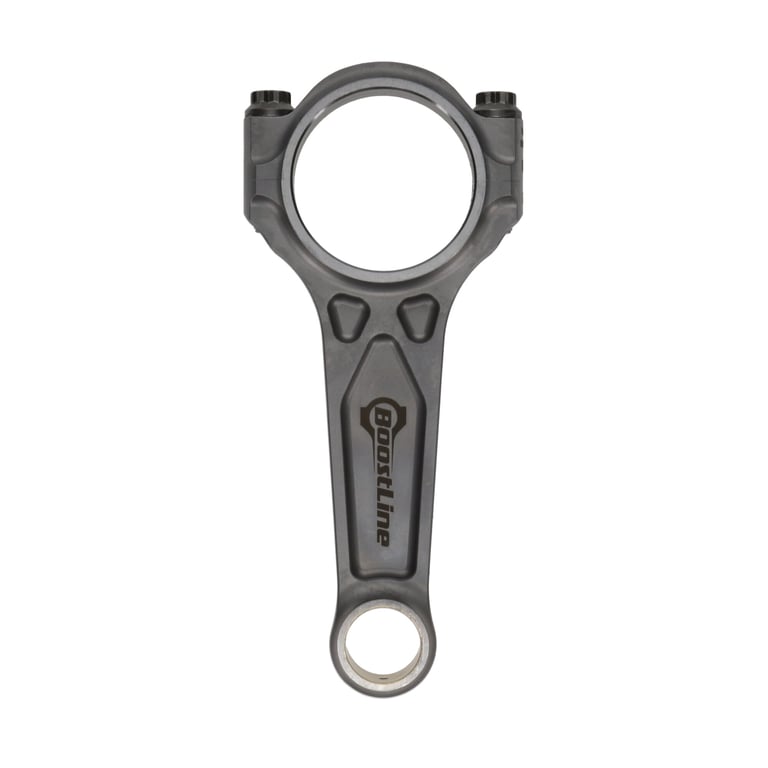

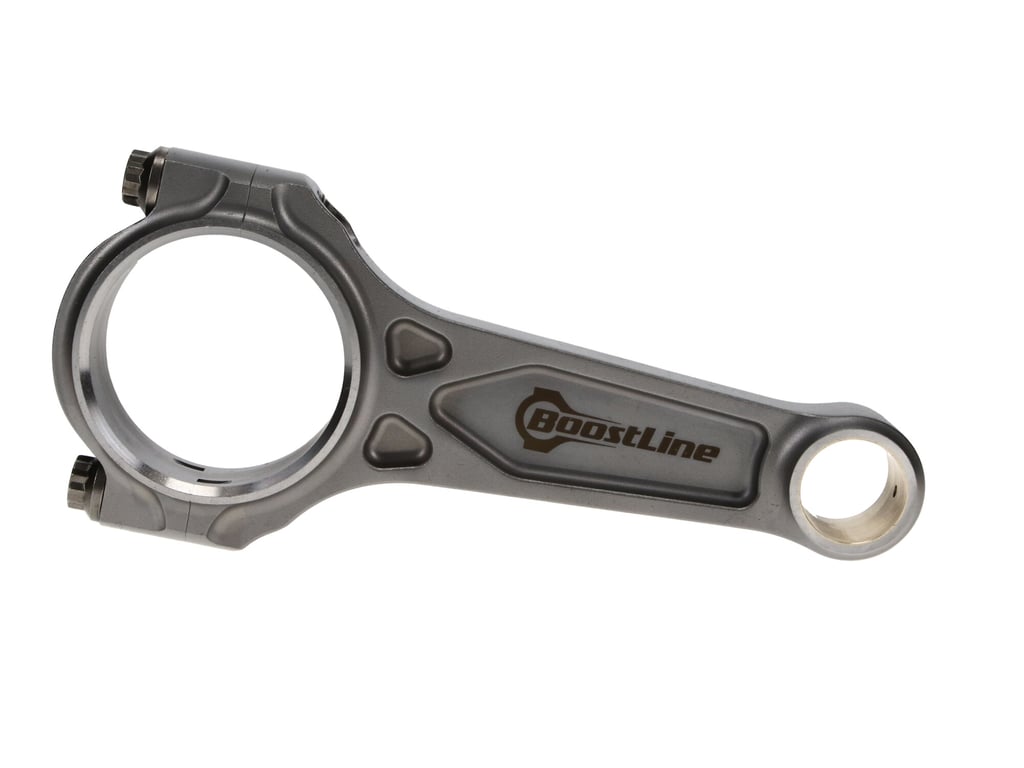

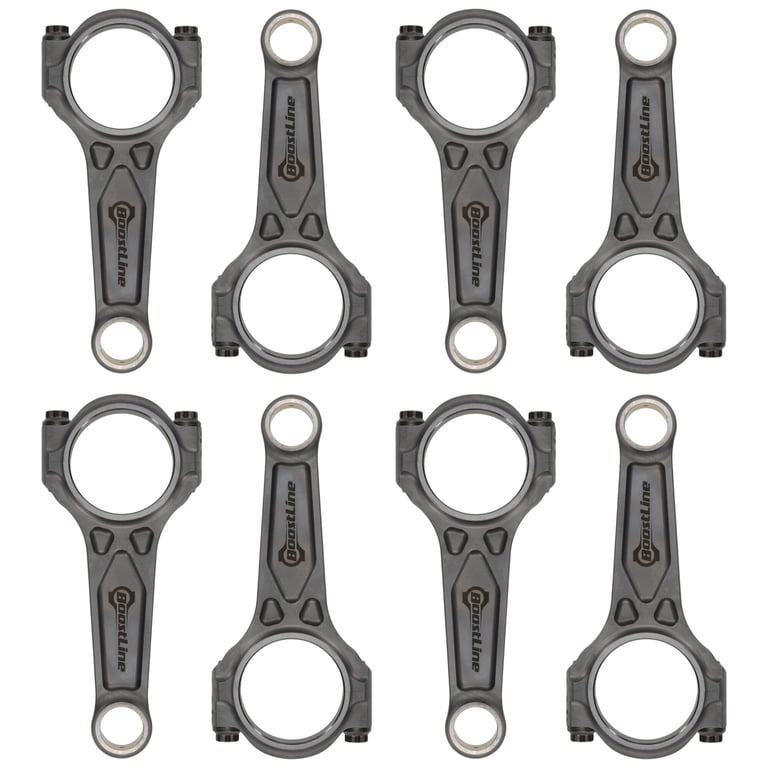

BoostLine Chevy SBC 6.125in - Connecting Rod Kit/ ARP 2000 - SC6125-927

SKU: SKU: BSLSC6125-927

BoostLine connecting rods are designed from the ground up for high-power forced induction and nitrous applications. A patented, 3-pocket design, forged from premium 4340 steel, maximizes strength while minimizing rotating weight. This revolutionary design dramatically improves the rod's big-end stability under tensile loads and provides a 60% improvement in bending strength and 20% stress reduction in tension compared to H-beam designs. All of these benefits make BoostLine rods ideal for high-cylinder pressure engine combinations.

Features

  • Purpose-Built For Boost High Boost and Nitrous Small Block Chevy Applications
  • Forged From Ultra-Strong 4340 Steel
  • Patented Three-Pocket Design
  • Capable of 2000 HP
  • Stroker Clearance
  • 7/16 x 1.400 in. ARP 2000 Fasteners
  • High Quality APMCO Bronze Pin Bushing
  • 26 Point Detailed CMM Inspection Report Included

Specifications

Big End Bore 2.225
Big End Width 0.940
Bolt Diameter 7/16
Center To Center Length 6.125
Connecting Rod Journal Diameter 2.100
Connecting Rod Material Forged 4340 Steel
Connecting Rod Type I-Beam
Engine SMALL BLOCK CHEVROLET
Journal Size 2.100
Main Bearing Bore Diameter 2.225
Material Forged 4340 Steel
Rod Type I-Beam
Wrist Pin Diameter 0.927
Wrist Pin Journal Bushing Width 1.010
