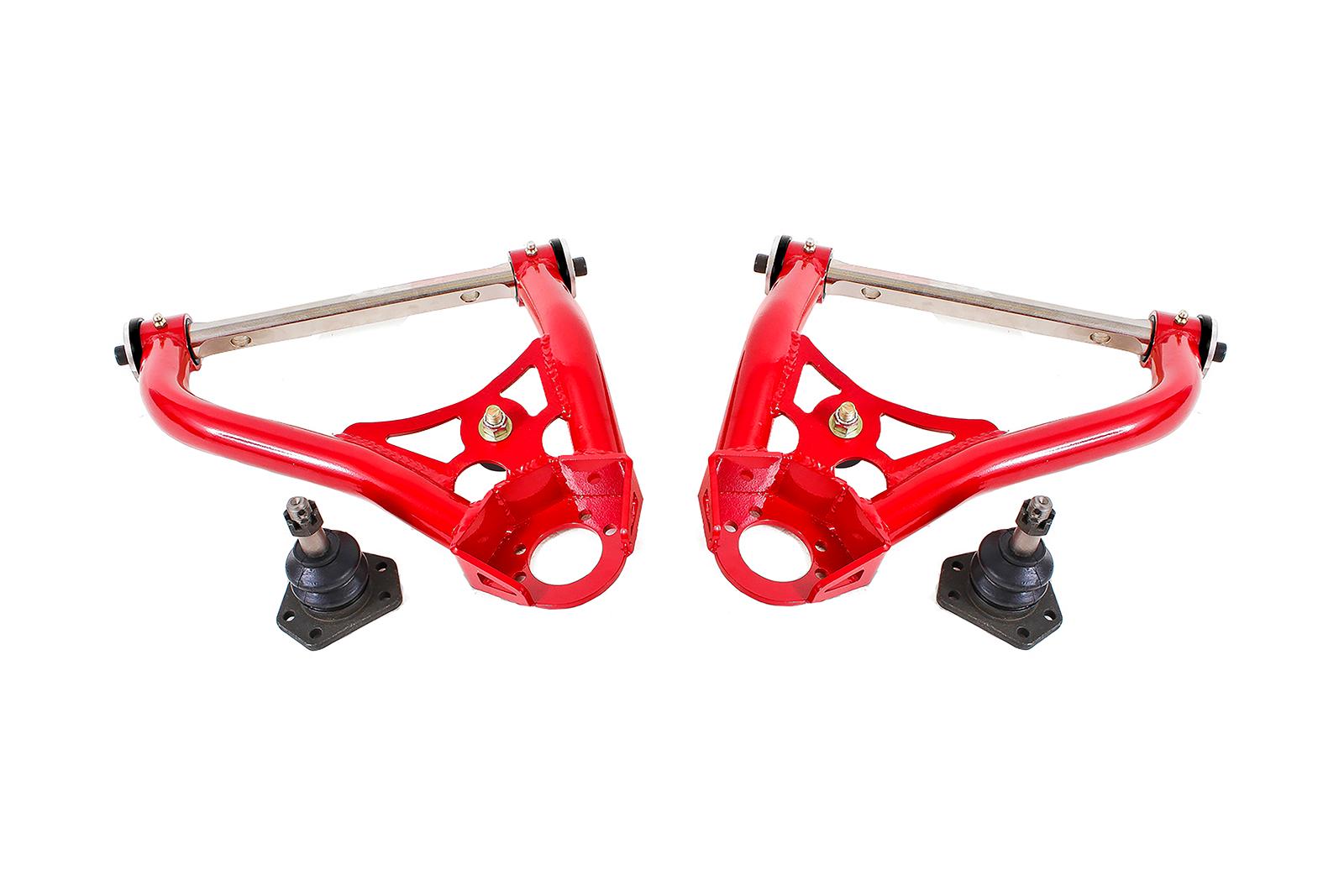

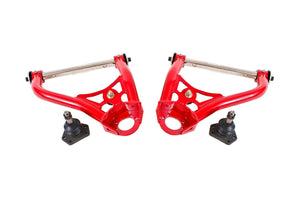

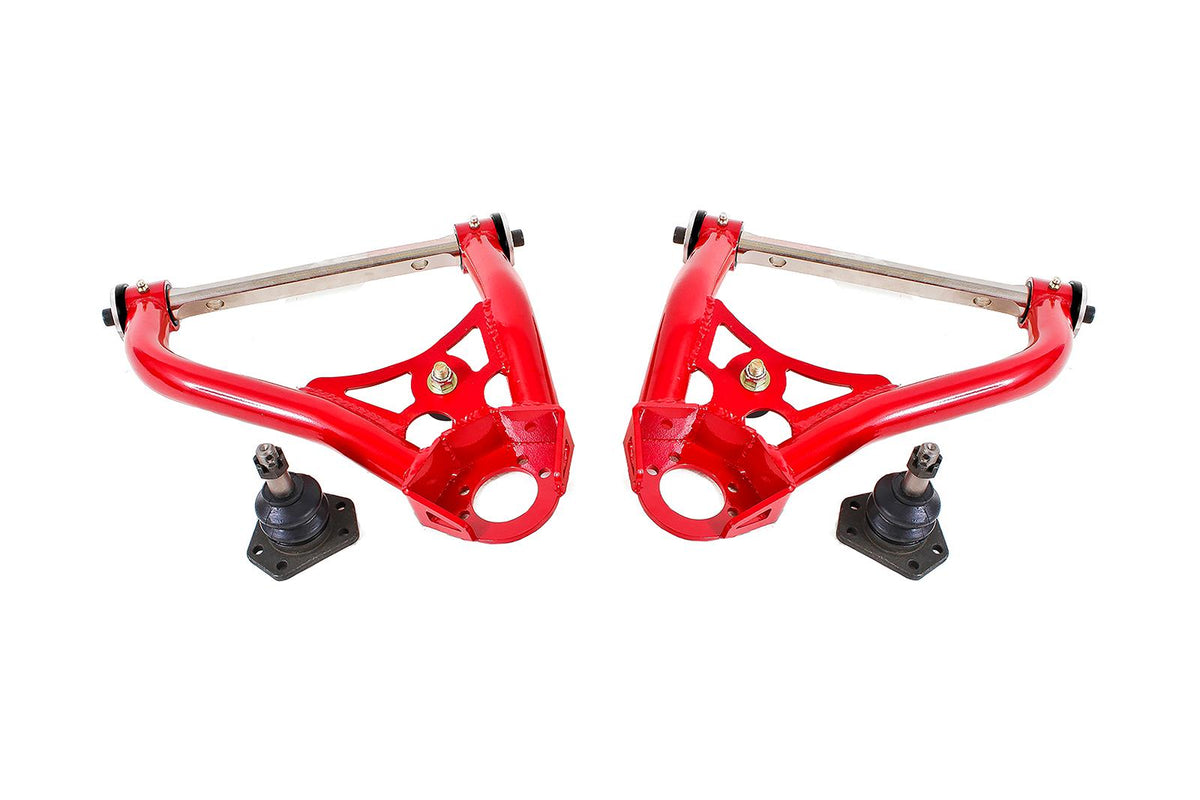

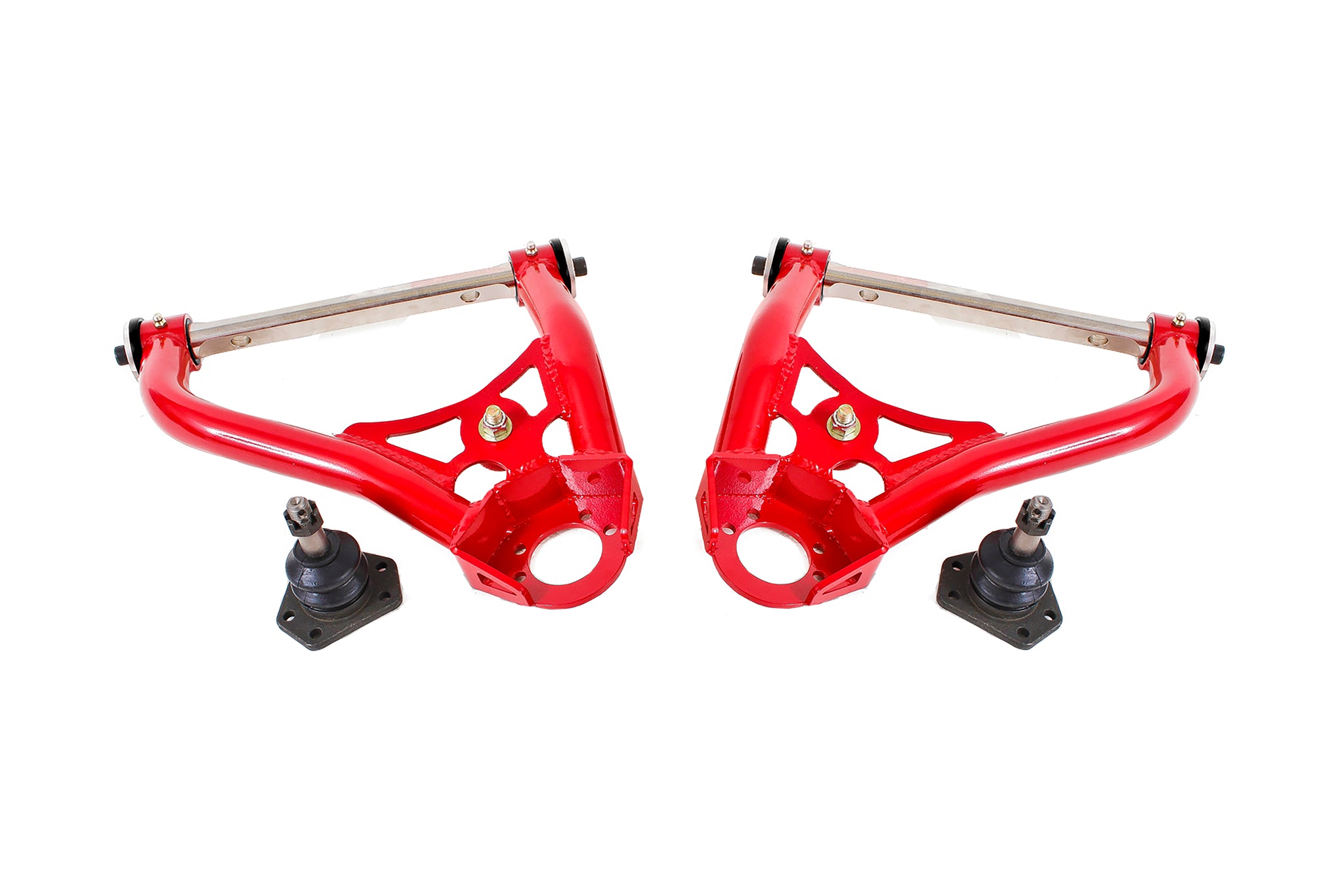

BMR 67-69 1st Gen F-Body Pro-Touring Upper A-Arms w/ Tall Ball Joint (Delrin) - Red - AA027R

This means you get the ultimate in performance. Designed for street performance, drag race, and handling, and pro-touring applications, BMR upper A-arms are engineered to provide 2 additional degrees of positive caster for increased high-speed stability. Combine with BMR Lower A-arms, and you get 4 additional degrees of positive caster (2 degree from the uppers and 2 degrees from the lowers), providing up to 6 degrees of total positive caster over stock. This gives you improved geometry and increased lateral grip during cornering situations. These A-arms utilize tall ball joints, drastically improving the camber curve over OE arms/ball joints. This camber gain ensures maximum tire contact while cornering. The upper arms also have revised cross shaft geometry and shorter overall length, requiring less shim stack to achieve negative camber on lowered cars, or race and pro touring vehicles with aggressive alignments. The combination of cross shaft design and the shortened overall A-arm length gives you a improved camber curve through the front suspensions range of motion.BMR's suspension AA027 Non-Adjustable Upper A-arms are available in black hammertone and red powdercoat for long-lasting good looks. Installation time is 3-4 hours. Proudly made in the U.S.A.Control arm hardware kit RH006 (Includes upper and lower control arm hardware - Highly Recommended) also available.

Features

• Feature tall ball joints
• Eliminates upper A-arm deflection
• Improves steering feel and response for normal and performance driving
• Increased high-speed stability
• Laser-cut, CNC-formed plate steel braces for extra strength
• Fixture welded for precise fit
• Dual-offset cross-shafts
• Requires less shim stack for negative camber than OE arms
• Internally fluted, high durometer polyurethane bushings
• Two additional degrees of positive caster built into a-arms
• Adds additional headers clearance
• Pre-assembled with new polyurethane bumpstops
• Includes new upper ball joints
• Durable powdercoat finish
• Proudly made in the U.S.A.

📄 AA027.pdf (Installation Guide)
