Bilstein Part # BIL41-326336

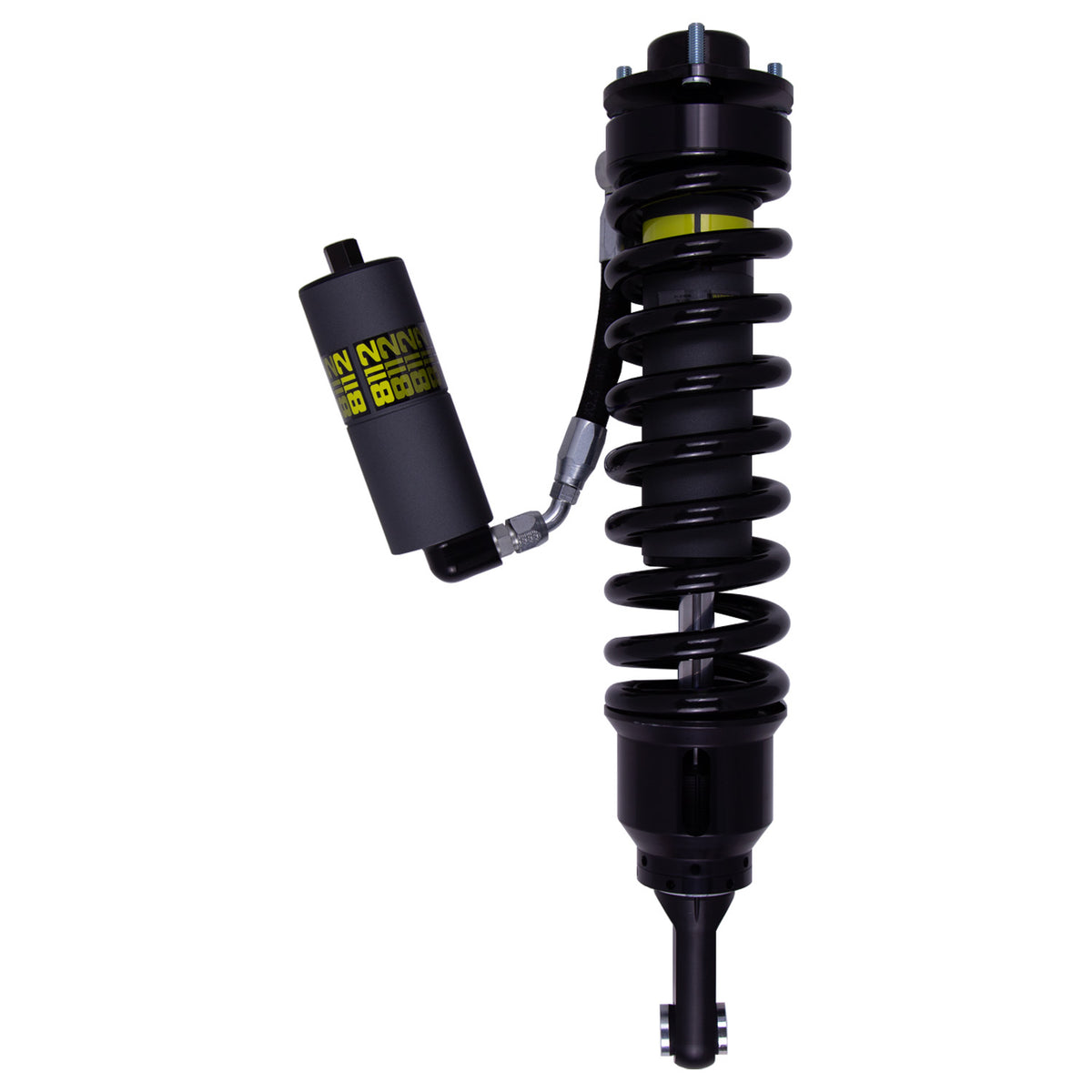

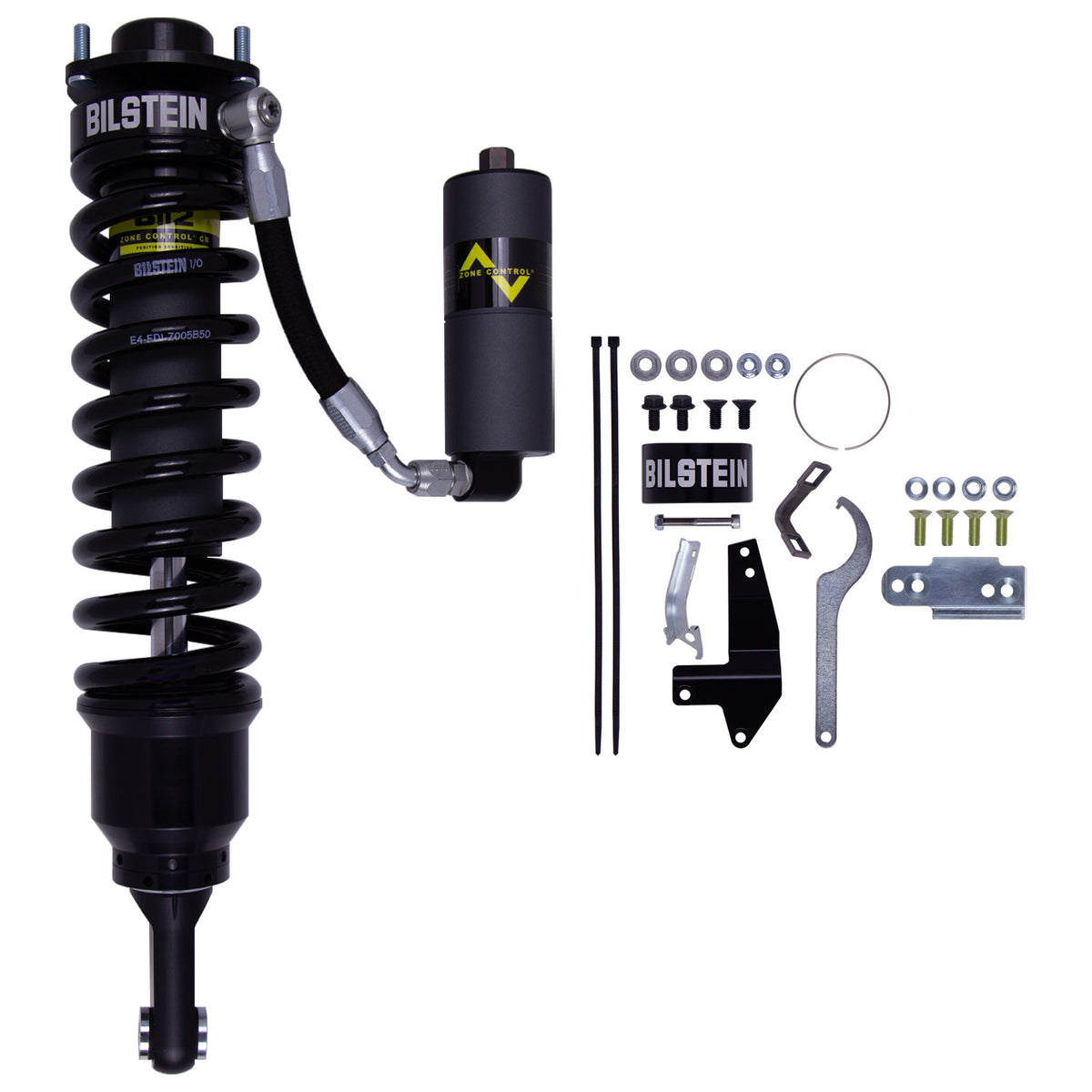

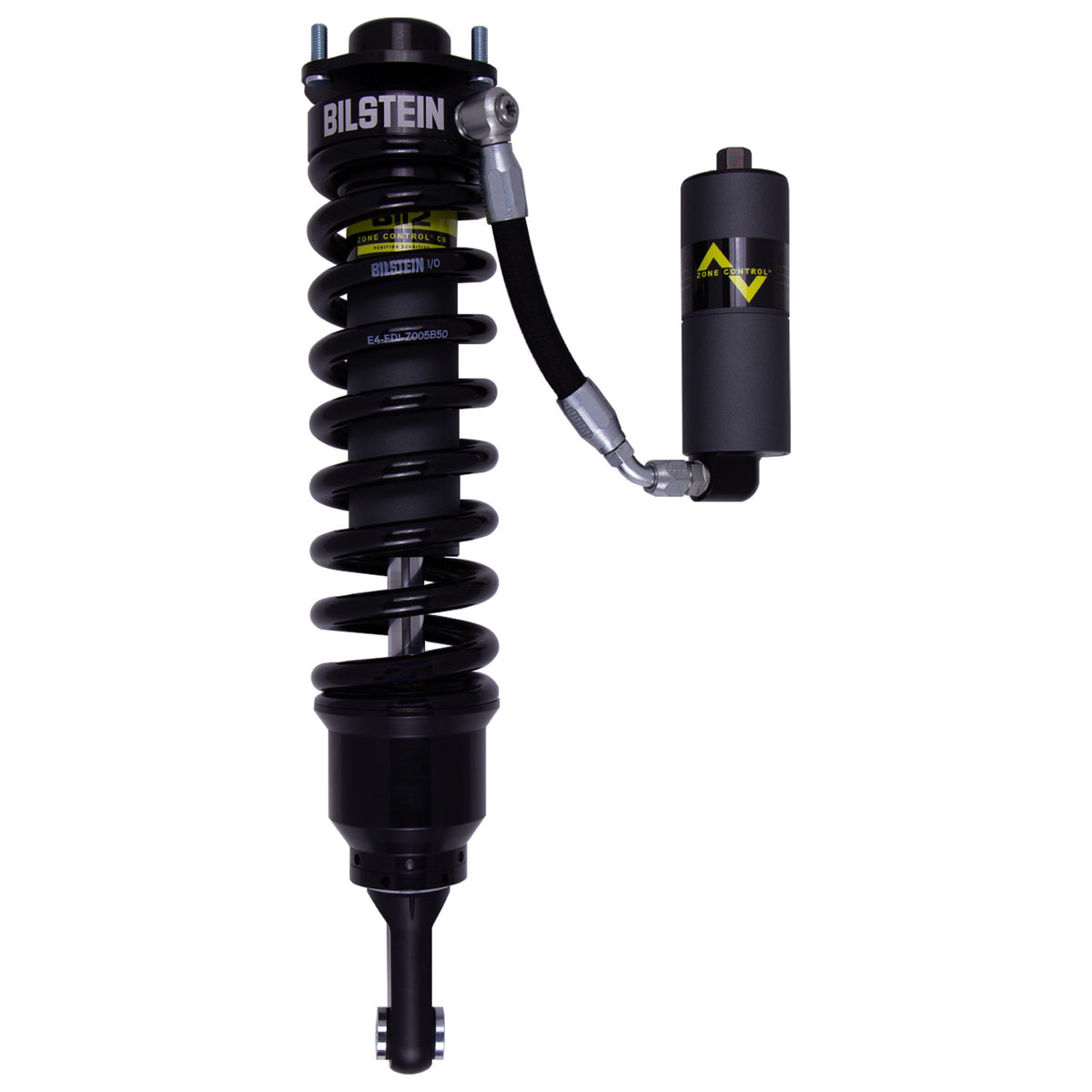

Bilstein B8 8112 Series 03-09 Toyota 4Runner Zone Control Monotube Front Right Corner Module - 41-326336

Earn 3,248 Dino Dollars, double for Black NovemberHow it works

Before you order

Customers also viewed

4.8 on Google992 store reviews
Canadian since 2005Mississauga, Ontario

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving.

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

  • ZoneControl® CR. Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.

  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs.

  • 60mm remote reservoir for increased oil capacity and cooling.

Reservoir Yes
Collapsed length (in) 17.99
Boot included No
Lower mount type Eye 14.1mm
Optional heavy load springs 53-291387, 53-332837
Extended length (mm) 579.1
Series B8 8112 (ZoneControl CR)
Adjustable damping Non-Adjustable
Internal design Monotube
Extended length (in) 22.80
Body material Steel
Collapsed length (mm) 456.9
Spring seat included Yes
Finish Dampers: EVO Grey / Springs: Black
Body design Smooth Body (Coilover)
Upper mount type Special
Piston diameter 60mm
Shaft diameter (mm) 22.0
Front main spring rate (lbs/in) 600 lbs
Part number 41-326336

  • Lexus GX470 2003-2009, Toyota 4Runner 2003-2009, FJ Cruiser 2007-2009
