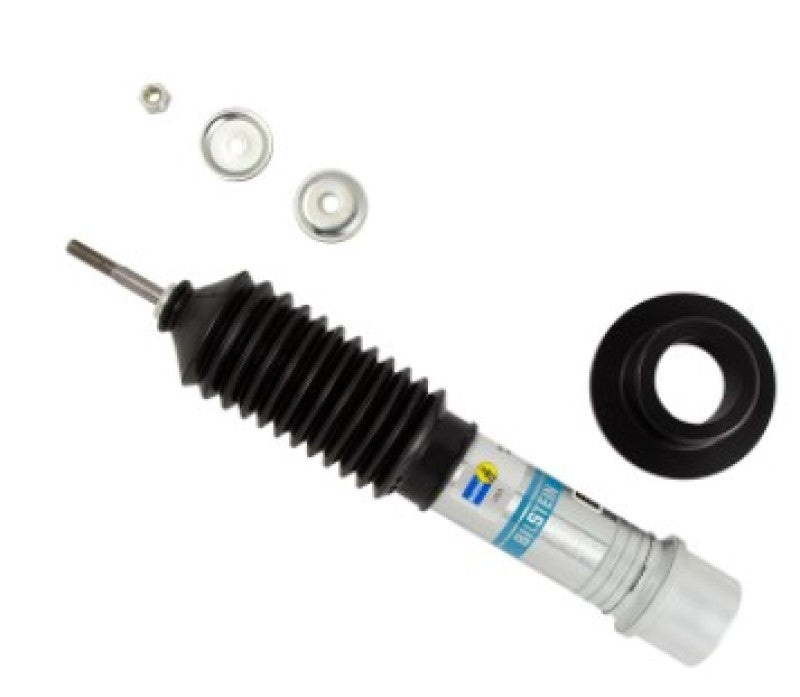

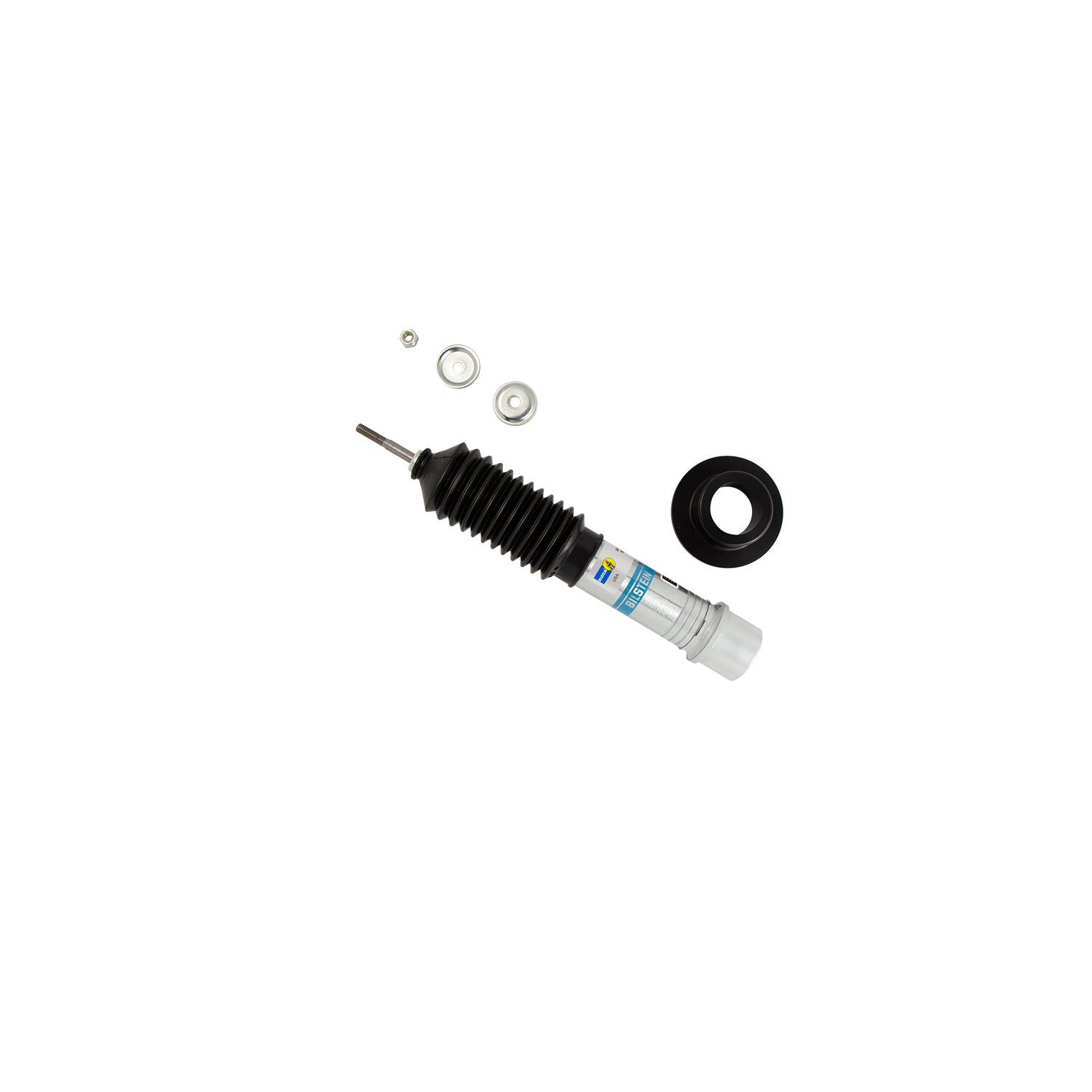

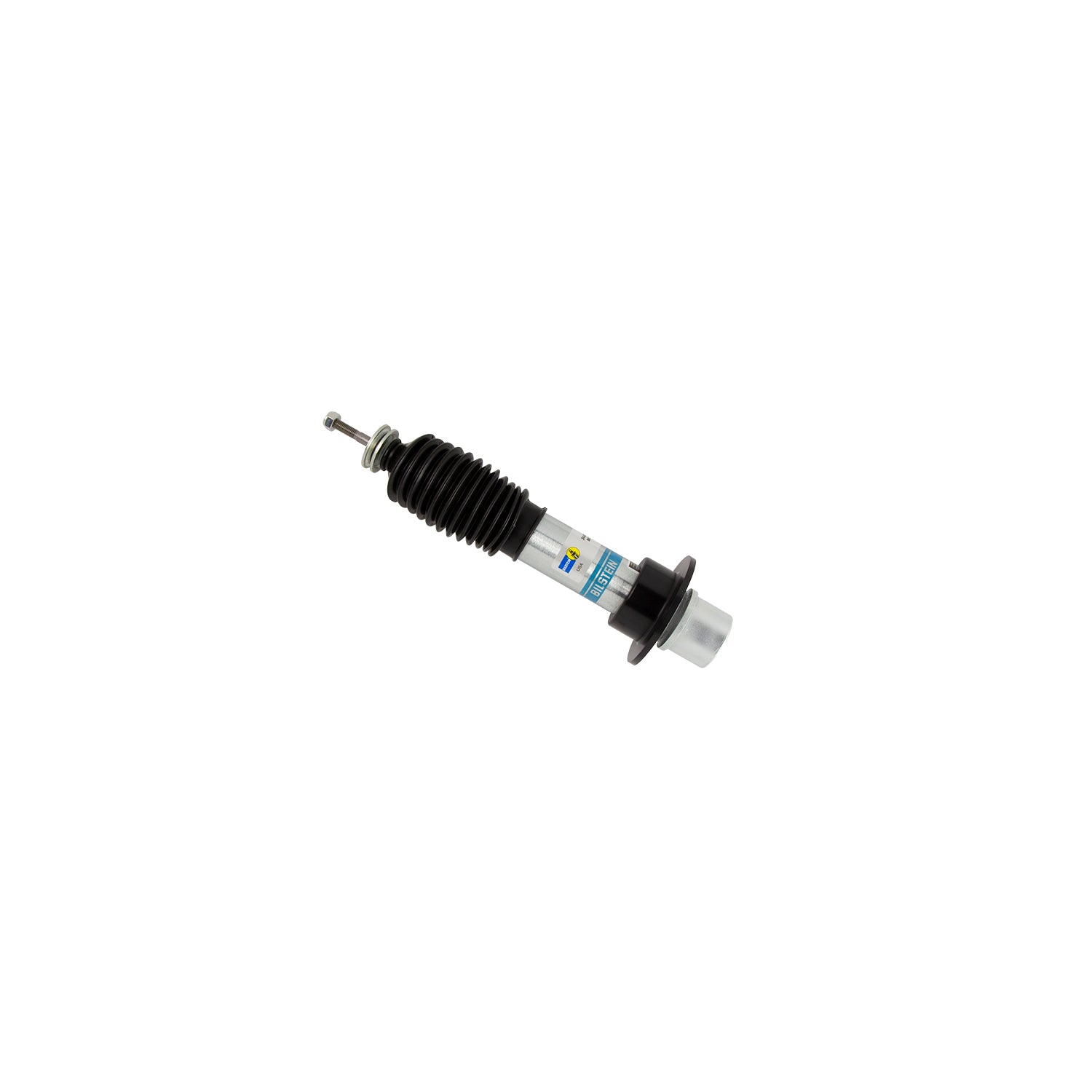

Bilstein B8 5100 Series 02-12 Jeep Liberty Front Shock Absorber - Front Lift 1-2.5in - 24-282642

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Specifications

• Internal Design: Monotube
• Body Design: Snap Ring Grooved Body (Coilover)
• Series: B8 5100 (Ride Height Adjustable)
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: Yes
• Extended Length (in): 14.02
• Extended Length (mm): 356.0
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (in): 3.88
• Stroke/Travel Length (mm): 98.6
• Upper Mount Type: Stem
• Lower Mount Type: Base Cup
• Collapsed Length (in): 10.11
• Reservoir: No
• Collapsed Length (mm): 256.8
• Boot Included: Black Bellows

Application

• Jeep Liberty 2002-2012
