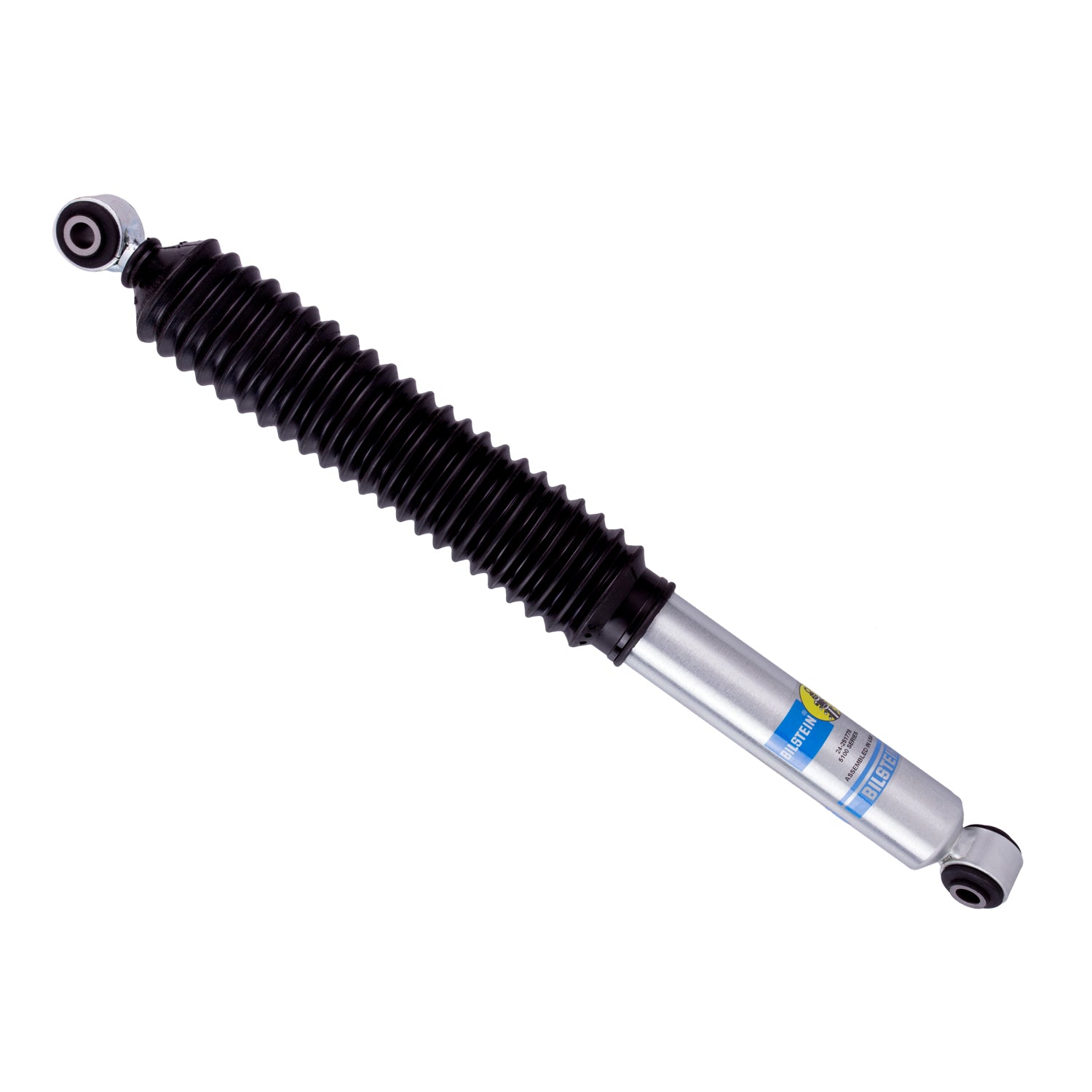

Bilstein B8 5100 2015-2016 Chevrolet Tahoe / GMC Yukon Rear Monotube Shock Absorber - 24-251778

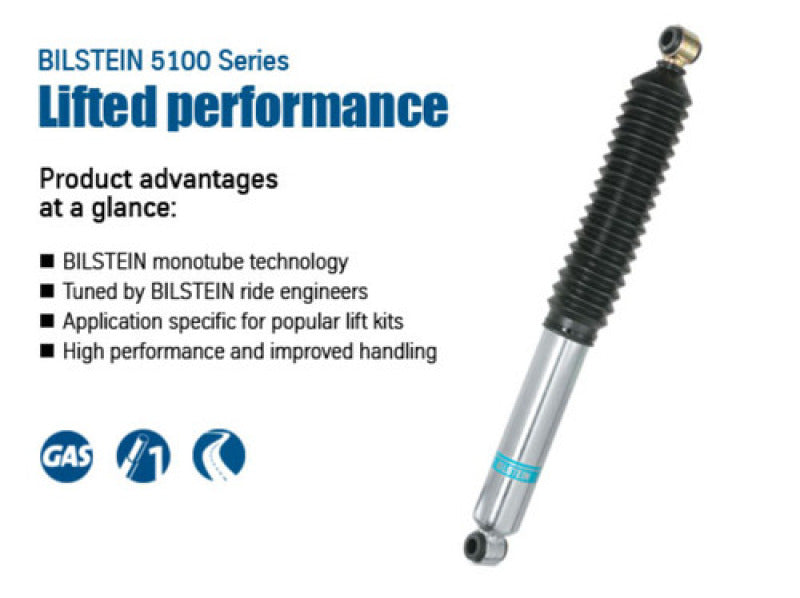

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Internal Design: Monotube
• Upper Mount Type: Eye 14.12mm
• Collapsed Length (in): 15.58
• Extended Length (in): 24.17
• Boot Included: Black Bellows
• Body Design: Smooth Body (Non-Coilover)
• Extended Length (mm): 614.0
• Collapsed Length (mm): 395.8
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 218.2
• Stroke/Travel Length (in): 8.59
• Series: B8 5100
• Lower Mount Type: Eye 14.12mm
• Reservoir: No
• Finish: Zinc Plated

Application

• Chevrolet Tahoe 2015-2020, GMC Yukon 2015-2020
