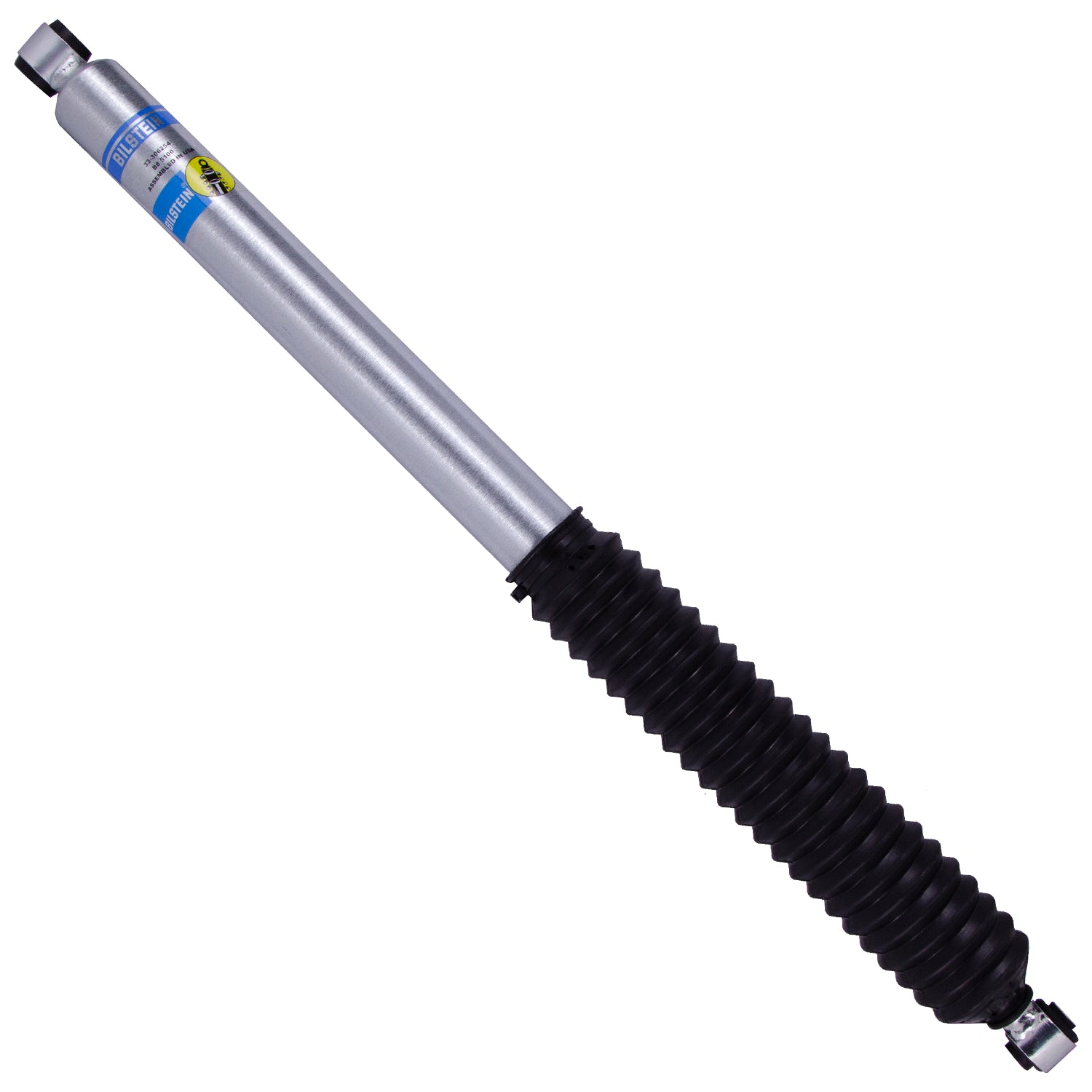

Bilstein B8 17-19 Ford F250/F350 Super Duty Rear Shock (4WD Only/Lifted Height 1.5-3in) - 33-306254

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Internal Design: Monotube
• Boot Included: Black Bellows
• Reservoir: No
• Body Design: Smooth Body (Non-coilover)
• Finish: Zinc Plated
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Collapsed Length (mm): 510.0
• Stroke/Travel Length (in): 11.52
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 292.6
• Collapsed Length (in): 20.08
• Extended Length (mm): 802.7
• Extended Length (in): 31.60
• Series: B8 5100
• Upper Mount Type: Eye 16mm
• Lower Mount Type: Eye 14.1mm

Application

• Ford F-250 Super Duty 2017-2026, F-350 Super Duty 2017-2026
