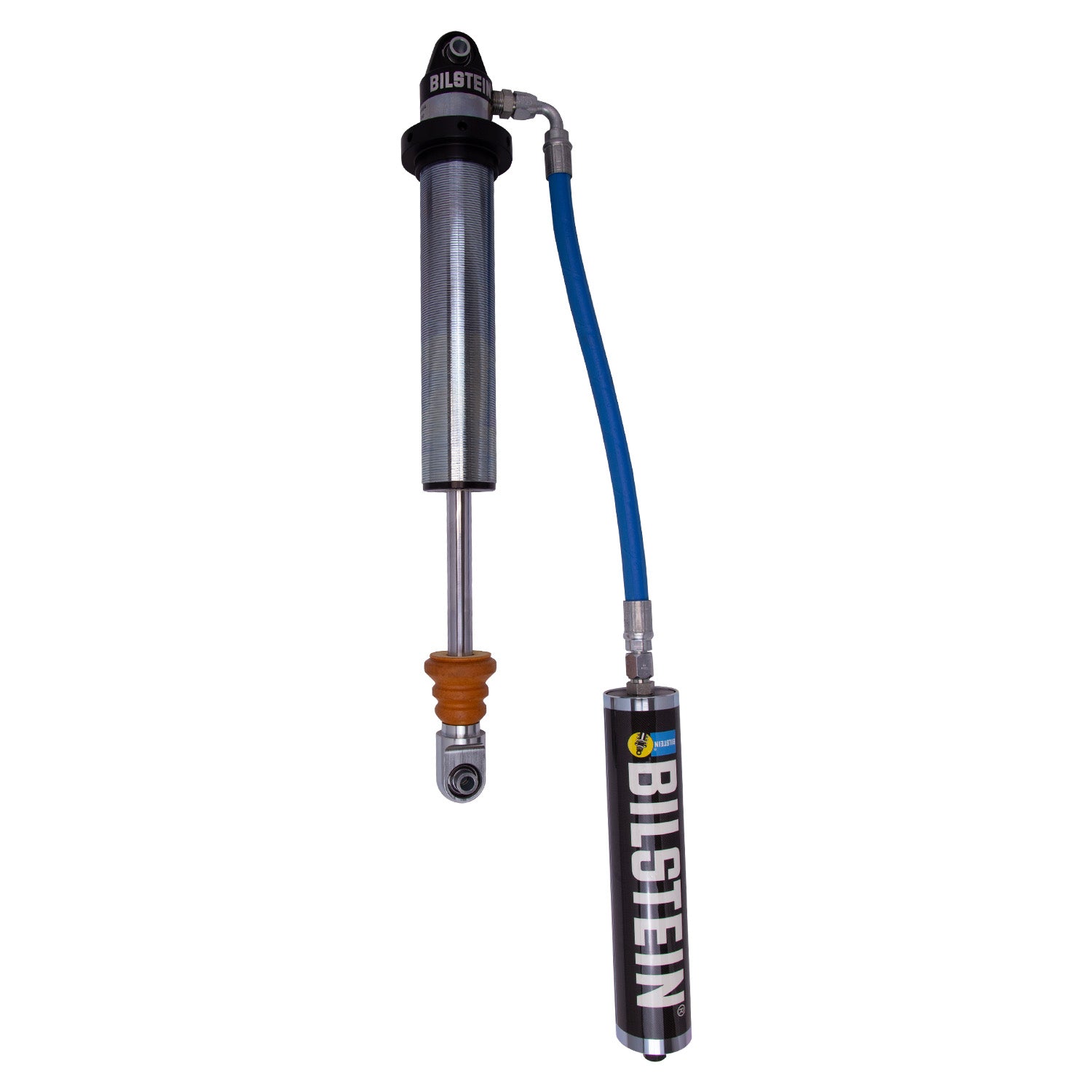

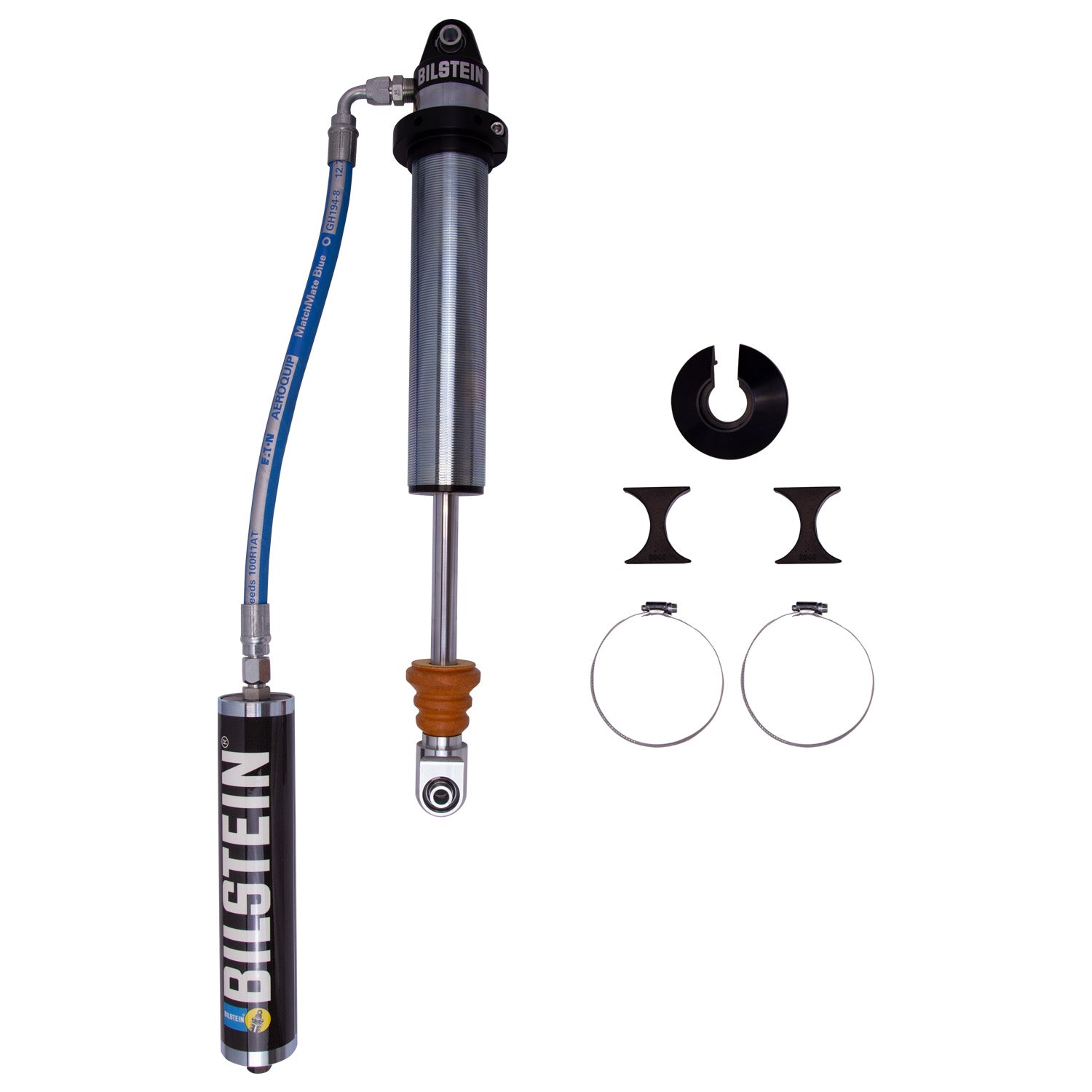

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Available in 46mm and 60mm monotubes.
Threaded body with dual-rate coilover hardware.
Multiple stroke lengths available ranging from 8" to 16".
| Body design | Threaded Body (Coilover) |
|---|---|
| Reservoir | Yes |
| Extended length (mm) | 647.7 |
| Series | M 9200 (Coilover) |
| Extended length (in) | 25.50 |
| Upper mount type | Eye .5x1.5in |
| Mount type | Eye-to-Eye |
| Spring seat included | No |
| Collapsed length (in) | 17.50 |
| Piston diameter | 60mm |
| Stroke/travel length (mm) | 203.2 |
| Shaft diameter (mm) | 22.0 |
| Stroke/travel length (in) | 8.00 |
| Lower mount type | Eye .5x1.5in |
| Collapsed length (mm) | 444.5 |
| Compression @0.52m/S | 1000 |
| Rebound @0.52m/S | 2550 |
| Internal design | Monotube |
| Finish | Zinc Plated |
| Part number | 33-244464 |
