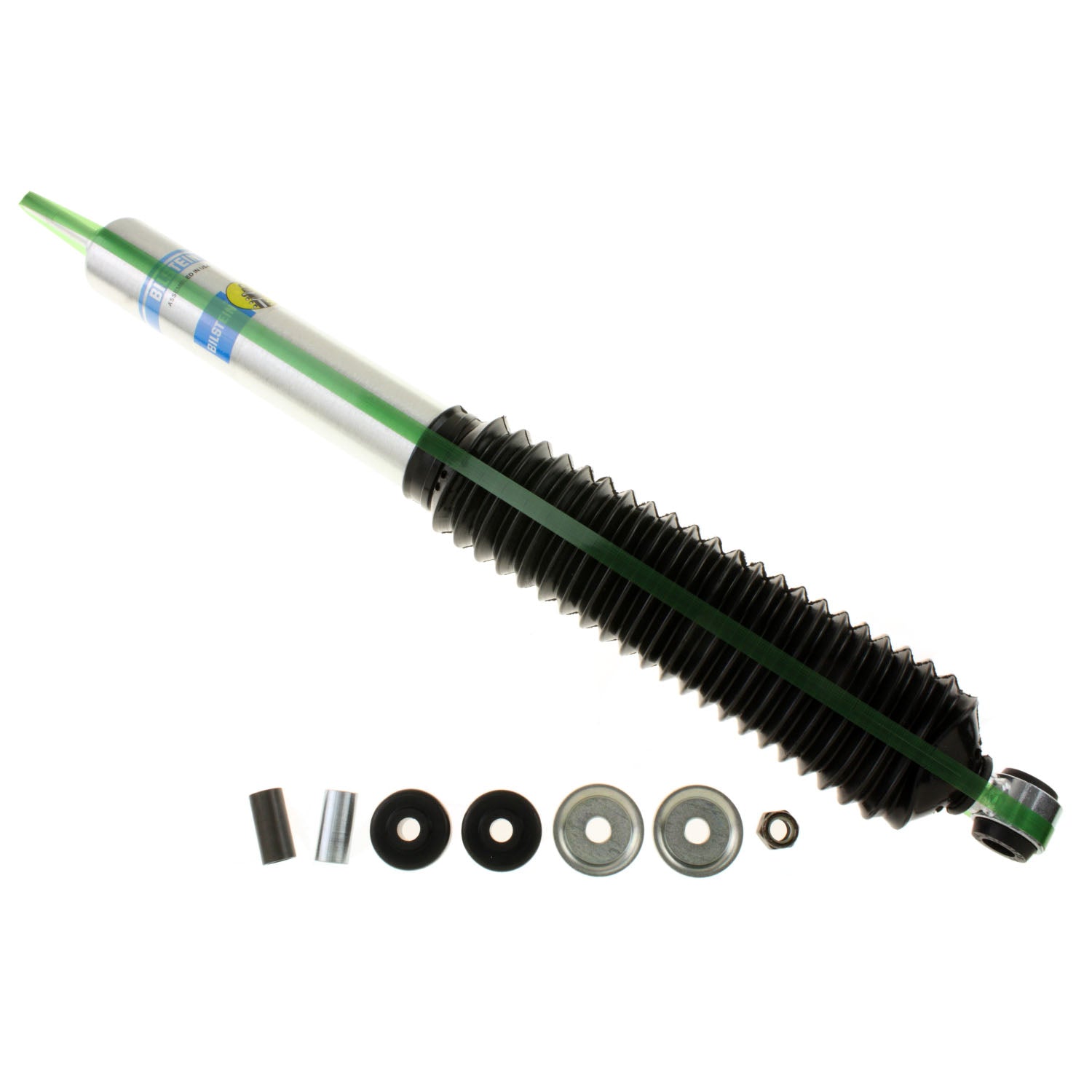

Bilstein 5125 Series KBOA Lifted Truck Collapsed L 385.80mm Extended L 619.30mm Shock Absorber - 33-230412

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Stem
• Series: B8 5125
• Finish: Zinc Plated
• Lower Mount Type: Eye 5/8in
• Internal Design: Monotube
• Body Design: Smooth Body (Non-Coilover)
• Mount Type: Stem-to-Eye
• Collapsed Length (mm): 385.8
• Boot Included: Black Bellows
• Reservoir: No
• Collapsed Length (in): 15.19
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (in): 24.41
• Rebound @0.52m/S: 3775
• Compression @0.52m/S: 755
• Extended Length (mm): 620.0
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 234.2
• Stroke/Travel Length (in): 9.22

Application

• No Applications
