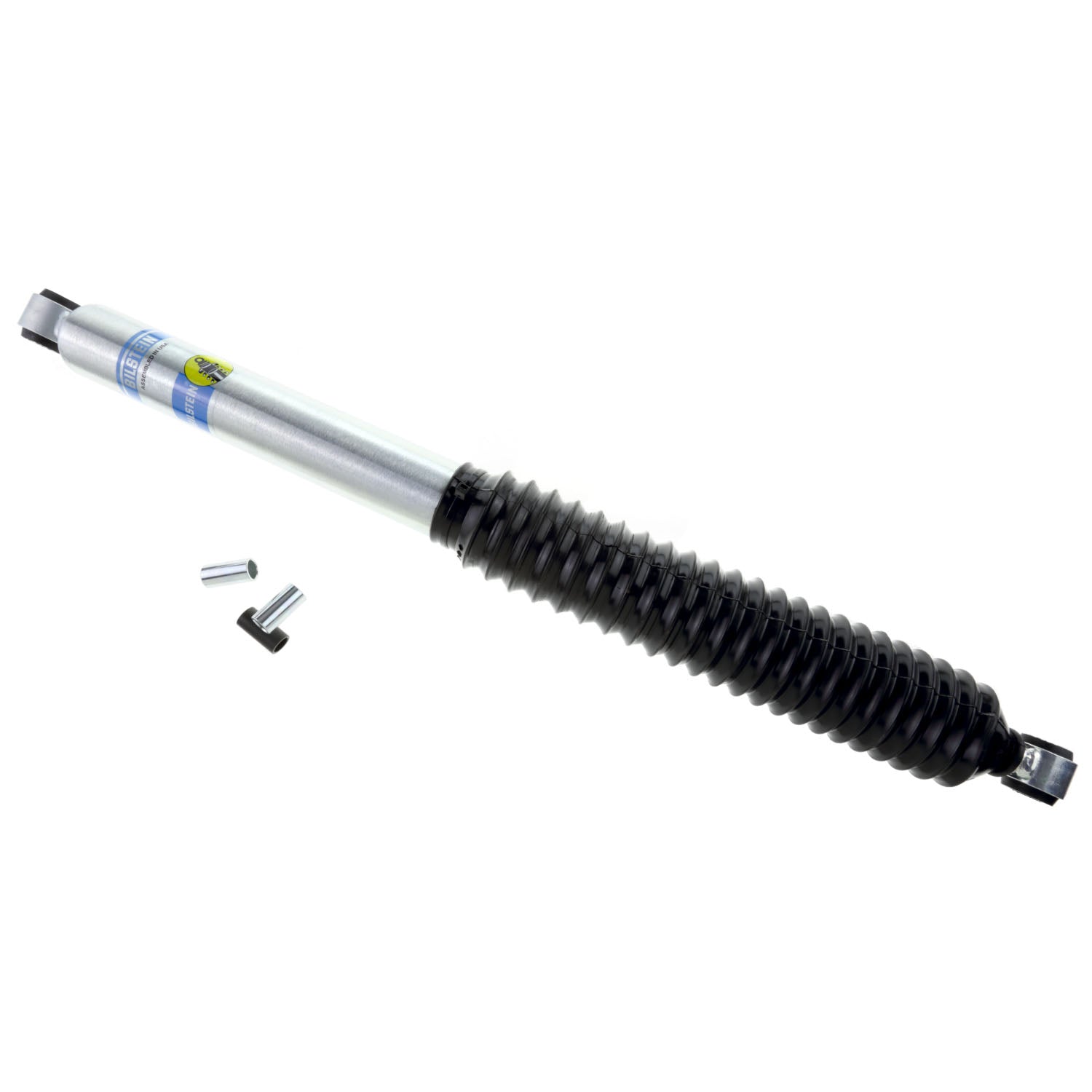

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration.
The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
46mm monotube design ensures consistent, fade-free performance in all conditions.
Patented digressive valving instantly reacts to changing surface conditions.
Vehicle specific tuning.
| Series | B8 5125 |
|---|---|
| Finish | Zinc Plated |
| Lower mount type | Eye 5/8in |
| Upper mount type | Eye 5/8in |
| Adjustable damping | Non-Adjustable |
| Spring seat included | No |
| Rebound @0.52m/S | 2495 |
| Compression @0.52m/S | 620 |
| Reservoir | No |
| Piston diameter | 46mm |
| Collapsed length (mm) | 432.0 |
| Stroke/travel length (in) | 10.99 |
| Shaft diameter | 14mm |
| Stroke/travel length (mm) | 279.2 |
| Boot included | Black Bellows |
| Extended length (mm) | 711.2 |
| Internal design | Monotube |
| Mount type | Eye-to-Eye |
| Body design | Smooth Body (Non-Coilover) |
| Collapsed length (in) | 17.01 |
| Extended length (in) | 28.00 |
| Part number | 33-104652 |
