Bilstein 5100 Series 69-91 Chev/GMC / 59-91 Jeep/66-77 Ford Bronco 46mm Monotube Shock Absorber - 33-186542
Bilstein 5100 Series 69-91 Chev/GMC / 59-91 Jeep/66-77 Ford Bronco 46mm Monotube Shock Absorber - 33-186542
Bilstein 5100 Series 69-91 Chev/GMC / 59-91 Jeep/66-77 Ford Bronco 46mm Monotube Shock Absorber - 33-186542
Sale

Bilstein Part # BIL33-186542

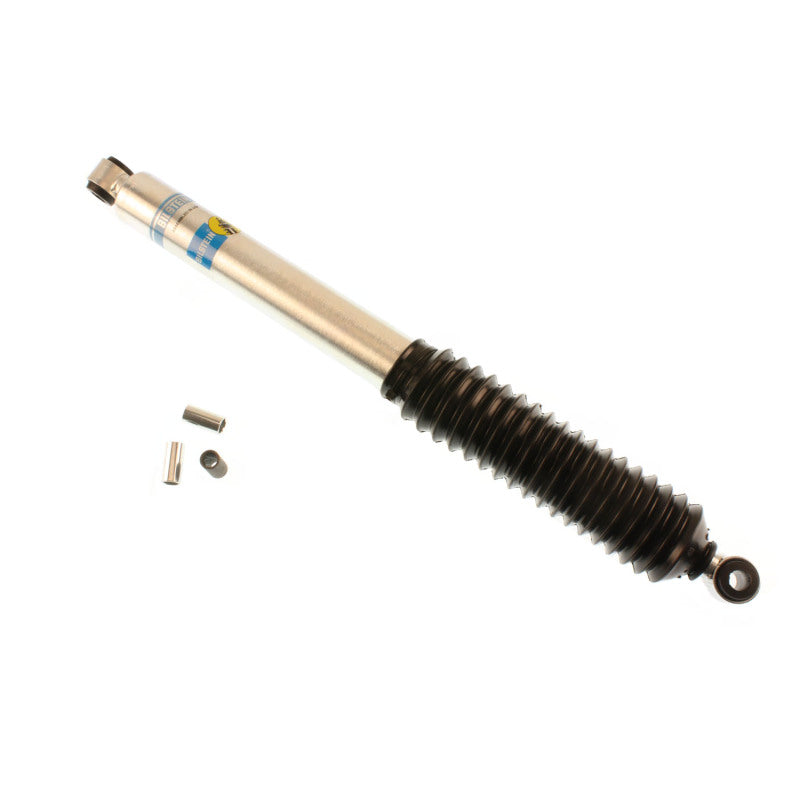

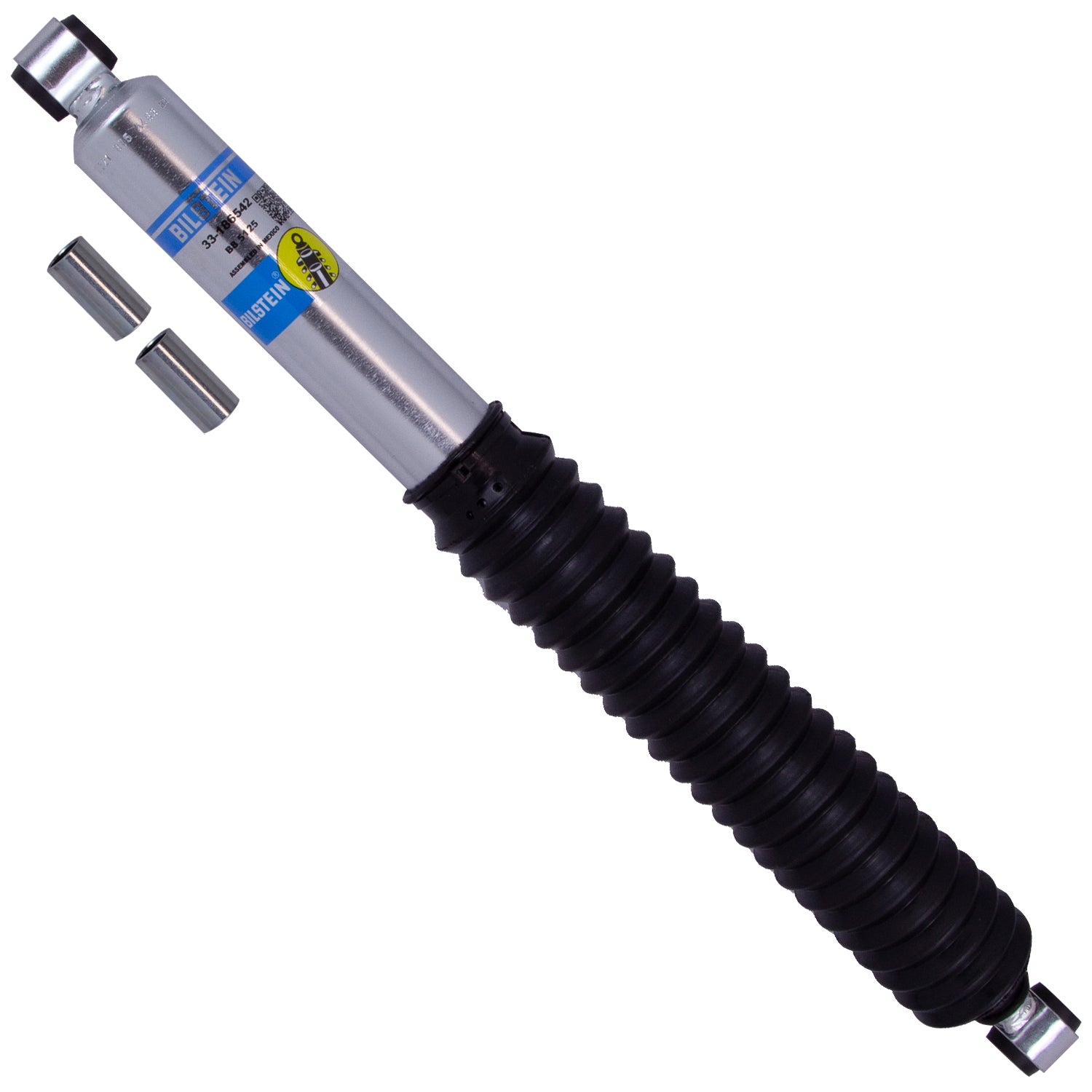

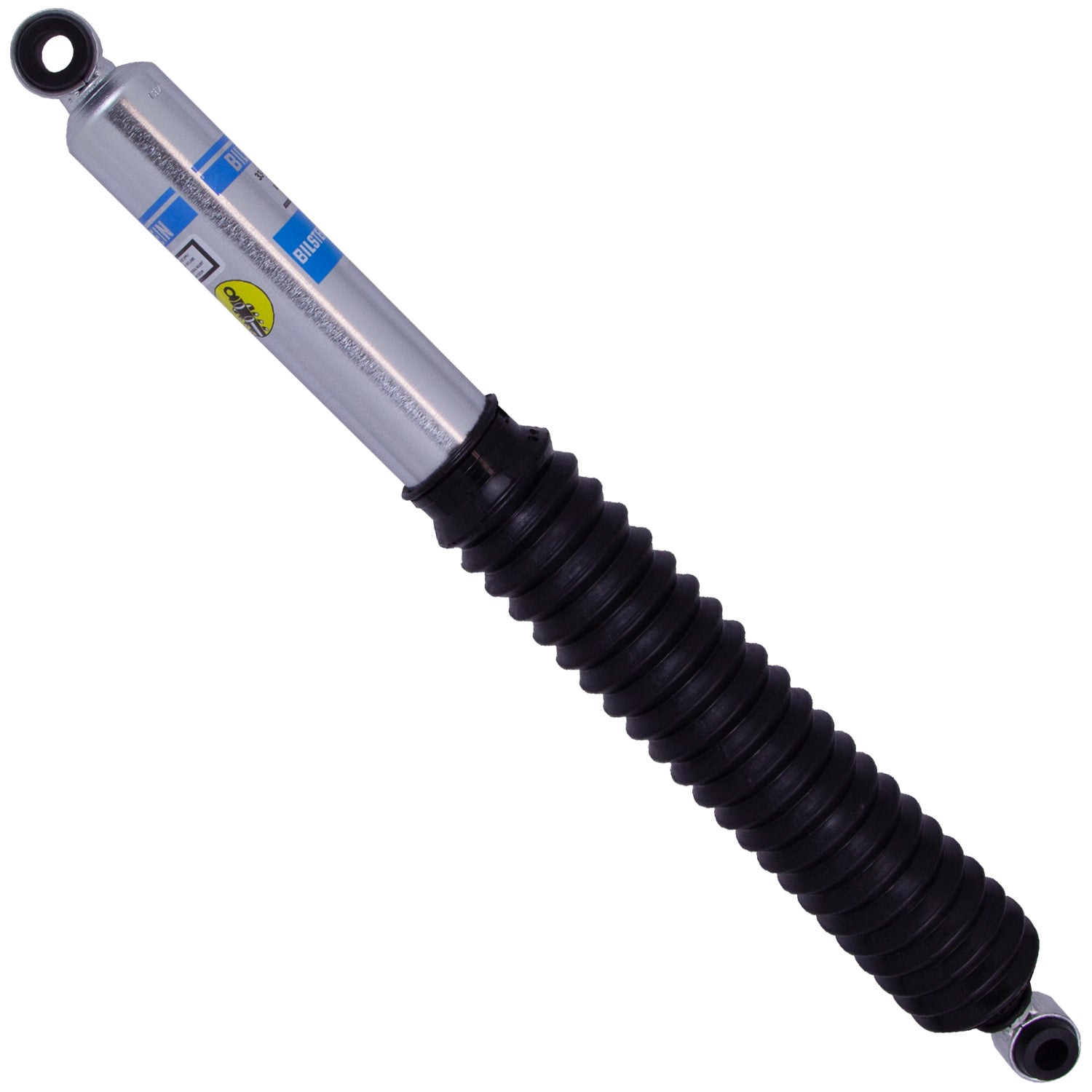

Bilstein 5100 Series 69-91 Chev/GMC / 59-91 Jeep/66-77 Ford Bronco 46mm Monotube Shock Absorber - 33-186542

$168.00 CAD $234.95 CADSave $66.95 CAD (28%)
Earn 336 Dino Dollars, double for Black NovemberHow it works

Before you order

Customers also viewed

4.8 on Google969 store reviews
Price matchFound it cheaper?
Canadian since 2005Mississauga, Ontario
Questions?Send us a message

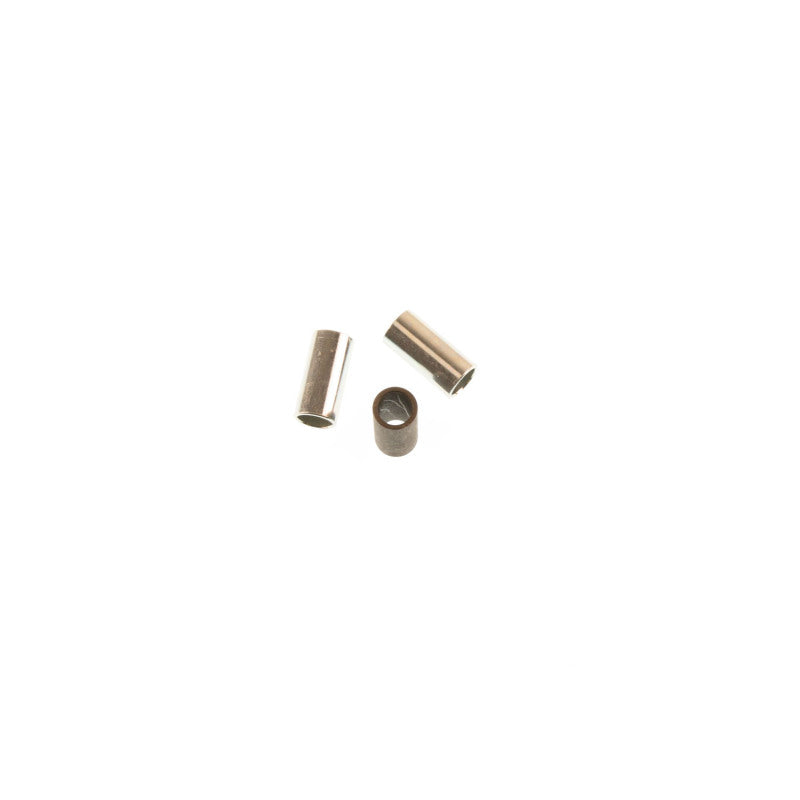

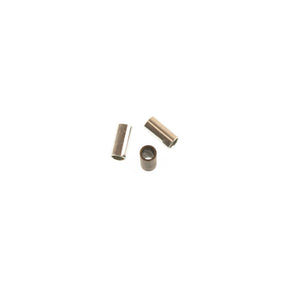

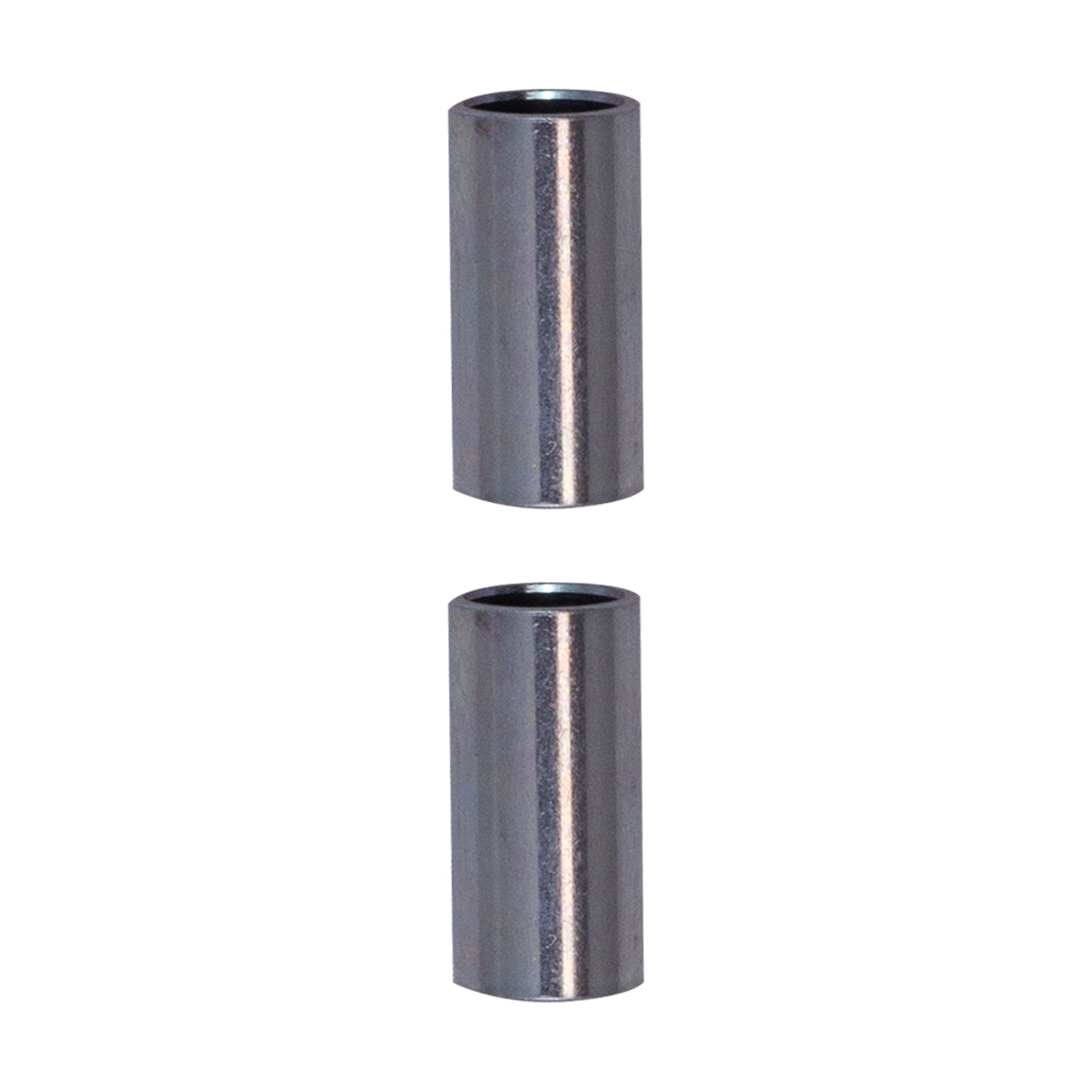

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration.

The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions.

  • Patented digressive valving instantly reacts to changing surface conditions.

  • Vehicle specific tuning.

Series B8 5125
Upper mount type Eye 5/8in
Boot included Black Bellows
Collapsed length (in) 15.12
Lower mount type Eye 5/8in
Finish Zinc Plated
Internal design Monotube
Reservoir No
Body design Smooth Body (Non-Coilover)
Mount type Eye-to-Eye
Adjustable damping Non-Adjustable
Spring seat included No
Extended length (in) 24.34
Rebound @0.52m/S 2495
Extended length (mm) 618.2
Compression @0.52m/S 620
Piston diameter 46mm
Collapsed length (mm) 384.0
Shaft diameter 14mm
Stroke/travel length (mm) 234.2
Stroke/travel length (in) 9.22
Part number 33-186542

  • Ford Bronco 1966-1977, Jeep Cherokee 1981-1983, CJ5 1959-1983, CJ5A 1966-1968, CJ7 1976-1986, Grand Wagoneer 1984-1991, J10 1981-1988, J20 1981-1988, Toyota Pickup 1979-1983
