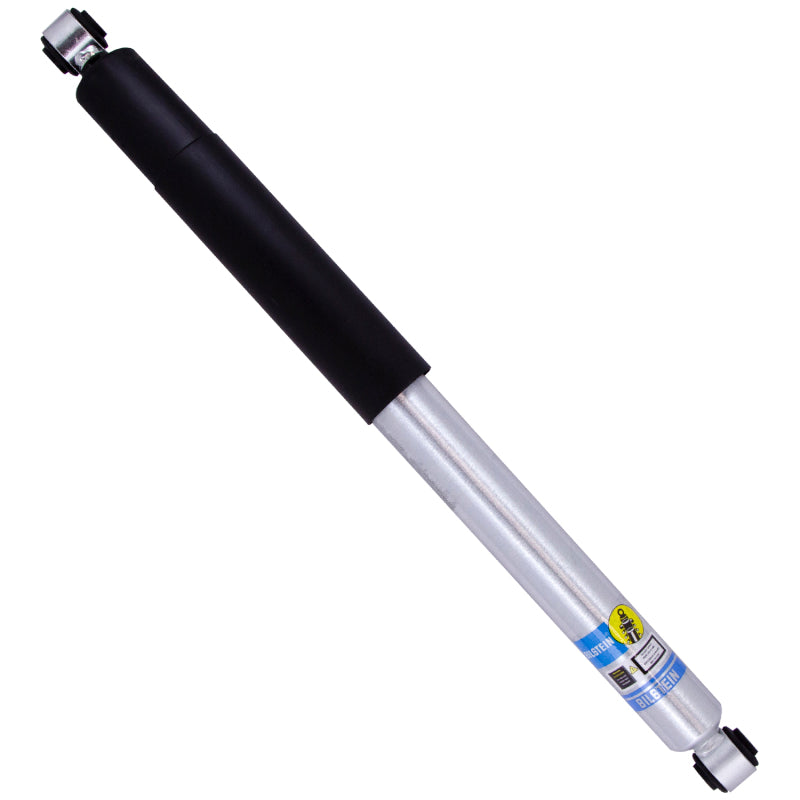

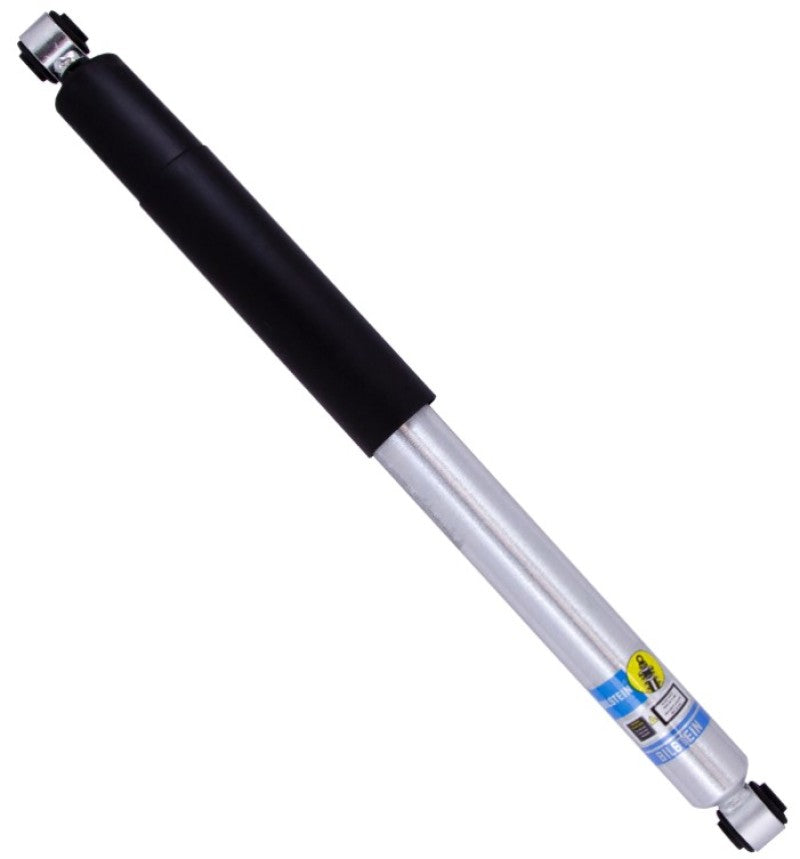

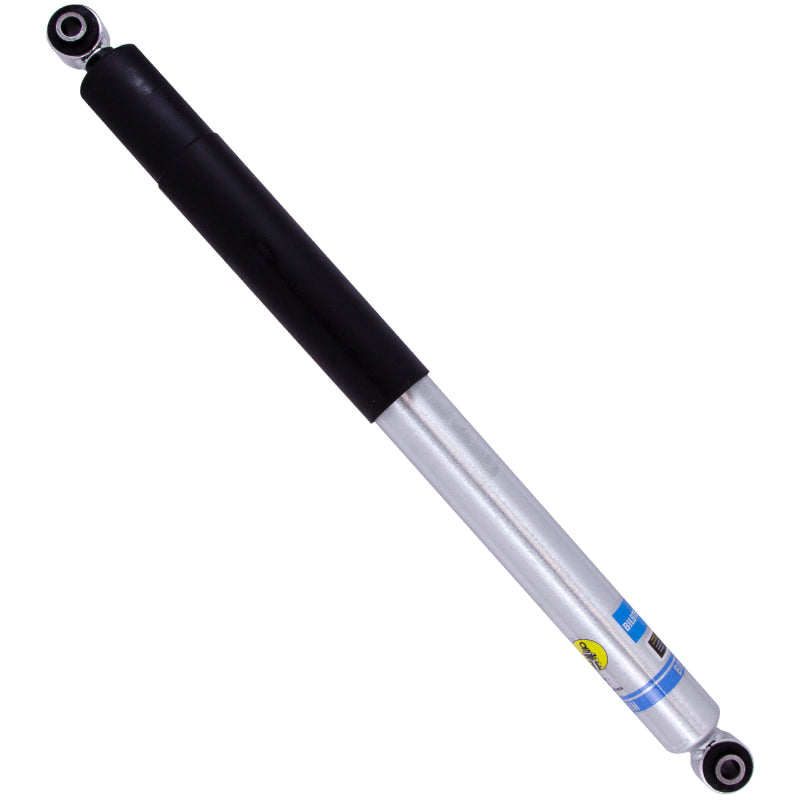

Bilstein 5100 Series 2019 Chevrolet Silverado 1500 / GMC Sierra 1500 Shock Absorber Trail-Boss Only - 24-309516

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Eye 14.12mm
• Boot Included: Black Straight
• Lower Mount Type: Eye 14.12mm
• Series: B8 5100
• Extended Length (in): 27.61
• Internal Design: Monotube
• Finish: Zinc Plated
• Body Design: Smooth Body (Non-coilover)
• Reservoir: No
• Extended Length (mm): 701.2
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (mm): 442.0
• Collapsed Length (in): 17.40
• Piston Diameter: 46mm
• Stroke/Travel Length (in): 10.21
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 259.3

Application

• Chevrolet Silverado 1500 2019-2026, Silverado 1500 LTD 2022, GMC Sierra 1500 2019-2026, Sierra 1500 Limited 2022
