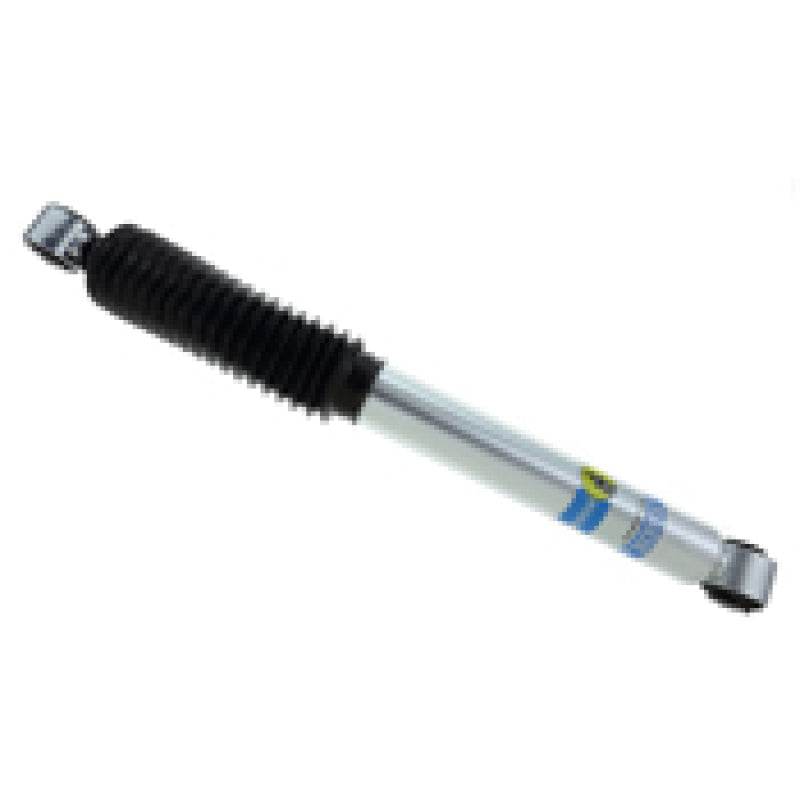

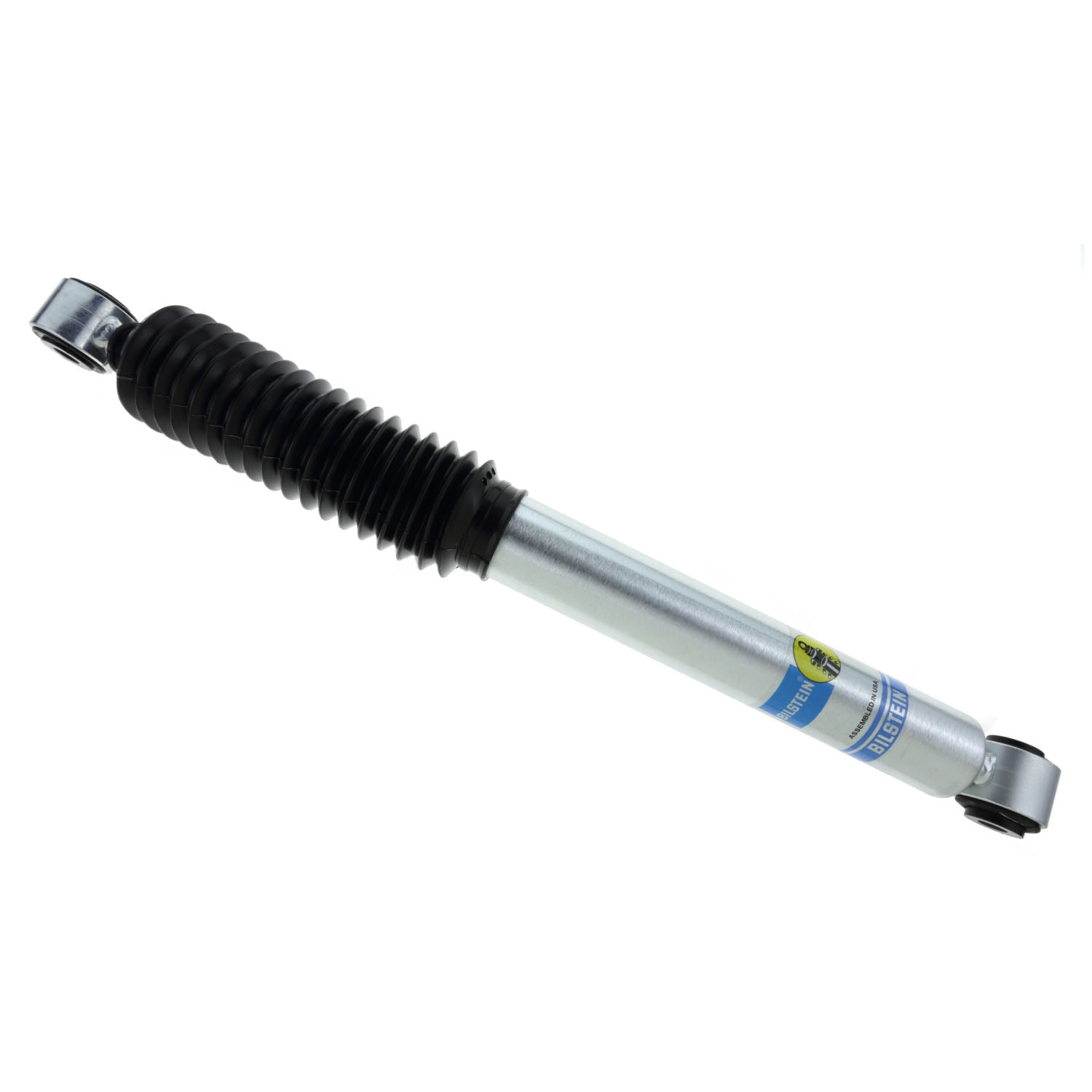

Bilstein 5100 Series 2009 Nissan Titan XE RWD Rear 46mm Monotube Shock Absorber - 24-186773

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Lower Mount Type: Eye 14mm
• Extended Length (mm): 590.0
• Reservoir: No
• Internal Design: Monotube
• Extended Length (in): 23.23
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Collapsed Length (mm): 380.0
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 223.5
• Stroke/Travel Length (in): 8.80
• Finish: Zinc Plated
• Series: B8 5100
• Upper Mount Type: Eye 14mm
• Boot Included: Black Bellows
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (in): 14.96

Application

• Nissan TITAN 2004-2015
