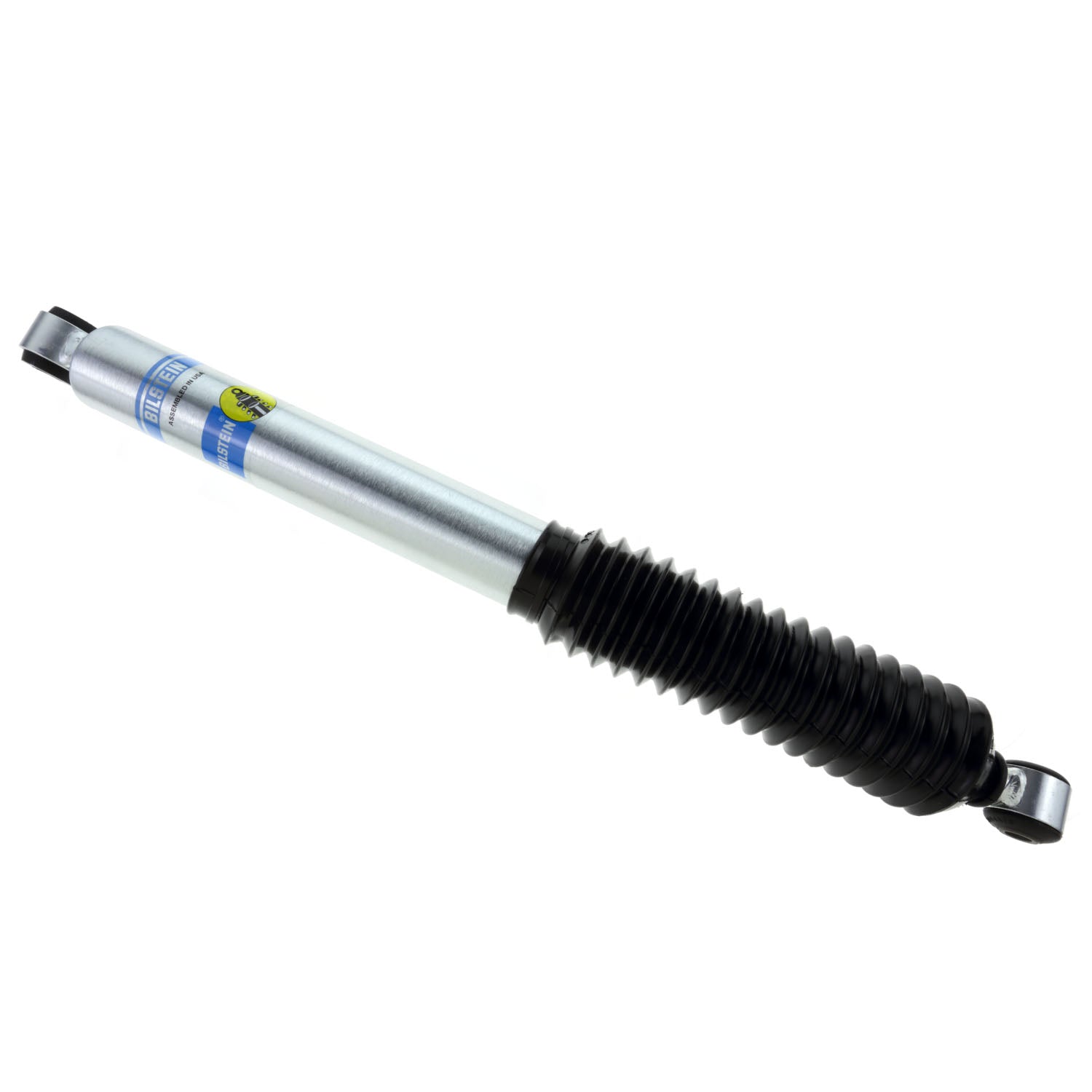

Bilstein 5100 Series 2001 Ford F-250 Super Duty XLT 4WD Front 46mm Monotube Shock Absorber - 33-187297

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Extended Length (in): 23.23
• Collapsed Length (in): 14.44
• Series: B8 5100
• Extended Length (mm): 590.0
• Boot Included: Black Bellows
• Lower Mount Type: Eye 12mm
• Body Design: Smooth Body (Non-Coilover)
• Reservoir: No
• Upper Mount Type: Eye 16mm
• Internal Design: Monotube
• Finish: Zinc Plated
• Collapsed Length (mm): 366.8
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 223.3
• Stroke/Travel Length (in): 8.79

Application

• Ford Excursion 2000-2005, F-250 Super Duty 1999-2004, F-350 Super Duty 1999-2004
