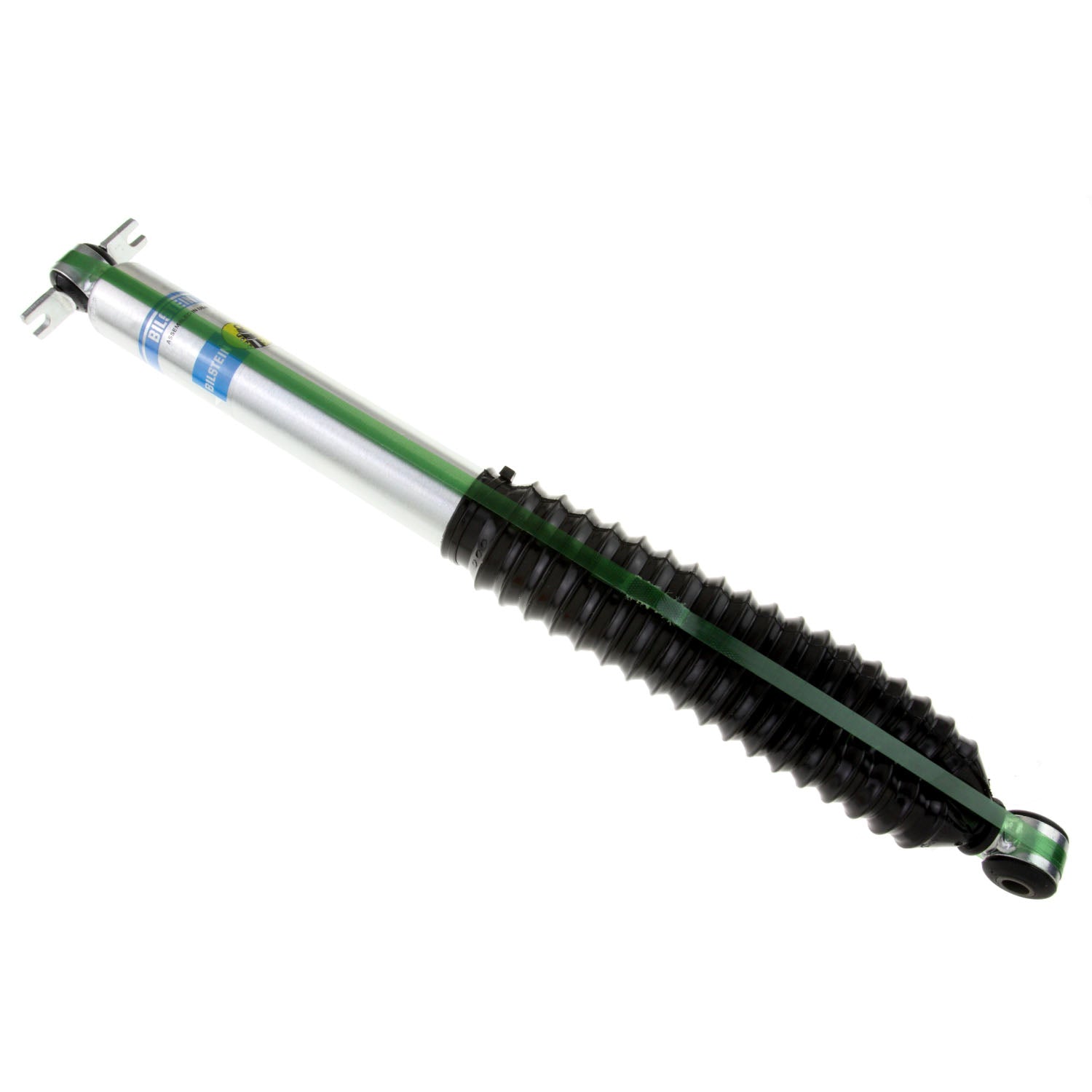

Bilstein 5100 Series 1998 Jeep Wrangler SE Rear 46mm Monotube Shock Absorber - 33-185514

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Upper Mount Type: Bar Pin
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (in): 15.41
• Series: B8 5100
• Finish: Zinc Plated
• Collapsed Length (mm): 391.5
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 243.6
• Stroke/Travel Length (in): 9.59
• Extended Length (in): 25.00
• Extended Length (mm): 635.0
• Reservoir: No
• Internal Design: Monotube
• Boot Included: Blue Bellows
• Lower Mount Type: Eye 12.7mm

Application

• Jeep Wrangler 1997-2006
