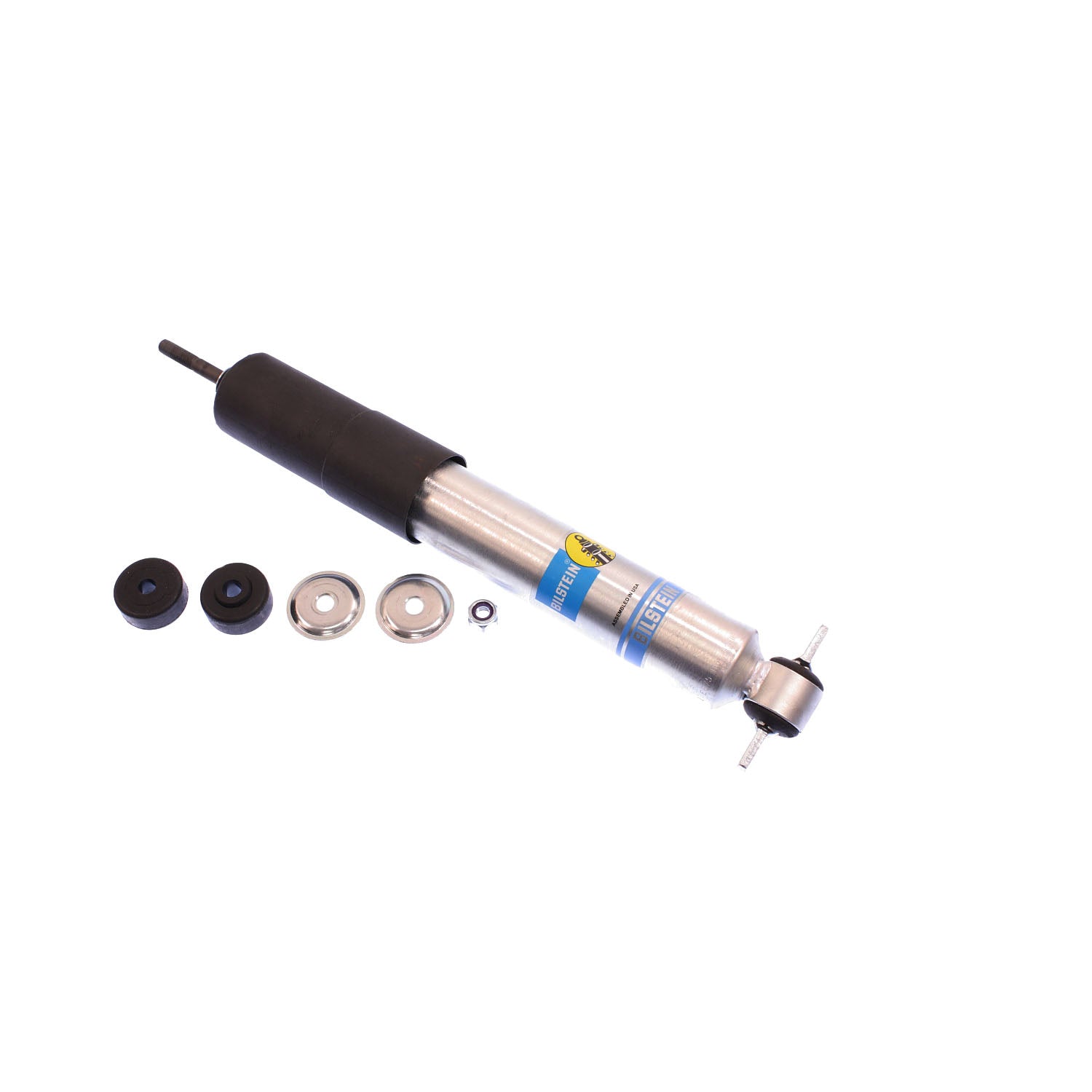

Bilstein 5100 Series 1998 Ford Ranger Splash RWD Front 46mm Monotube Shock Absorber - 24-187107

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Extended Length (in): 15.43
• Reservoir: No
• Finish: Zinc Plated
• Boot Included: Black Straight
• Lower Mount Type: Bar Pin
• Internal Design: Monotube
• Extended Length (mm): 392.0
• Upper Mount Type: Stem
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (mm): 257.8
• Collapsed Length (in): 10.15
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Stroke/Travel Length (mm): 134.1
• Shaft Diameter: 14mm
• Stroke/Travel Length (in): 5.28

Application

• Ford Ranger 1998-2011, Mazda B2300 2001-2009, B2500 1998-2001, B3000 1998-2001, B3000 2003-2007, B4000 1998-2000
