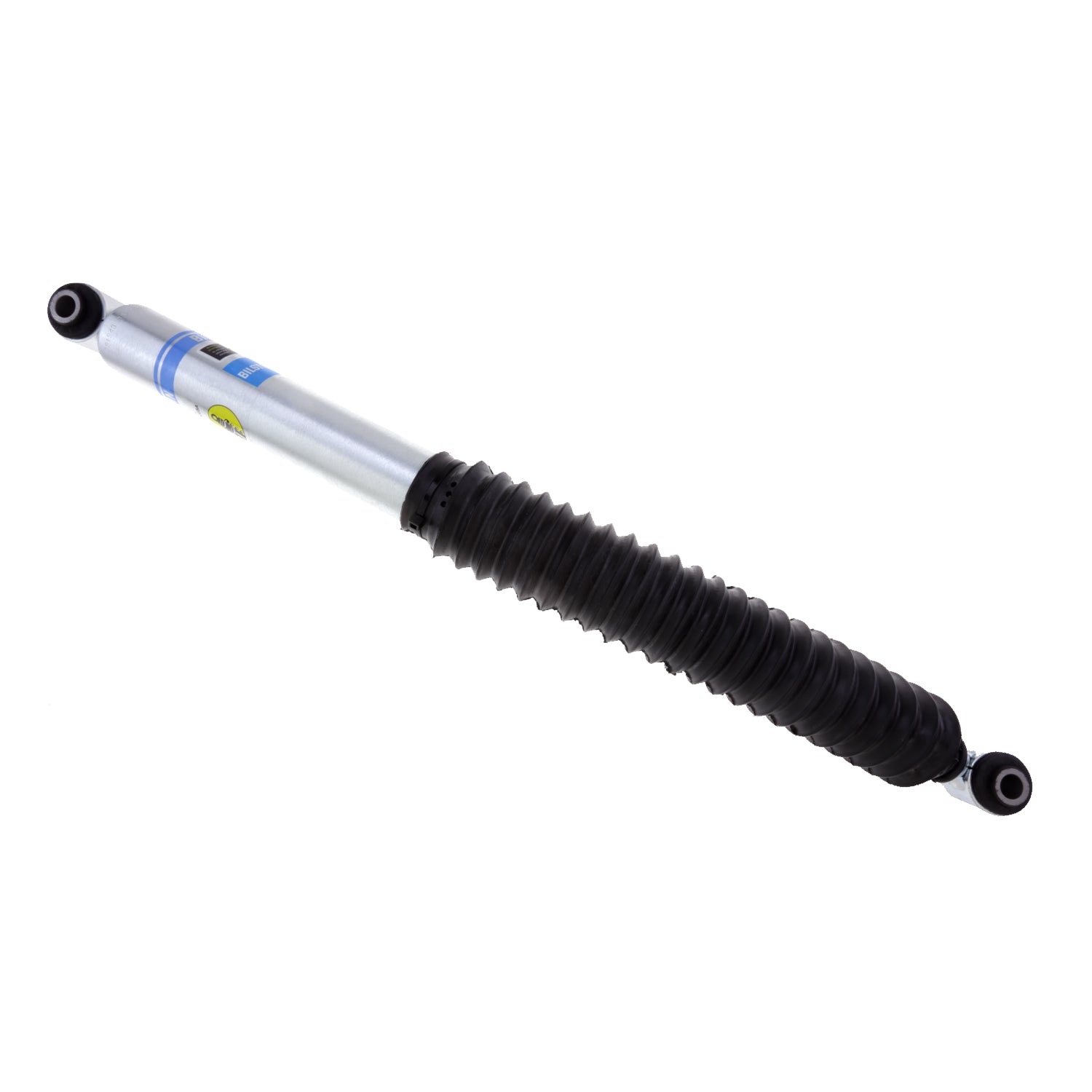

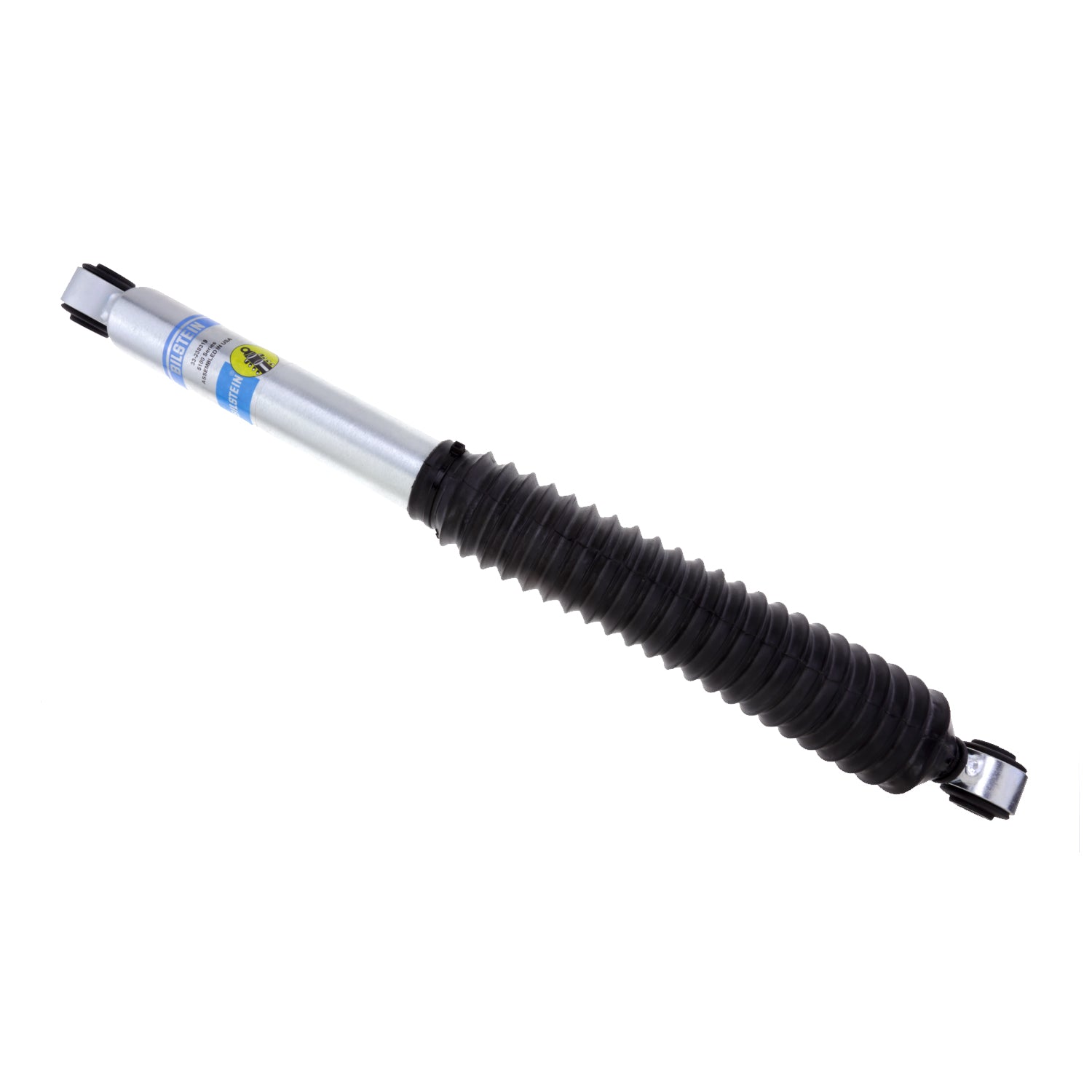

Bilstein 5100 Series 14 Chevy Silverado 1500 / 14 GMC Sierra 1500 Rear 46mm Monotube Shock Absorber - 33-238319

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Finish: Zinc Plated
• Upper Mount Type: Eye 14.1mm
• Series: B8 5100
• Body Design: Smooth Body (Non-Coilover)
• Extended Length (mm): 655.0
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Lower Mount Type: Eye 14.1mm
• Collapsed Length (mm): 411.0
• Piston Diameter: 46mm
• Internal Design: Monotube
• Extended Length (in): 25.79
• Collapsed Length (in): 16.18
• Reservoir: No
• Boot Included: Black Bellows
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 244.1
• Stroke/Travel Length (in): 9.61

Application

• Chevrolet Silverado 1500 2014-2018, Silverado 1500 LD 2019, GMC Sierra 1500 2014-2018, Sierra 1500 Limited 2019
