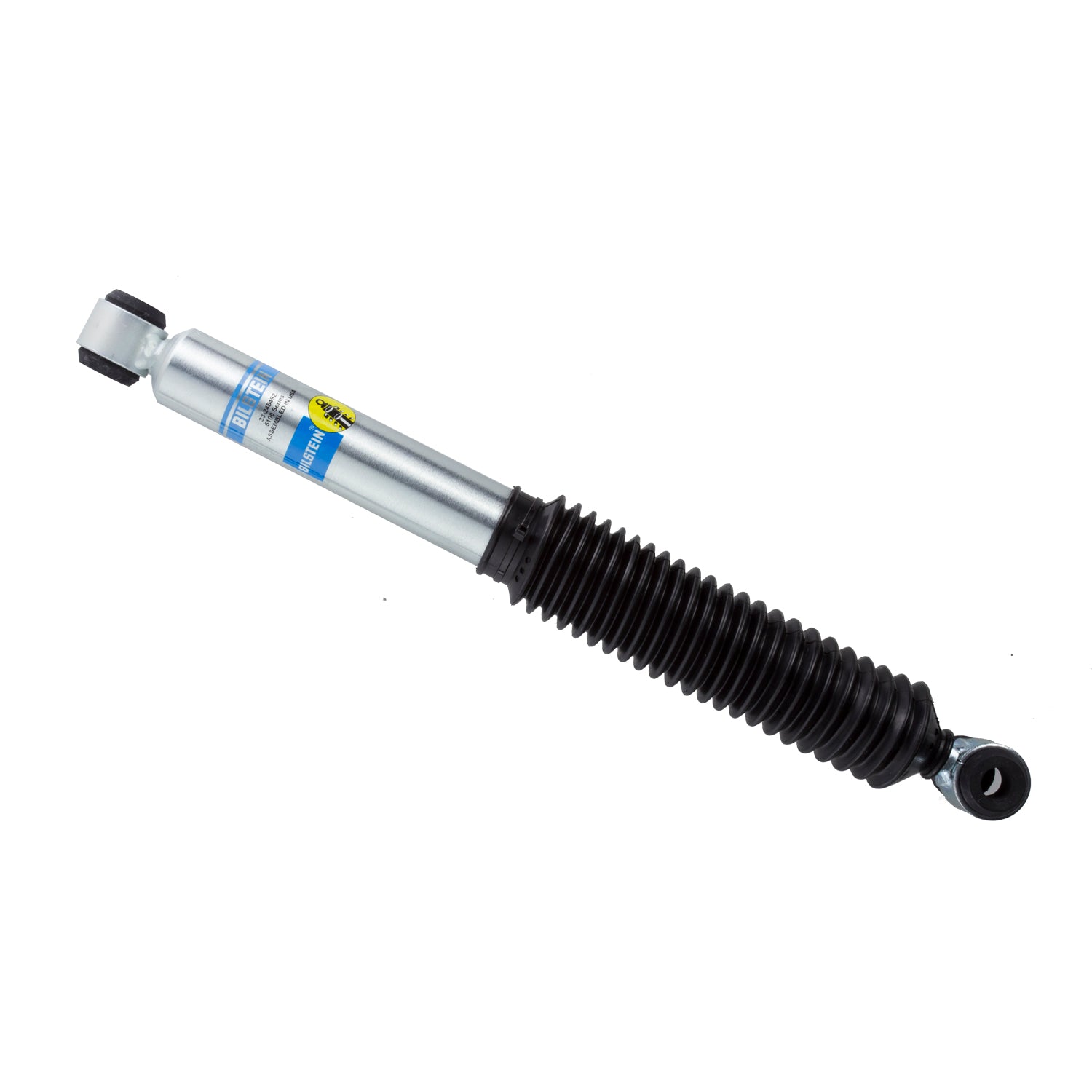

Bilstein 5100 Series 05-15 Toyota Hilux 4WD Rear 46mm Monotube Shock Absorber - 33-245492

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Specifications

• Body Design: Smooth Body (Non-Coilover)
• Finish: Zinc Plated
• Upper Mount Type: Eye 19mm
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Extended Length (mm): 571.2
• Extended Length (in): 22.49
• Piston Diameter: 46mm
• Collapsed Length (mm): 362.0
• Shaft Diameter: 14mm
• Stroke/Travel Length (mm): 208.3
• Stroke/Travel Length (in): 8.20
• Reservoir: No
• Collapsed Length (in): 14.25
• Lower Mount Type: Eye 19mm
• Series: B8 5100
• Boot Included: Black Bellows
• Internal Design: Monotube

Application

• Toyota Hilux 2005-2025
