Bilstein 5100 Series 00-06 Toyota Tundra Limited Monotube Shock Absorber - 24-186520

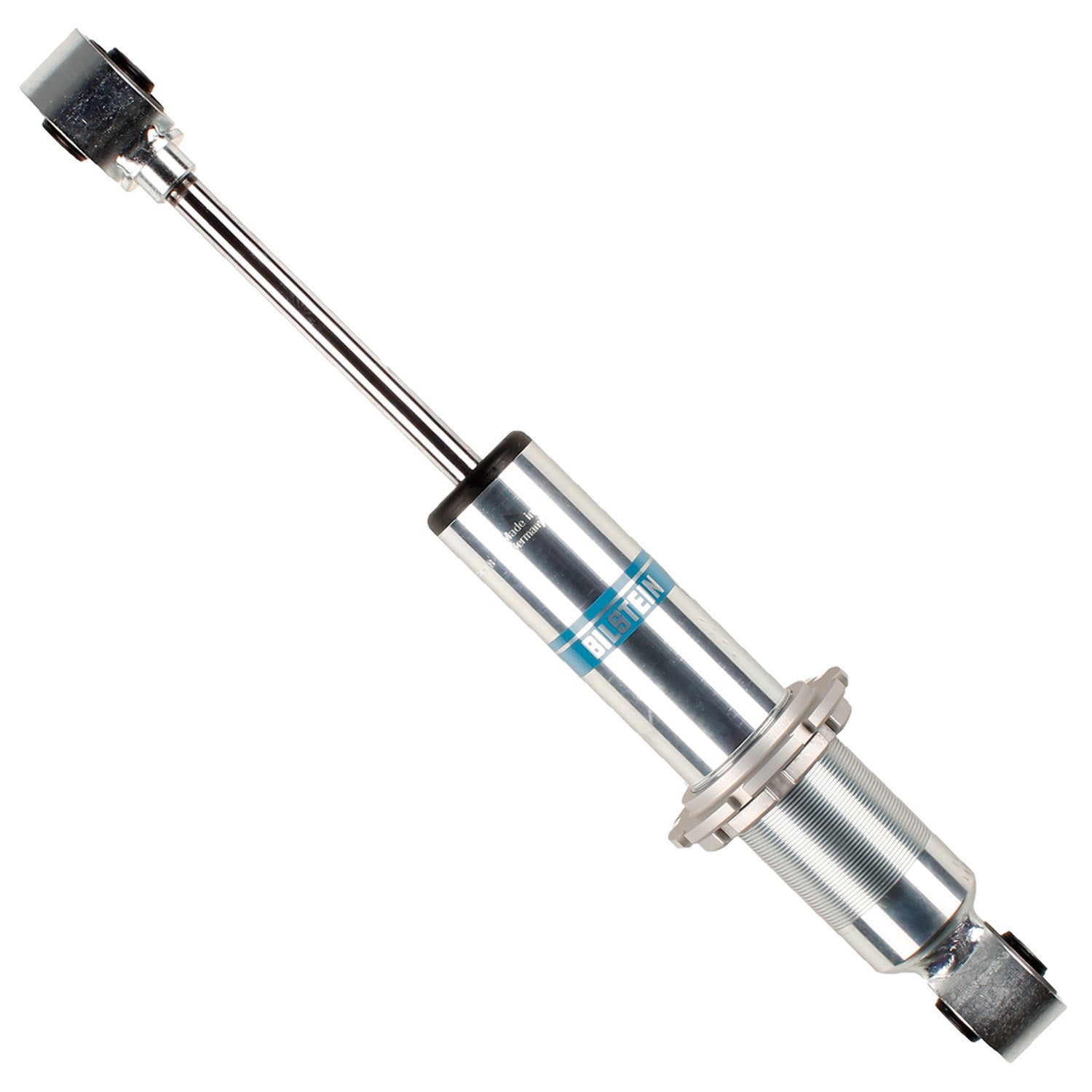

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Specifications

• Reservoir: No
• Rebound @0.52m/S: 3030
• Upper Mount Type: Eye 14.2mm
• Body Design: Threaded Body (Coilover)
• Collapsed Length (mm): 313.5
• Extended Length (in): 18.22
• Finish: Zinc Plated
• Lower Mount Type: Eye 14.2mm
• Mount Type: Eye-to-Eye
• Collapsed Length (in): 12.34
• Compression @0.52m/S: 965
• Extended Length (mm): 463.0
• Internal Design: Monotube
• Series: M 7100 Classic (Coilover)
• Spring Seat Included: Lower
• Shaft Diameter (mm): 14.0
• Stroke/Travel Length (mm): 149.9
• Stroke/Travel Length (in): 5.90
• Spring Hardware: Single Rate (2.5in)
• Piston Diameter: 46mm

Application

• No Applications
