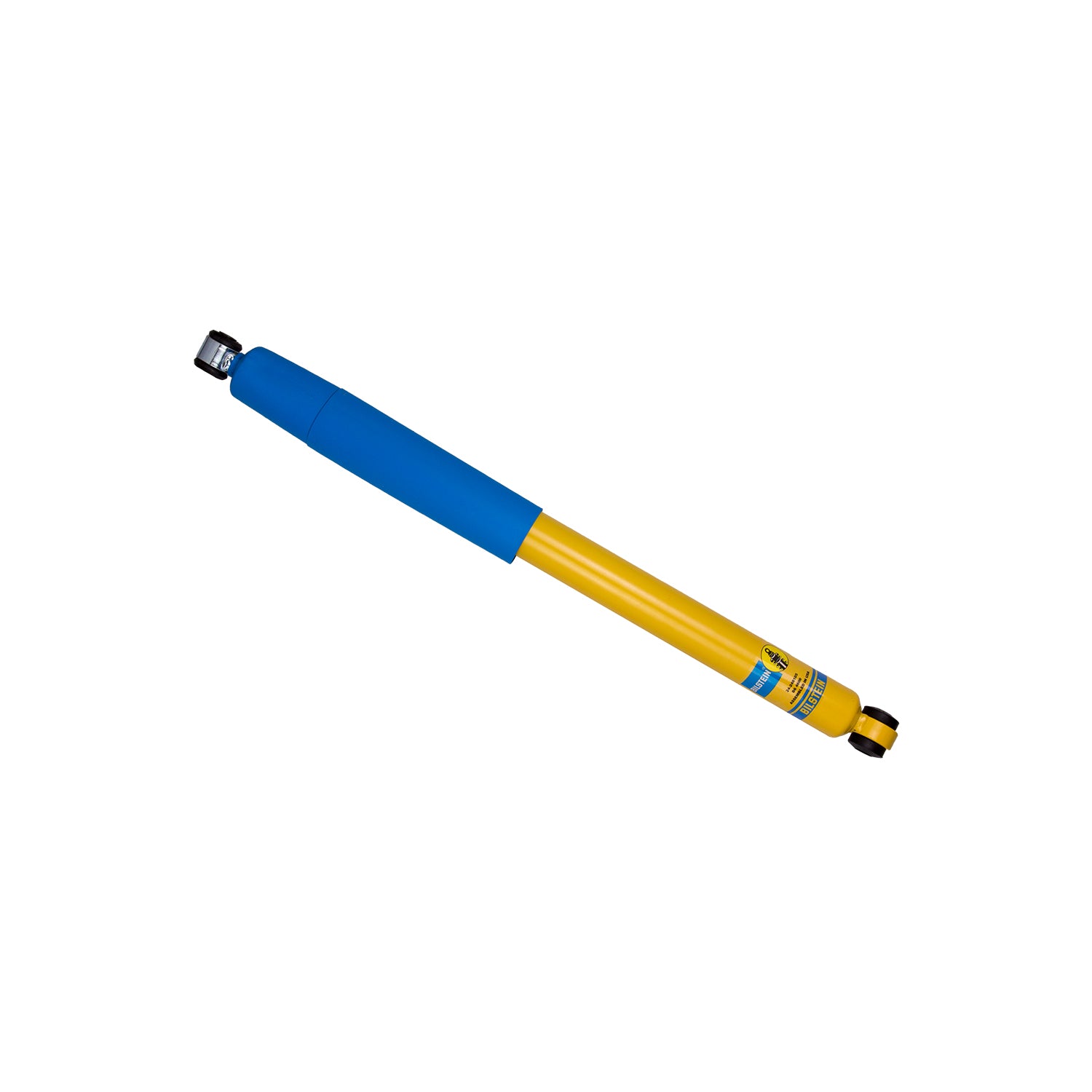

Bilstein 4600 Series 89-93 Dodge Ram W250/W350 Rear 46mm Monotube Shock Absorber - 24-248105

Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Features

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Specific tuning for stock height vehicles
• Uses OEM springs and mounting hardware

Specifications

• Reservoir: No
• Adjustable Damping: Non-Adjustable
• Spring Seat Included: No
• Piston Diameter: 46mm
• Shaft Diameter: 14mm
• Collapsed Length (in): 17.48
• Extended Length (in): 28.73
• Collapsed Length (mm): 444.0
• Extended Length (mm): 729.7
• Series: B6 4600
• Body Design: Smooth Body (Non-Coilover)
• Finish: Yellow Paint
• Internal Design: Monotube
• Boot Included: Blue Straight
• Upper Mount Type: Eye 12.7mm
• Lower Mount Type: Eye 17.5mm

Application

• Dodge Ramcharger 1974-1993, W100 1975-1977, W100 1984-1989, W100 Pickup 1972-1974, W150 1977-1993, W200 1975-1980, W200 Pickup 1972-1974, W250 1981-1993, W300 1975-1980, W300 Pickup 1972-1974, W350 1981-1993, Plymouth Trailduster 1974-1981
