BDS Suspension 2.25" Lift Kit | FOX 3.0 Factory Race | Toyota Tundra (22-26) 4WD - 838FRS

Take your 2022-2026 Toyota Tundra truck to the next level and improve the ride with this 2.25 inch lift kit featuring FOX 3.0 Internal Bypass Factory Race Coilovers from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

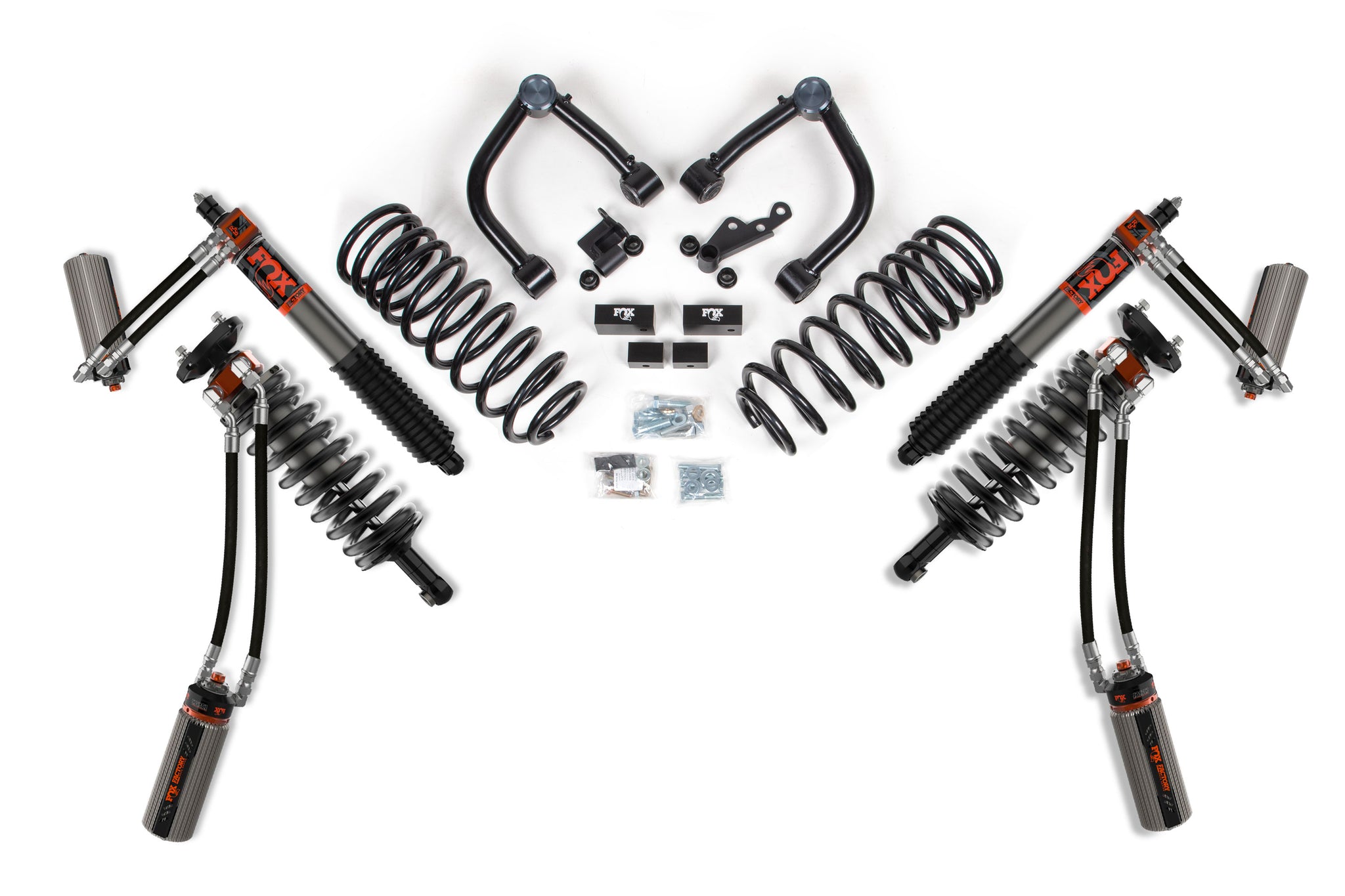

Up front the lift kit includes FOX 3.0 Internal Bypass Factory Race Coilovers with DSC remote reservoirs, heavy duty tubular upper control arms for increased strength, BDS heavy duty diff. drop brackets as well as solid aluminum sway bar drop blocks. In the rear this kit utilizes 1- 3/4" BDS heavy duty coil springs and a set of FOX 3.0 Factory Race shocks with DSC remote reservoirs for ultimate adjustability that lets you dial in for the smoothest ride possible.

FOX Factory Race Series

FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The DSC adjuster allows you to dial in your Tundra for load, environment, and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving high

Features

• 3.0" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body
• Patented, internal bypass design
• Application-specific springs
• 7/8" stainless steel shafts
• Vehicle-specific tuning maximize
