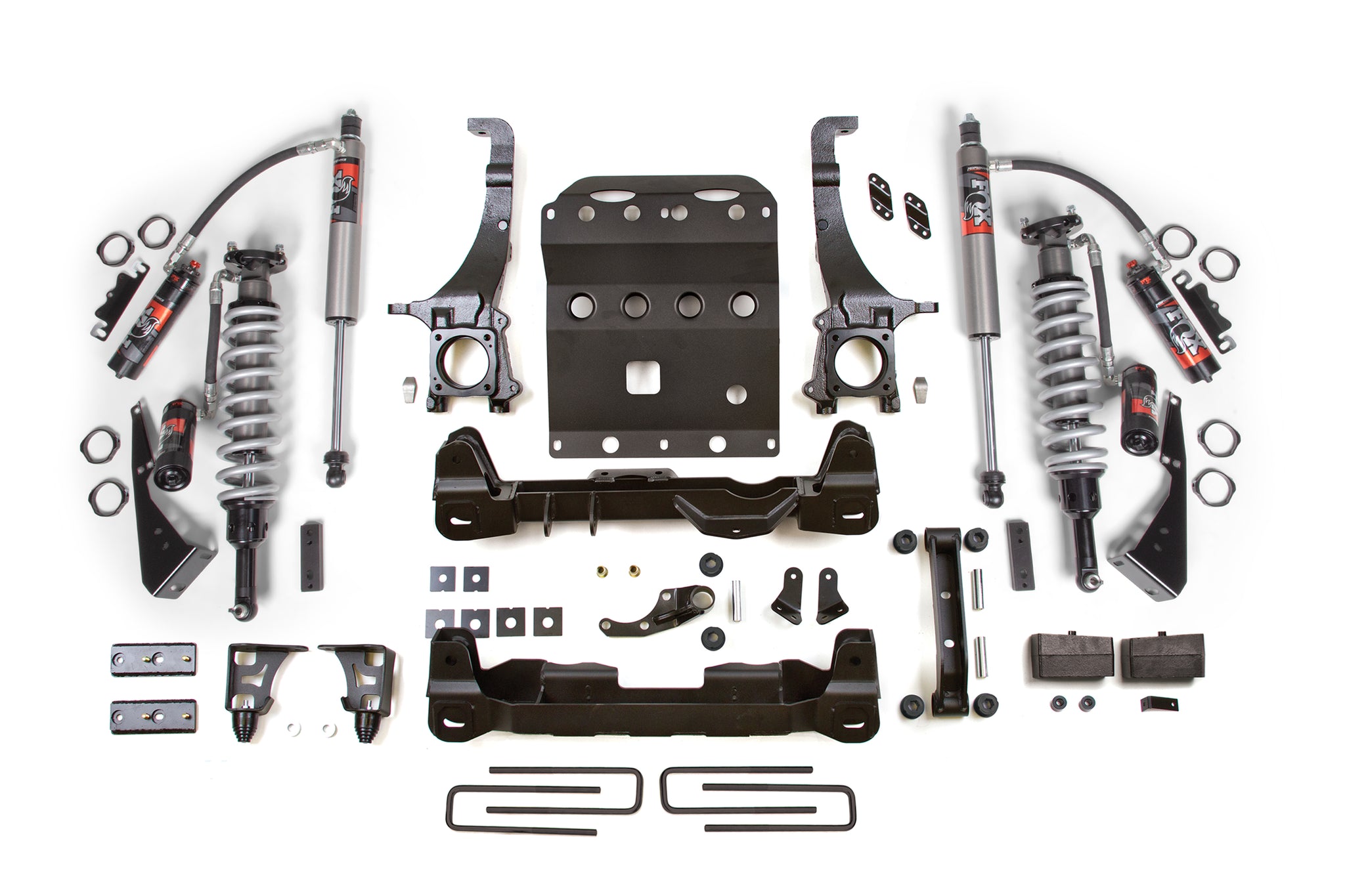

Get the ultimate look and performance for your Toyota Tacoma with the BDS 4-inch suspension lift kit featuring FOX 2.5 Performance Elite (PE) coil-overs and shocks. These kits feature the new
aluminum-bodied FOX 2.5 Performance Elite (PE) coil-over shocks designed specifically to bolt-on performance for increased travel, more adjactability via DSC adjustment, and better heat
dispersion allowing you to soak up the roughest terrain on and off-road. Designed to improve stance, performance, and capability, BDS includes everything necessary to set your truck up right with
clearance for up to 33" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great
on-road handling characteristics. Up front, this kit pairs the FOX 2.5 PE Coil-Overs with high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and
heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing factory tie rod ends
allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, lower control arm cams, FOX reservoir mounts and supplied
hardware packs provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts to lift and level the stance without effecting load capacity. For shocks you have the option of FOX 2.0
IFP performance series gas shocks or upgrade to the FOX 2.5 Performance Elite (PE) series remote reservoir shocks to match the front and further enhance vehicle performance and adjustability.
FOX 2.5 PE Coil-Overs
FOX 2.5 Performance Elite (PE) coil-overs offer next level performance for
Features
FOX 2.5 Performance
Elite series coilovers and
choice of FOX 2.0 or 2.5
(PE) rear shocks for
improved ride quality,
performance, and
capability
High clearance
crossmember design
maximizes ground
clearance
Robust steering kn
