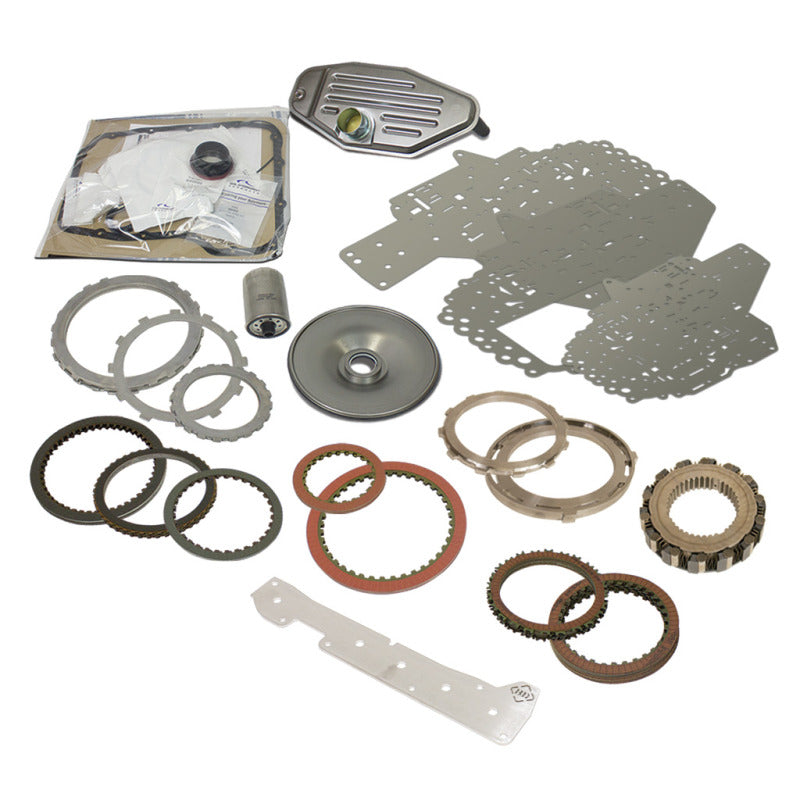

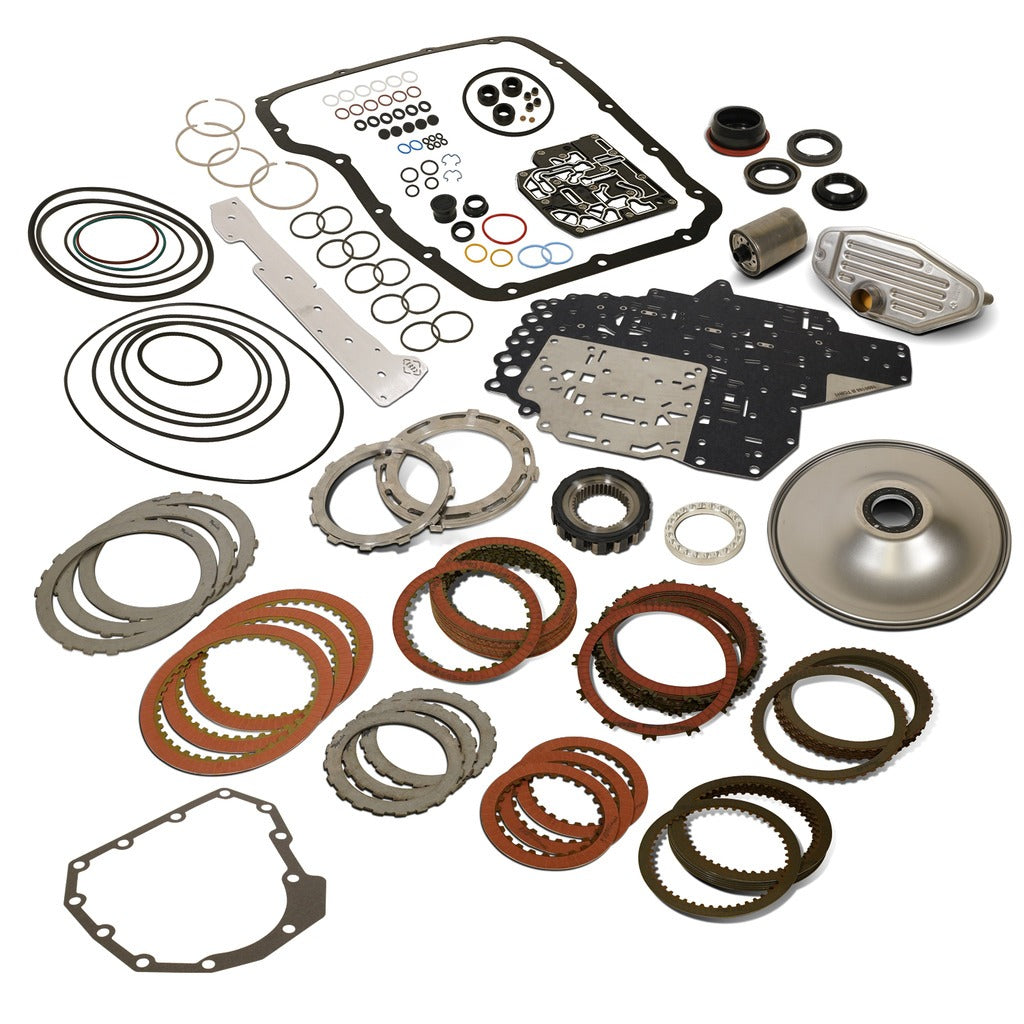

BD Diesel Built-It Trans Kit 2007.5-2017 Dodge 68RFE Stage 3 Performance Kit - 1062023

Are you a looking to rebuild your own transmission and needing some specialty parts to match your application? BD offers a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit - which is pretty well everything we put in our own transmission rebuilds.

Features

• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Billet OD/UD Reaction Plate
• Stiffer Billet Intermediate Reaction Plate
• Heavy duty accumulator plate to prevent accumulator blowout
• Stiffer Billet OverDrive/Rev Reaction Plate
• Billet 4C Spring Retaining Ring
• Gasket - Oil Pan
• Gasket - Solenoid Pack
• Gasket Kit - Oil Cooler
• Seal - Solenoid Pack Connector
• Seal - 4wd Output Shaft
• Qty 15: OD Clutch Friction
• Seal - 2wd Output Shaft
• Seal - Input Shaft
• Seal Kit - 2-4C
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Seal Kit - Input Drum
• Seal Kit - Solenoid Pack
• Seal Kit - Internal
• Seal Kit - External
• O-Ring - pump Cover
• Qty 2: Check Balls 1/4in
• Qty 15: OD Clutch Steel
• Upgraded One Way Clutch/Sprag
• Over Drive clutches 17% increase and Under Drive clutches 20% increase
• Qty 3: 2C Clutch Friction
• Qty 3: 2C Clutch Steel
• Qty 3: 4C Clutch Friction
• Qty 3: 4C Clutch Steel
• Qty 7: Reverse Clutch Friction
• Qty 7: Reverse Clutch Steel
• Filter - Pan
• Filter - Spin On
• Pump Cover
• Billet OD/Reverse Selector Plate

Specifications

Warranty

12 months or 12000 miles, whichever comes first.

Documentation

• 68RFE Rebuild Kit Install Manual (PDF)
• 1030373 Protect 68 Plate Kit (PDF)
• - 1060603 68 RFE One Way Clutch (PDF)

Country of Origin: Canada
