SKU: SKU: BAJ487073

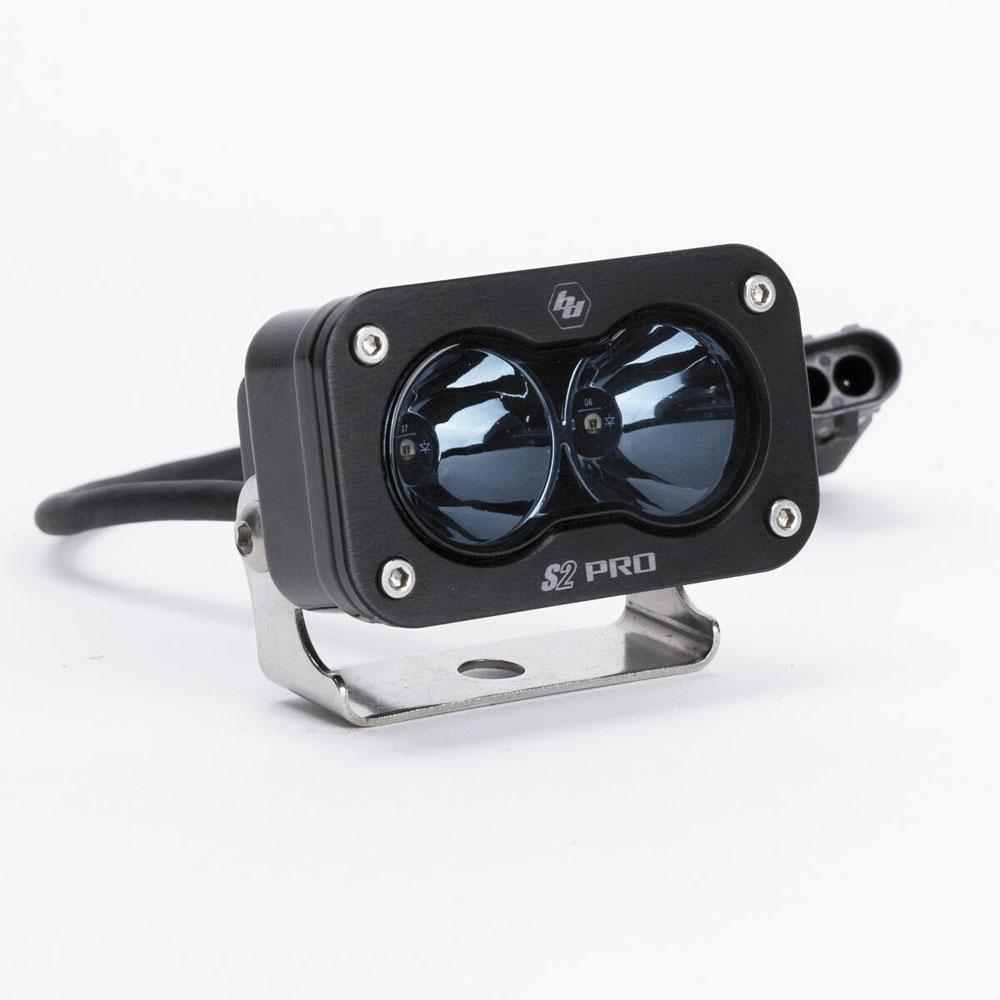

Go secretly into the night and see without being seen with Baja Designs S2 Pro IR LED Light. The high output of the 850nm or 940nm infrared LEDs combined with its compact 3 inch x 2 inch size makes it the ultimate covert IR on the market today. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2245 |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Infrared |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Quantity | 2 |
| Lighting Technology | Osram 850nm SFH4515AS LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro Infrared LED Light Pod |
| Voltage | 13.800 |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

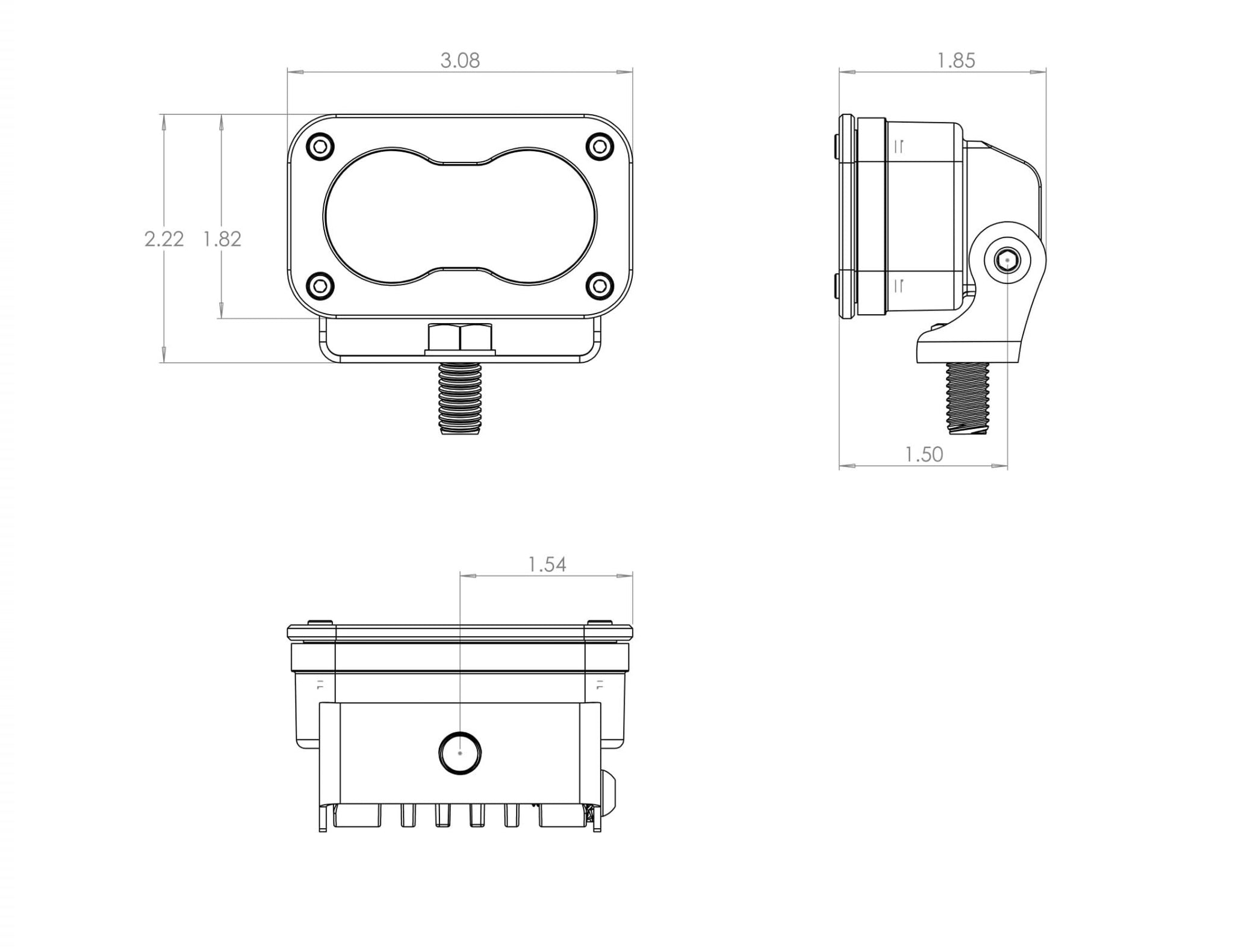

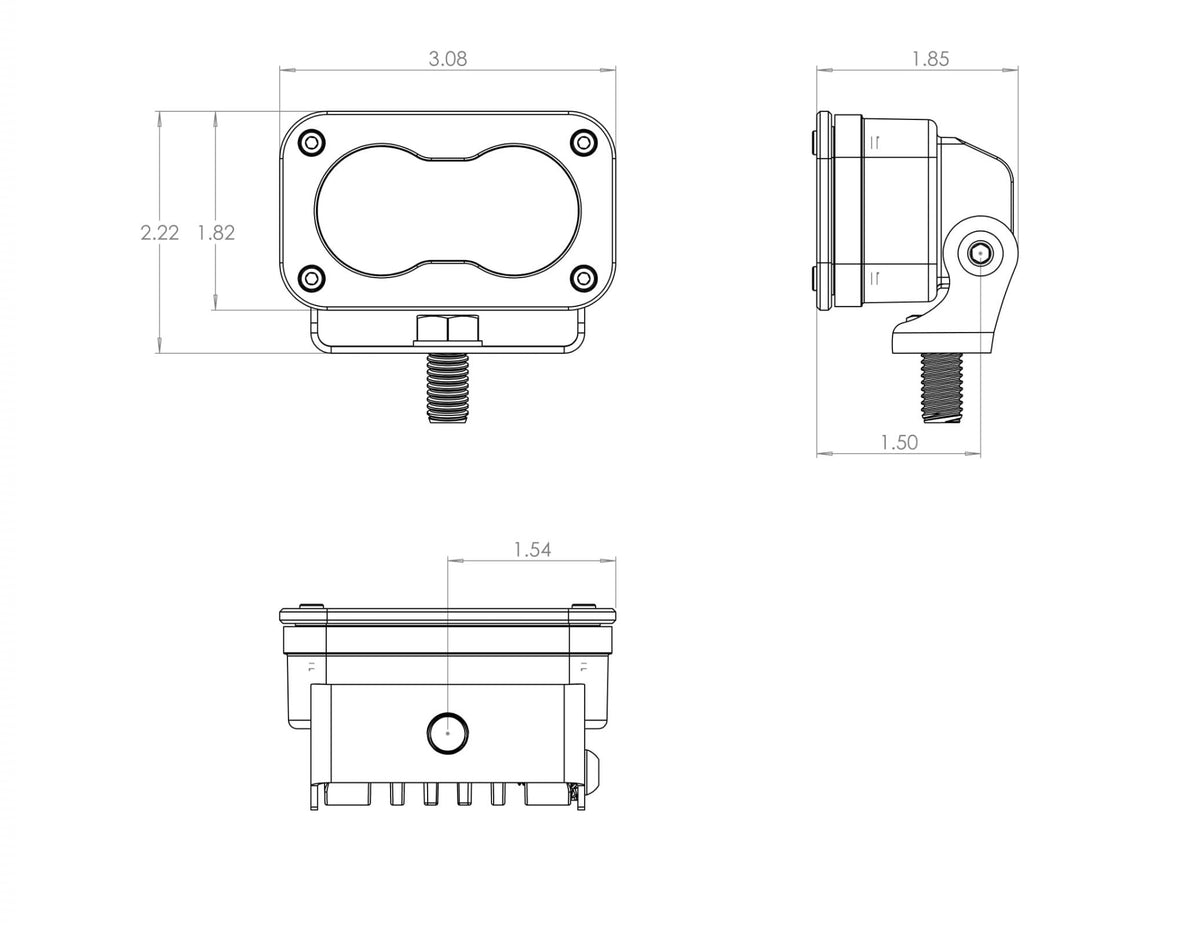

| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
