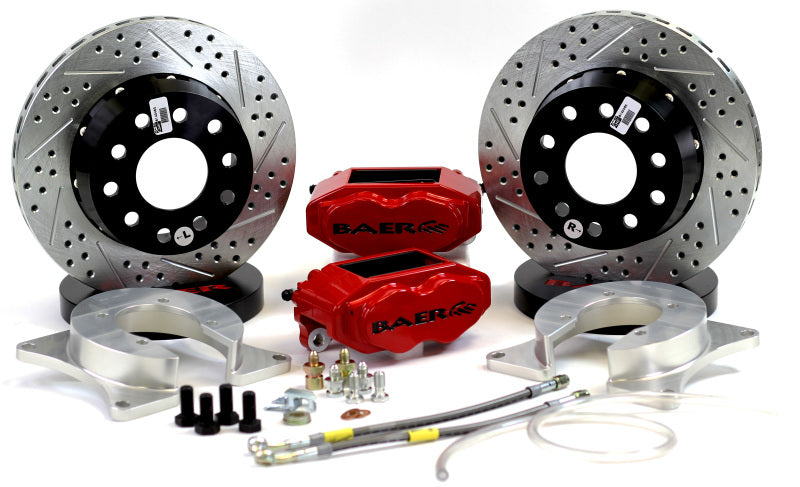

Baer Brakes Rear Ends w/ Ford 9in Torino Bearing Housing Ends 11in SS4+ Rear SDZ Brake Kit - GB - 4262325GB

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc-plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1-C pad type.

Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included.

The 11 inch SS4 Plus fits most 15 inch or larger wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather and Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Caliper: S4

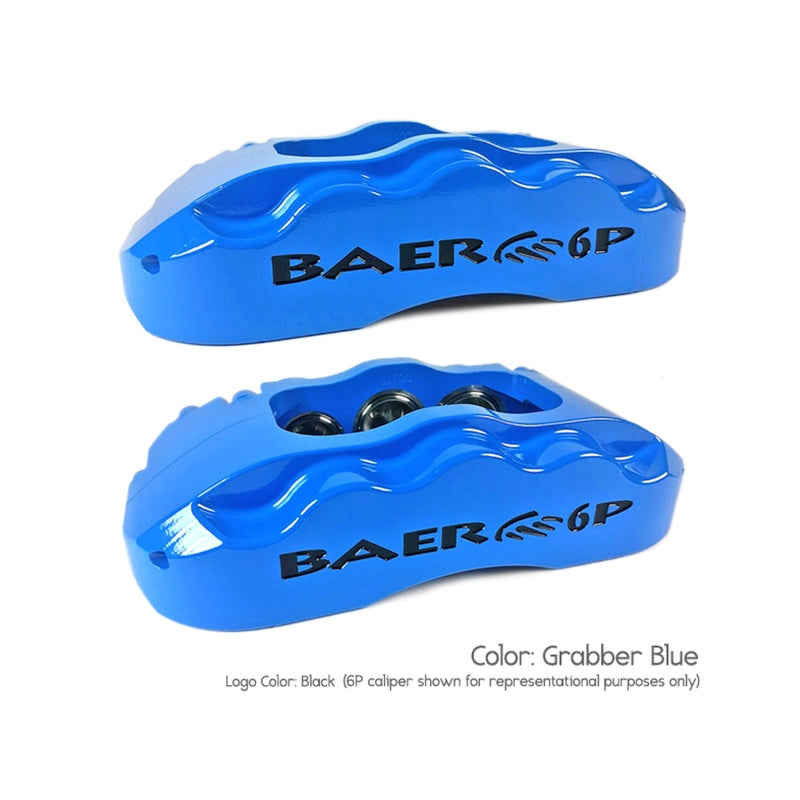

• Caliper Color: Grabber Blue
• Disc Brake Rotor (Rear) Outside Diameter: 11.0 Inch
• Axle: Rear

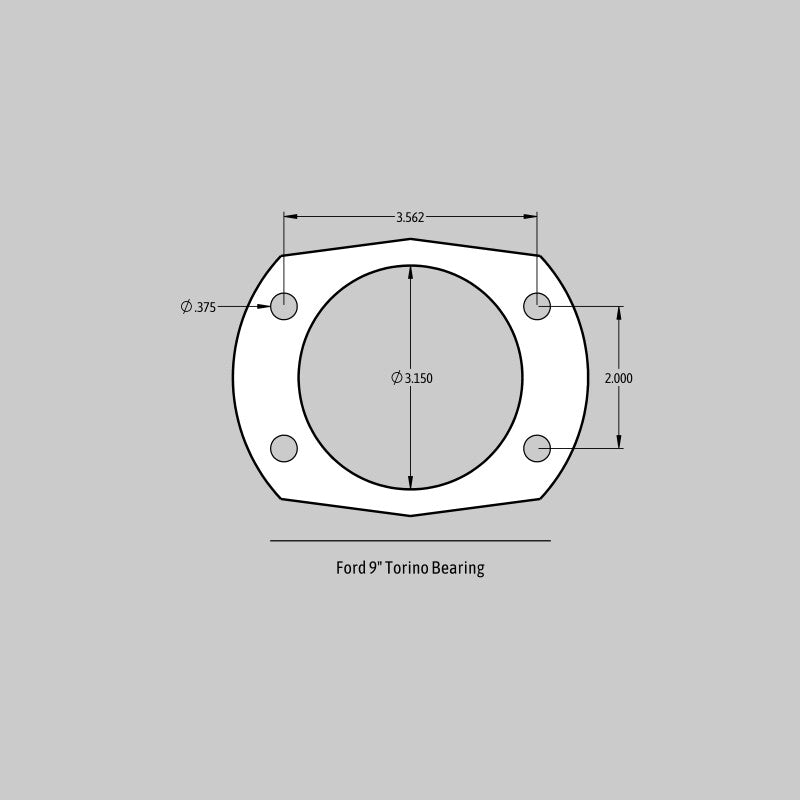

• Axle Flange: Ford 9 Inch Torino/Late Big Bearing
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Rear) Piston Quantity: 4
• Disc Brake Caliper (Rear) Type: Fixed
• Disc Brake Pad FMSI Number: DR1-C
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Includes Park Brake: No
• Lug Count: 5 Lug
• Min Wheel Diameter: 15.0 Inch
• Rotor Thickness: 1.020 Inch
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S125A

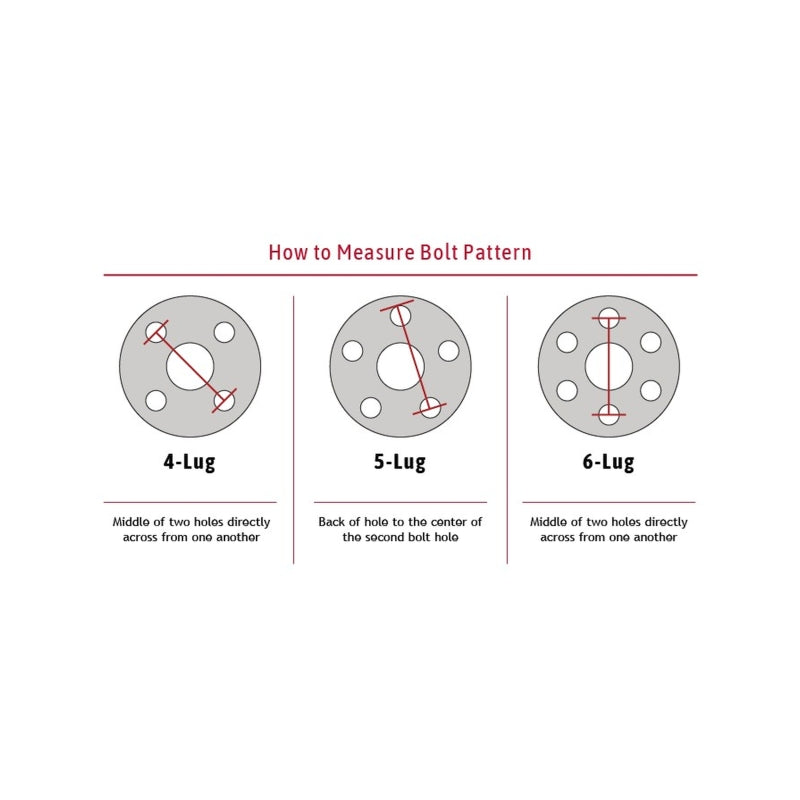

• Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
