Baer Brakes Rear Ends w/ Ford 9in Early Big Bearing Housing Ends 12in SS4 Rear SDZ Brake Kit - CY - 4262259CY

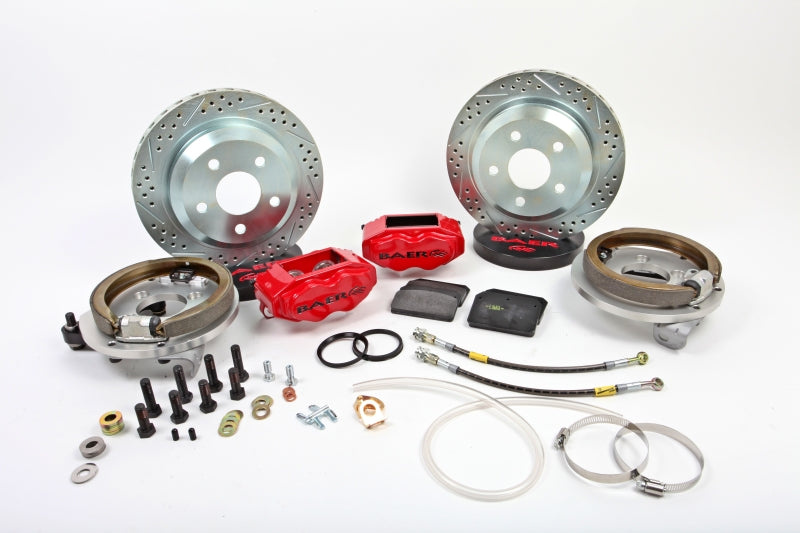

This system features the S4 4-piston caliper mounted to a 12 inch, 1 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1 or HB100 pad type.

Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included.

The 12 inch SS4 fits most 16 inch or larger wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure
• 1-Piece Slot, Drilled, Zinc-Plate Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Caliper: S4

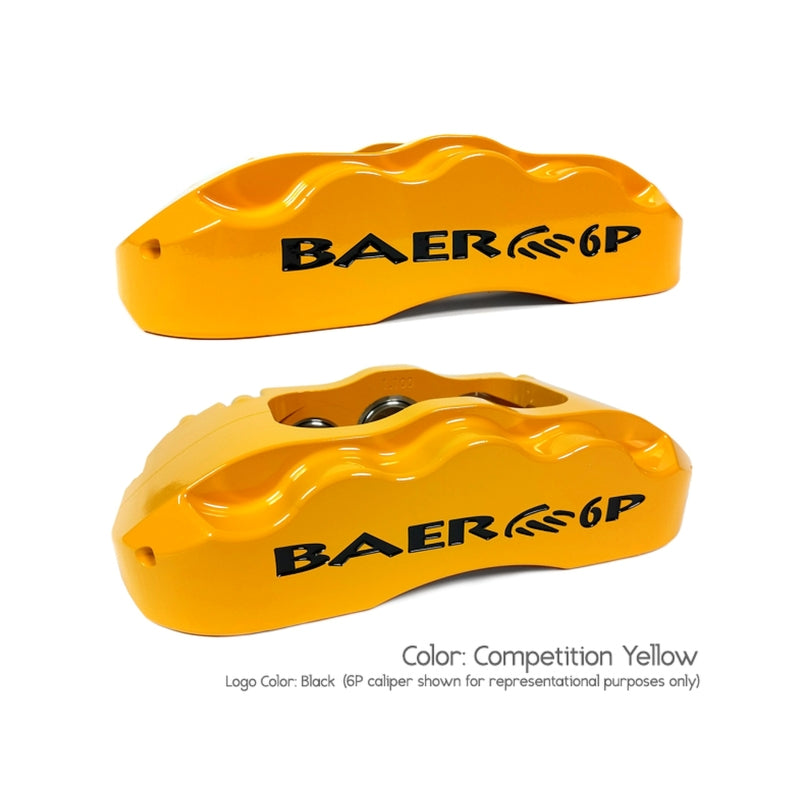

• Caliper Color: Comp Yellow
• Disc Brake Rotor (Rear) Outside Diameter: 12.0 Inch
• Axle: Rear

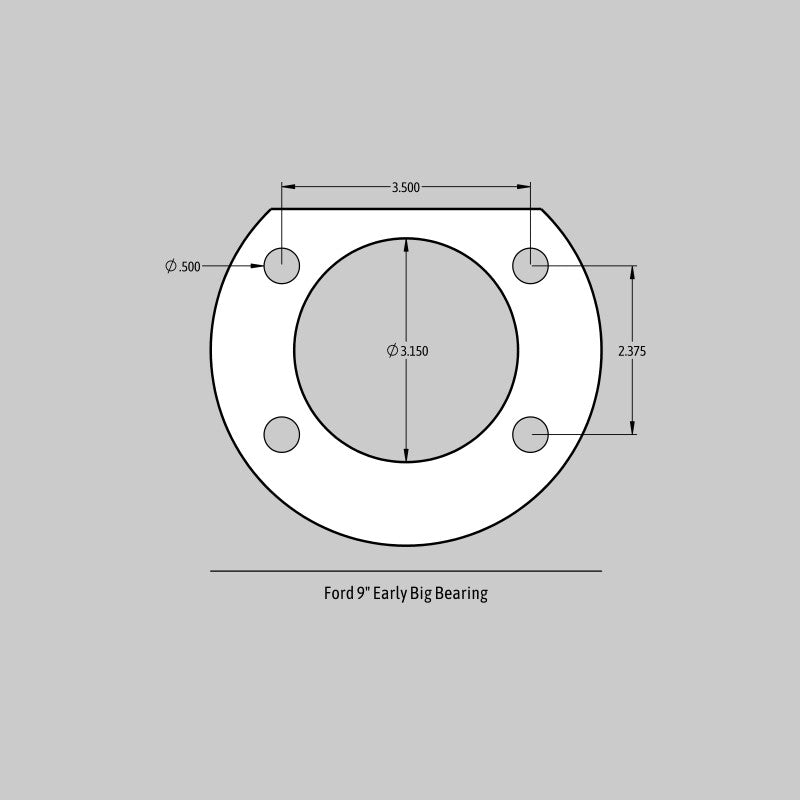

• Axle Flange: Ford 9 Inch Early Big Bearing
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Rear) Piston Quantity: 4
• Disc Brake Caliper (Rear) Type: Fixed
• Disc Brake Pad FMSI Number: DR1-C
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Includes Park Brake: Yes
• Includes Park Brake Cables: No
• Lug Count: 5 Lug
• Min Wheel Diameter: 16.0 Inch
• Rotor Thickness: 1.02
• Rotor Type: 1-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S113E

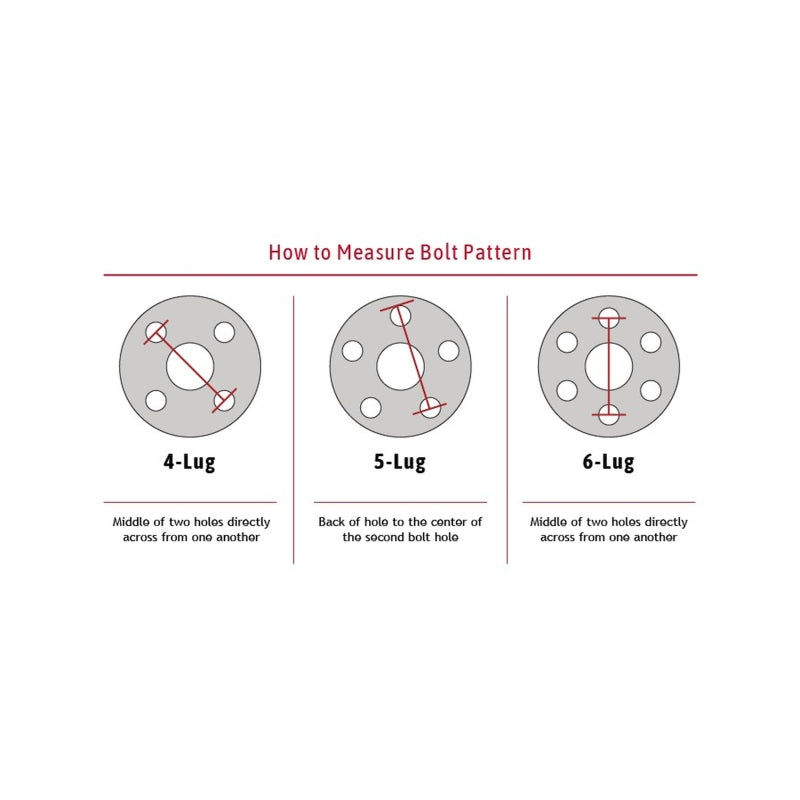

• Wheel Lug/Bolt Pattern: 5x4.50/5x4.75
