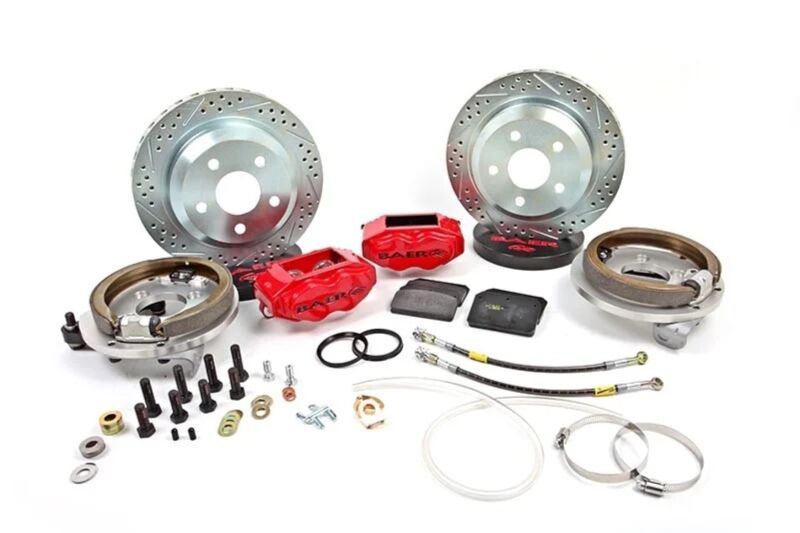

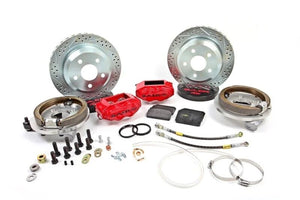

Baer Brakes Ford 8.8in C-Clip Rear Ends 12in SS4 Rear SDZ Brake Kit - Red - 4262276R

This system features the S4 4-piston caliper mounted to a 12 inch, 1 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1 or HB100 pad type.

Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses are also included.

The 12 inch SS4 fits most 16 inch or larger wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure

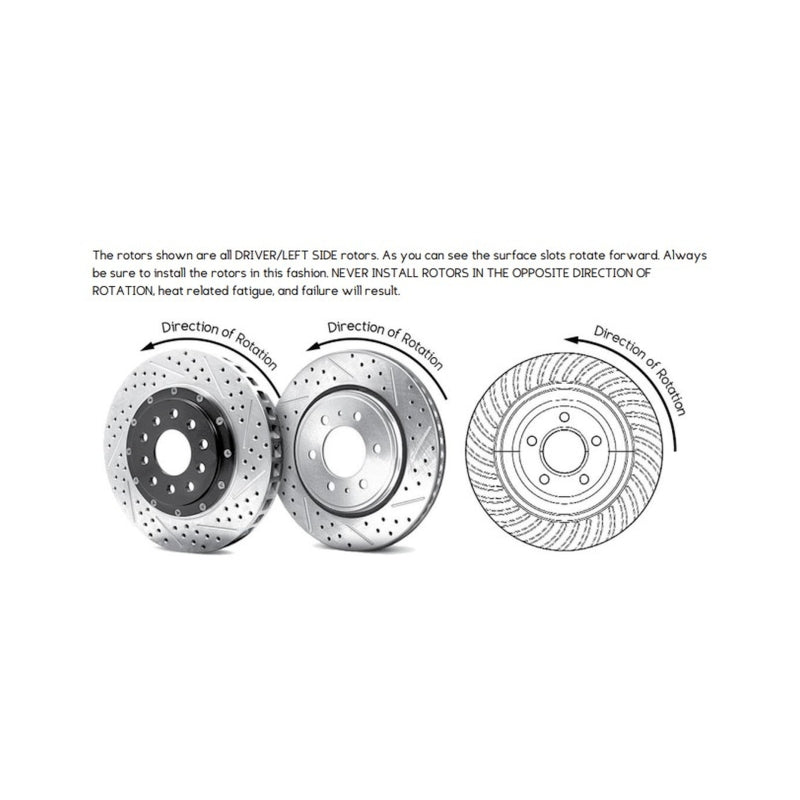

• 1-Piece Slot, Drilled, Zinc-Plate Rotor

SS4 Rear 1-1 General Fit Ford 8.8 Notes SN95 3.250 Stand off 8.8 SN95 3.25in. stand off with park brake but no cables. 5 on 4.5 bolt circle

Details:

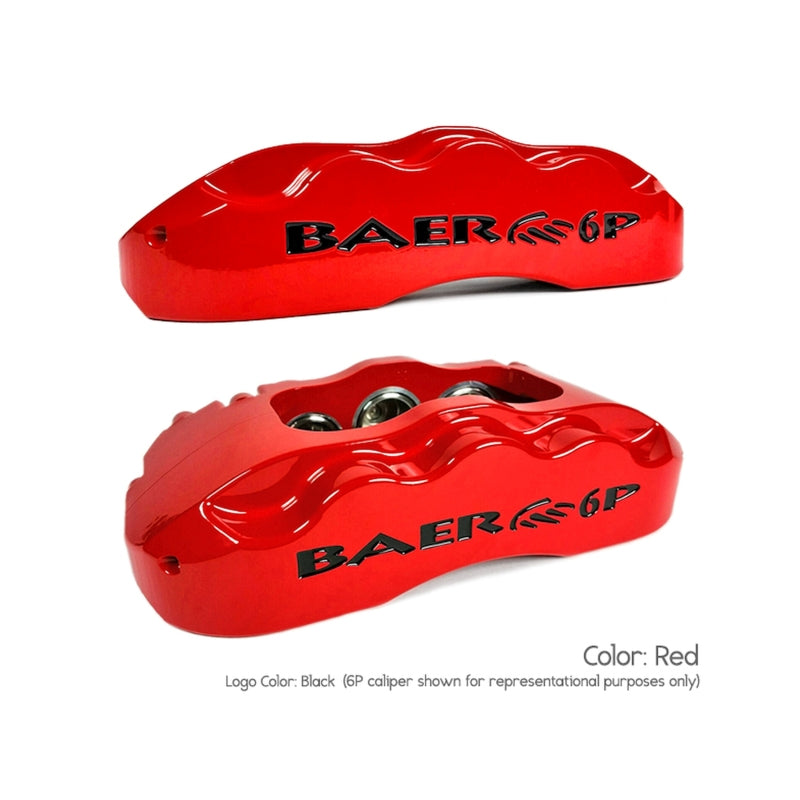

• Caliper: S4
• Caliper Color: Red
• Disc Brake Rotor (Rear) Outside Diameter: 12.0 Inch
• ABS Tone Ring Included: No
• Axle: Rear
• Axle Flange: Ford 8.8 Inch
• Axle Standoff: 3.25
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Rear) Piston Quantity: 4
• Disc Brake Caliper (Rear) Type: Floating
• Disc Brake Pad FMSI Number: DR1
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Friction Material Composition: Semi-metallic
• Grade Type: Performance
• Hose Material: Steel Braided
• Includes Park Brake Cables: No
• Min Wheel Diameter: 16.0 Inch
• Rotor Thickness: 1.020 Inch
• Rotor Type: 1-Piece
• Solid Or Vented Type Rotor: Vented
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S113E

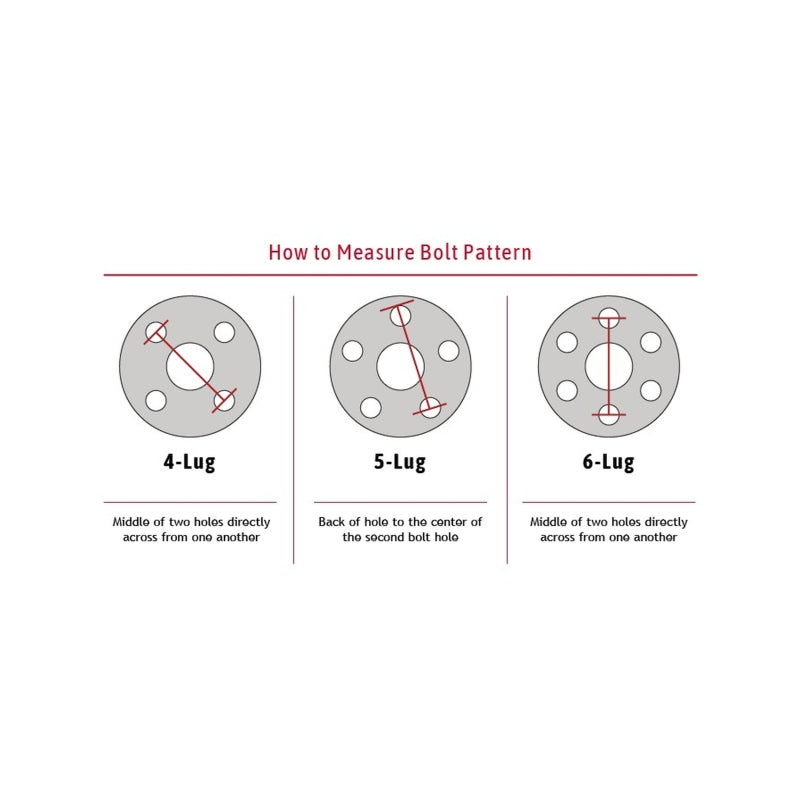

• Wheel Lug/Bolt Pattern: 5x4.50
