Baer Brakes 77-80 Jeep CJ5 Claw Performance Front Rotors - 05522-020

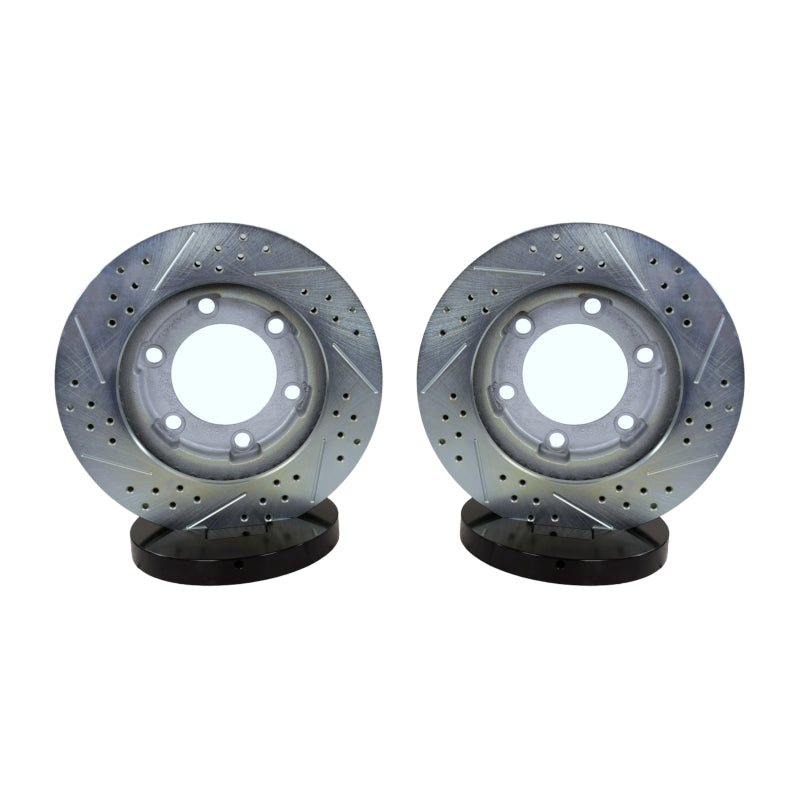

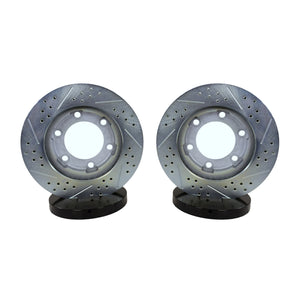

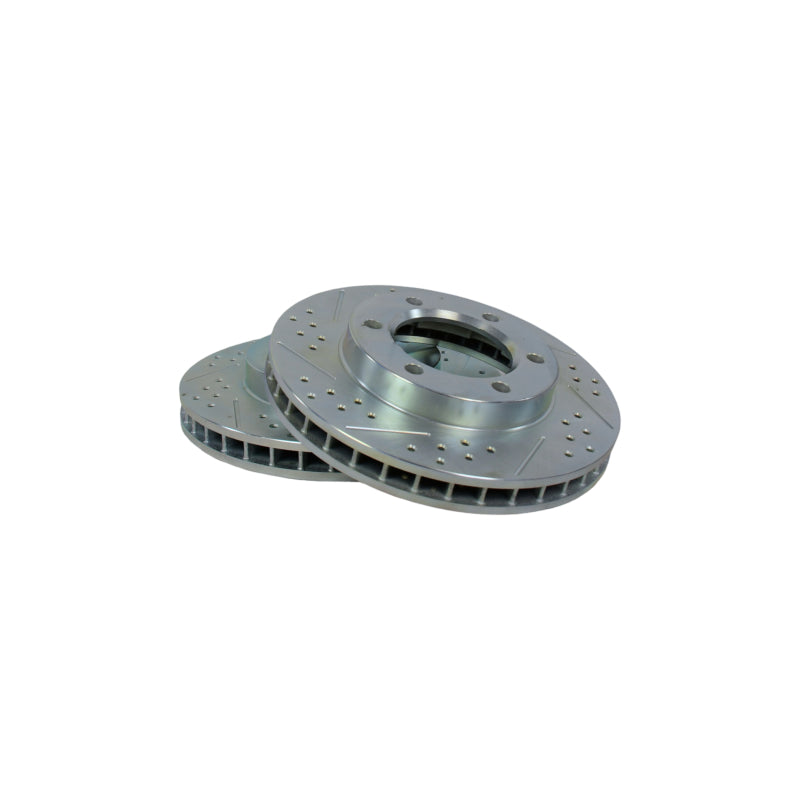

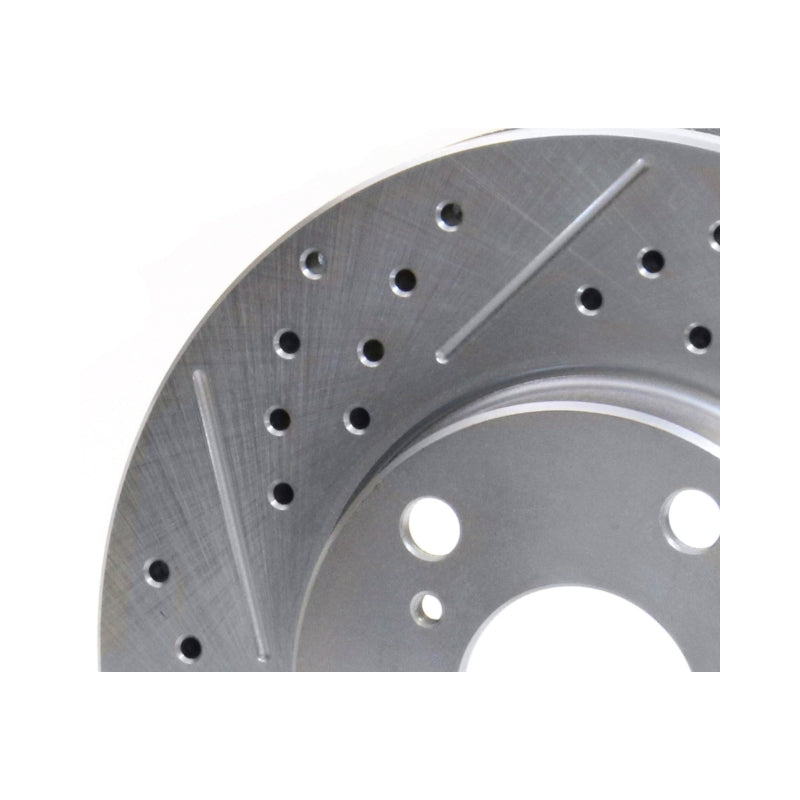

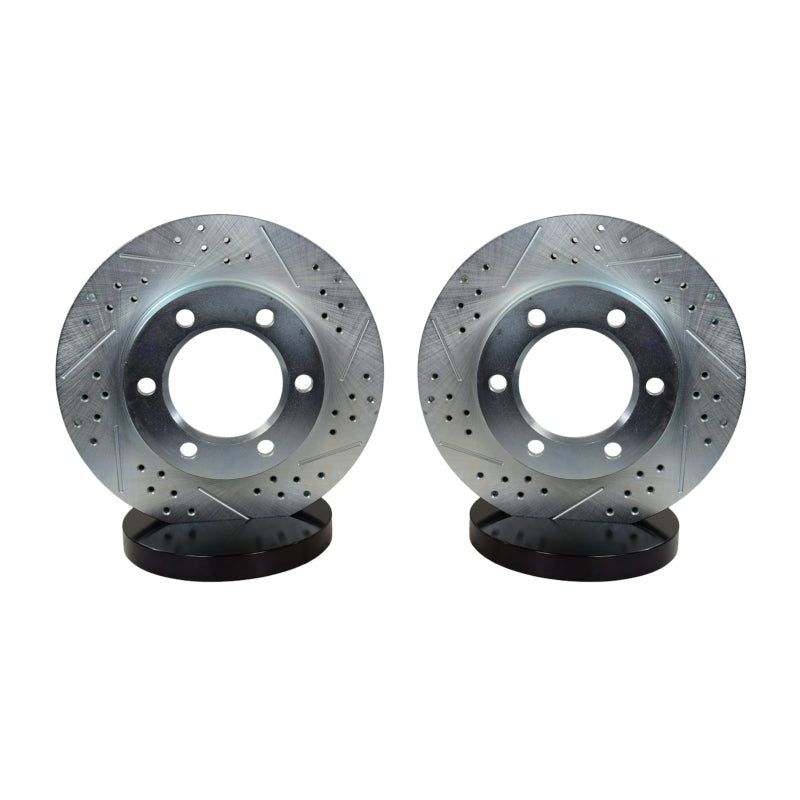

Baer Claw performance rotors are a great way to improve your vehicles braking performance and overall appearance. The kit includes a pair of direct replacement rotors with a cross-drilled and slotted friction surface that allows an escape route for the gasses and dust that form between the pad and rotor during braking providing a more consistent pedal feel and reduced brake fade.

Each pair of rotors are zinc-plated providing a brilliant finish behind open center wheels.

Features and Benefits:

• Slot and Drilled Friction Surface Allows Gasses and Dust to Escape from Between the Pad and Rotor for Improved Braking Performance and a More Consistent Pedal
• Enhanced Vane Structure and Premium Materials for Superior Cooling and Durability
• Premium, Mill Balanced, Direct Replacement Rotor
• Chamfered Cross Drilled Holes to Minimize Stress Cracking
• Zinc-Plated Finish Delivers Brilliant Finish and Appearance in Open Center Wheels

• 1977-1980 Jeep CJ5 (Front)
• 1977-1980 Jeep CJ7 (Front)
• 1974-1983 Jeep Cherokee (Front)
• 1984-1991 Jeep Grand Wagoneer (Front) (Qualifier: Full Size)
• 1974-1988 Jeep J10 (Front)
• 1974-1990 Jeep Wagoneer (Front)
• 1971-1974 Chevrolet K10 Pickup (Front) (Qualifier: 5200 (lb) to 5600 (lb) Gvw, 5800 (lb) to 6400 (lb) Gvw)
• 1971-1991 Chevrolet Blazer (Front) (Drive: 4WD)
• 1975-1986 Chevrolet K5 Blazer (Front) (Drive: 4WD)
• 1975-1986 Chevrolet K10 (Front) (Qualifier: 5200 (lb) to 5600 (lb) Gvw, 5800 (lb) to 6400 (lb) Gvw)
• 1971-1986 Chevrolet K10 Suburban (Front)
• 1987 Chevrolet V10 (Front)
• 1987-1988 Chevrolet V10 Suburban (Front)
• 1989-1991 Chevrolet V1500 Suburban (Front)
• 1971-1974 GMC K15/K1500 Pickup (Front)
• 1971-1974 GMC K15/K1500 Suburban (Front)
• 1979-1986 GMC K1500 (Front)
• 1979-1986 GMC K1500 Suburban (Front)
• 1987-1991 GMC V1500 Suburban (Front)
• 1971-1991 GMC Jimmy (Front) (Drive: 4WD)
• 1975-1978 GMC K15 (Front)
• 1975-1978 GMC K15 Suburban (Front)
• 1987 GMC V1500 (Front)

Details:

• ABS Tone Ring Included: No
• Axle: Front
• Center Hole Diameter: 4.0, 101.7
• Construction: One Piece, Full Cast
• Conventional Or Drum-In-Hat Type Rotor: Conventional

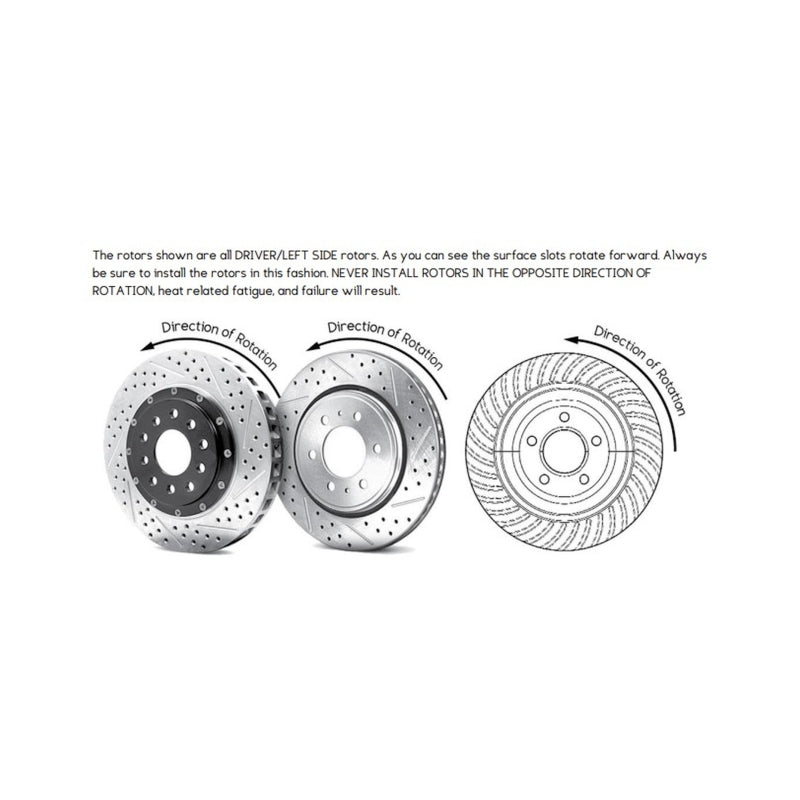

• Directional or Non-Directional Brake Surface: Directional
• Disc Finish: Zinc Plated
• Discard Thickness: 30.86, 1.21
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Premium
• Material: Cast Iron
• Nominal Thickness: 1.29, 32.7
• Outside Diameter: 11.87, 301.4
• Overall Height: 2.31, 58.6
• Rust Resistant Coating: Yes

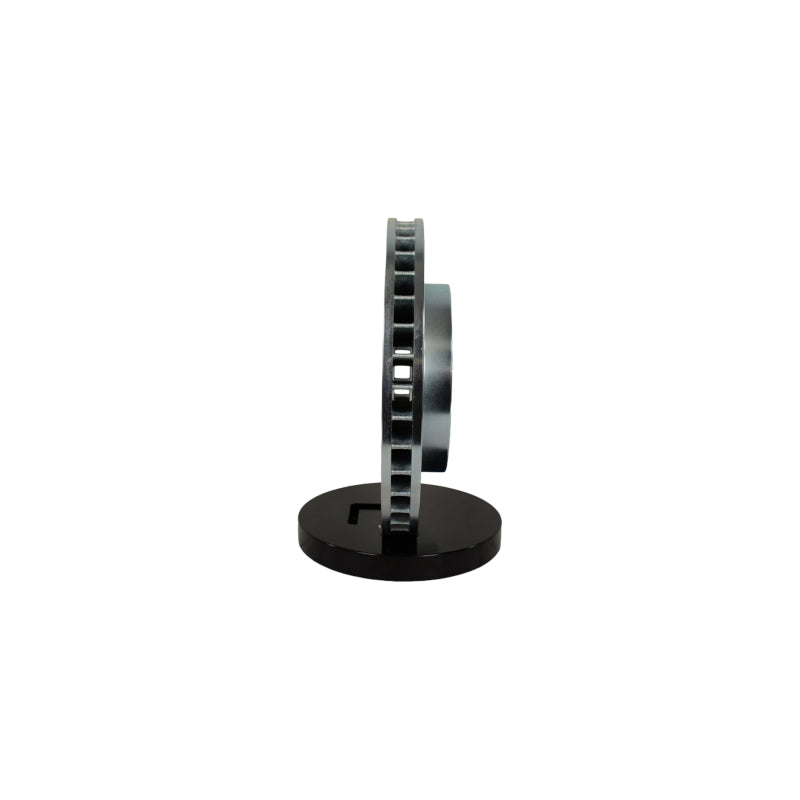

• Solid Or Vented Type Rotor: Vented

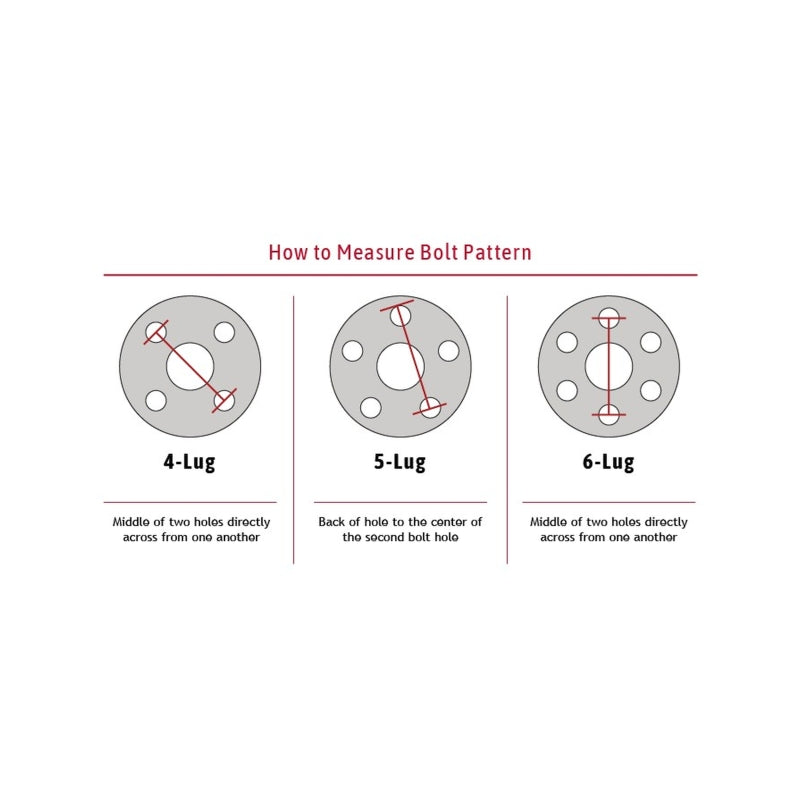

• Stud/Lug Hole Circle Diameter: 139.7, 5.5
• Stud/Lug Hole Quantity: 6
• Surface Type: Slotted X Drilled
