Baer Brakes 70-72 Dodge Challenger STD Studs 13in Track4 Front SDZ Brake Kit - Red - 4141048R

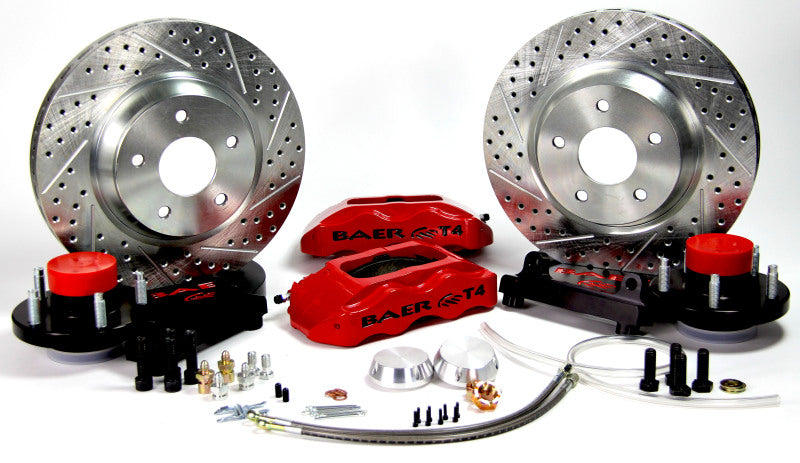

This system features the 4-piston, T4 caliper mounted to a 13 inch, 1 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular D0749 pad type.

Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included.

The 13 inch Track4 is designed to fit most 17 inch or larger wheels.

Features and Benefits:

• 2-Piece, 4-Piston, T4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather & Pressure

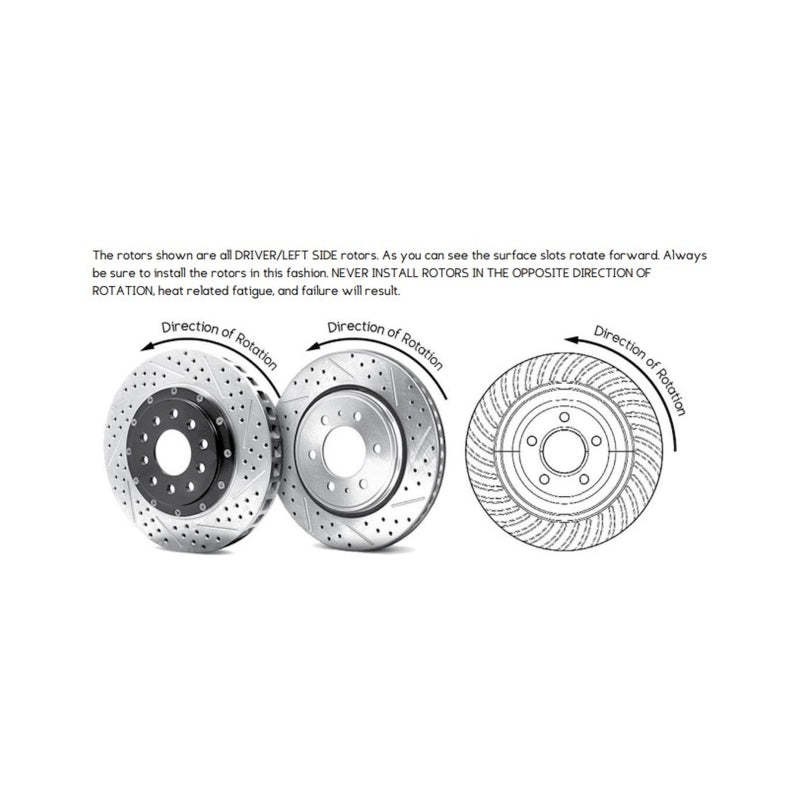

• 1-Piece Slot, Drilled, Zinc-Plate Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: w/OE 2-Piston Disc Brake Spindle
• Caliper: T4

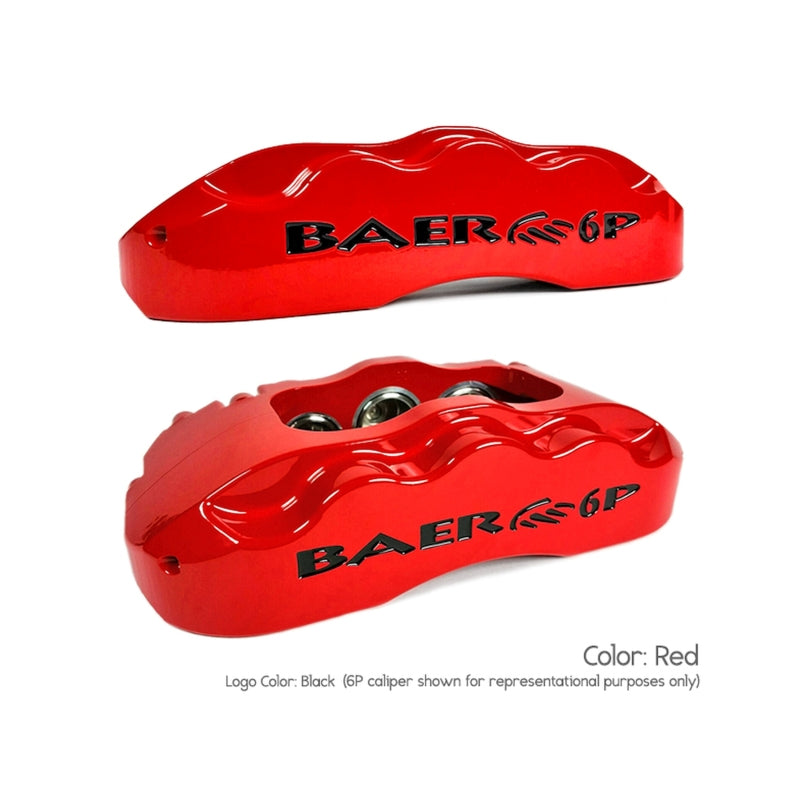

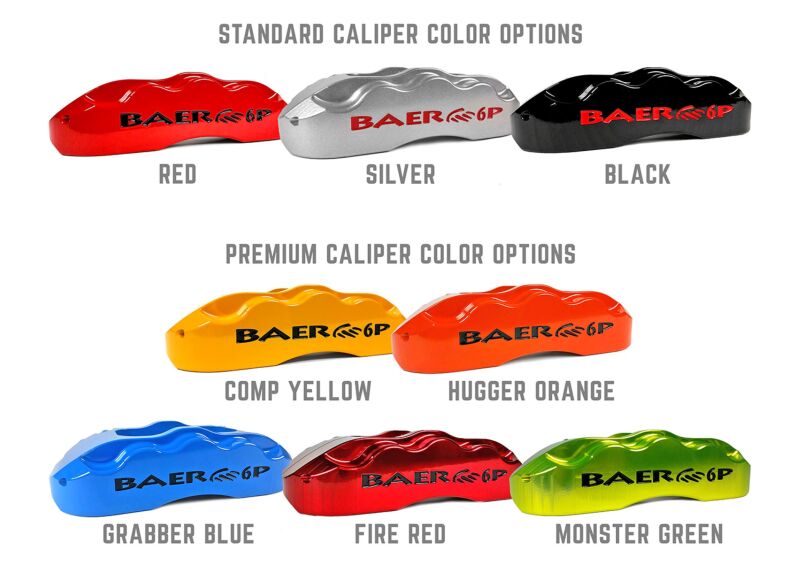

• Caliper Color: Red
• Disc Brake Rotor (Front) Outside Diameter: 13.0 Inch
• Applications: Mopar E-Body 70-72
• Axle: Front
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Front) Piston Quantity: 4
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: D0749
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Lug Count: 5 Lug
• Min Wheel Diameter: 17.0 Inch
• Rotor Thickness: 1.1
• Rotor Type: 1-Piece
• Spindle Type: Mopar E-Body 2-Piston Disc (1970-72)
• Spindles Included: No
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: Q082H

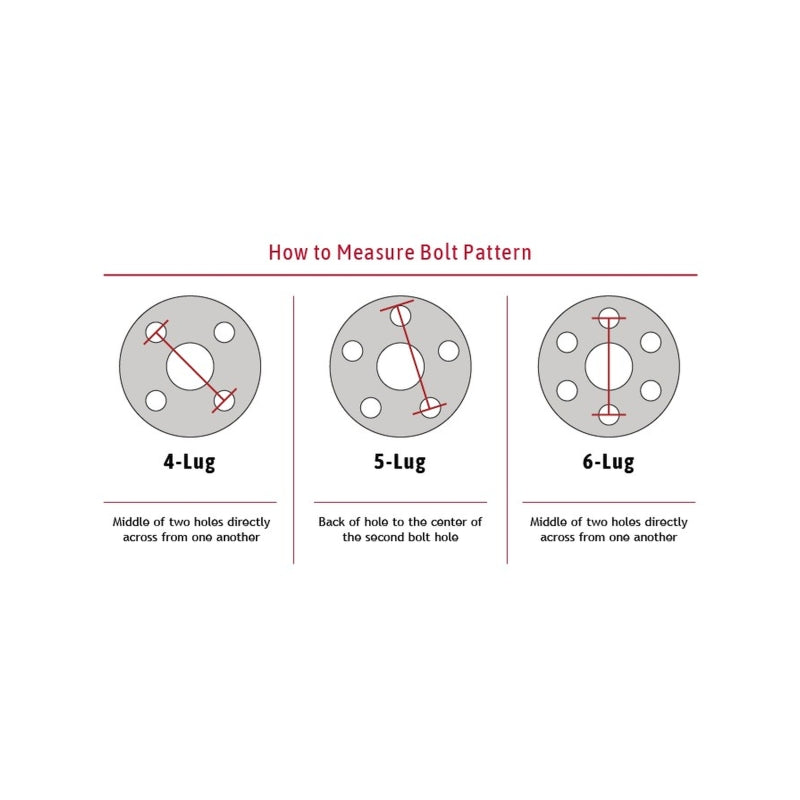

• Wheel Lug/Bolt Pattern: 5x4.50
• Wheel Stud Size: 1/2-20 x 2.25 Inch
