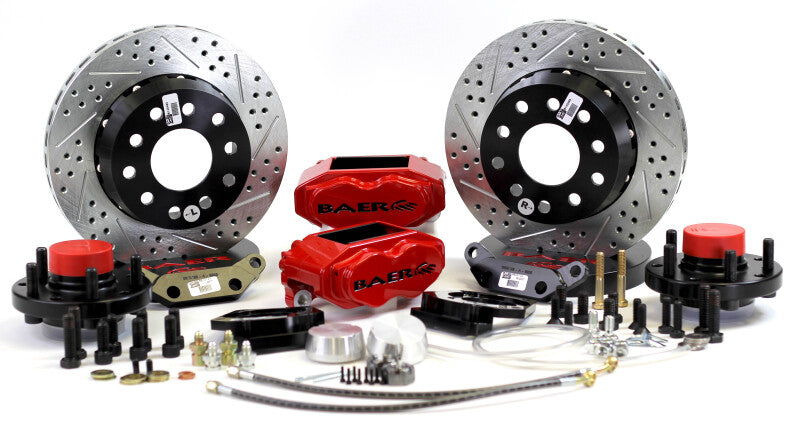

Baer Brakes 68-69 Ford Fairlane STD Studs 11in SS4+ Front SDZ Brake Kit - Black - 4261378B

This system features the 4-piston, S4 caliper mounted to a 11 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular DR1 or HB100 pad type.

Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. Rotors are pre-assembled with NAS high grade stainless hardware.

All mounting brackets, stainless braided hoses and hardware are also included. The 11 inch SS4 Plus is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: w/OE Disc Brake Spindles
• Caliper: S4

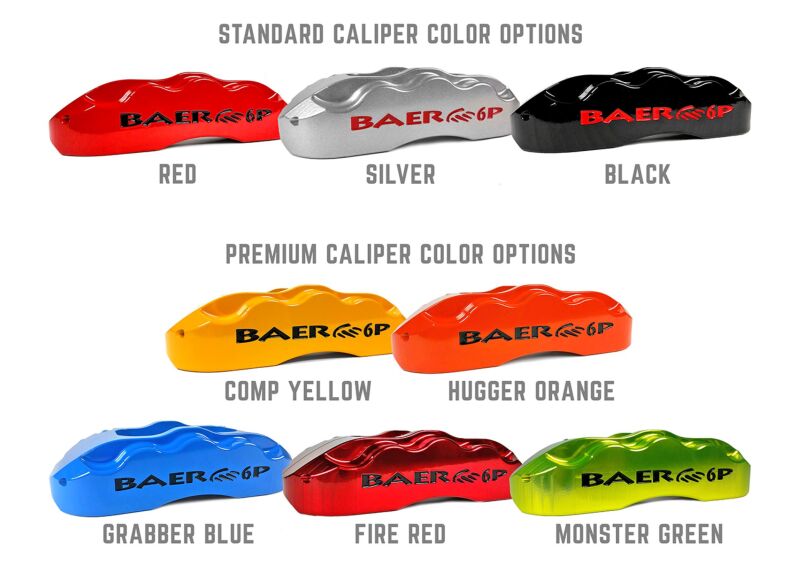

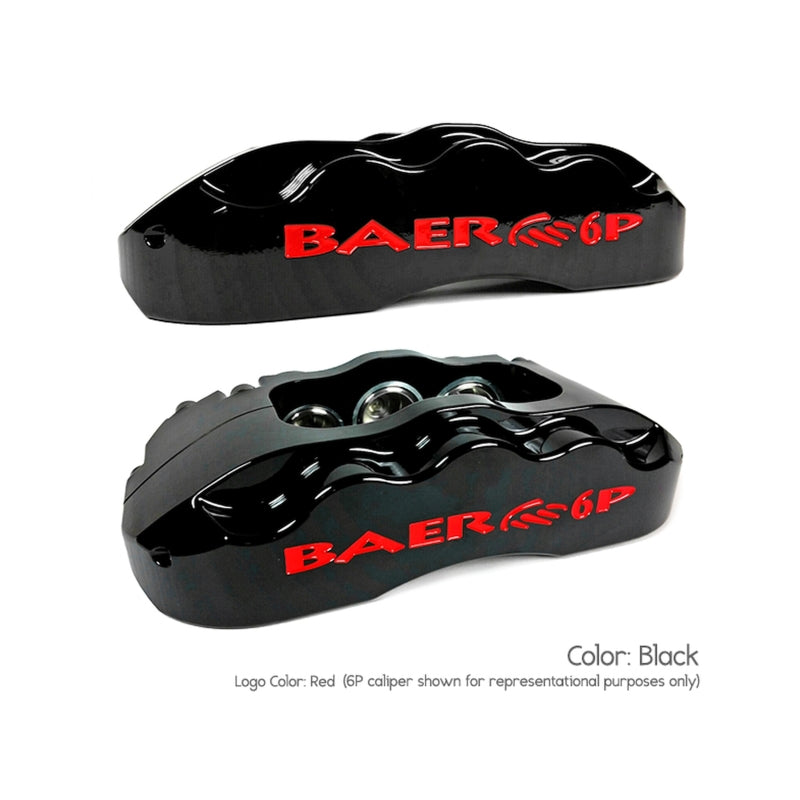

• Caliper Color: Black
• Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch
• Applications: Ford Fairlane 68-69 (w/Disc), Ford Mustang 68-69 (w/Disc), Ford Torino 68-69 (w/Disc), Mercury Comet 68-69 (w/Disc), Ford Falcon 68-69 (w/Disc), Mercury Cougar 68-69 (w/Disc), Mercury Cyclone 68-69 (w/Disc)
• Axle: Front
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Front) Piston Quantity: 4
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: DR1
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Lug Count: 5 Lug
• Min Wheel Diameter: 15.0 Inch
• Rotor Thickness: 1.02
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: S162A

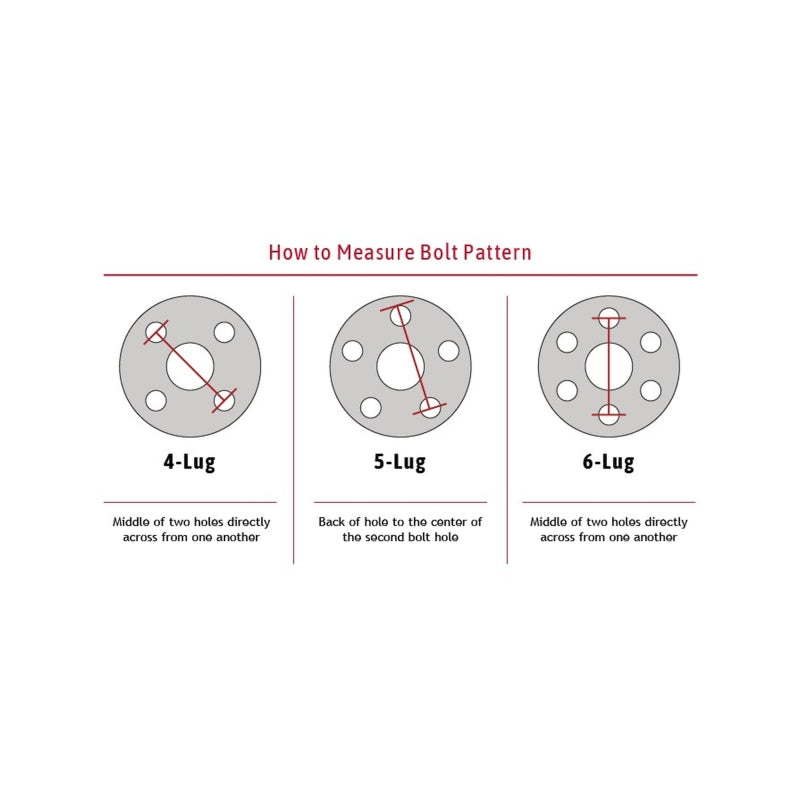

• Wheel Lug/Bolt Pattern: 5x4.50
• Wheel Stud Size: 1/2-20 x 2.25 Inch
