Baer Brakes 68-69 Ford Fairlane 11in SS4 Alum Hub Front SDZ Brake Kit - Red - 4261653R

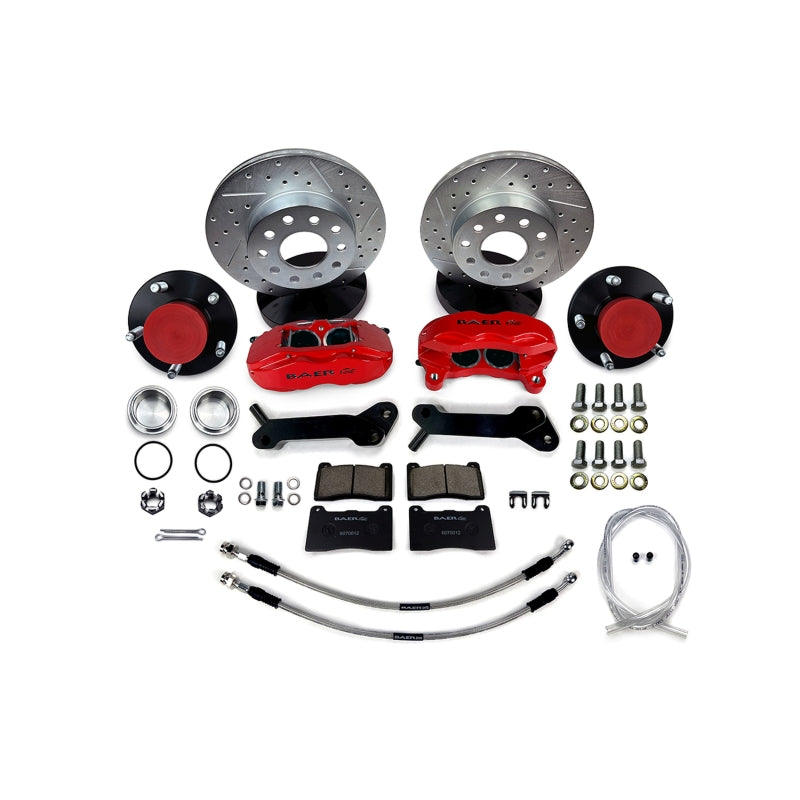

This system features the 4-piston, S4TL caliper mounted to a 11 inch, 1-Piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals with a top load design for quick and simple pad changes.

Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet aluminum dust caps. All mounting brackets, stainless braided hoses and hardware are also included.

The 11 inch SS4 is designed just like Baer's larger systems, but in a smaller package for 15 inch wheels.

Features and Benefits:

• 2-Piece, 4-Piston, S4TL, Top Loaded Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
• Dual Seals, Dust/Weather & Pressure

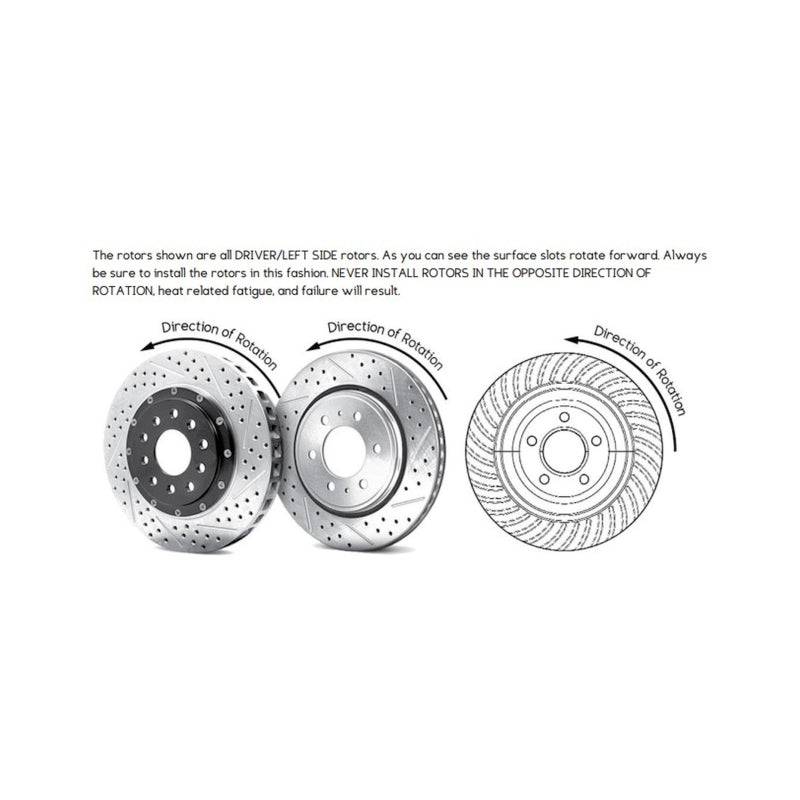

• 1-Piece Slot, Drilled, Zinc-Plated Rotor

Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

• Fitment Notes: w/OE Disc Brake Spindles
• Caliper: S4TL

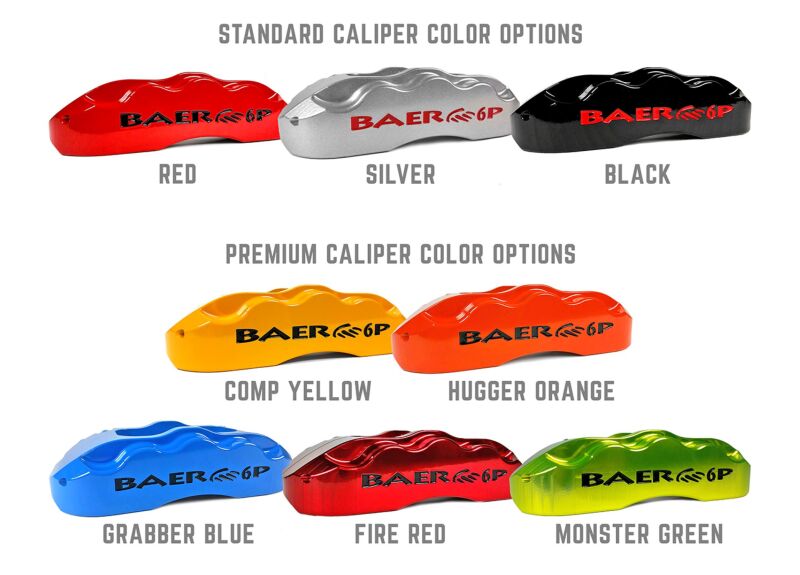

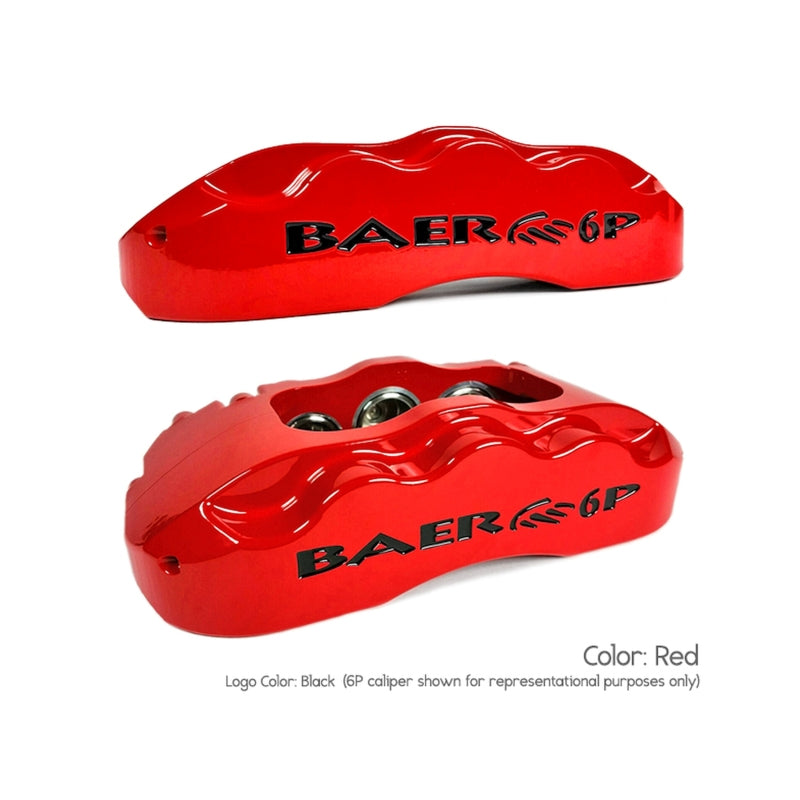

• Caliper Color: Red
• Disc Brake Rotor (Front) Outside Diameter: 11.0 Inch
• Applications: Mercury Comet 68-69 (w/Disc), Ford Fairlane 68-69 (w/Disc), Ford Torino 68-69 (w/Disc), Ford Falcon 68-69 (w/Disc), Mercury Cougar 68-69 (w/Disc), Mercury Cyclone 68-69 (w/Disc), Ford Mustang 68-69 (w/Disc)
• Axle: Front
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Front) Piston Quantity: 4
• Disc Brake Caliper (Front) Type: Fixed
• Disc Brake Pad FMSI Number: 6070012
• Disc Brake Rotor (Front) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Lug Count: 5 Lug
• Min Wheel Diameter: 15.0 Inch
• Rotor Thickness: 1.02
• Rotor Type: 1-Piece
• Solid Or Vented Type Rotor: Vented
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: ST125A

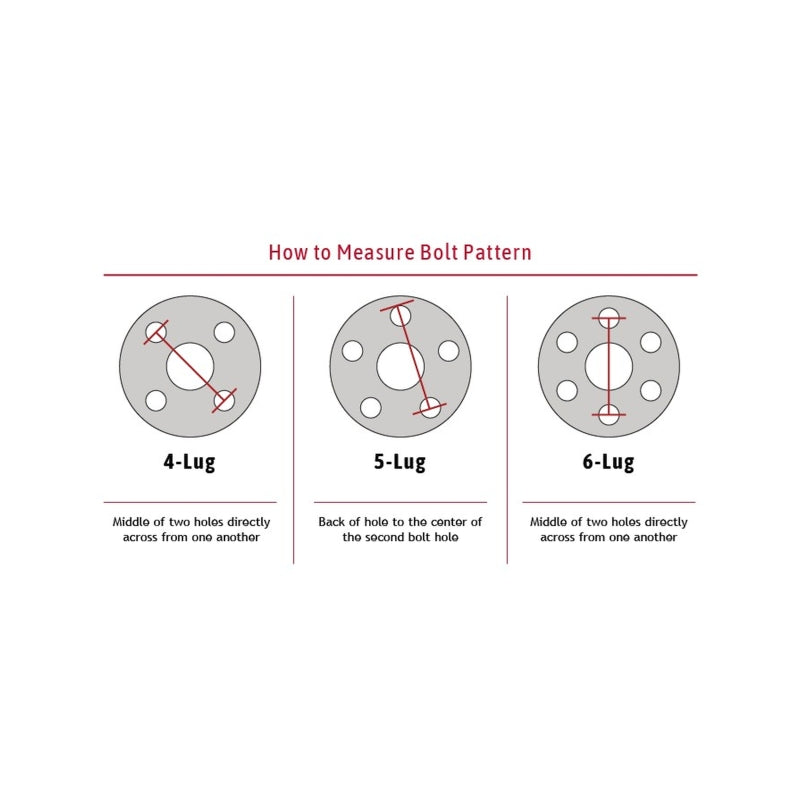

• Wheel Lug/Bolt Pattern: 5x4.50
• Wheel Stud Size: 1/2-20 x 2.25 Inch
