Baer Brakes 1993 Ford Mustang 13in Pro+ Rear SDZ Brake Kit - Grabber Blue - 4262296GB

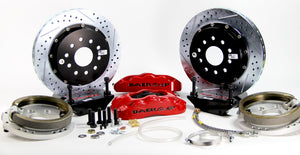

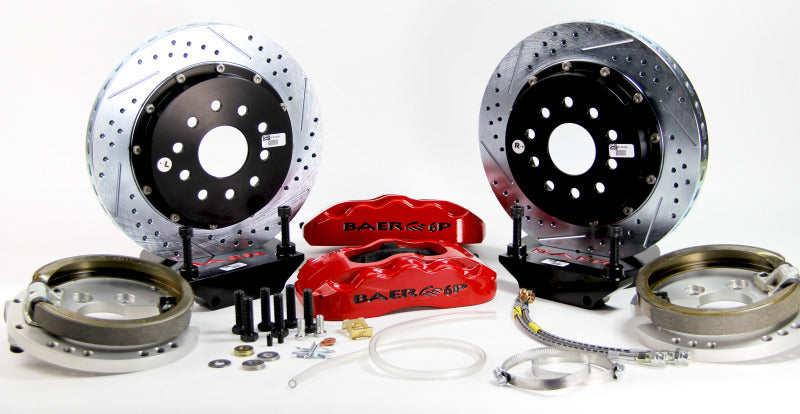

This system features the 6-piston, 6P caliper mounted to a 13 inch, 2 piece slot, drill, zinc plated rotor. The caliper has D.O.T. compliant dust and weather seals and uses the popular D0731 pad type.

Rotors are pre-assembled with NAS high grade stainless hardware. Baer's unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly.

Stainless braided hoses and hardware are also included. The 13 inch Pro Plus fits most 17 inch or larger wheels.

Features and Benefits:

• 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, Az
• CNC Machined from Us Sourced Forged or Billet Aluminum
• Powder Coated Finish
• Stainless Steel Pistons, Abutments and Noise Suppression Clips
• Staggered Pistons to Minimize Uneven Pad Wear
• Dual Seals, Dust/Weather and Pressure
• 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Note: Master cylinder upgrade is recommended 79-86 Cars - Use p/n 6800092 which includes a 15/16 inch bore master cylinder, 2 hard lines and fittings. This kit is a direct bolt on. 87-93 Cars - Use p/n 6800096 which includes a 15/16 inch bore master cylinder, 3 hard lines and fittings.

This kit is a direct bolt on designed to convert cars with a factory 3-port master cylinder, to a 2-port. Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer.

To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.

Details:

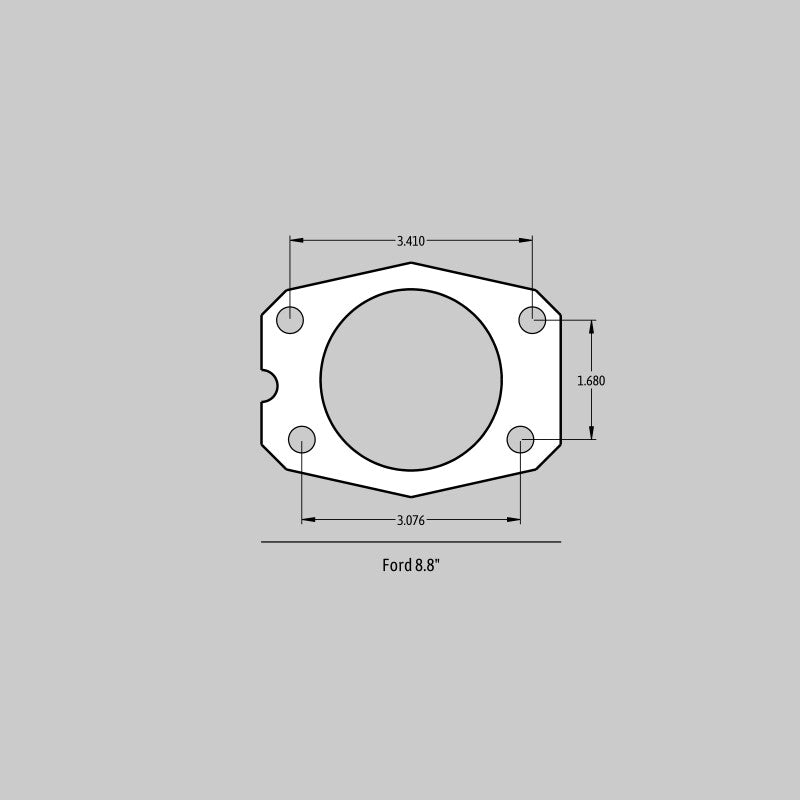

• Fitment Notes: w/OE Ford 8.8 Inch C-clip Rear End (5 Lug)
• Caliper: 6P

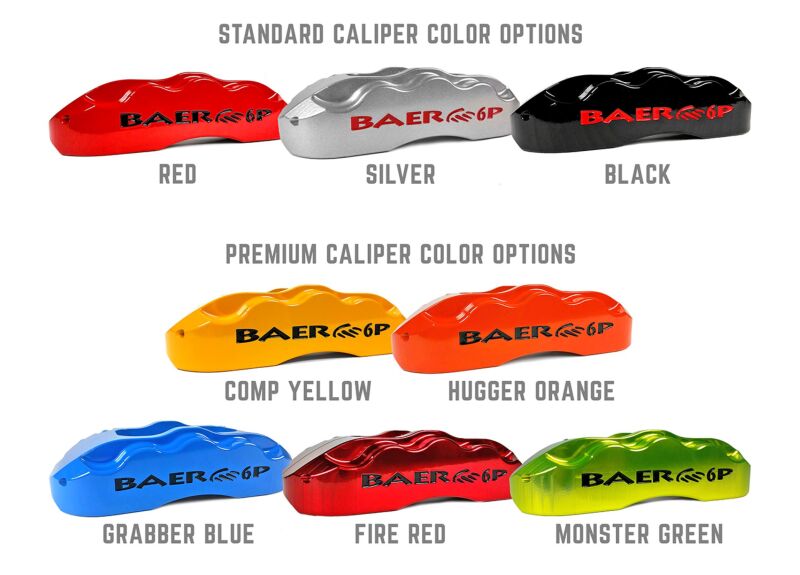

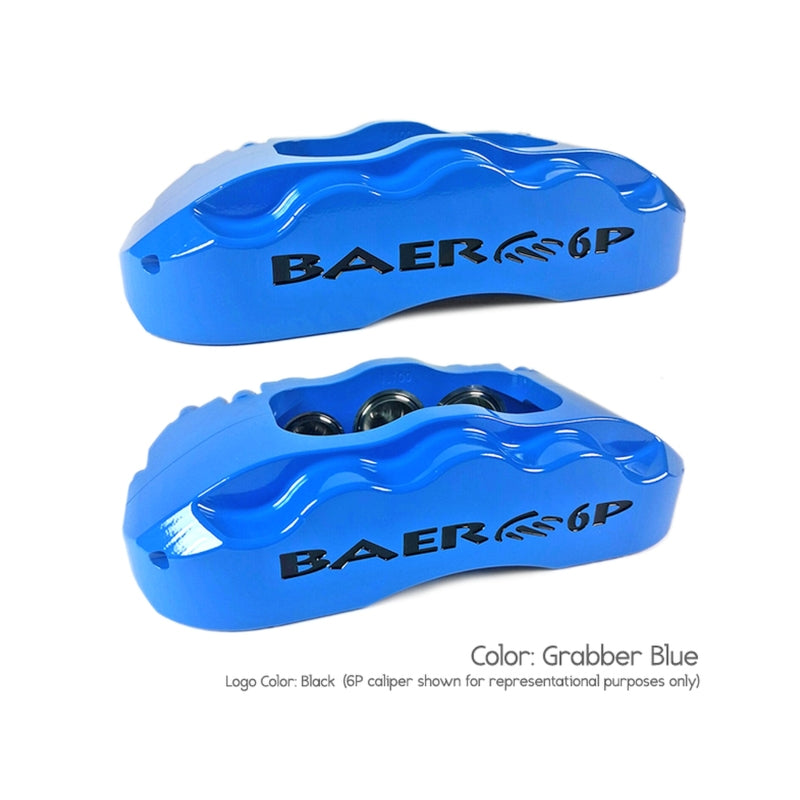

• Caliper Color: Grabber Blue
• Disc Brake Rotor (Rear) Outside Diameter: 13.0 Inch
• Applications: Ford Mustang 93
• Axle: Rear
• Axle Standoff: 2.5
• Brake Hose DOT Approved: Yes
• Disc Brake Caliper (Rear) Piston Quantity: 6
• Disc Brake Caliper (Rear) Type: Floating
• Disc Brake Pad FMSI Number: D0731
• Disc Brake Rotor (Rear) Construction: Vented
• Emission Code: 6
• Export Description: Brake Components
• Grade Type: Performance
• Hose Material: Steel Braided
• Includes Park Brake: Yes
• Includes Park Brake Cables: Yes
• Lug Count: 5 Lug
• Min Wheel Diameter: 17.0 Inch
• Rotor Thickness: 1.1
• Rotor Type: 2-Piece
• Surface Type: Slotted, Drilled and Zinc Plated
• Template: Q085H

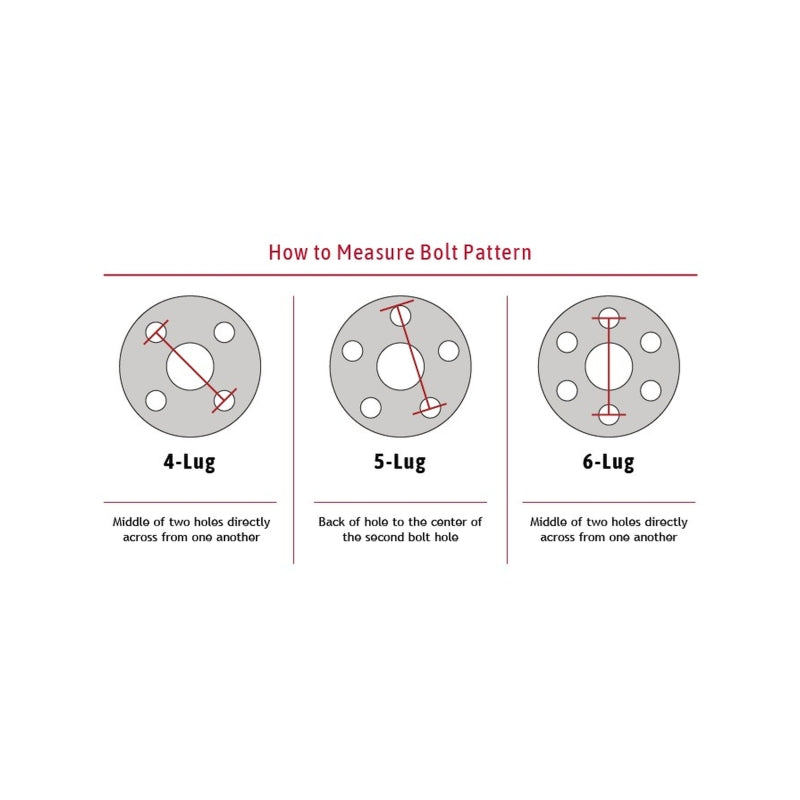

• Wheel Lug/Bolt Pattern: 5x4.50
