AWE Tuning BMW F3X 28i / 30i Touring Edition Axle-Back Exhaust Single Side - 80mm Silver Tips

SKU: SKU: AWE3010-22022

Earn Points on this purchase. Learn more

Power, precision, sophistication, and options. Presenting the AWE BMW F3X 328i/330i & 428i/430i Exhaust Suite:

  • A sophisticated Touring Edition Axle-back Exhaust.
  • Touring Edition Axle-back features AWE's proprietary drone-canceling solution, 180 Technology®

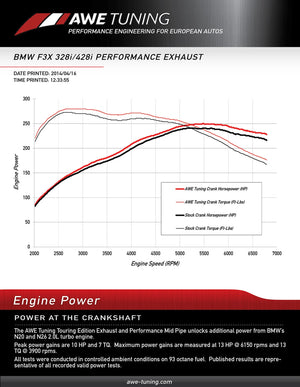

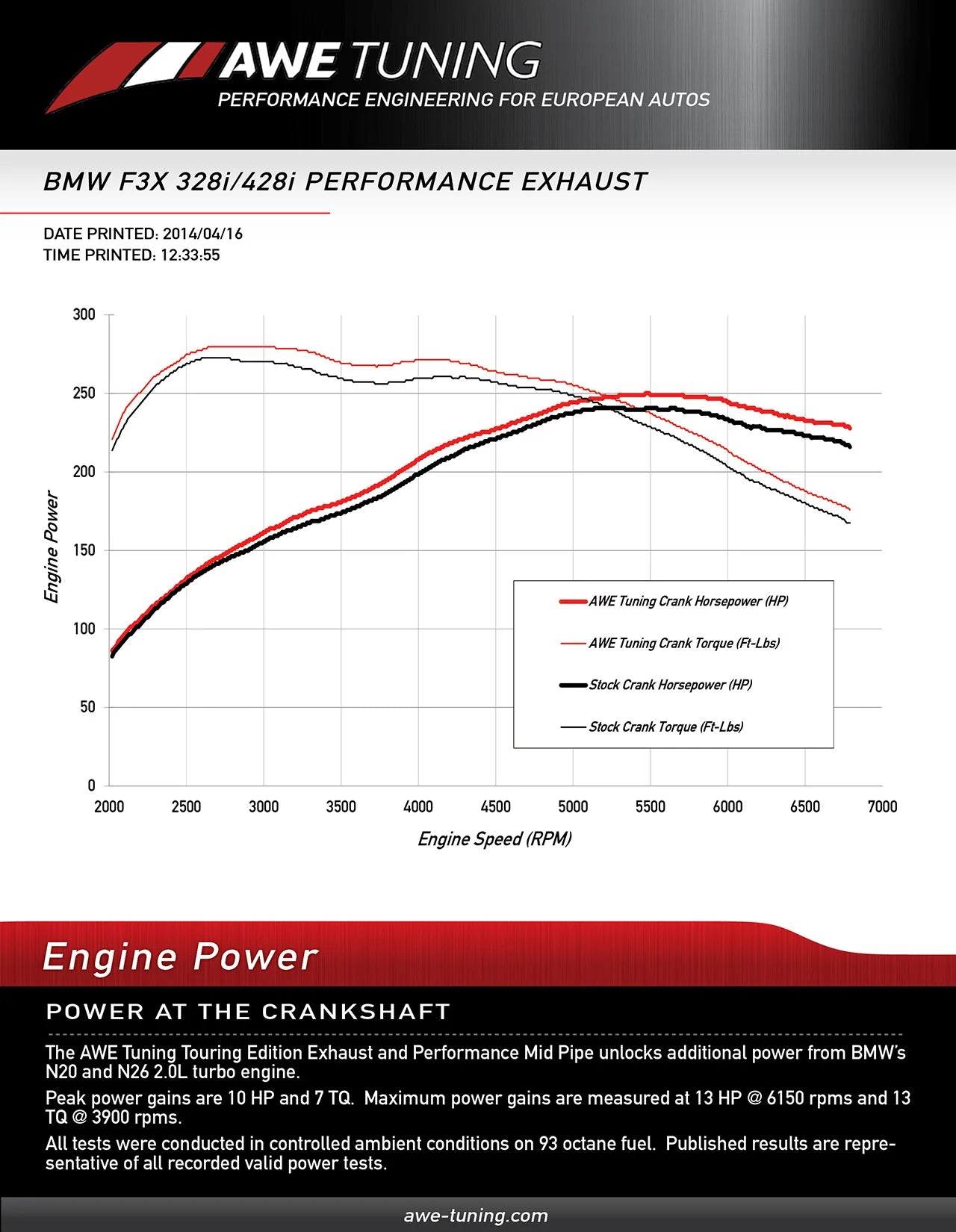

  • Max gains of 13 hp and 13 ft-lbs of torque at the crank (328i & 428i)
  • Fitments for B48 (330i & 430i), and N20 / N26 (328i & 428i)
  • Handcrafted from 3” U.S.-sourced CNC mandrel-bent T304 stainless steel
  • 80mm double-walled tips available in chrome silver or diamond black

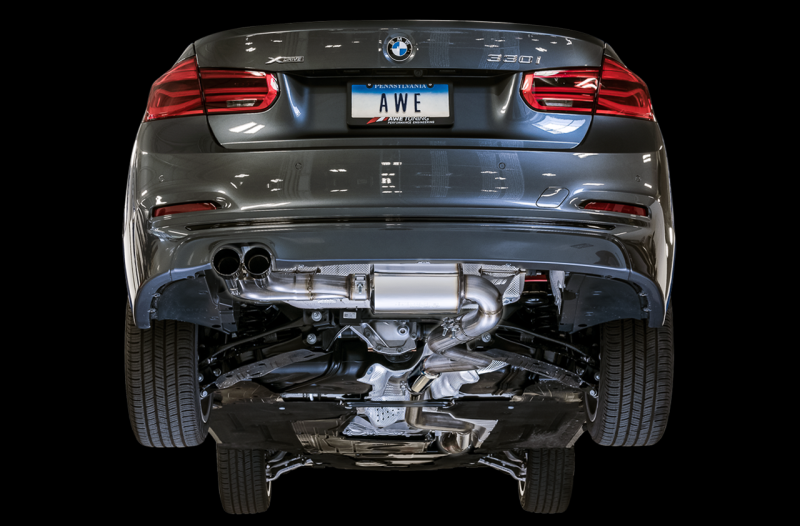

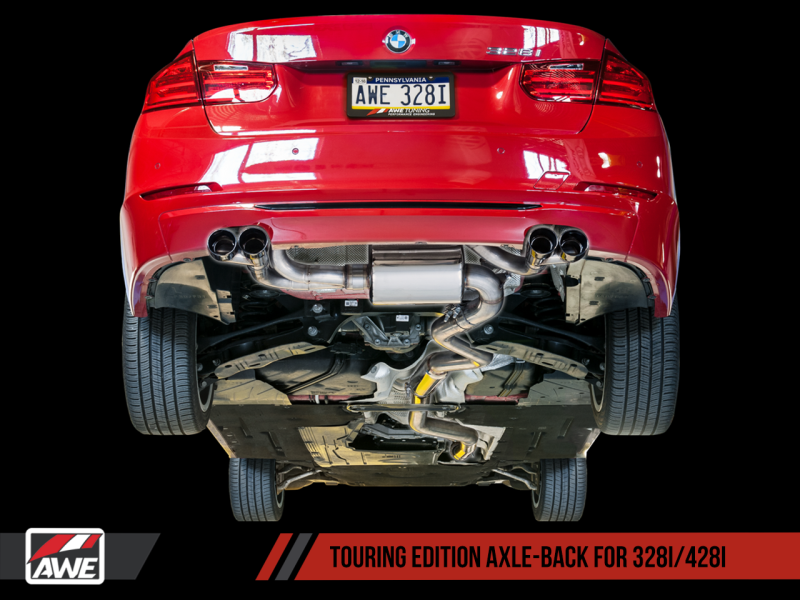

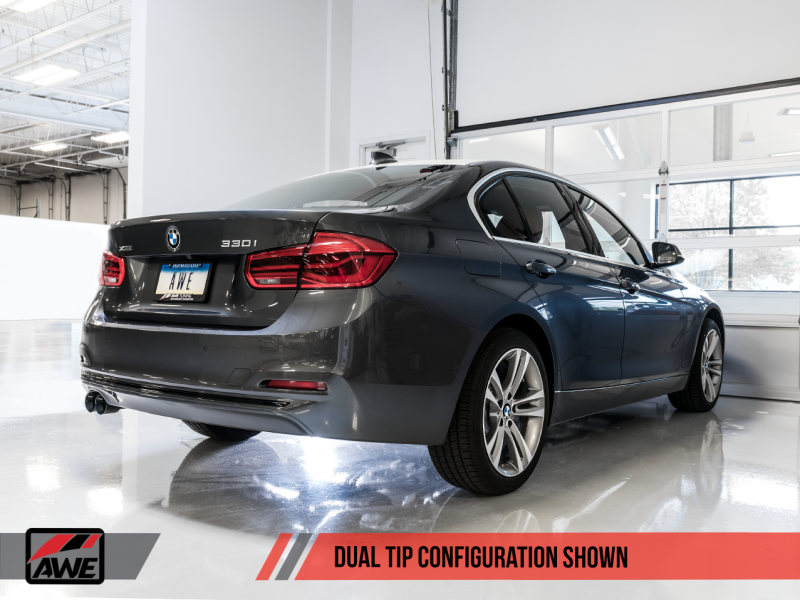

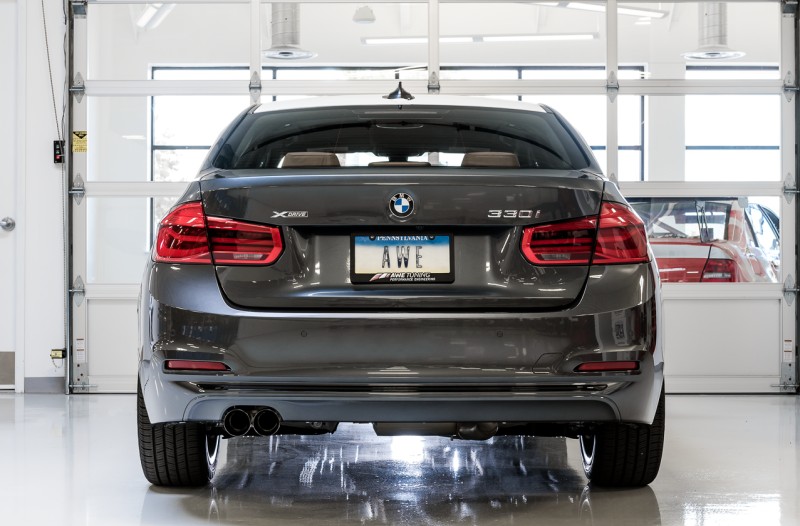

  • Available as dual tip (328i/330i & 428i/430i) or unique quad tip configuration (328i & 428i)
  • 3D-printed bolt on marking template allows for perfect “quad tip” bumper cut if desired (available for both Non-M Sport and M Sport 328i & 428i cars)
  • Direct bolt-on for factory-like simplicity
  • Engineered, designed and manufactured in-house at AWE
  • Perfect fitment - guaranteed
  • No Check Engine Light - guaranteed
  • Featuring the AWE Lifetime Exhaust Warranty

CHOOSE YOUR WEAPON:

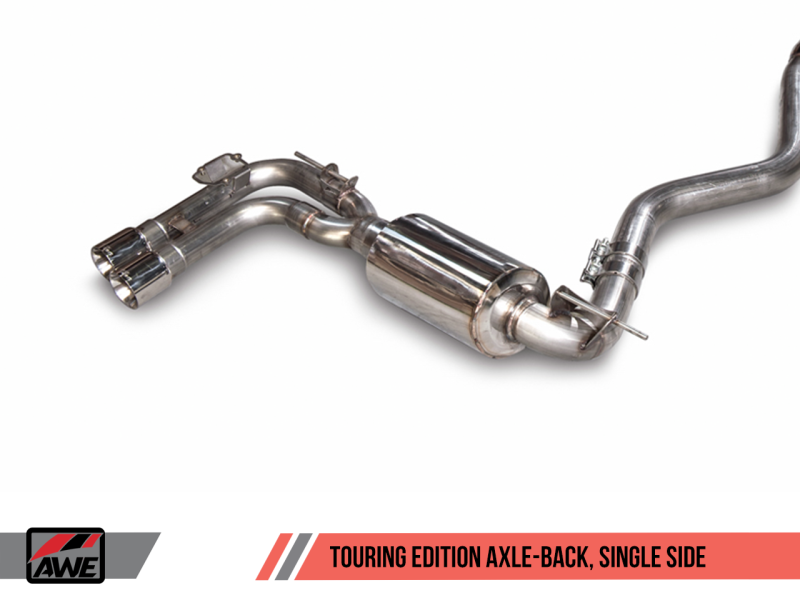

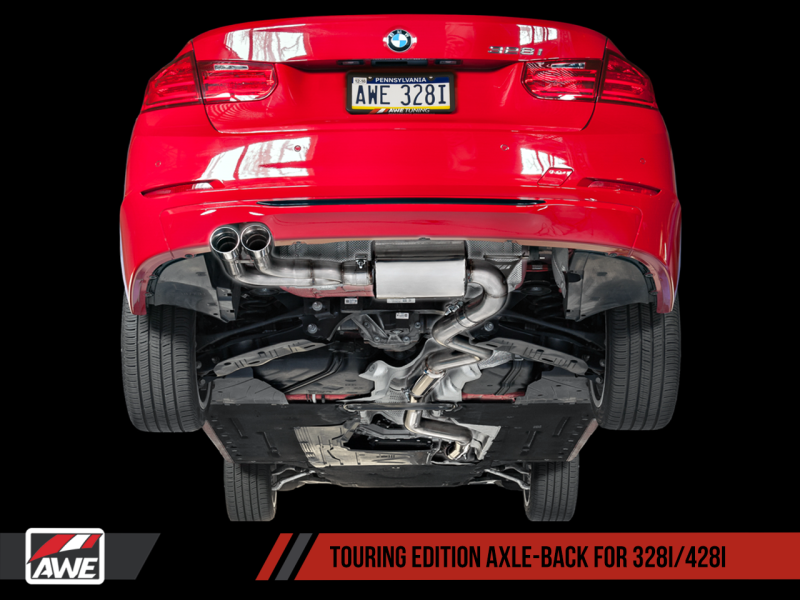

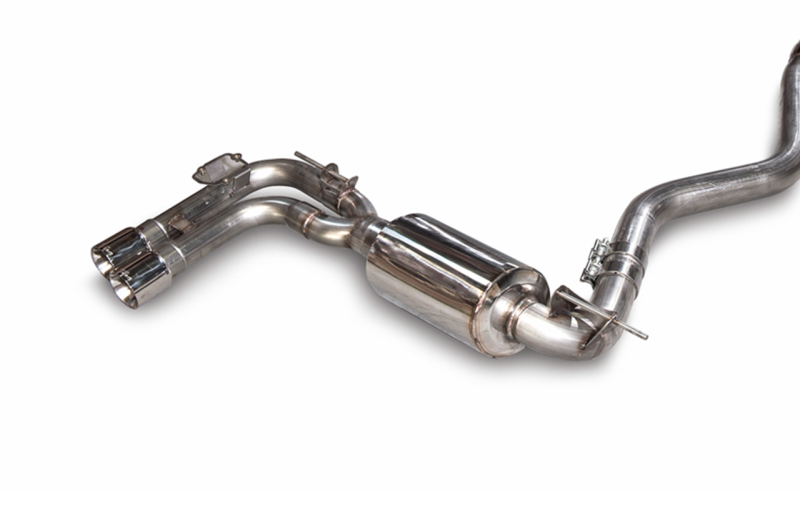

The AWE 328i/330i & 428i/430i Touring Edition Axle-back Exhaust:

The AWE Touring Edition Axle-back Exhaust is a straight-through axle-back system available as dual outlet (single side, two tips) for the 328i/330i & 428i/430i, or quad outlet (two tips on each side) for the 328i & 428i, and leverages AWE’s proprietary drone-canceling solution,180 Technology®, to produce the perfect, drone-free exhaust note.

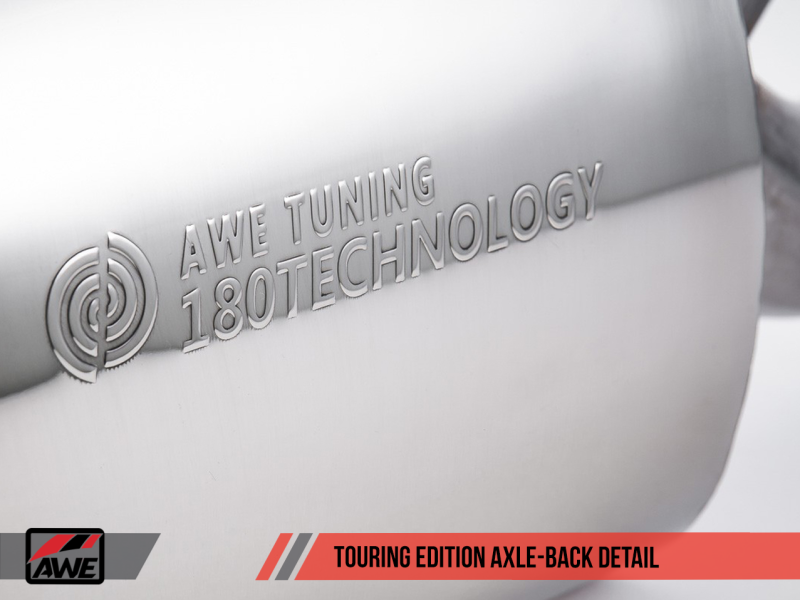

Perfect tone comes compliments of AWE 180 Technology®.

As exhaust gases exit the N20/26 and B48 engines and flow into an AWE 180 Technology®-equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. More on AWE 180 Technology® in the tab above.

Tip options:

All F3X 328i/330i & 428i/430i systems are 80mm and double-walled, available in either chrome silver or diamond black.

What’s in the box?

Complete Touring Edition Axle-back Exhaust, exhaust tips (two or four), and all clamps and hardware required for installation.

IMPORTANT NOTES ABOUT THESE PRODUCTS:

  • Quad tip configurations are only available for the 328i & 428i
  • If you are opting for the quad-tip option, be sure to also purchase the marking template.

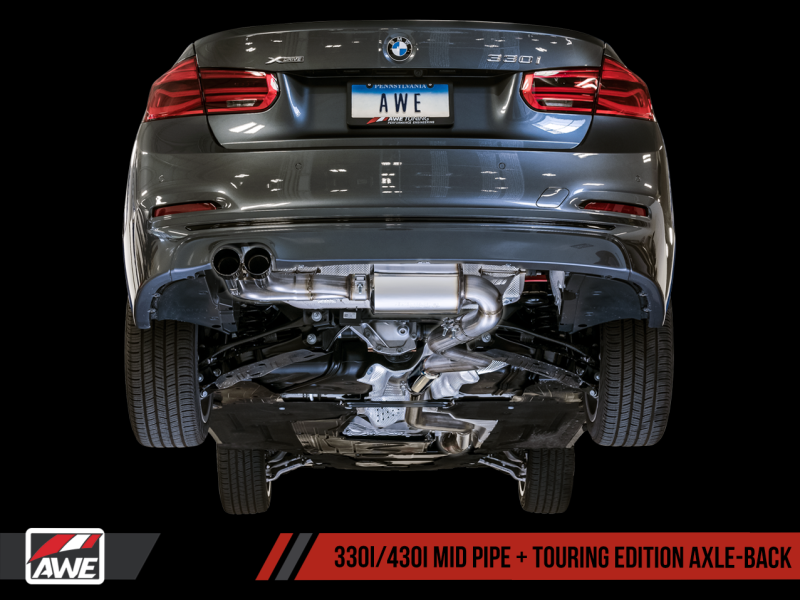

AWE Tuning BMW F3x 320i/328i/428i Touring Edition with Performance Mid Pipe

Installation Instructions for the AWE BMW F3X 430i Touring Edition Exhaust

N20 Installation Instructions for the AWE BMW F3X 328i/428i Performance Mid Pipe

N26 Installation Instructions for the AWE BMW F3X 328i/428i Touring Edition Exhaust

Installation Instructions for the AWE BMW F3X 328i/428i Quad Tip Marking Template
