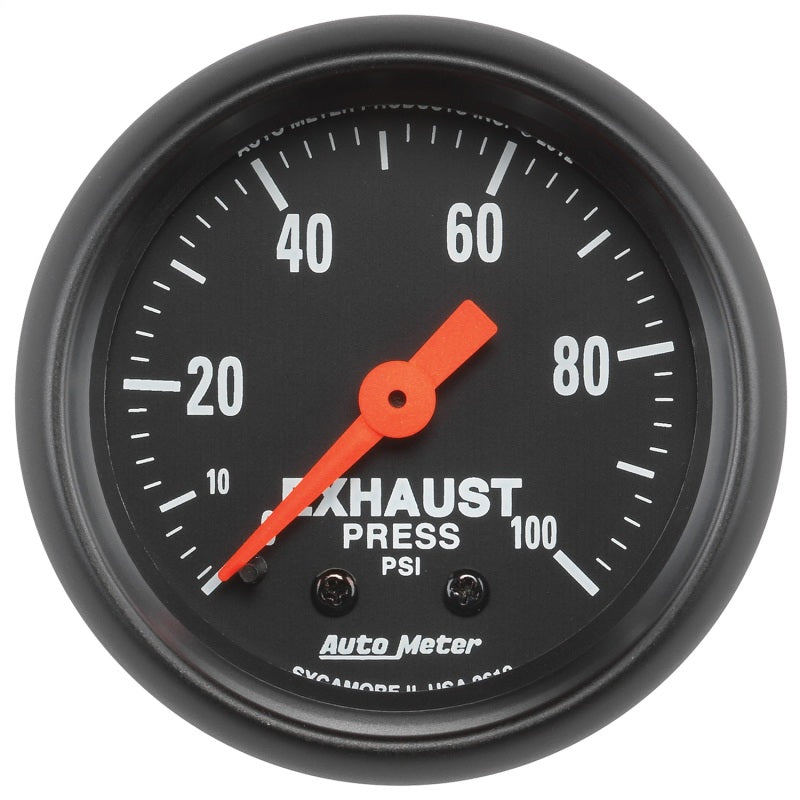

One of the most requested line additions in AutoMeter history, this Mechanical Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, a simple 1/8” NPT connection is all you need for installation. An install kit with 1/4” copper tubing is included and an optional particulate filter is also available for enhanced gauge lifespan. For operator safety, these gauges are not recommended for installation inside the cabin of a vehicle.
Specifications
-
Range: 0-100 PSI
-
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
-
Includes Tubing: 10 ft. nylon tubing - 6 ft. Copper Tube
-
Cup/Hole Size (in): 2-1/16"
-
Outer Bezel Diameter: 2-1/4"
-
Includes Mounting Hardware: Part # 2230
-
Includes Bulb & Socket: Part # 3220
-
Cup/Hole Size (mm): 52.4mm
-
Bezel Color: Black
-
Dial Color: Black
-
Lens Style: Flat, Clear
-
Pointer Color: Fluorescent Red
-
Lighting Type: Incandescent
-
Includes Light Covers: Red 3214 & Green 3215
-
Bezel Style: Super Bezel
-
Lighting Color: White Incandescent
-
Series: Z-SERIES
