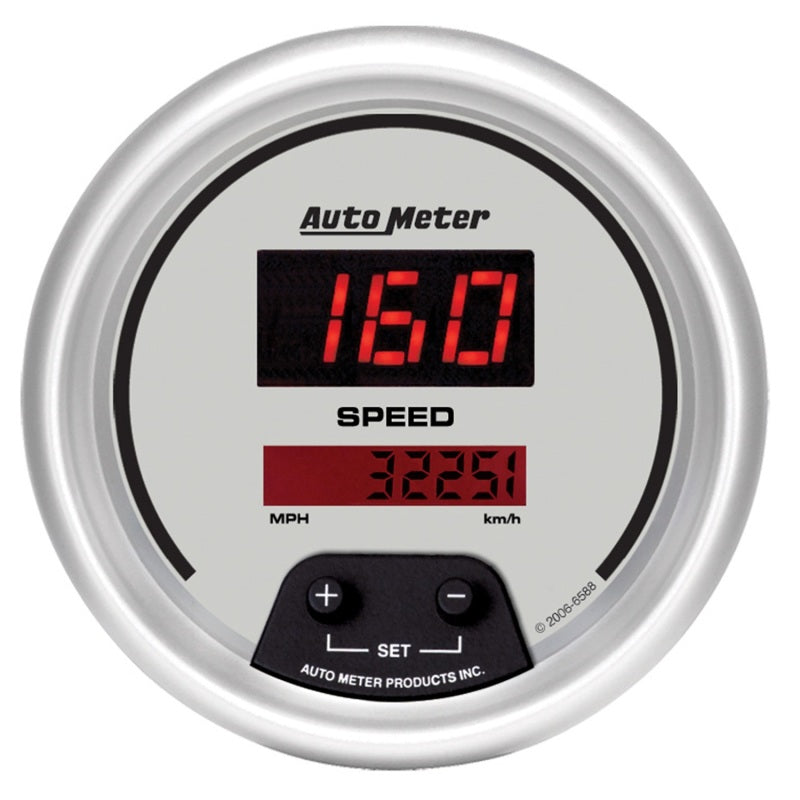

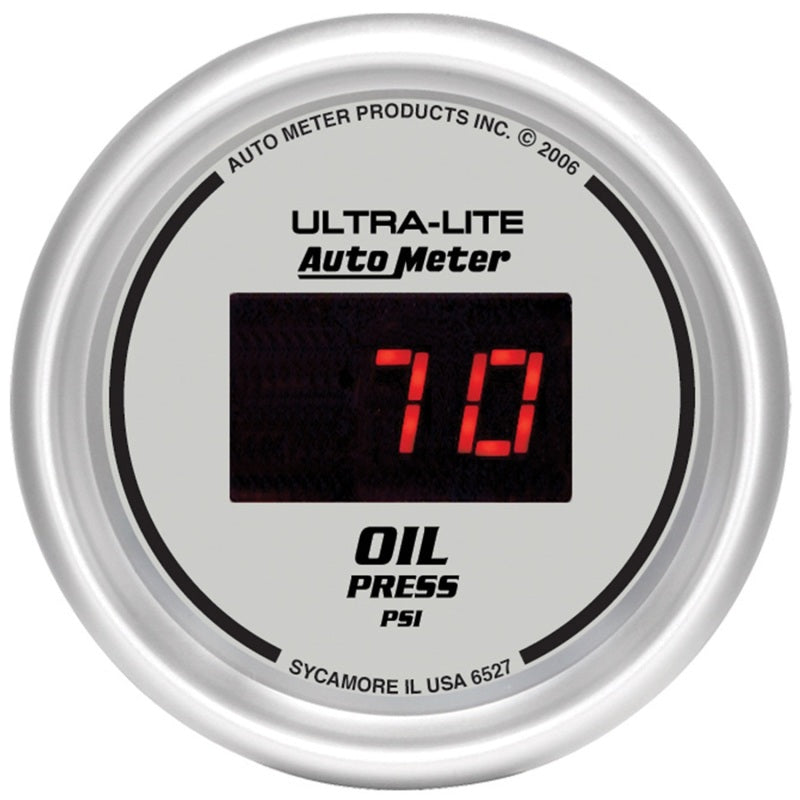

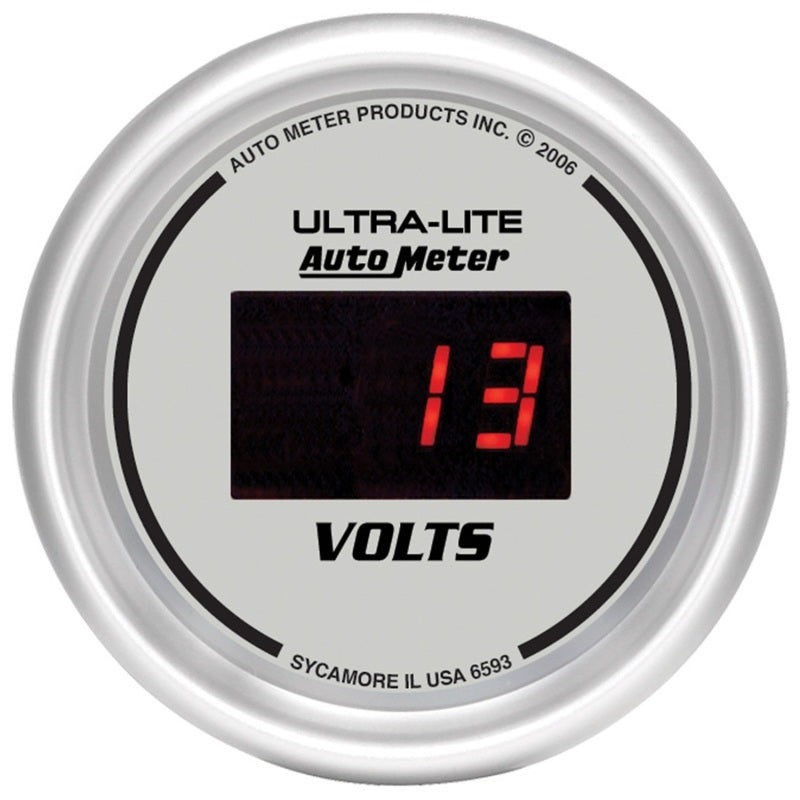

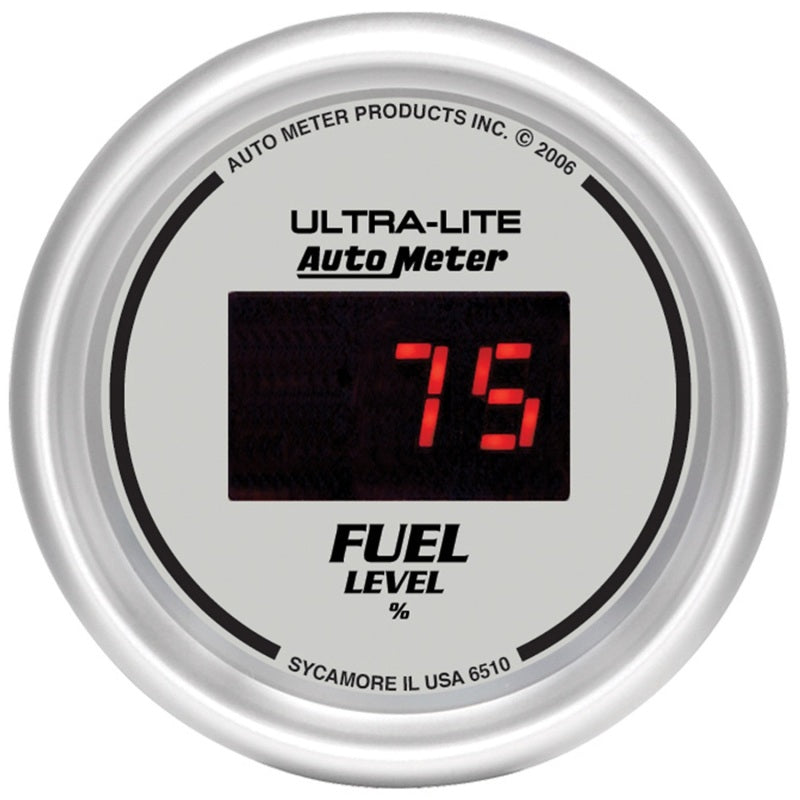

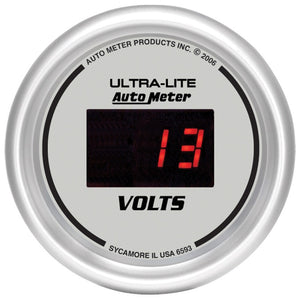

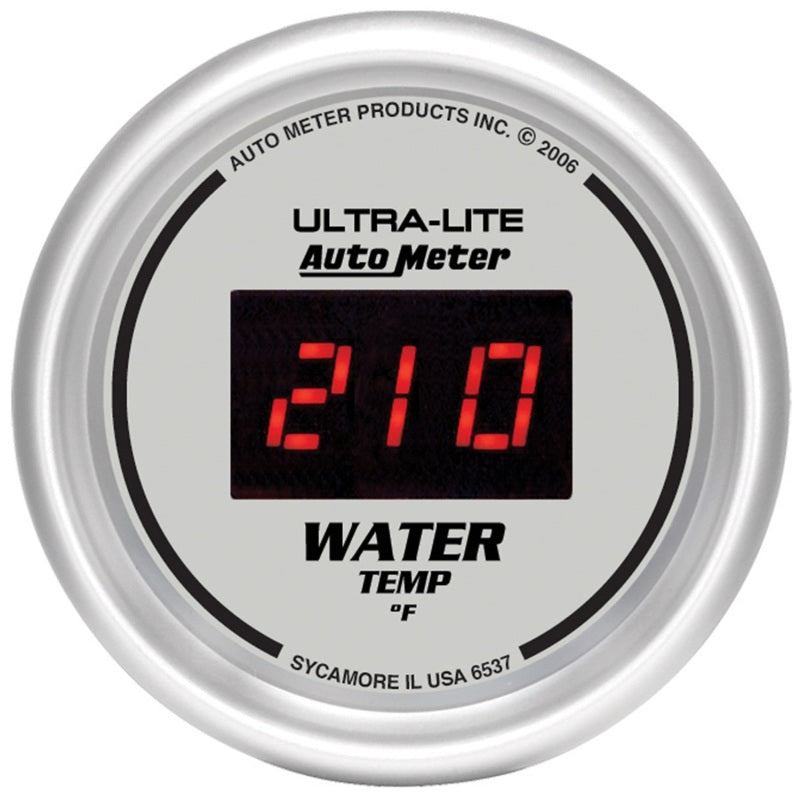

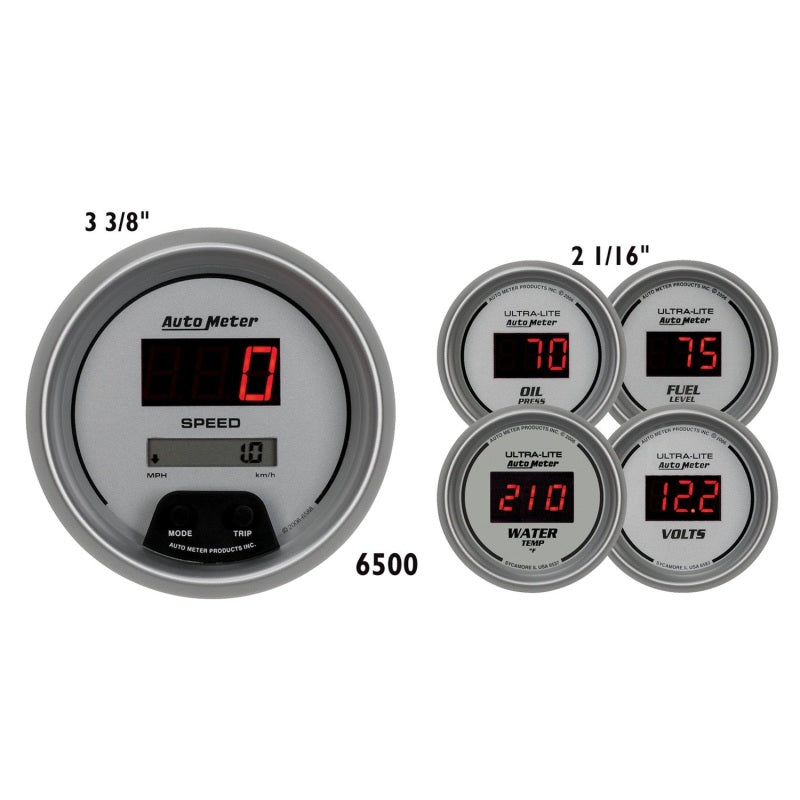

AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
Features & Benefits
- Kit includes all gauge mounting hardware and installation instructions
- Kit includes wire harnesses or flying leads for fuel level, oil pressure, voltmeter, and water temperature gauges for simplified installation.
- Speedometer is programmable with EZ Cal System - MPH or KM/H.
- It is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Speedometer can be easily calibrated using the trip reset button on the from of the unit and a premeasured two mile distance.
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, and 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD).
Specifications
-
Range: 260 MPH or KPH/100 PSI/0-340 °F/8-18V/Programmable
-
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
-
Gauge Type: 5 Piece Kit
-
Includes Mounting Hardware: Brackets Included
-
Bezel Color: Brushed Aluminum
-
Movement: Digital
-
Lighting Type: Digital LED
-
Lens Style: Flat, Clear
-
Includes Wire Harness: Fuel Level Harness 5233 - Temperature Harness 5226
-
Includes Sensor Unit: Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor
-
Lighting Color: Red
-
Dial Color: Silver
-
Bezel Style: Super Bezel
-
Series: ULTRA-LITE DIGITAL
